Fuel tank pressure sensor location/task/function - GF47.30-P-4032L

MODEL 129

with ENGINE 104.943 /991 as of 1.8.96,

112.923/943,113.961,119.982,120.983 with CODE (494a) USA version

MODEL 140

with ENGINE 104.944 /994 as of 1.8.96,

119.981 /980,120.982 with CODE (494a) USA version

MODEL 163 with ENGINE 112.942/970,113.942 /965 with CODE (494a) USA version

MODEL 170 with ENGINE 111.943/973/983,112.947 with CODE (494a) USA version

MODEL 202

with ENGINE 104.941 as of 1.8.96,

111.921 as of 1.9.98,

111.974,

111.975 as of 1.8.96

, 111.944/945,112.910 /920 with CODE (494a) USA version

MODEL 203 with ENGINE 111.951 /955, 112.912 /916 /946 /953 with CODE (494a) USA version

MODEL 208 with ENGINE 111.944/945/975 /112.940, 113.943 with CODE (494a) USA version

MODEL 209 with ENGINE 112.912/955, 113.968 with CODE (494a) USA version MODEL 210

with ENGINE 104.995,

111.942 as of 1.9.98,

111.947,112.911 /914/921/941,113.940,119.985/980 with CODE (494a) USA version

MODEL 215 with ENGINE 113.960,137.970 with CODE (494a) USA version

MODEL 220 with ENGINE 112.922 /944 /972 /975, 113.941 /948 /960 /966, 137.970 with CODE (494a) USA version

MODEL 230 with ENGINE 112.973,113.963 with CODE (494a) USA version

MODEL 211 with ENGINE 112.913 /917 /949 /954, 113.967 /969 with CODE (494a) USA version

Shown on model 210

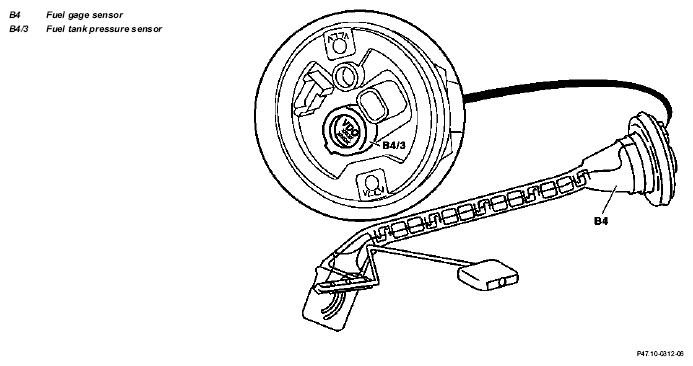

Fig 1: Identifying Fuel Gage Sensor And Fuel Tank Pressure Sensor

Fuel tank pressure sensor position	Model 129 as of 9/97, 140, 170, 210, 215, 220	GF47.30-P-4032-01A
	Model 163	GF47.30-P-4032-01GH
	Model 202 as of 10/97	GF47.30-P-4032-01E
	Model 203, 209	GF47.30-P-4032-01P
	Model 208	GF47.30-P-4032-01K
	Model 211	GF47.30-P-4032-01TA
	Model 230	GF47.30-P-4032-01AM
Fuel tank pressure sensor task	Detecting the internal pressure of the fuel tank for the leak test of the fuel system.
Fuel tank pressure sensor function	The output signal depends on the pressure inside the tank and is transmitted to the engine control unit.
