Purge control valve function - GF47.30-P-4030-02KE

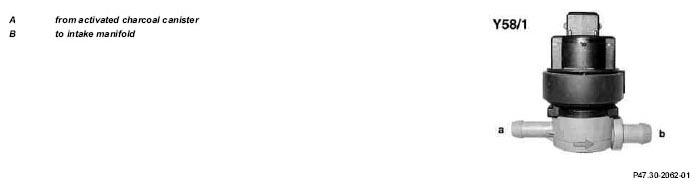

Y58/1 Purge control valve
The purge control valve (Y58/1) is actuated by the ME control unit by means of a PWM signal (ground side) in line with the operating condition of the engine.
If purging is actuated, the passage from the activated charcoal canister (a) to the intake manifold (b) is opened and closed.
The voltage supply to the purge control valve is performed by terminal 87.
