Purge system with leak test function - GF47.30-P-3016L

MODEL 129 as of 1.9.97

with ENGINE 104.943 /991 as of 1.8.96,

112.923/943,113.961,119.982,120.983 with CODE (494a) USA version

MODEL 140

with ENGINE 104.944 /994 as of 1.8.96,

119.980 /981,120.982 with CODE (494a) USA version

MODEL 163 with ENGINE 112.942/970,113.942 /965 with CODE (494a) USA version MODEL 170

with ENGINE 111.943,

111.946 as of 1.6.98,

111.973 /983,112.947 with CODE (494a) USA version

MODEL 202 as of 1.10.97

with ENGINE 104.941 as of 1.8.96,

111.921 as of 1.9.98,

111.944/945/974,

111.975 as of 1.8.96,

112.910 /920 with CODE (494a) USA version

MODEL 203 with ENGINE 112.912/946 /953 with CODE (494a) USA version

MODEL 208 with ENGINE 111.944/945/975 /112.940,113.943 with CODE (494a) USA version

MODEL 209 with ENGINE 112.912/955, 113.968 with CODE (494a) USA version

MODEL 210

with ENGINE 104.995,

111.942 as of 1.9.98,

111.947,112.911 /921 /941,113.940,119.985 with CODE (494a) USA version

MODEL 211 with ENGINE 112.913 /917 /949 /954,113.967 /969 with CODE (494a) USA version

MODEL 215 with ENGINE 113.960,137.970 with CODE (494a) USA version

MODEL 220 with ENGINE 112.922 /944 /972 /975, 113.941 /948 /960 /966, 137.970 with CODE (494a) USA version

MODEL 230 with ENGINE 112.973,113.963 with CODE (494a) USA version

Shown on ENGINE 119

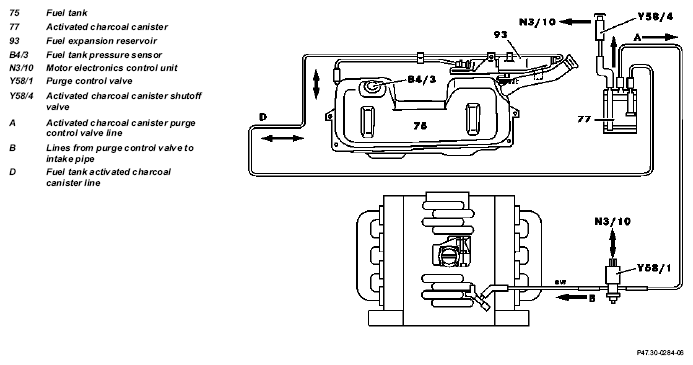

Fig 1: Identifying Purge System With Leak Test Function - Shown On Engine 119

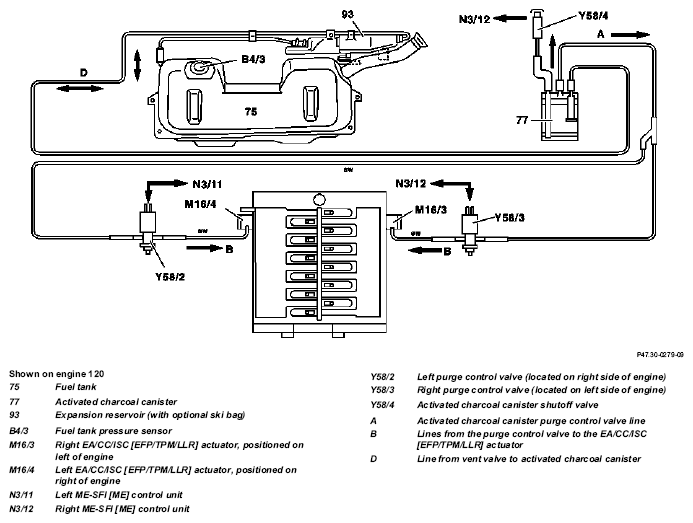

Fig 2: Identifying Purge System With Leak Test Function - Shown On Engine 120

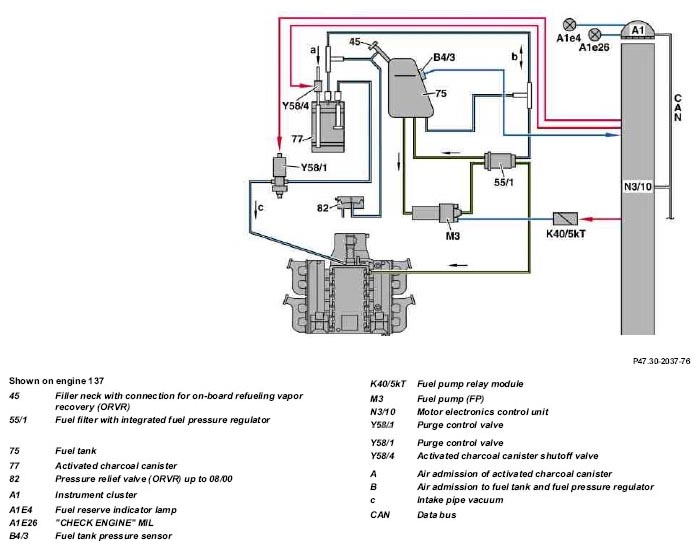

Fig 3: Identifying Purge System With Leak Test Function - Shown On Engine 137

The US legislature ( ) requires that no fuel vapors are released into the atmosphere.

The leak test of the fuel evaporation control system must be able to detect leaks with a diameter of approximately 1 mm and above, and from the model year 2000, leaks with a diameter of approximately 0.5 mm and above.

The leak test (function chain) takes place in three stages (if the prerequisites for testing have been fulfilled):

Test for major leaks
Test for a minor leak (equal to or greater than 1 mm)
Test for a very fine leak (equal to or greater than 0.5 mm)

Test for major leaks

The activated charcoal canister shut-off valve (Y58/4) is closed and the purge control valve (Y58/1) opened. The vacuum in the intake manifold (c) reaches the fuel tank (75). As a result, a vacuum builds up in the fuel tank.

This is detected by the fuel tank pressure sensor (B4/3).

If there is no vacuum build-up in the fuel tank

(around - 6 mbar within about 12 seconds), there is a major leak (e.g. filler cap open, loose hose line).

The diagnosis is aborted and the "major leak" fault is stored.

If the motor electronics control unit (N3/10) detects a system with a substantial major leak, the fuel reserve indicator lamp (A1e4) in the instrument cluster (A1) blinks, or the message "CHECK FILLER CAP" appears in the multifunction display.

Test for a minor leak

The purge control valve (Y58/1) is closed once a certain vacuum exists (approx. - -6 mbar). The system is now likewise closed. Finally the vacuum is evaluated for approx. 30 seconds. It must not drop any faster than 0.3 to 0.5 mbar per second (depending on the level of fuel in the tank). If the vacuum drops more rapidly, there is a minor leak. The "minor leak" fault is stored.

Test for micro leak (not engine 137.970)

If no minor leak has been detected, the purge system is briefly enabled and a vacuum of approx. - 6 mbar is built up again. The vacuum must not drop any faster than 0.1 to 0.15 mbar per second for a closed system (depending on the level of fuel in the tank).

If the vacuum builds up more rapidly, the "micro leak" fault is stored.

The reduction in the vacuum depends on the level in the fuel tank and on the degassing of the fuel. Degassing of the fuel is measured for a short time prior to the test and is allowed for in the fault statement. No test is conducted during the driving cycle if the fuel tank is filled to less than 1/4.

The activated charcoal canister shut-off valve (Y58/4) is reopened after the tests have been conducted.

Test requirements

Engine at idling speed
Vehicle stationary
Blocking time after starting the engine has expired (around 16 minutes) or Mixture adaptation is complete
Lambda control enabled
Intake air temperature less than +45°C
Coolant temperature at engine start less than +100°C -engine 112, 113: driving position D or R engaged
Secondary air injection not active
Air pressure more than around 780 hPa (i.e. above a height of approximately 2500 m, there is no test)
Low loading of activated charcoal canister
Fuel level in fuel tank between approx. 1/4 and 3/4
No fault in activated charcoal canister shut-off valve
No fault in the fuel tank pressure sensor
No fault in the purge control valve
Battery voltage higher than 11 V
No leak in the pressure relief valve (ORVR)
The test for "minor and micro leaks" is aborted if, during the vacuum build-up, a very high lean correction of the lambda control is performed.
The purge control valve (Y58/1) is simultaneously checked for its functioning

by actuating it. If the

closed valve jams, the "major leak" fault is stored.

In engine 120, there are two purge control valves. (Y58/2, Y58/3) These are actuated alternatively.
If no leakage for the "major leak" fault is found (there is a clear hissing sound in case of a leak greater than 3 mm), replace the fuel tank pressure sensor (B4/3). The fuel tank pressure sensor can be defective in such a manner that the signal is constant, but still plausible. (Sensor hangs).
If, due to a detective fuel level sensor, the fill level is implausible, the tests are not stopped.

Fuel tank pressure sensor location/task/function	Model 140, 163, 170, 203, 208, 209, 210, 211, 215, 220, 230 Model 129 as of 9/97 Model 202 as of 10/97	GF47.30-P-4032L
Activated charcoal canister shutoff valve location/task/design/function	Model 140, 163, 170, 203, 208, 209, 210, 211, 215, 220, 230 Model 129 as of 9/97 Model 202 as of 10/97	GF47.30-P-4033L
Purge control valve, location/task/design/ function		GF47.30-P-4030L
Motor electronics control unit, location/task/ design/function		GF07.61-P-5000F
Fuel gage sensor, location/task/design/function		GF47.10-P-3001B
Fuel tank, location/design/function	Model 129	GF47.10-P-3000A
	Model 140	GF47.10-P-3000C
	Model 168	GF47.10-P-3000GC
	Model 170	GF47.10-P-3000D
	Model 202, 208	GF47.10-P-3000E
	Model 203, 209	GF47.10-P-3000P
	Model 210	GF47.10-P-3000B
	Model 211	GF47.10-P-3000T
	Model 215, 220	GF47.10-P-3000K
	Model 230	GF47.10-P-3000R
