Vent valve position - GF47.30-P-3101-01GH

Model 163

Vent line with valve (76/1) at top of fuel tank

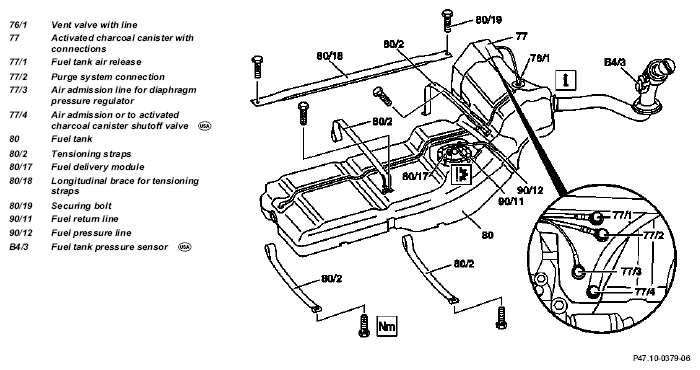

Fig 1: Identifying Fuel Tank Components
G04607564
