Starter control, function - GF15.30-P-3000GA

ENGINE 111.921 /942 as of 1.9.98,

111.943 /944 /946 /947 /973 with CODE (423a) 5-speed automatic transmission (new-generation)

ENGINE 111.945

in MODEL 208.335 /435 as of 1.6.98,

202.020 /080 as of 1.9.98 with CODE (423a) 5-speed automatic transmission (new-generation)

ENGINE 111.974

with CODE (423a) 5-speed automatic transmission (new-generation)

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

ENGINE 111.975 as of 1.8.96 with CODE (423a) 5-speed automatic transmission (new-generation)

ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975 with CODE (423a) 5-speed automatic transmission (new-generation)

ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969 with CODE (423a) 5-speed automatic transmission (new-generation)

ENGINE 120.983 as of 1.6.98

ENGINE 137.970

Task

After engine start speed is reached, interrupt the circuit (circuit 50) M1 to the solenoid switch of the starter.

Design

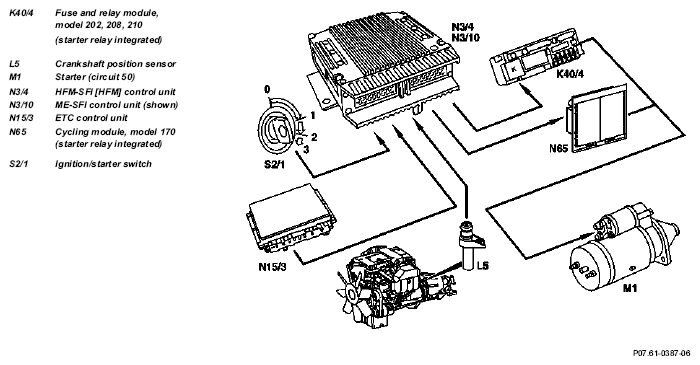

The solenoid switch of the starter is operated not through the ignition/ start switch S2/1, but in drive position P or N through the starter relay, by the engine control unit.

The voltage for the starter relay (coil) is supplied through circuit 87. The starter relay is actuated by the engine control unit through GND.

Function

When the ignition/start switch is operated in the start position, the engine control unit activates an automatic start control. Once the engine start speed of 400 to 700 rpm is reached, the engine control unit interrupts the ground actuation to the starter relay and thus the engine start operation.

Once the engine start operation is initiated, shutting off circuit 50 at the ignition/start switch has no effect. The starter rotates until the specified start speed is reached, or for about 5 seconds at an engine temperature of +80 °C, for a maximum of 10 seconds if the engine is cold.

	Motor electronics control unit, location/task/ design/function		GF07.61-P-5000F
	HFM-SFI control unit, location/task/design/ function		GF07.51-P-4103D
	Crankshaft position sensor, location/task/ design/function		GF07.04-P-4116F
	Start recognition function	Engine 104,, 111, 112, 113, 137 (via terminal 50)	GF07.13-P-3014G
		Engine 119, 120 (via engine speed signal)	GF07.13-P-3014F
	ETC control unit, location/task	Selector lever position information P/N and driving position engaged. Transmission 722.6	GF27.19-P-4012G
	Electronic ignition switch control unit, location/ task/design/function	Model 202 as of 6/97, 208, 210 as of 3/97	GF80.57-P-4102A
		Model 215, 220	GF80.57-P-4102S
		Model 203, 209	GF80.57-P-4102PP
