Prerequisites for testing generator - AR15.40-P-5009GH

ENGINE 111.977, 112.942/970, 113.942/965/981, 612.963, 628.963 in MODEL 163

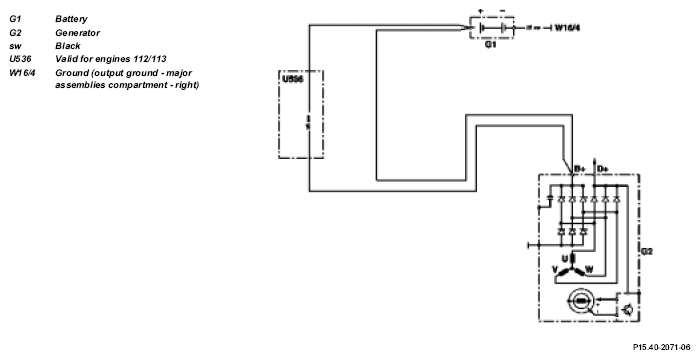

Fig 1: Connection Schematic Between Battery And Alternator

	Remove/Install
1	Open engine hood and raise to vertical position	Up to A145272, X708318.	AR88.40-P-1000GH
		As of A145273, X708319.	AR88.40-P-1000GI
	Testing
2	Check electrical line terminal 30 to the following items for firm seat and flawless condition	Battery (G1) (+) Generator (G2)(B+)
3	Check electric cable for circuit 31 at the following positions for correct seat and condition	Battery (G1) (-) Right major assemblies compartment ground, Common ground (W16/4) Engine ground strap/body
4	Inspect tension of poly V-belt
5	Inspect operation of charge indicator in instrument cluster		*BE54.30-P-1001-01A
6	Install in the reverse order
