Remove/install ignition coils - AR15.12-P-2003A

ENGINE 112.910 in MODELS 202.026 /086

ENGINE 112.920 in MODELS 202.029 /089

ENGINE 112.921 in MODELS 210.063 /081 /263 /281

ENGINE 112.922 in MODELS 220.063 /163

ENGINE 112.923 in MODEL 129.059

ENGINE 112.940 in MODELS 208.365 /465

ENGINE 112.941 in MODELS 210.065 /082 /265 /282

ENGINE 112.942 in MODEL 163.154

ENGINE 112.943 in MODEL 129.064

ENGINE 112.944 in MODELS 220.065 /165

ENGINE 112.945 in MODEL 463

ENGINE 113.940 in MODELS 210.070 /270

ENGINE 113.941 in MODELS 220.070 /170

ENGINE 113.960 in MODEL 215.375, 220.075 /175 /875

ENGINE 113.961 in MODEL 129.068

ENGINE 113.962 /982 in MODEL 463

ENGINE 113.980 in MODELS 210.074 /274

ENGINE 113.944 in MODELS 202.033 /093

ENGINE 113.942 in MODEL 163.172

ENGINE 113.943 in MODELS 208.370 /470

ENGINE 113.984 in MODELS 208.374

ENGINE 113.981 in MODEL 163.174

ENGINE 112.912 in MODELS 203.061 /261, 209.361 /461

ENGINE 112.946 in MODELS 203.064 /264

ENGINE 112.947 in MODEL 170.465

ENGINE 112.960 in MODEL 170.466

ENGINE 113.986 in MODEL 215.373, 220.073 /173

ENGINE 112.961 in MODELS 203.065 /265

ENGINE 113.965 in MODEL 163.175

ENGINE 113.963 in MODEL 230.475

ENGINE 113.968 in MODEL 209.375 /475

ENGINE 112.913 in MODELS 211.061 /261

ENGINE 112.949 in MODELS 211.065 /265

ENGINE 113.967 in MODELS 211.070 /270

ENGINE 113.992 in MODEL 230.474

ENGINE 113.987 in MODELS 209.376 /476

ENGINE 112.955 in MODELS 209.365 /465

ENGINE 113.990 in MODELS 211.076 /276

ENGINE 113.991 in MODELS 215.374, 220.074 /174

ENGINE 112.916 in MODELS 203.081 /281

ENGINE 112.953 in MODELS 203.084 /284

ENGINE 112.972 in MODELS 220.067 /167

ENGINE 112.973 in MODEL 230.467

ENGINE 112.970 in MODEL 163.157

ENGINE 112.975 in MODELS 220.087 /187

ENGINE 113.948 in MODELS 220.083 /183

ENGINE 113.966 in MODELS 220.084 /184

ENGINE 112.917 in MODELS 211.080 /280

ENGINE 112.954 in MODELS 211.082 /282

ENGINE 113.969 in MODELS 211.083 /283

ENGINE 113.988 in MODEL 203.076/276

ENGINE 113.993 in MODELS 463.270 /271

ENGINE 113.989 in MODEL 171.473

ENGINE 113.995 in MODEL 230.472

16.5.06

"Disconnect/connect ground line on battery" removed

Model 203, 209,

	Remove/install
	Risk of death caused by touching parts which conduct high voltages	Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) should never perform any work on the ignition system.	AS15.10-Z-0001-01A
	Notes on avoiding damage to ignition system		AH15.10-P-0002-01D
1.1	Deactivate service mode in TELE AID emergency call system	Only on model 463.270 with code: Tele-Aid car phone emergency call system ET2.	AR82.95-P-0005-03GR
	Notes on TELE AID emergency call system	Model 463.243/244/245/247/248/250/ 254/270/309/322/323/332/333 TELE AID car telephone emergency call system ET2	AH82.95-P-0001-01GA
2	Disconnect ground line from battery	Model 463 except model 463.241/248 with code 979 special protection version	AR54.10-P-0003G
		Model 463.241 with: special protection version code 979, -special protection version FB4 with code ZS4, -special protection version FB6 with code ZS6, -special protection version FB7 with code ZS7, additional battery 100 Ah incl. cutoff relay code E26.	AR54.10-P-0003PV
		Model 463.248 with: special protection version, code 979, -special protection version FB6, code ZS6, -special protection version FB7, code ZS7, -additional battery 100 Ah including cutoff relay, code E26.	AR54.10-P-0003PM
3.1	Unclip cover on front side of engine	Model 211, 215, 220, 230.475/476
4.1	Remove engine cover with integrated air filter	Except model 170.466, 203.065/076/265/276, 209.376/476 from 24.4.04, 211.076/276, 215.374, 220.074/174, 230.474, 463.270/271 The air filter is integrated in the engine cover. Remove the engine cover or the air filter housing by pulling it from the cylinder head covers vertically in the upward direction.
4.2	Remove air filter housing	Model 170.466, 203.065/265, 211.076/276, 215.374, 220.074/174, 230.474	AR09.10-P-1150SVK
		Model 203.076 /276, 209.376 /476 from 24.4.04, 171.473	AR09.10-P-1150AC
		Model 463.270/271	AR09.10-P-1150GX

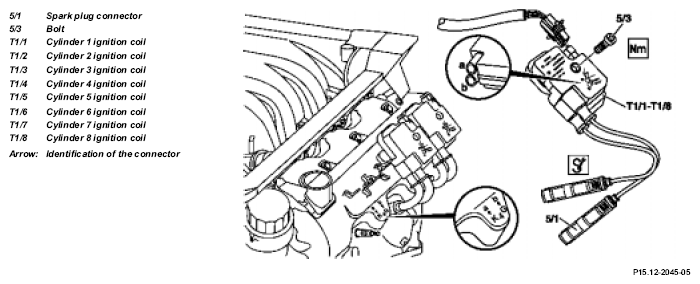

5	Unscrew screw (5/3)		*BA15.10-P-1001-04A
6	Detach spark plug connector (5/1) from the spark plugs	Pry off spark plug connector (5/1) using open-end wrench, double over the cylinder head cover of the spark plugs. Installation: Observe the identification of the connector (arrow) on the cylinder head cover and the ignition coil of cylinders 1 to 6 or 1 to 8 for the corresponding spark plug connector (5/1).
		Double open-ended wrench	Fig 2
7	Separate electrical connector of ignition coil of cylinder 1 to 6 (T1/1 to T1/6) or 1 to 8 (T1/1 to T1/8)	Installation:  Install new cable ties.
8	Remove ignition coil of cylinder 1 to 6 (T1/1 to T1/6)or 1 to 8(T1/1 to T1/8)
9	Install in the reverse order
10.1	Activate Service mode in Tele-Aid emergency call system	Only on model 463.270 with code: Tele-Aid car phone emergency call system ET2.	AR82.95-P-0005-03GR
	Notes on TELE AID emergency call system	Model 463.243/244/245/247/248/250/ 254/270/309/322/323/332/333 TELE AID car telephone emergency call system ET2	AH82.95-P-0001-01GA

Number	Designation		Engines 112,113
BA15.10-P-1001-04A	Bolt for ignition coil on cylinder head cover	Nm	8
