DTC Description

NOTE: Use this information to further understand DTC diagnosis and/or diagnose intermittent failures.

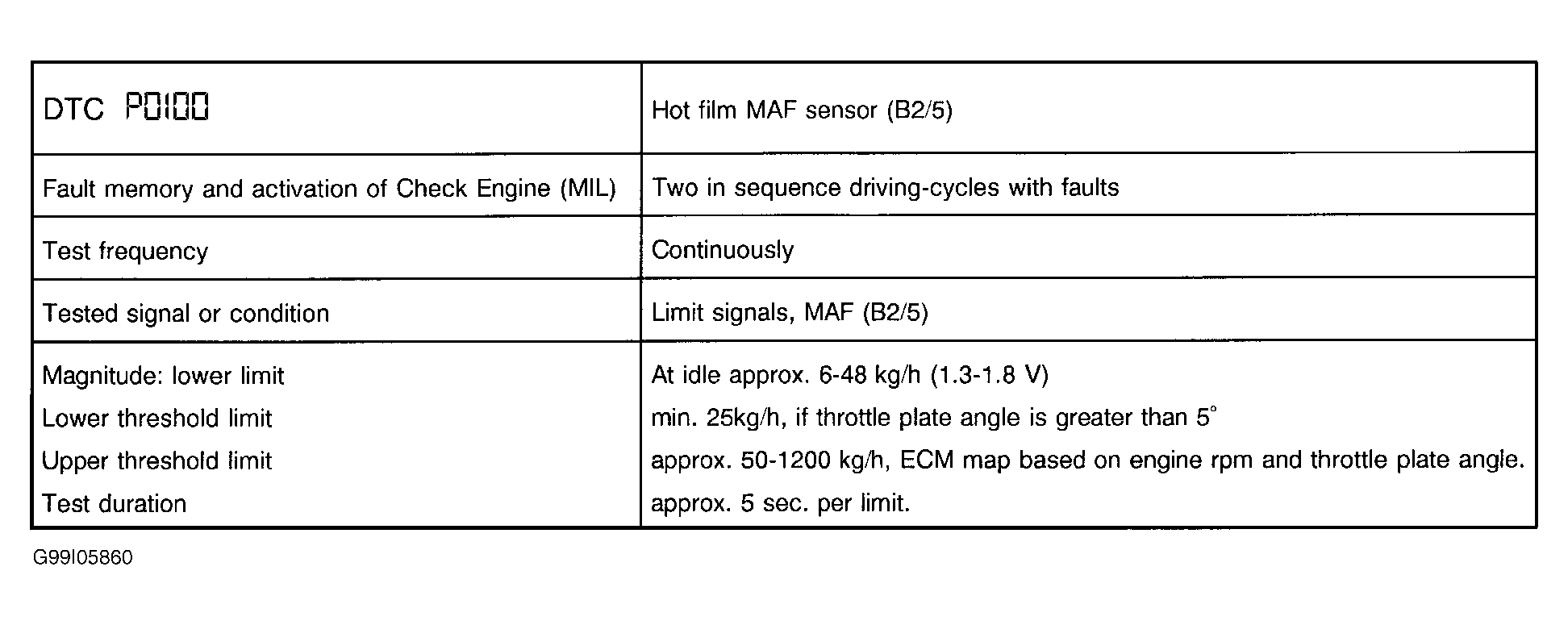

Fig 1: DTC Description (P0100)

G99I05860

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

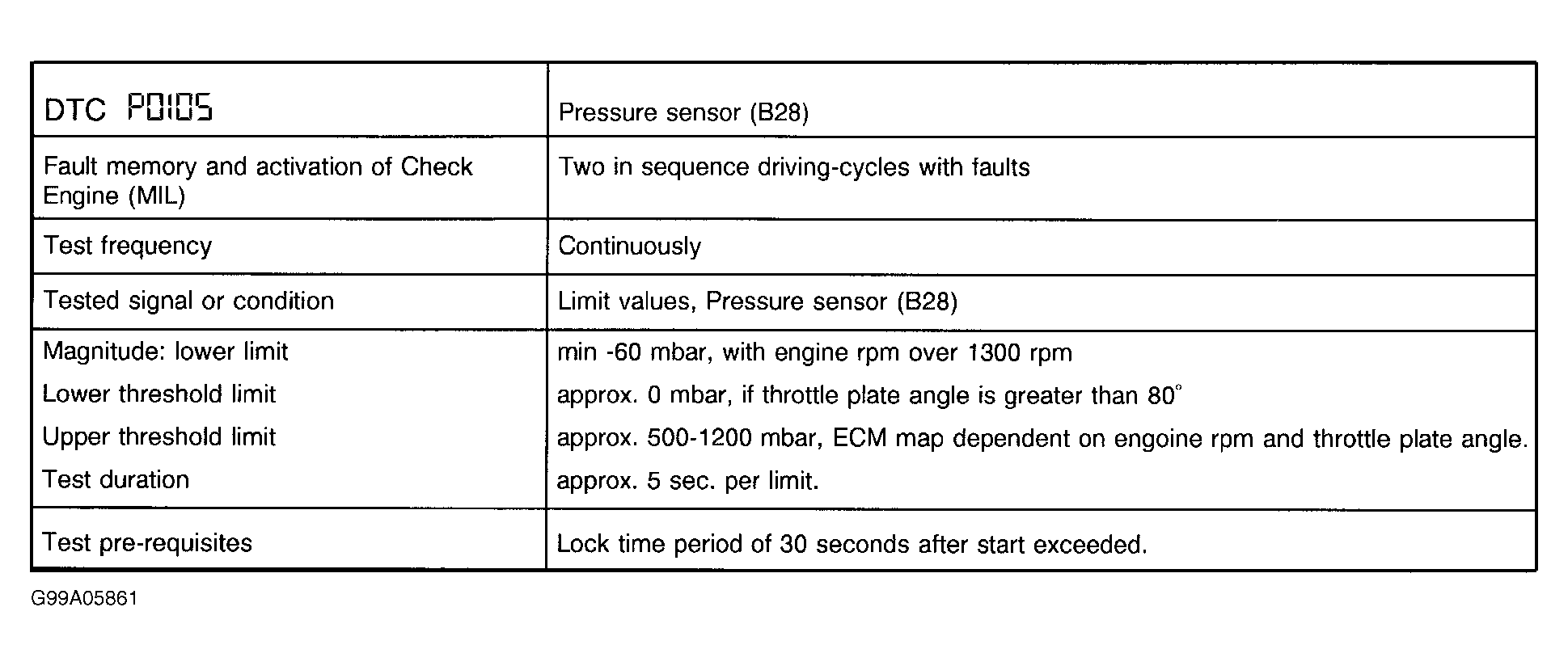

Fig 2: DTC Description (P0105)

G99A05861

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

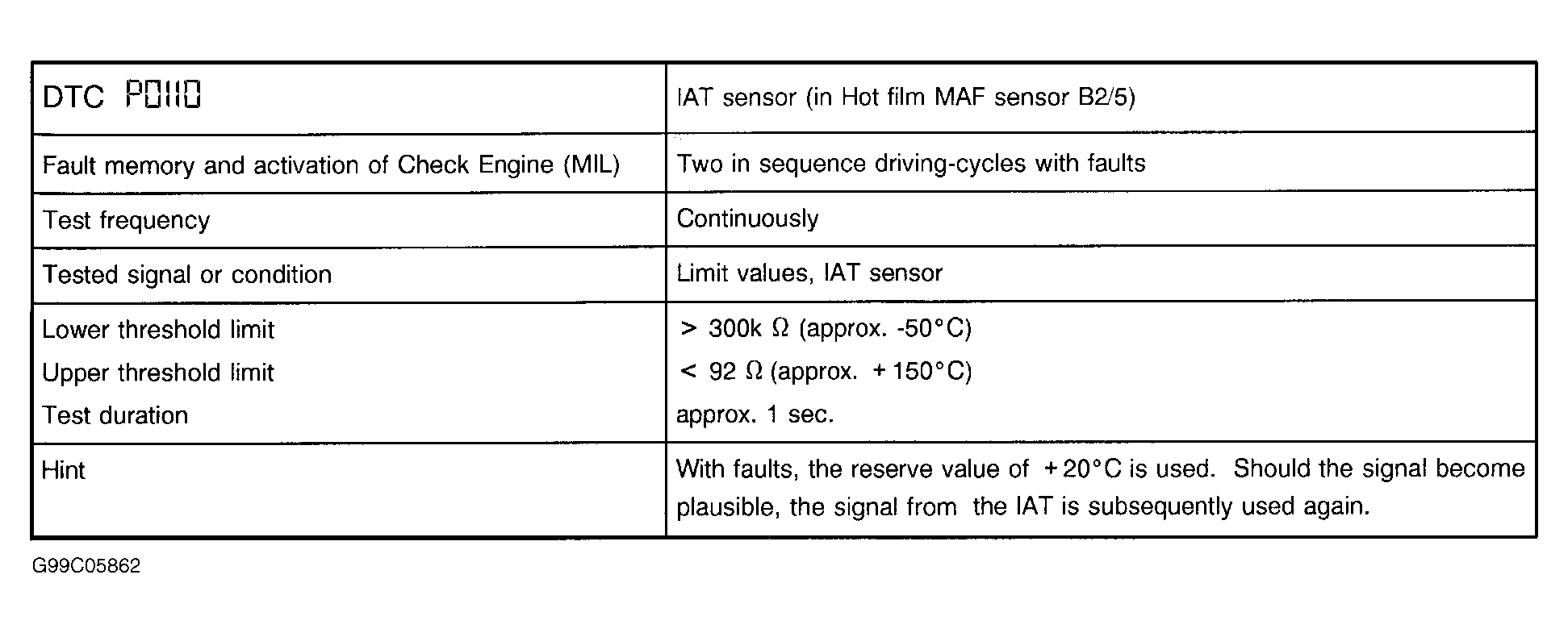

Fig 3: DTC Description (P0110)

G99C05862

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

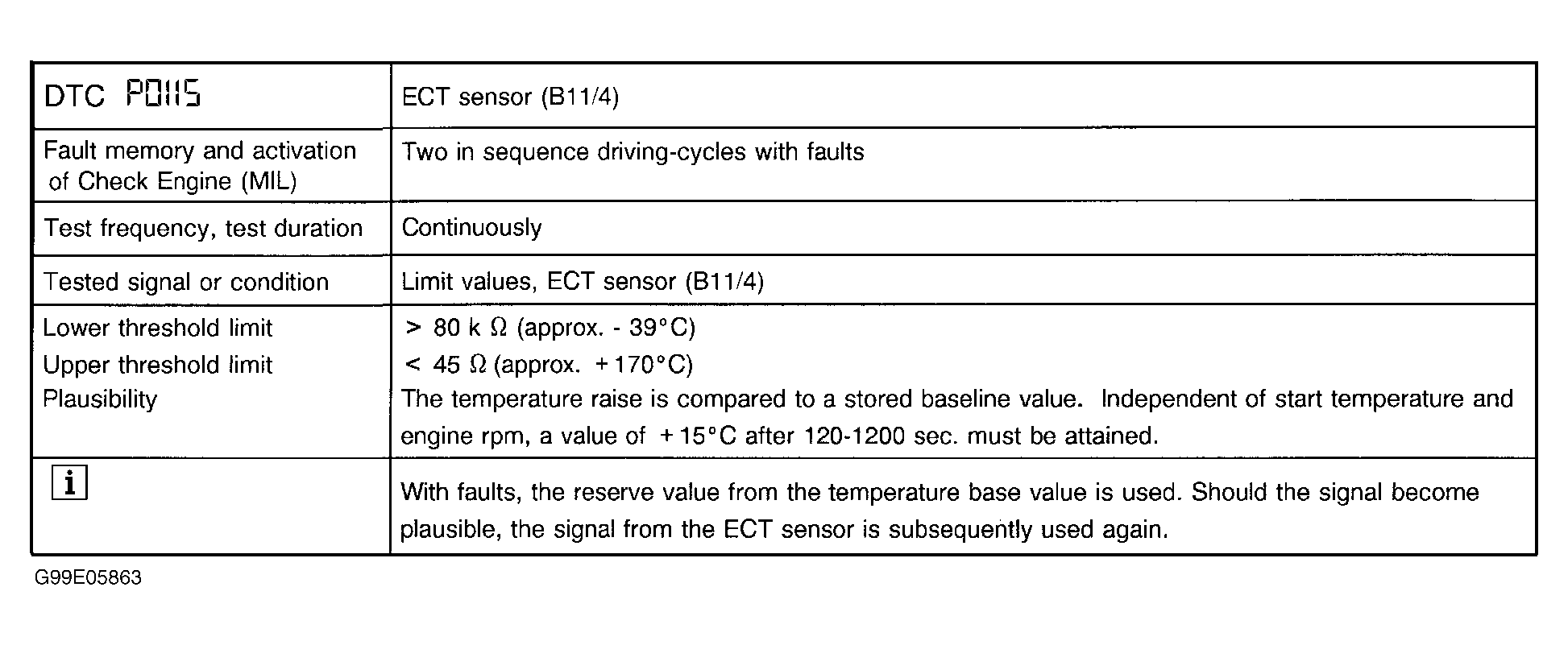

Fig 4: DTC Description (P0115)

G99E05863

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

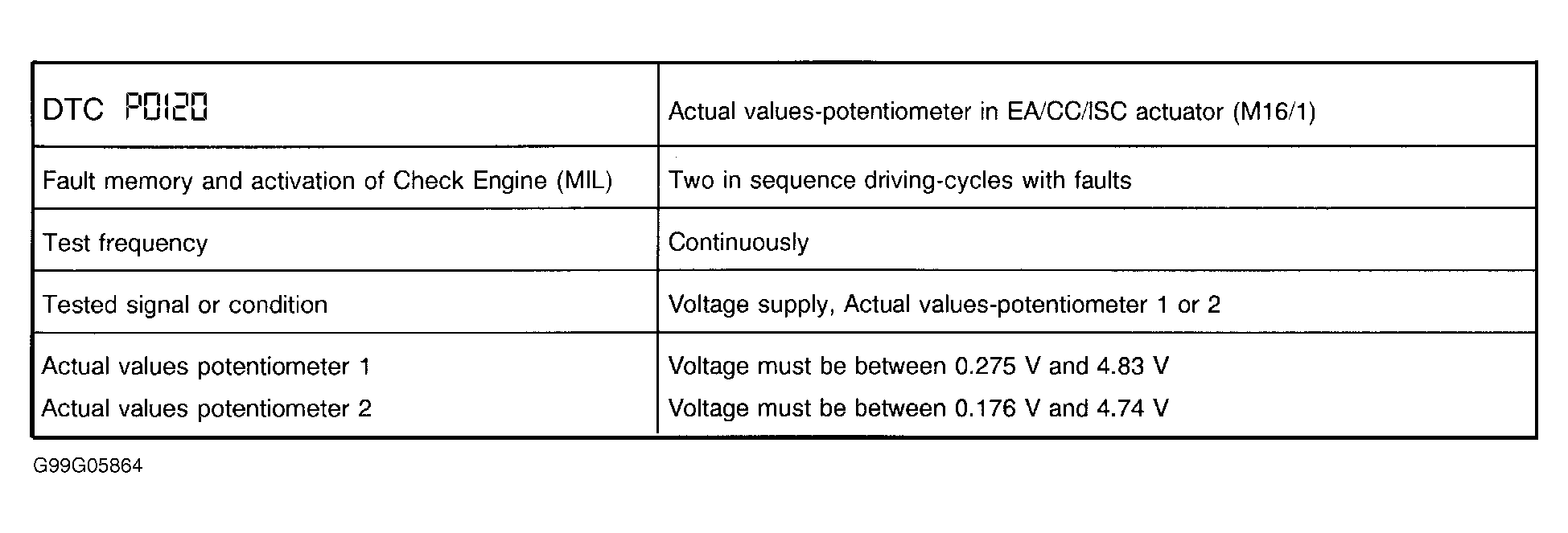

Fig 5: DTC Description (P0120)

G99G05864

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

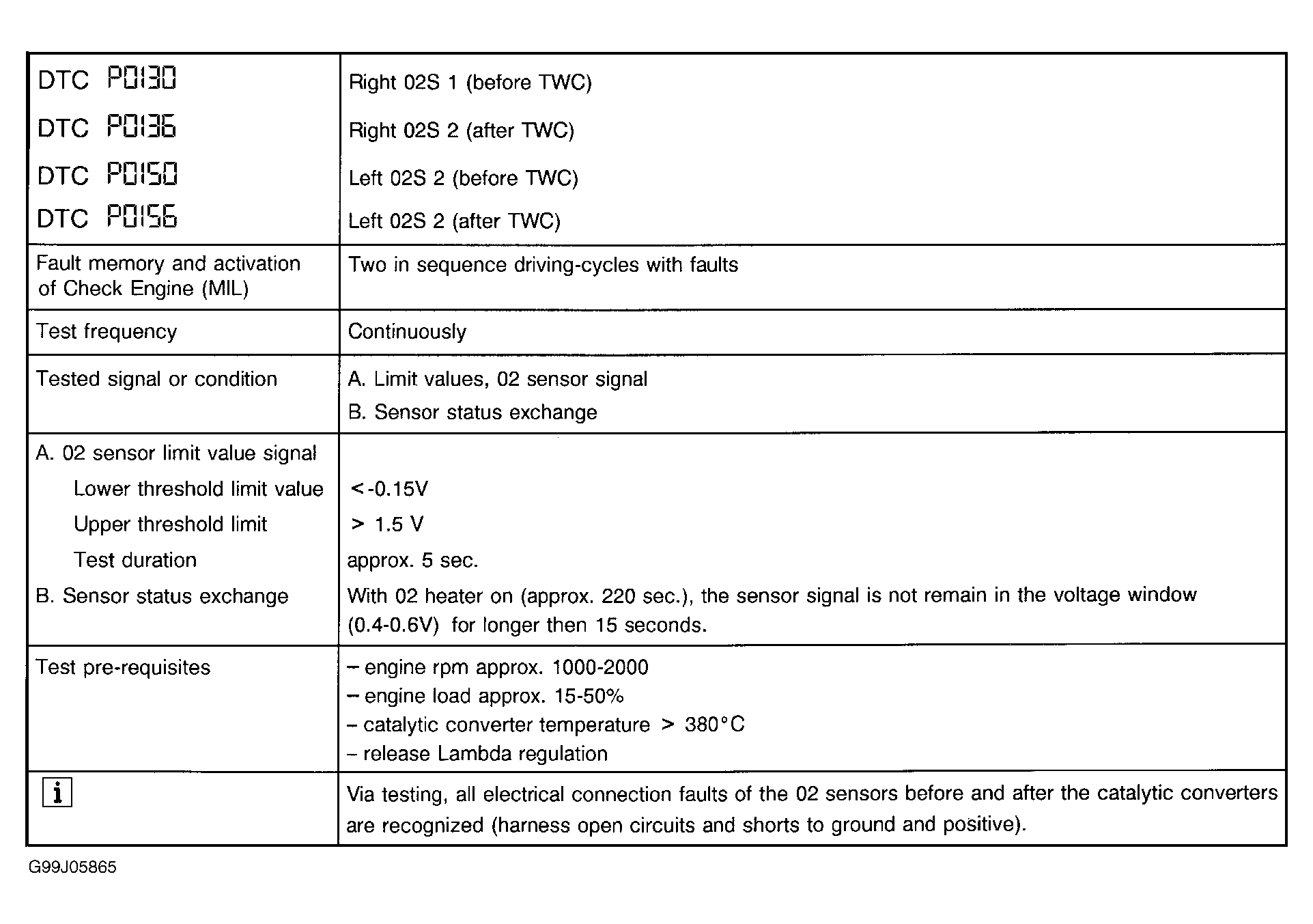

Fig 6: DTC Description (P0130, P0136, P0150 & P0156)

G99J05865

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

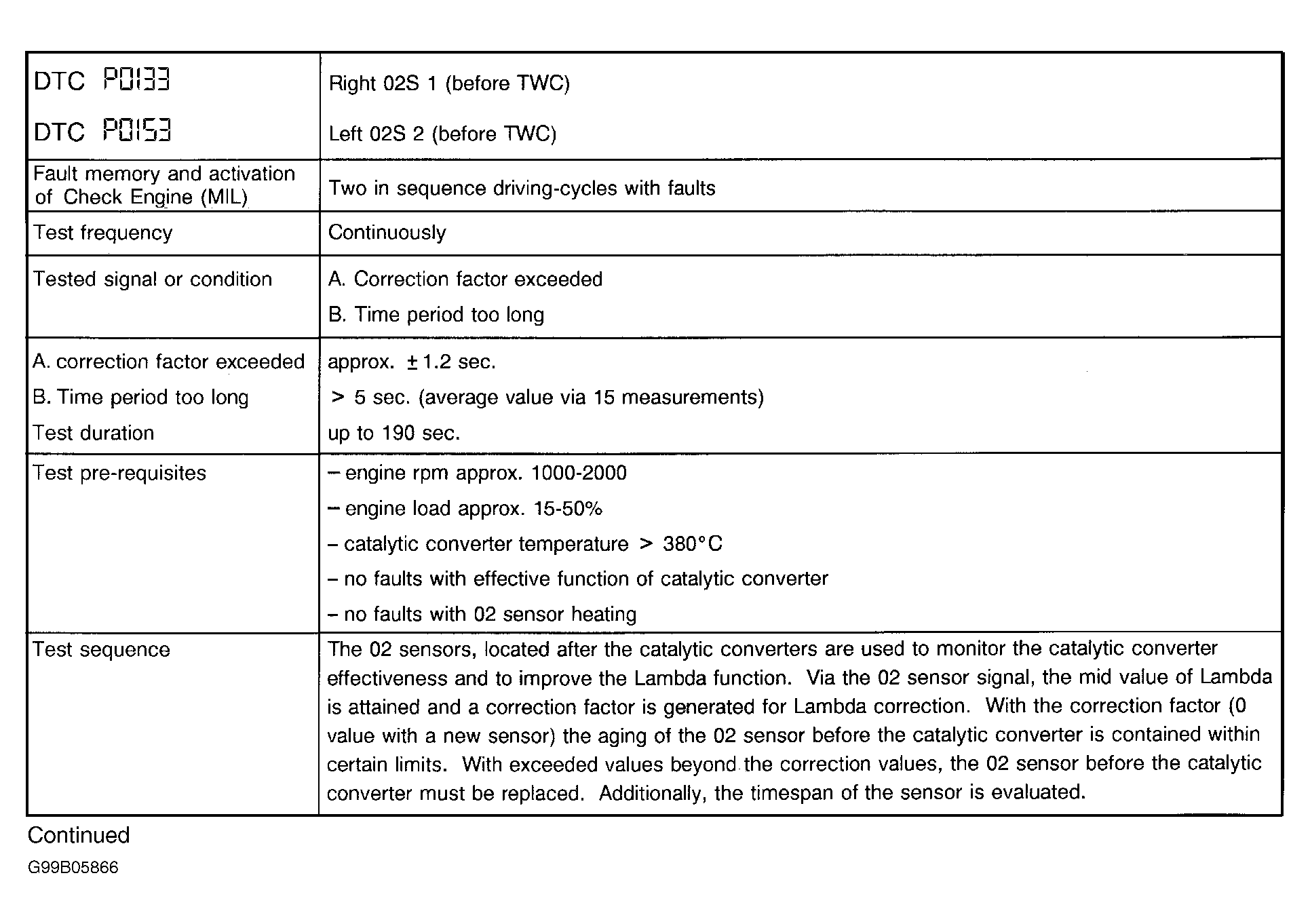

Fig 7: DTC Description (P0133 & P0153 - 1 Of 2)

G99B05866

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

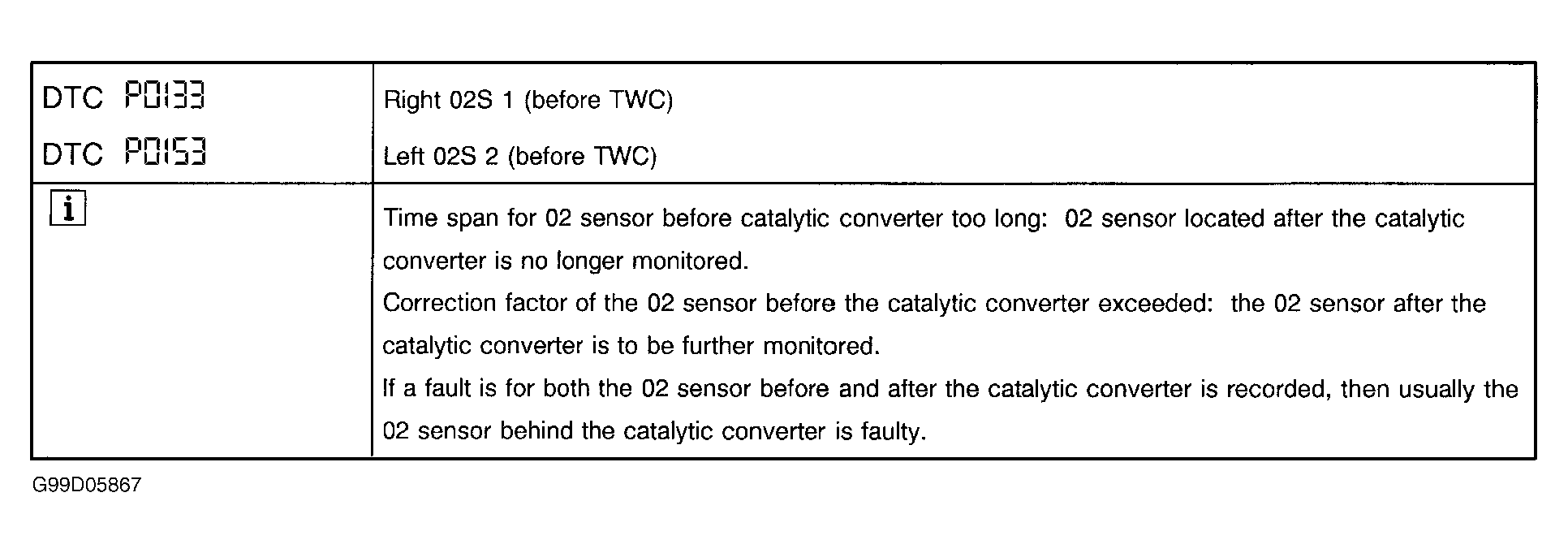

Fig 8: DTC Description (P0133 & P0153 - 2 Of 2)

G99D05867

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

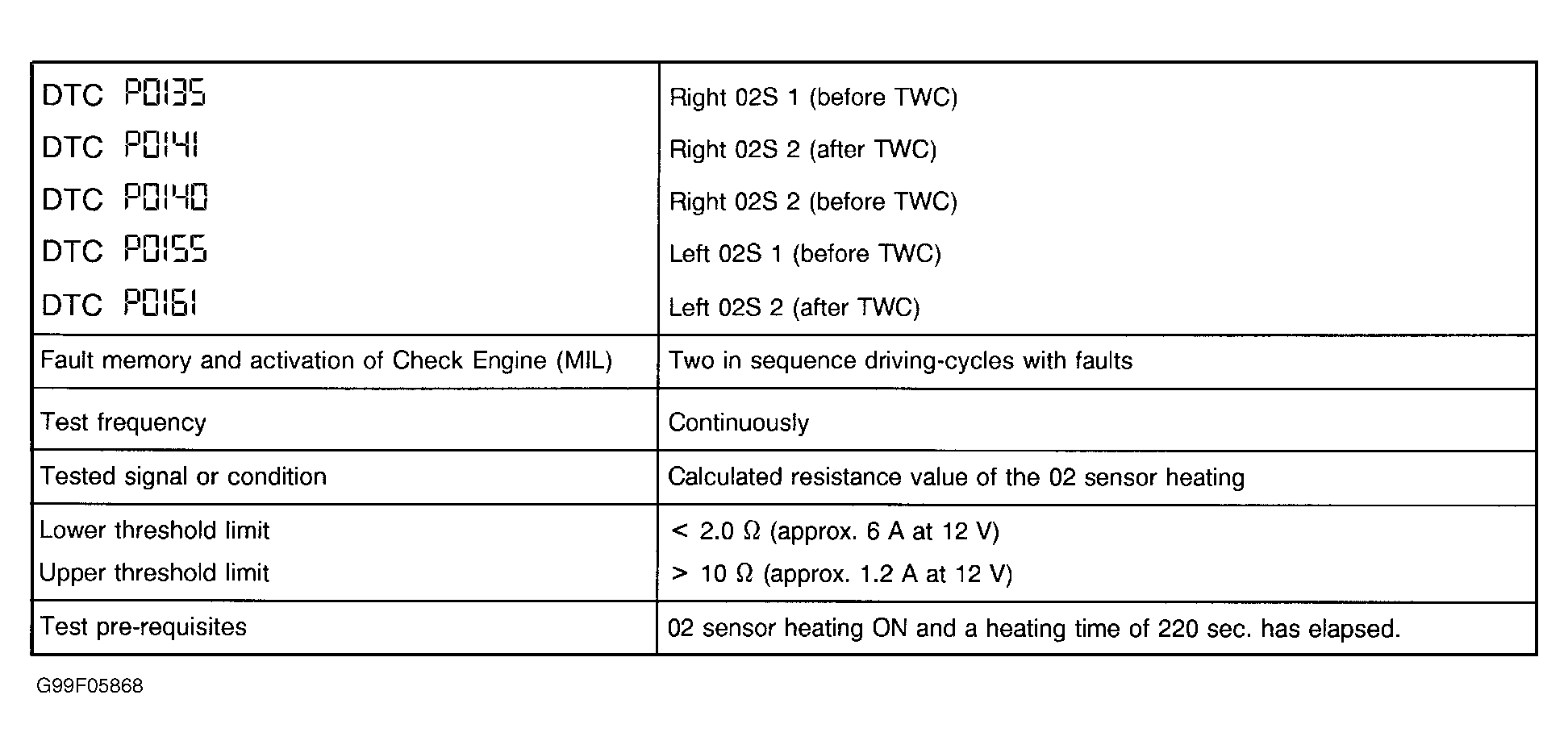

Fig 9: DTC Description (P0135, P0141, P0140, P0155 & P0161)

G99F05868

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

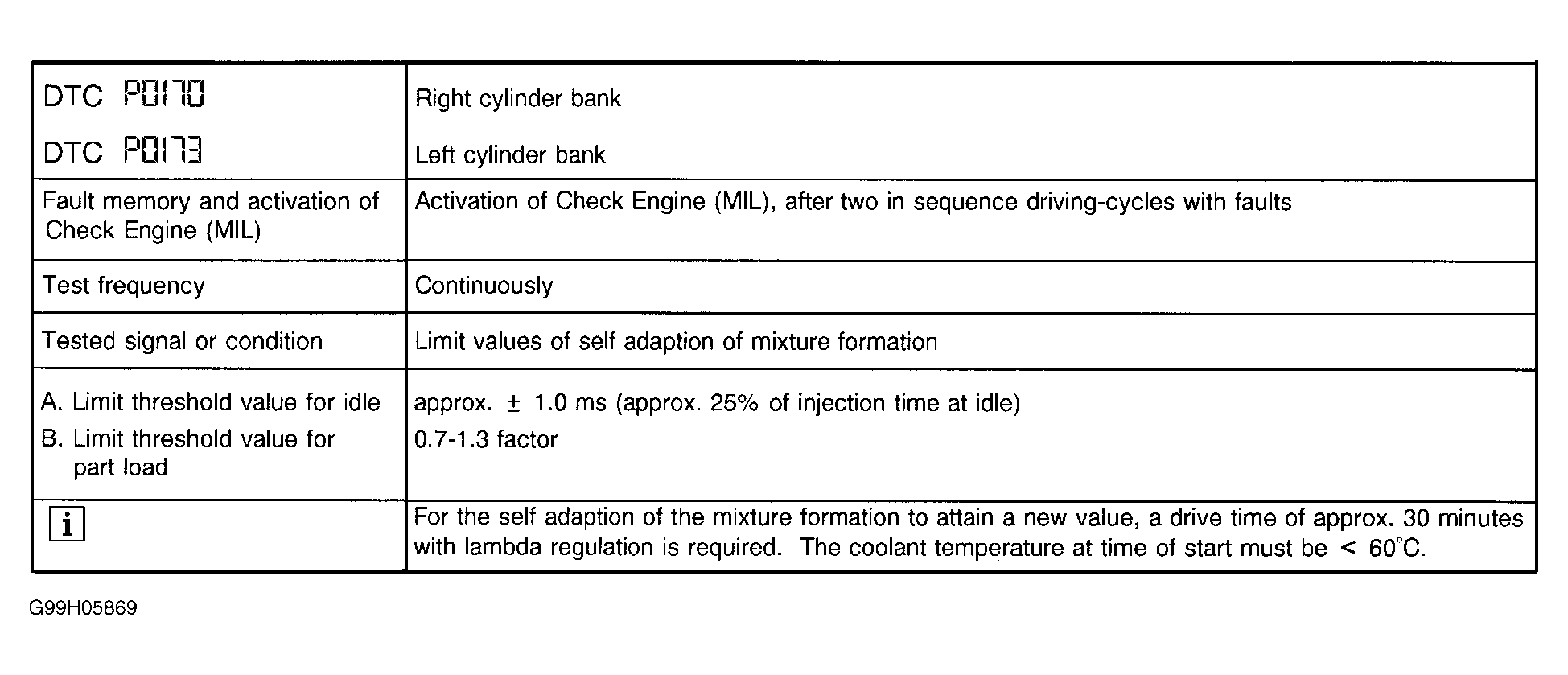

Fig 10: DTC Description (P0170 & P0173)

G99H05869

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

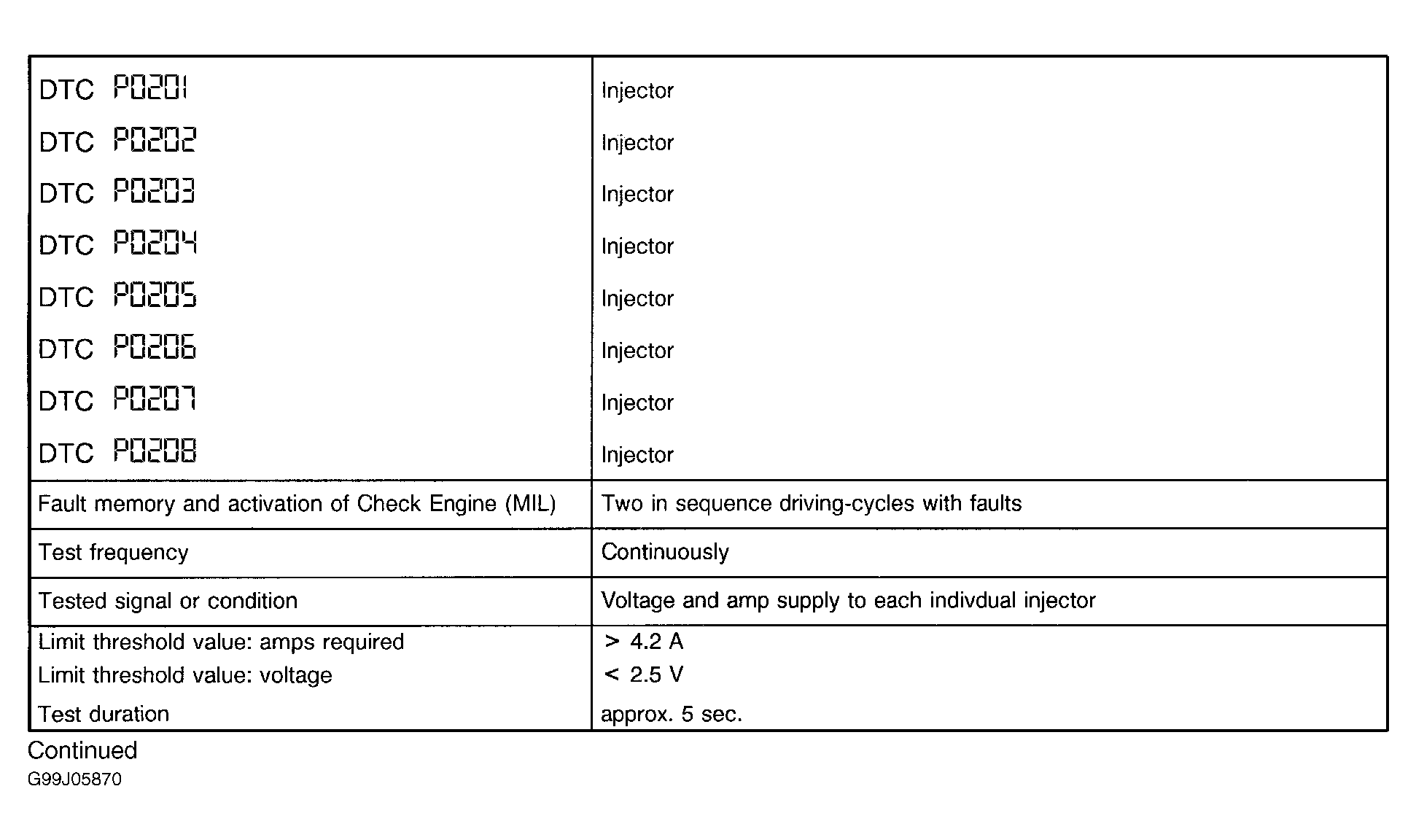

Fig 11: DTC Description (P0201, P0202, P0203, P0204, P0205, P0206, P0207 & P0208 - 1 Of 2)

G99J05870

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

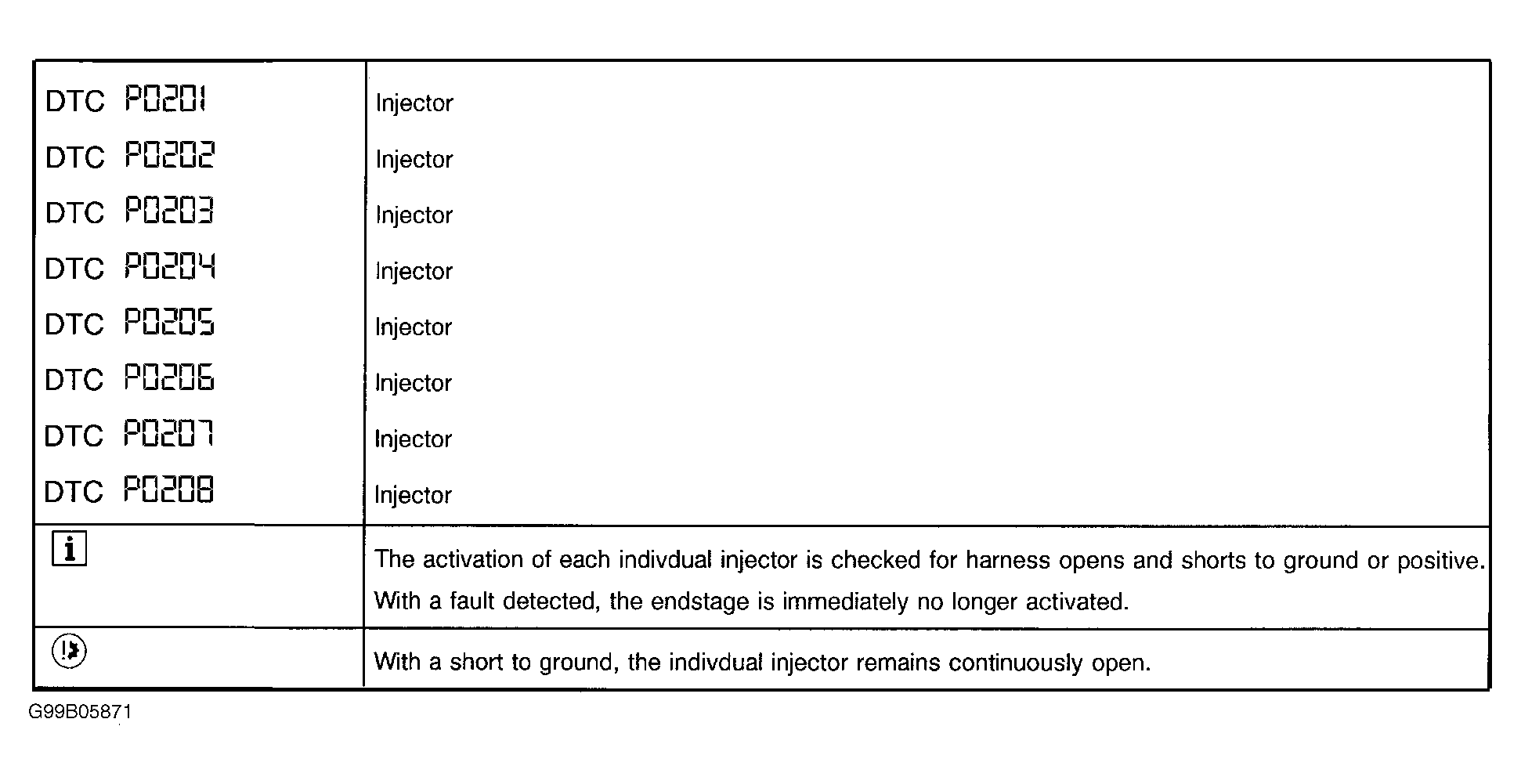

Fig 12: DTC Description (P0201, P0202, P0203, P0204, P0205, P0206, P0207 & P0208 - 2 Of 2)

G99B05871

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

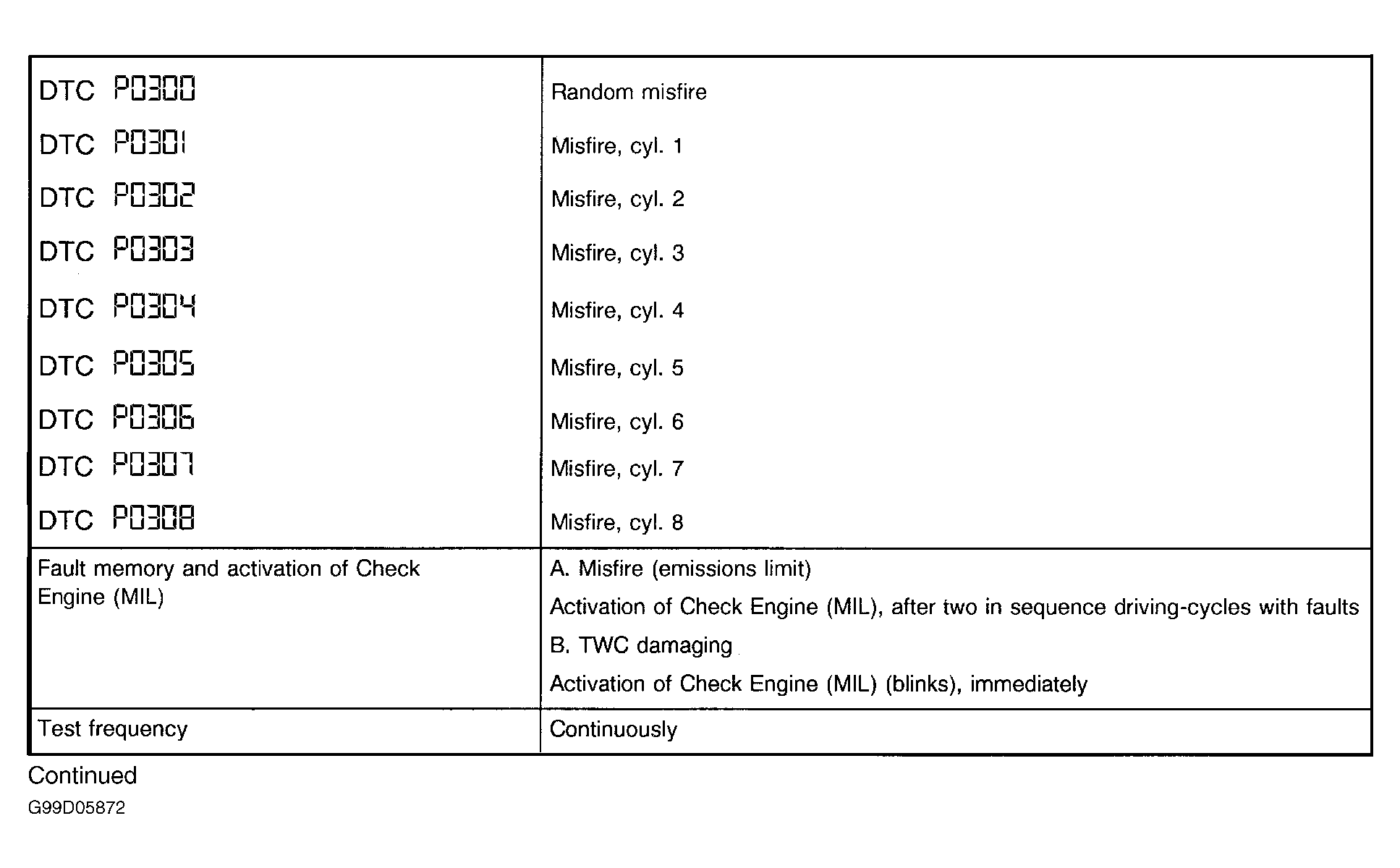

Fig 13: DTC Description (P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307 & P0308 - 1 Of 5)

G99D05872

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

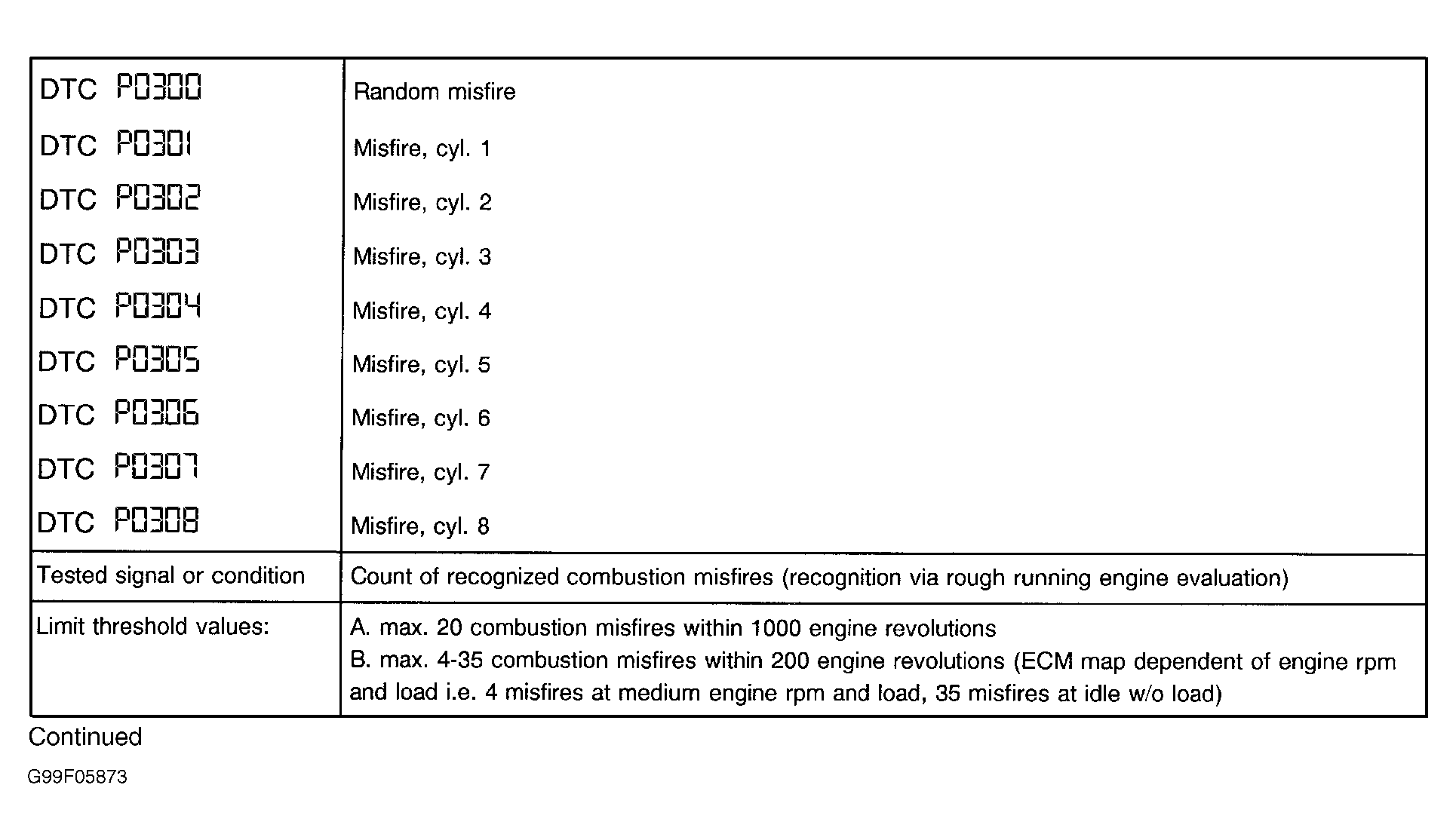

Fig 14: DTC Description (P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307 & P0308 - 2 Of 5)

G99F05873

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

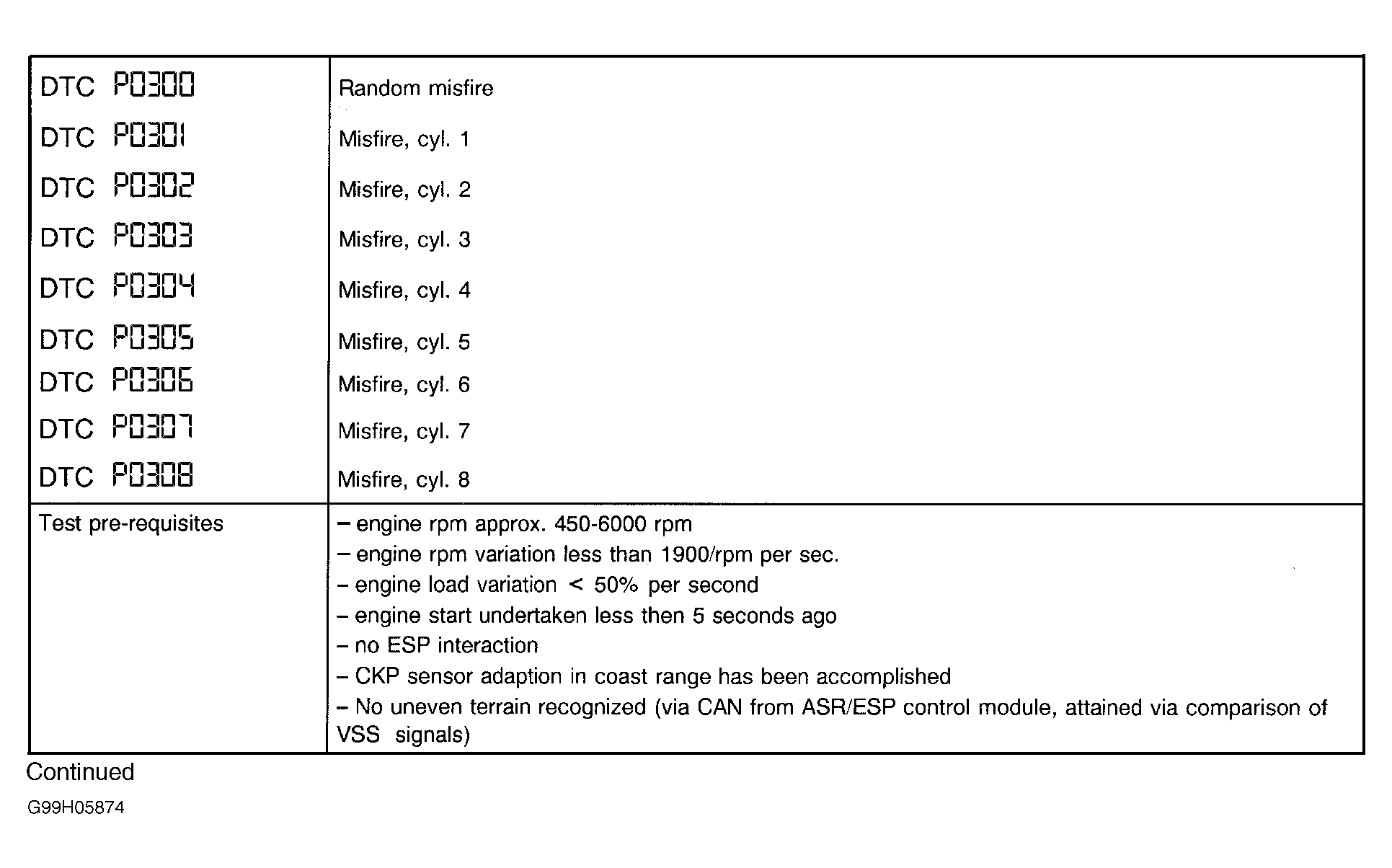

Fig 15: DTC Description (P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307 & P0308 - 3 Of 5)

G99H05874

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

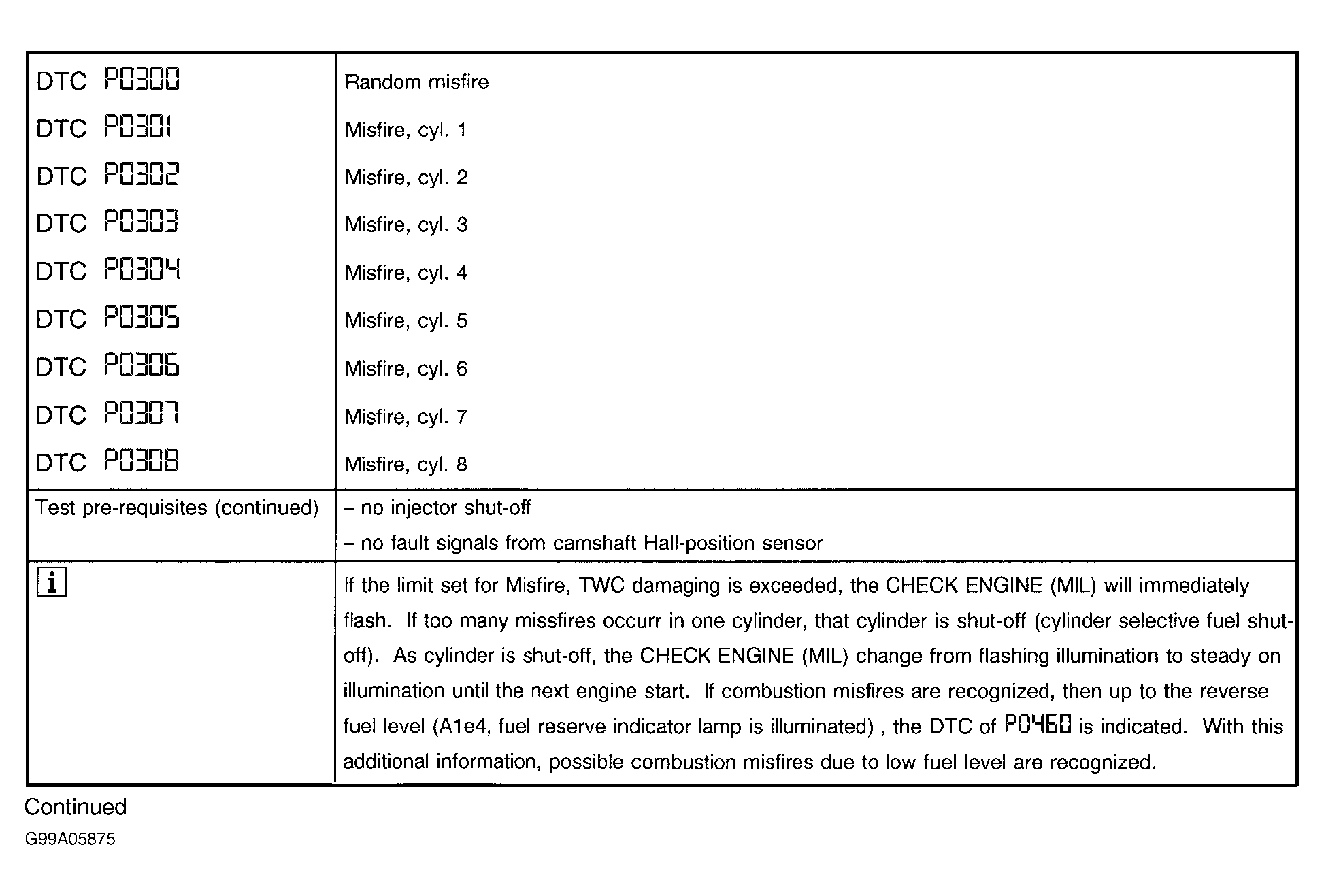

Fig 16: DTC Description (P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307 & P0308 - 4 Of 5)

G99A05875

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

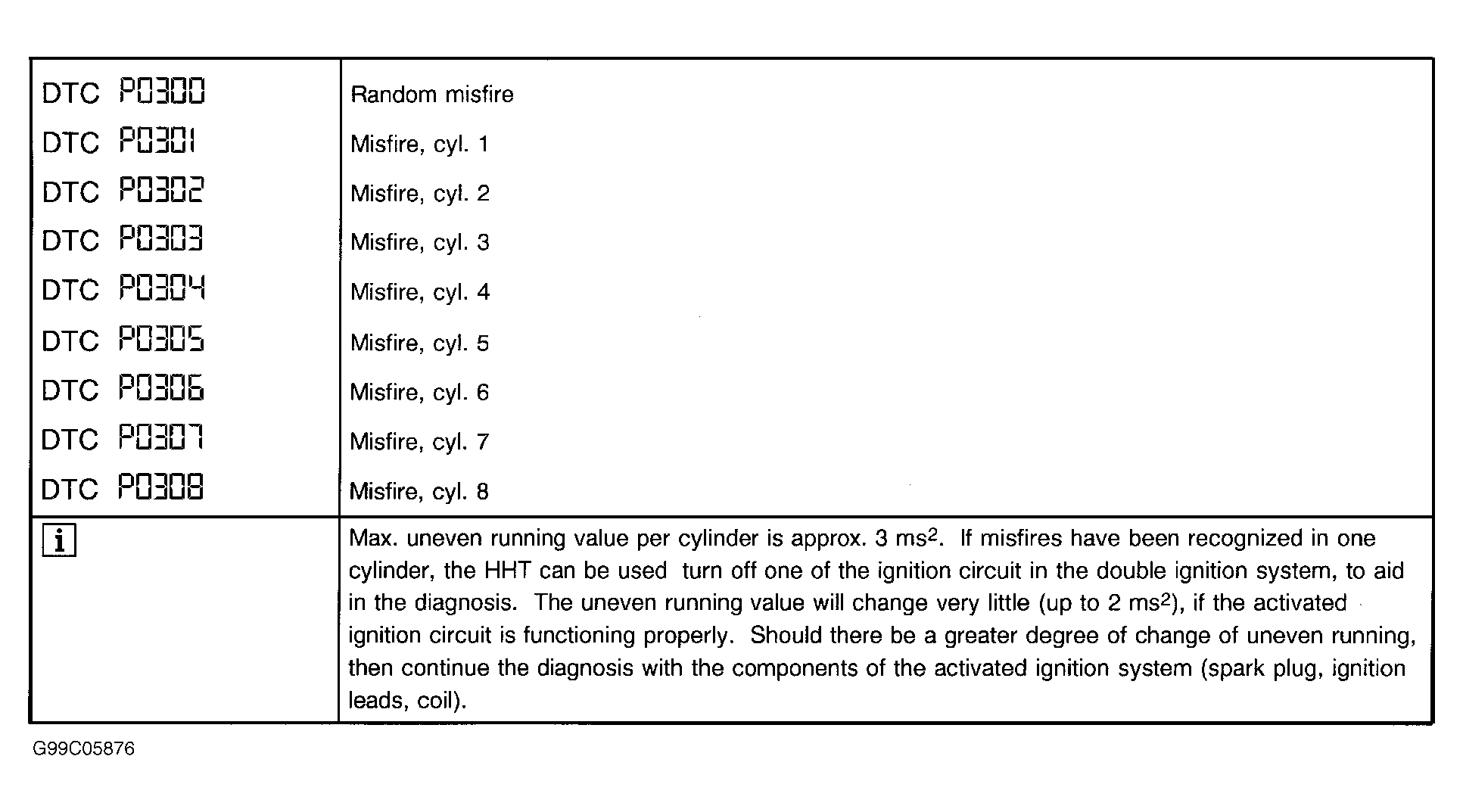

Fig 17: DTC Description (P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307 & P0308 - 5 Of 5)

G99C05876

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

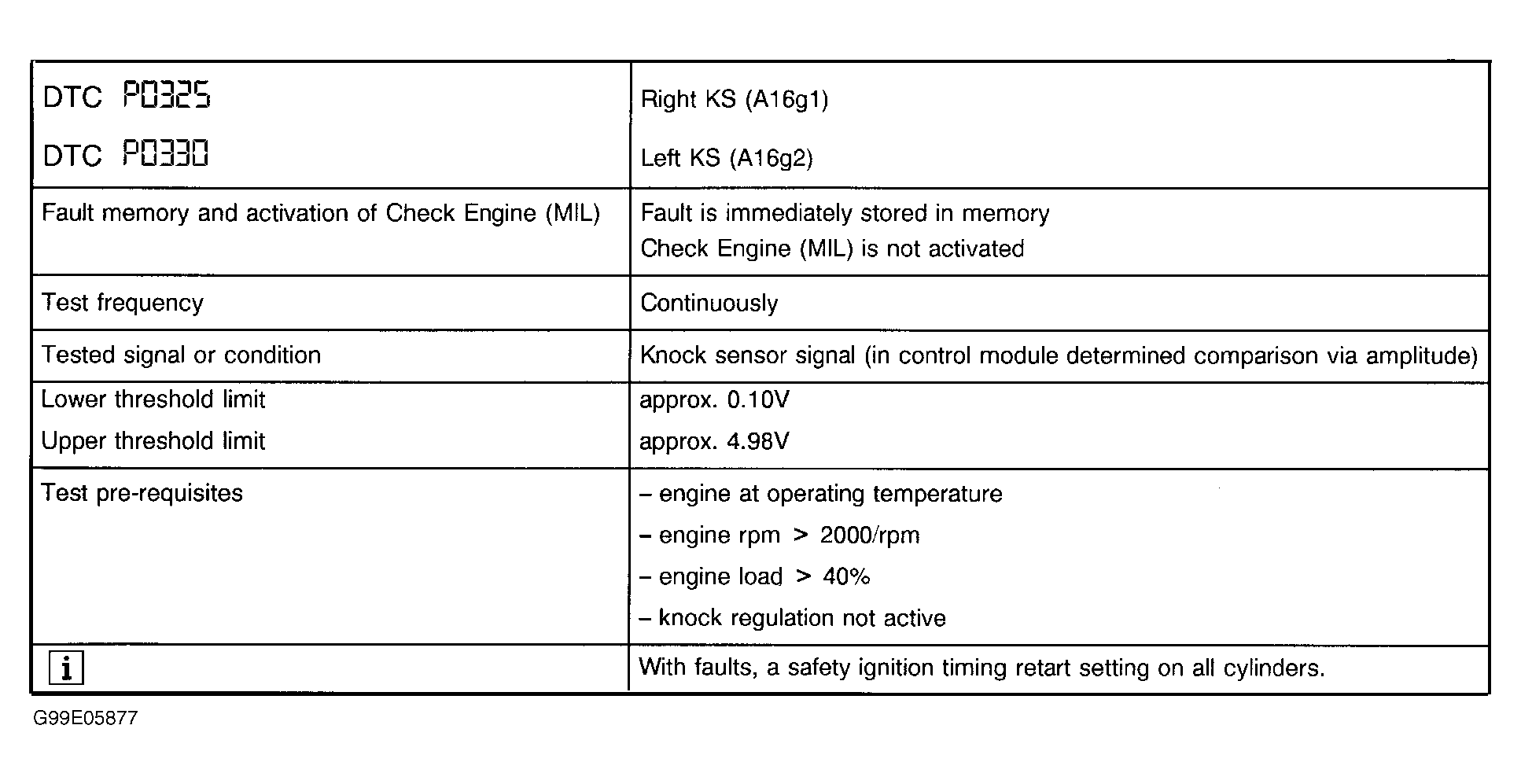

Fig 18: DTC Description (P0325 & P0330)

G99E05877

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

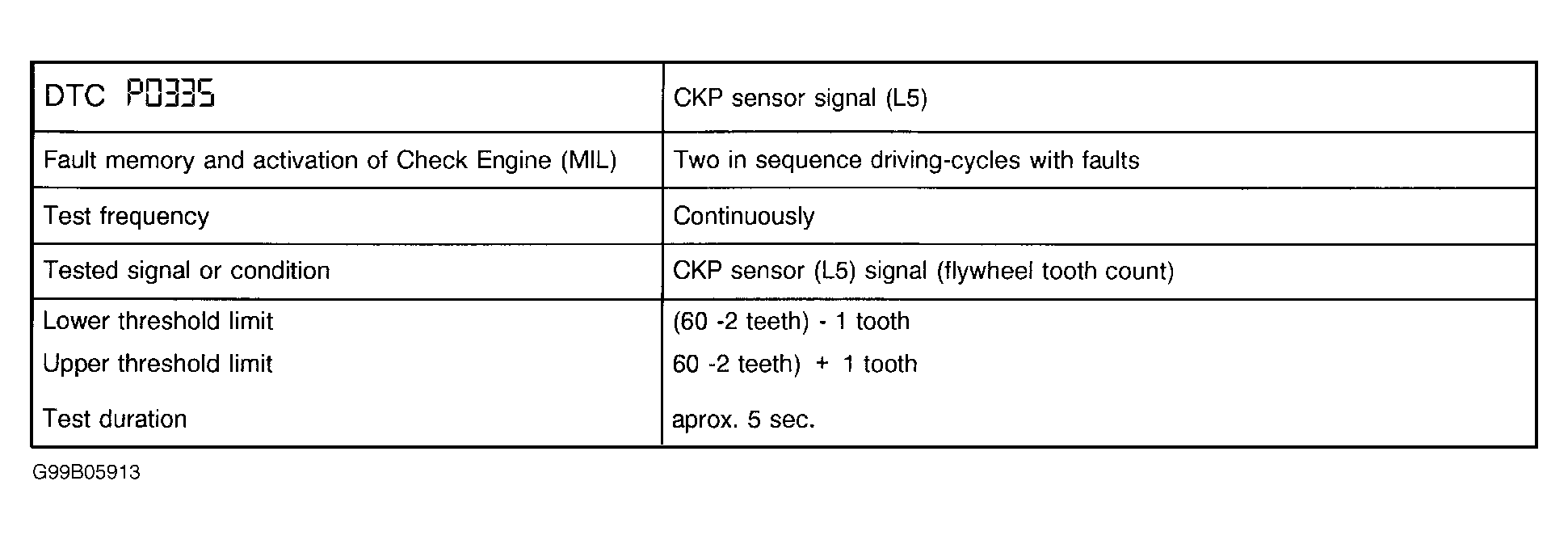

Fig 19: DTC Description (P0335)

G99B05913

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

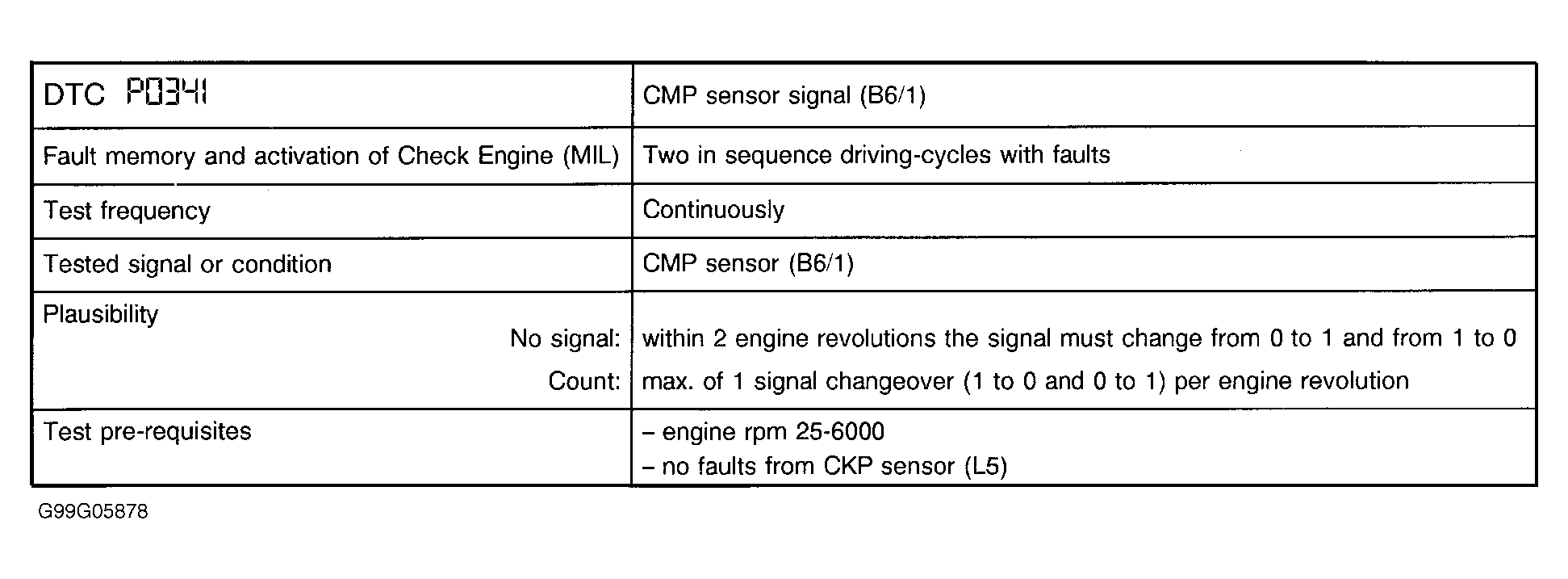

Fig 20: DTC Description (P0341)

G99G05878

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

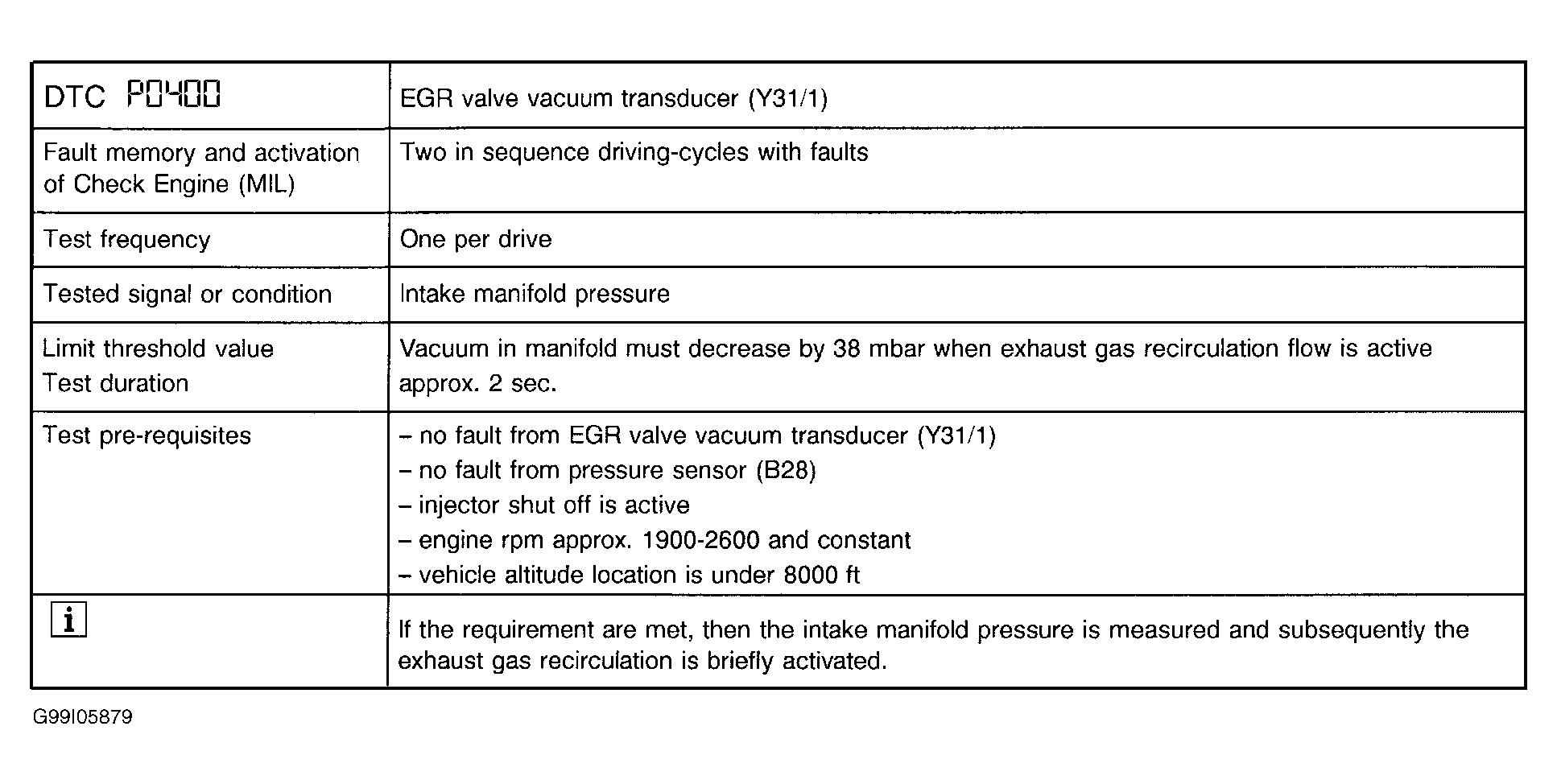

Fig 21: DTC Description (P0400)

G99I05879

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

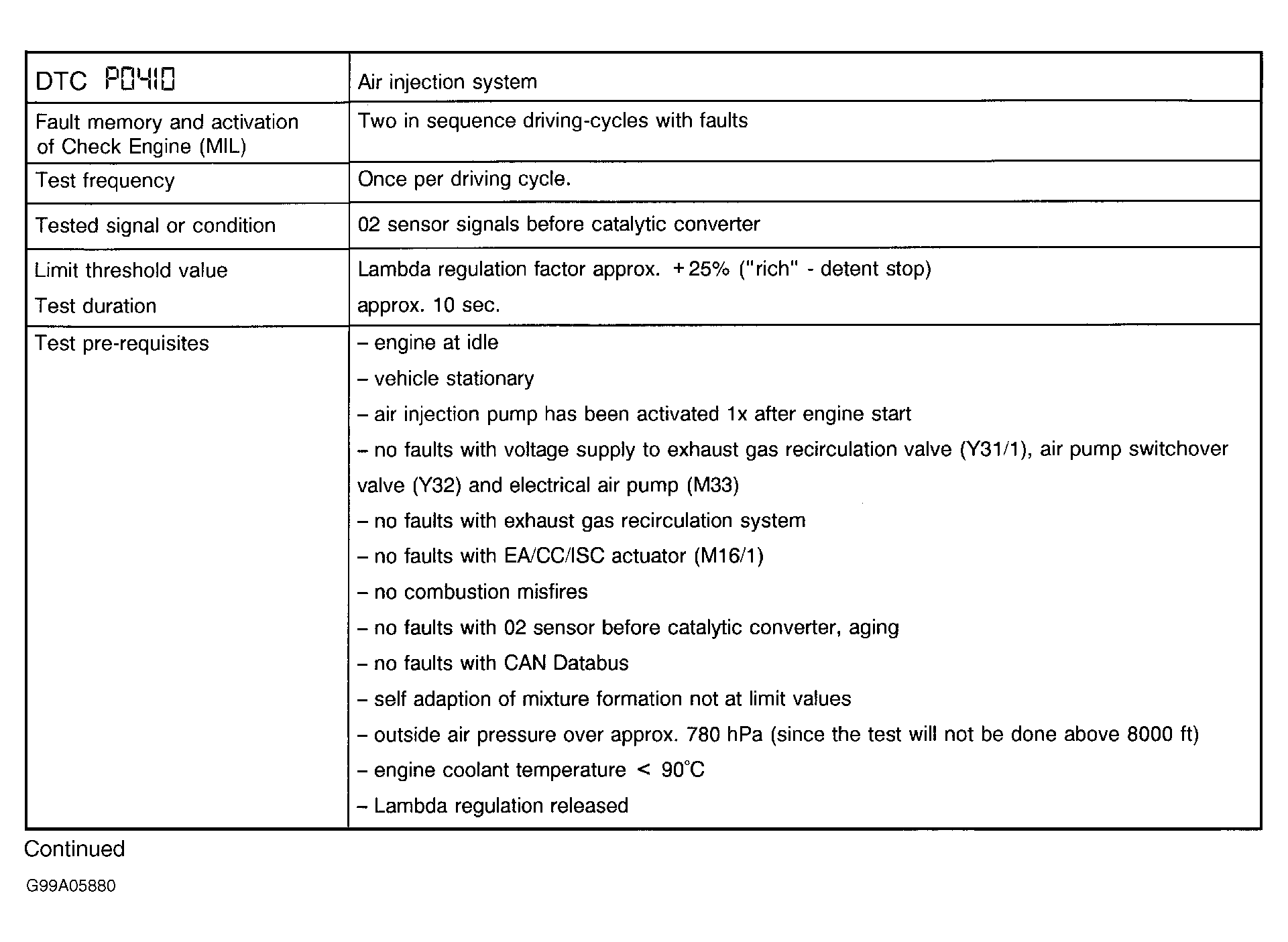

Fig 22: DTC Description (P0410 - 1 Of 2)

G99A05880

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

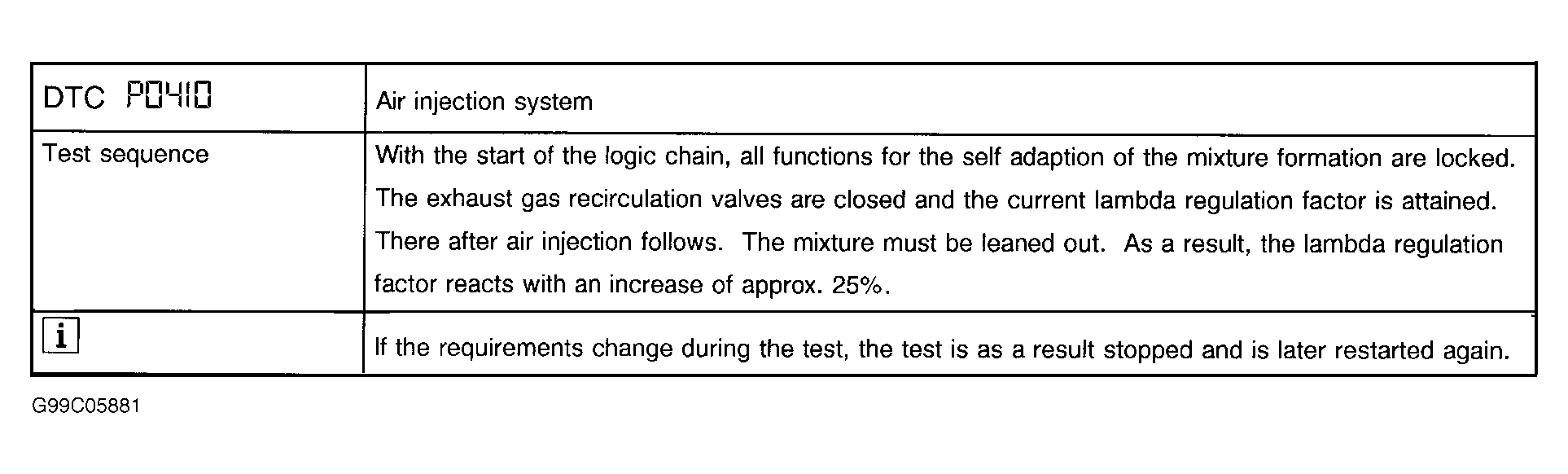

Fig 23: DTC Description (P0410 - 2 Of 2)

G99C05881

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

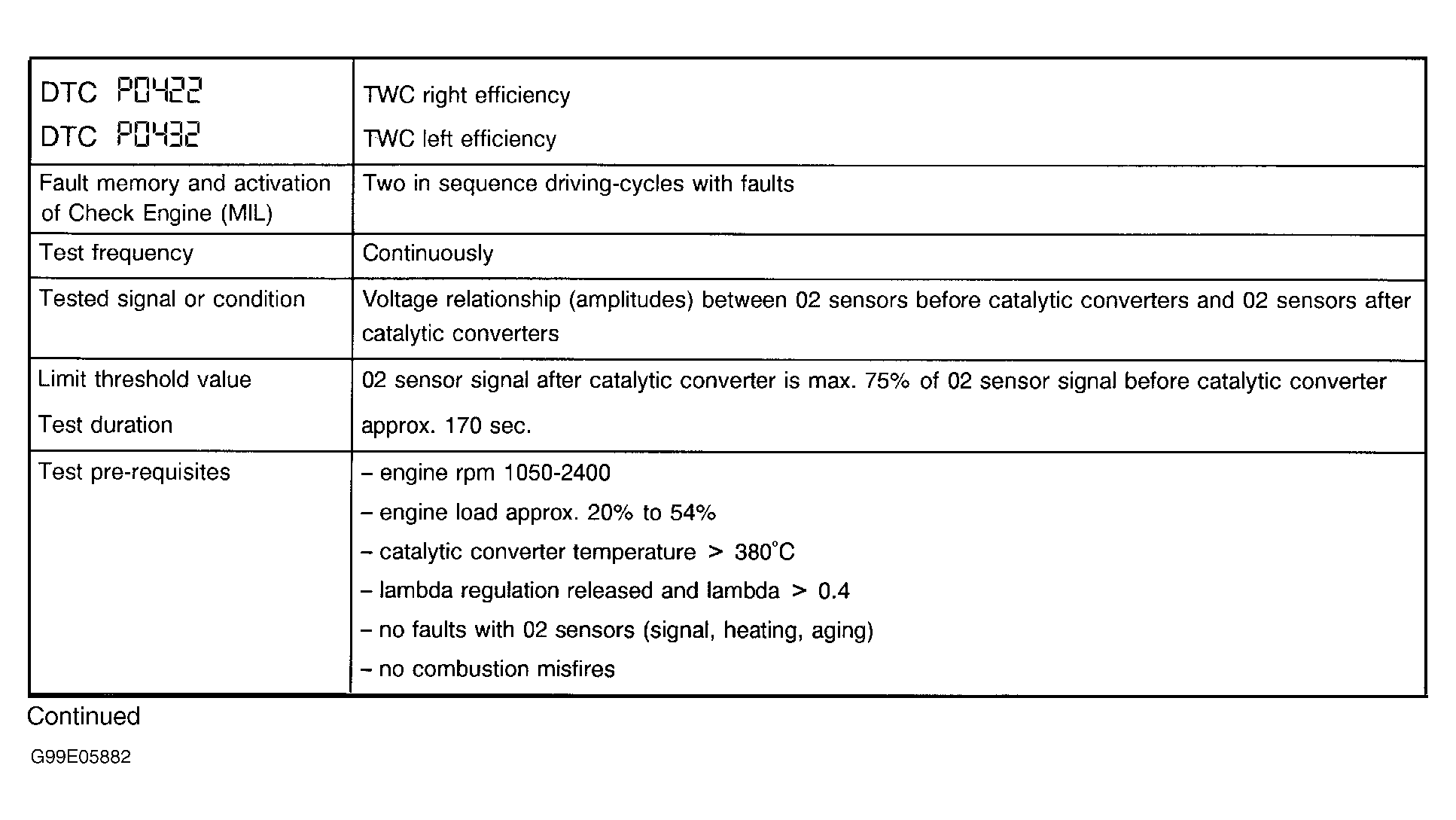

Fig 24: DTC Description (P0422 & P0432 - 1 Of 2)

G99E05882

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

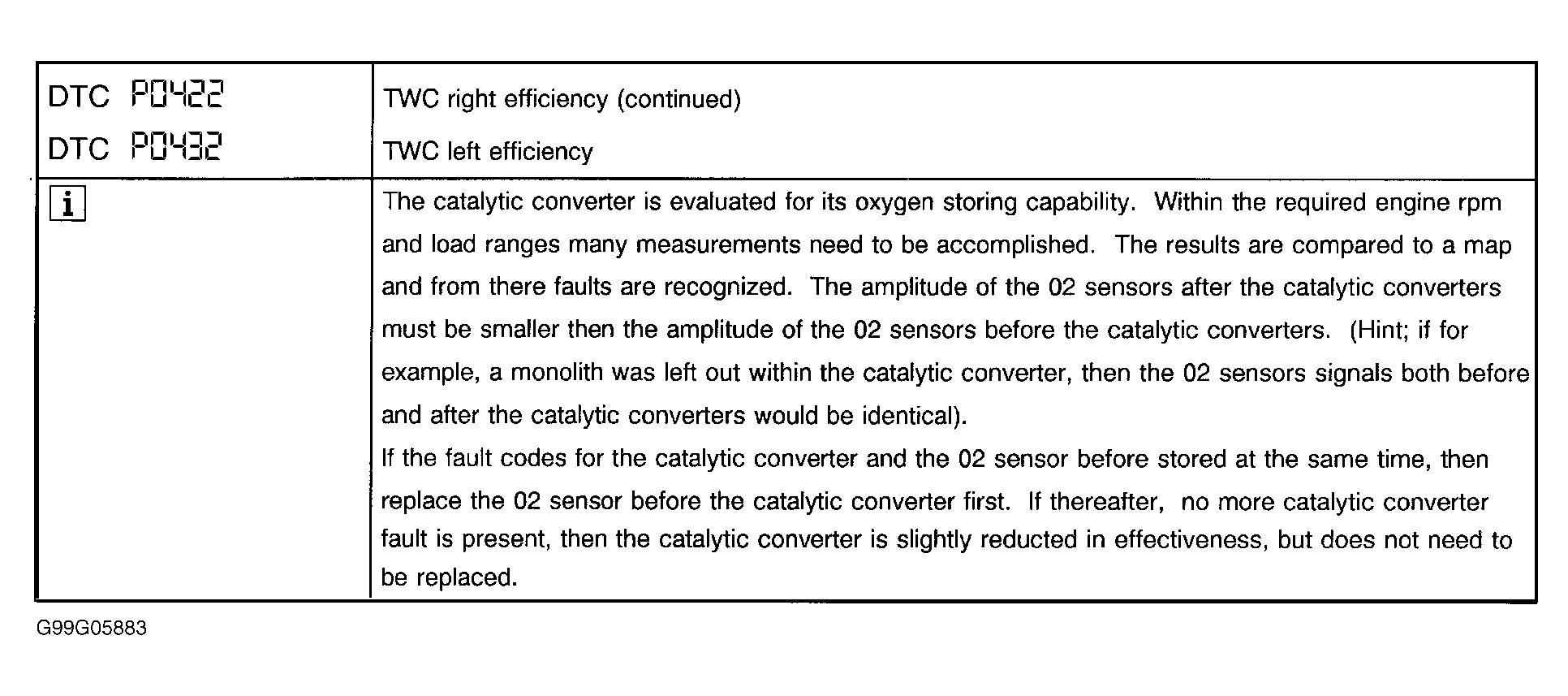

Fig 25: DTC Description (P0422 & P0432 - 2 Of 2)

G99G05883

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

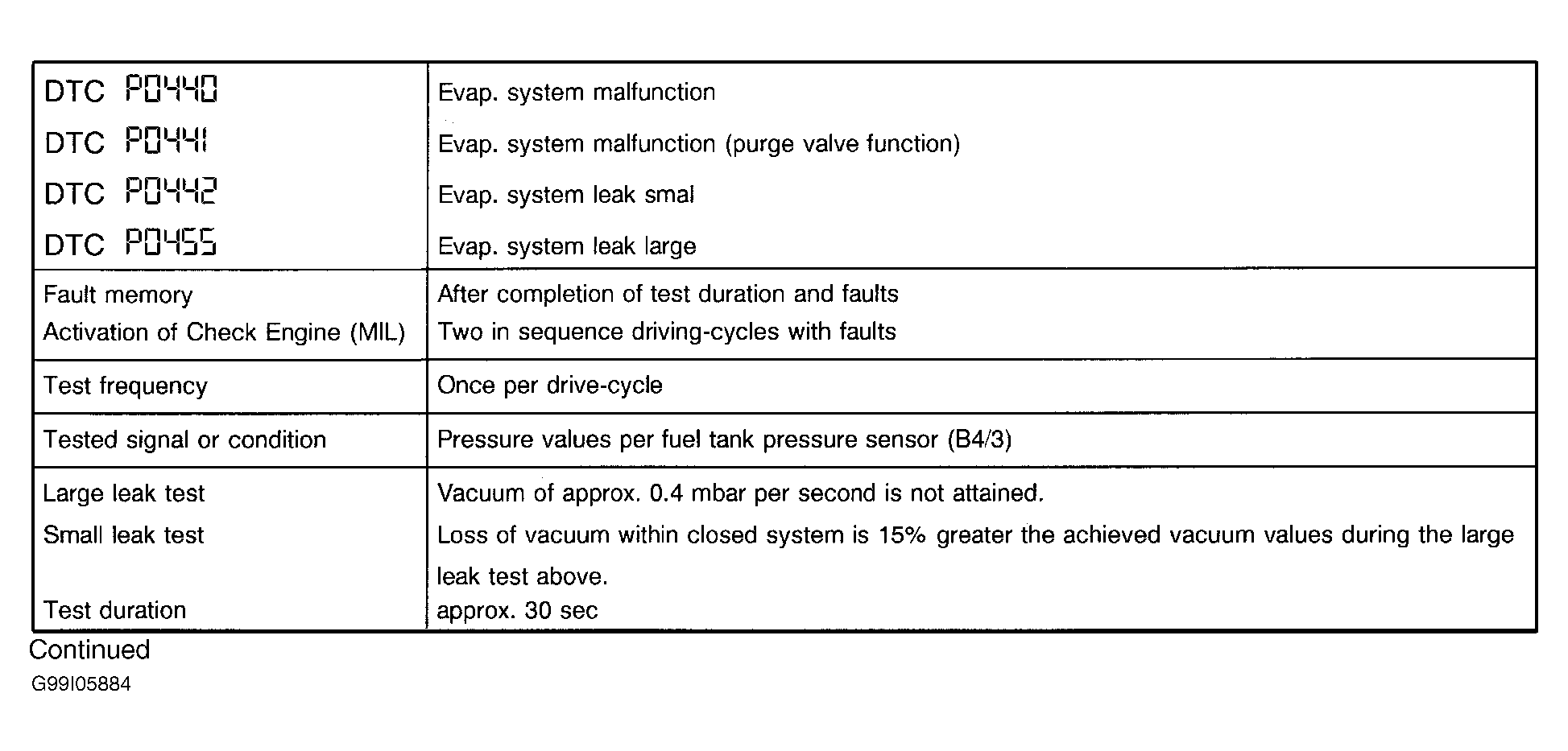

Fig 26: DTC Description (P0440, P0441, P0442 & P0455 - 1 Of 2)

G99I05884

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

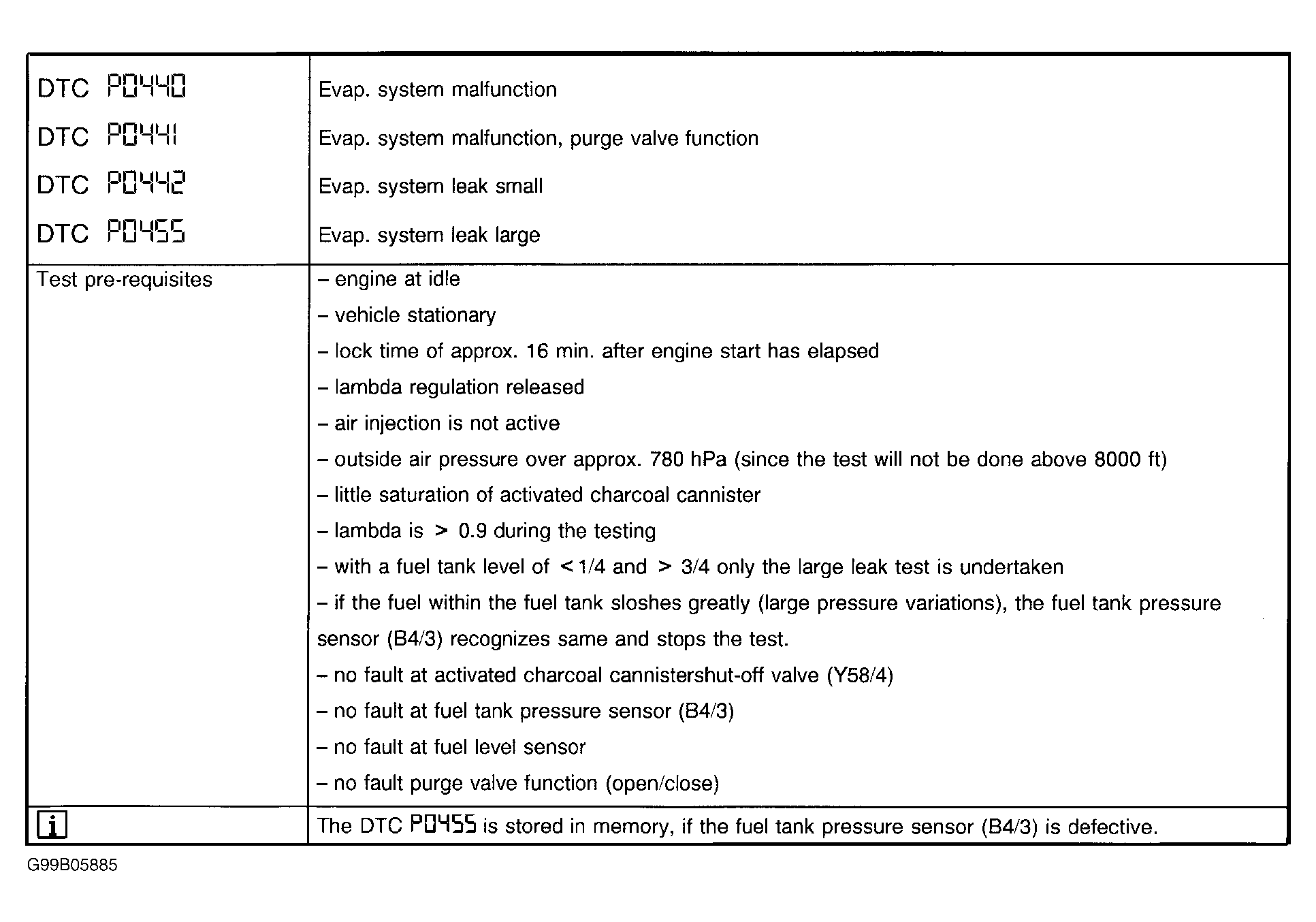

Fig 27: DTC Description (P0440, P0441, P0442 & P0455 - 2 Of 2)

G99B05885

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

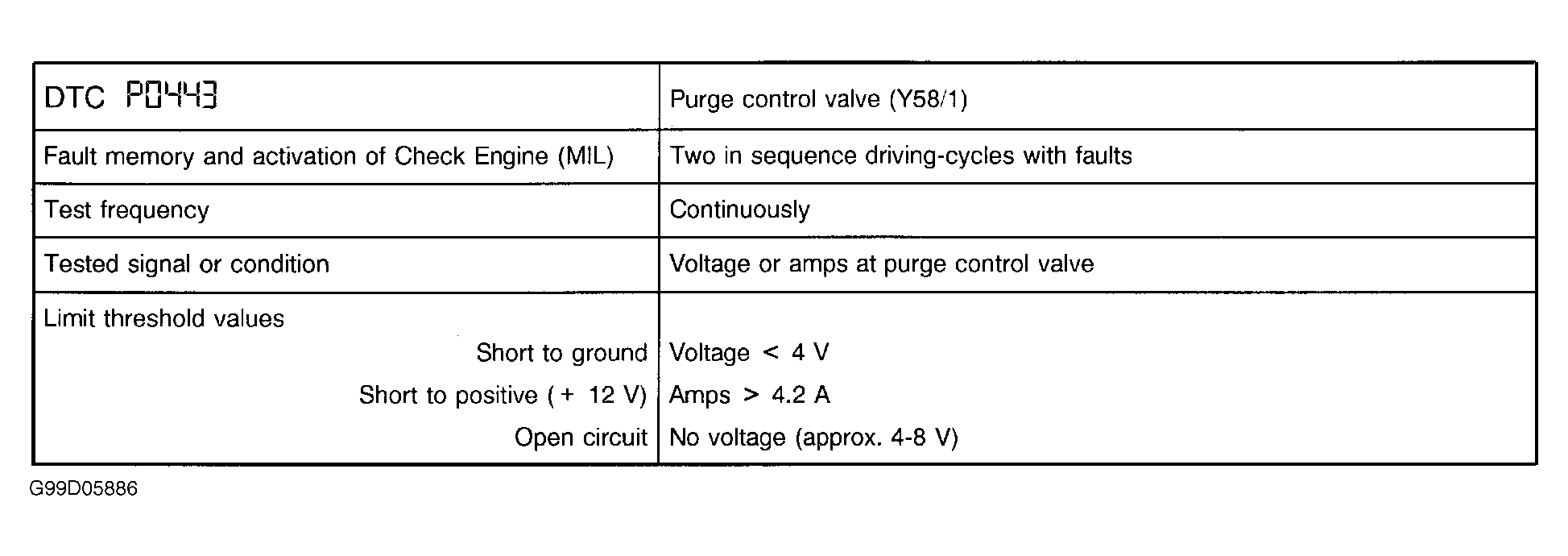

Fig 28: DTC Description (P0443)

G99D05886

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

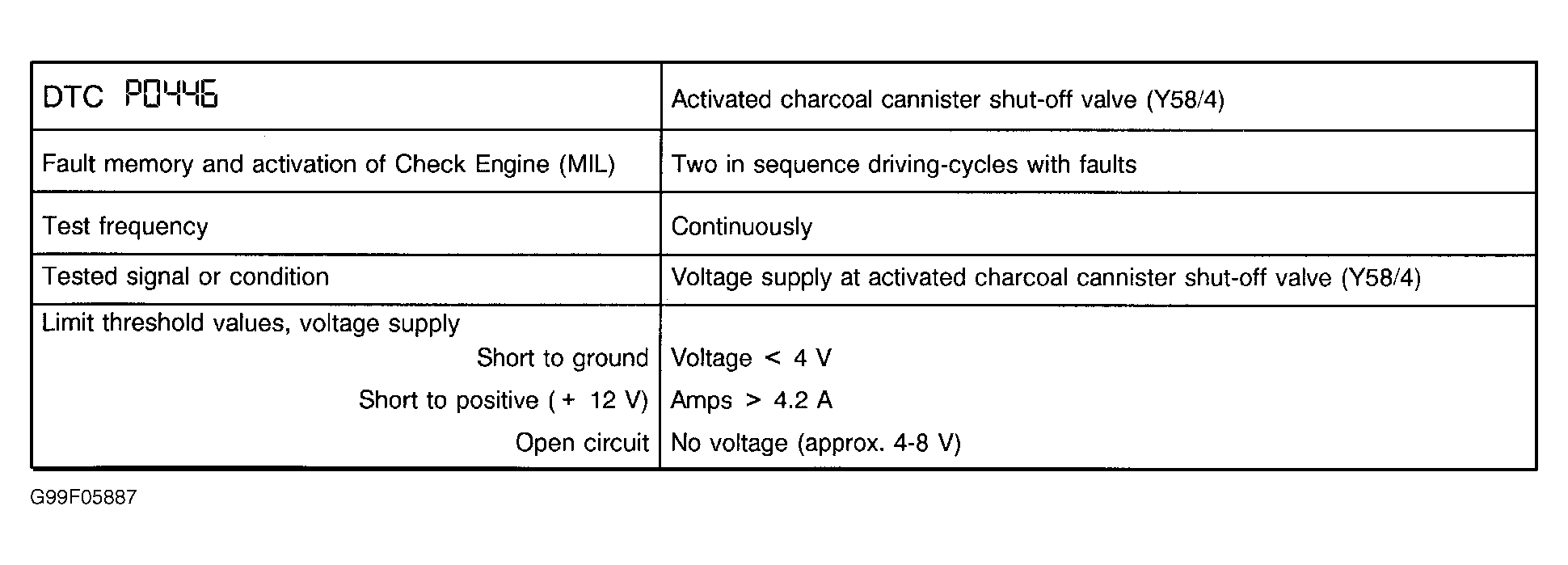

Fig 29: DTC Description (P0446)

G99F05887

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

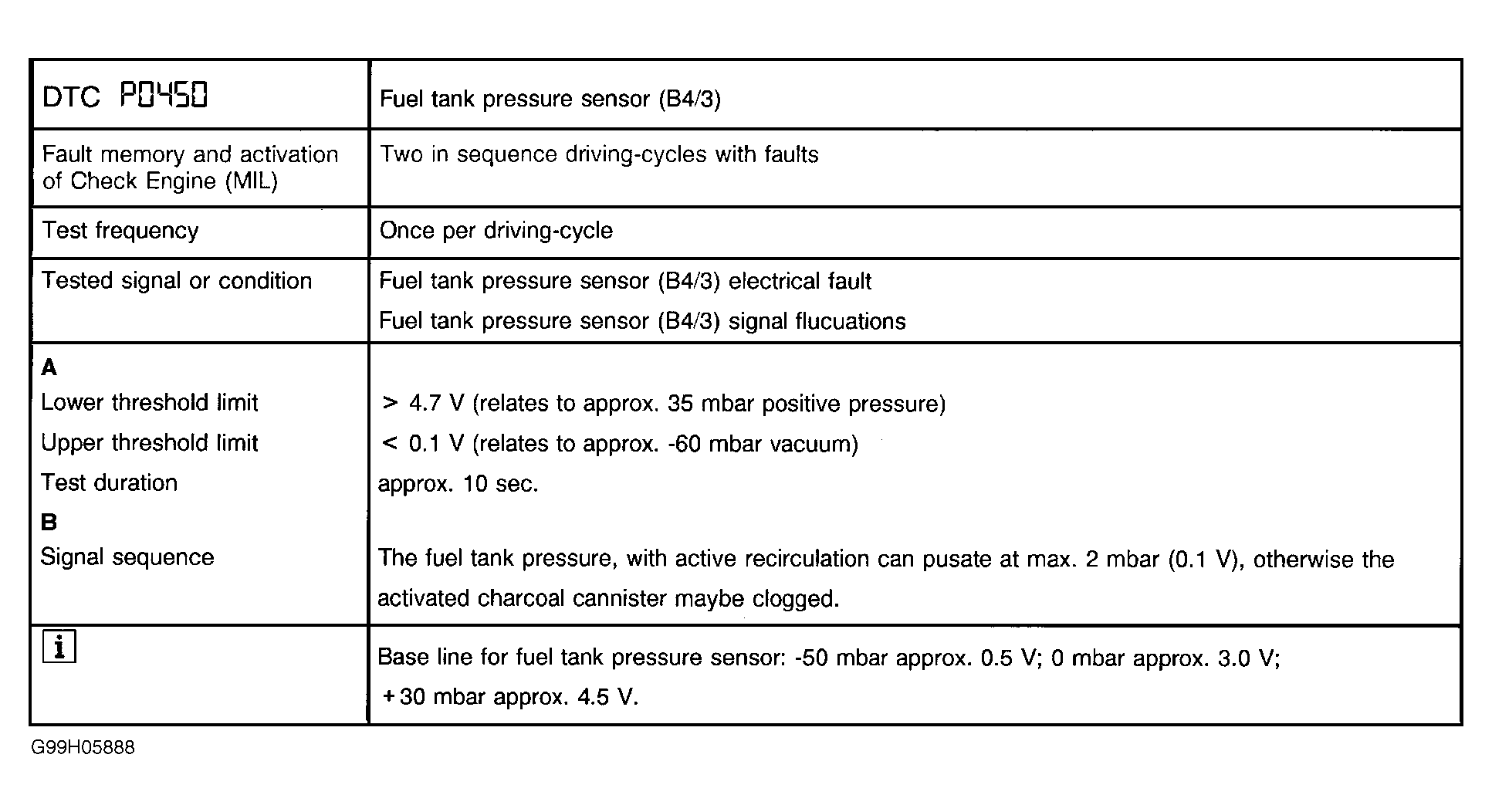

Fig 30: DTC Description (P0450)

G99H05888

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

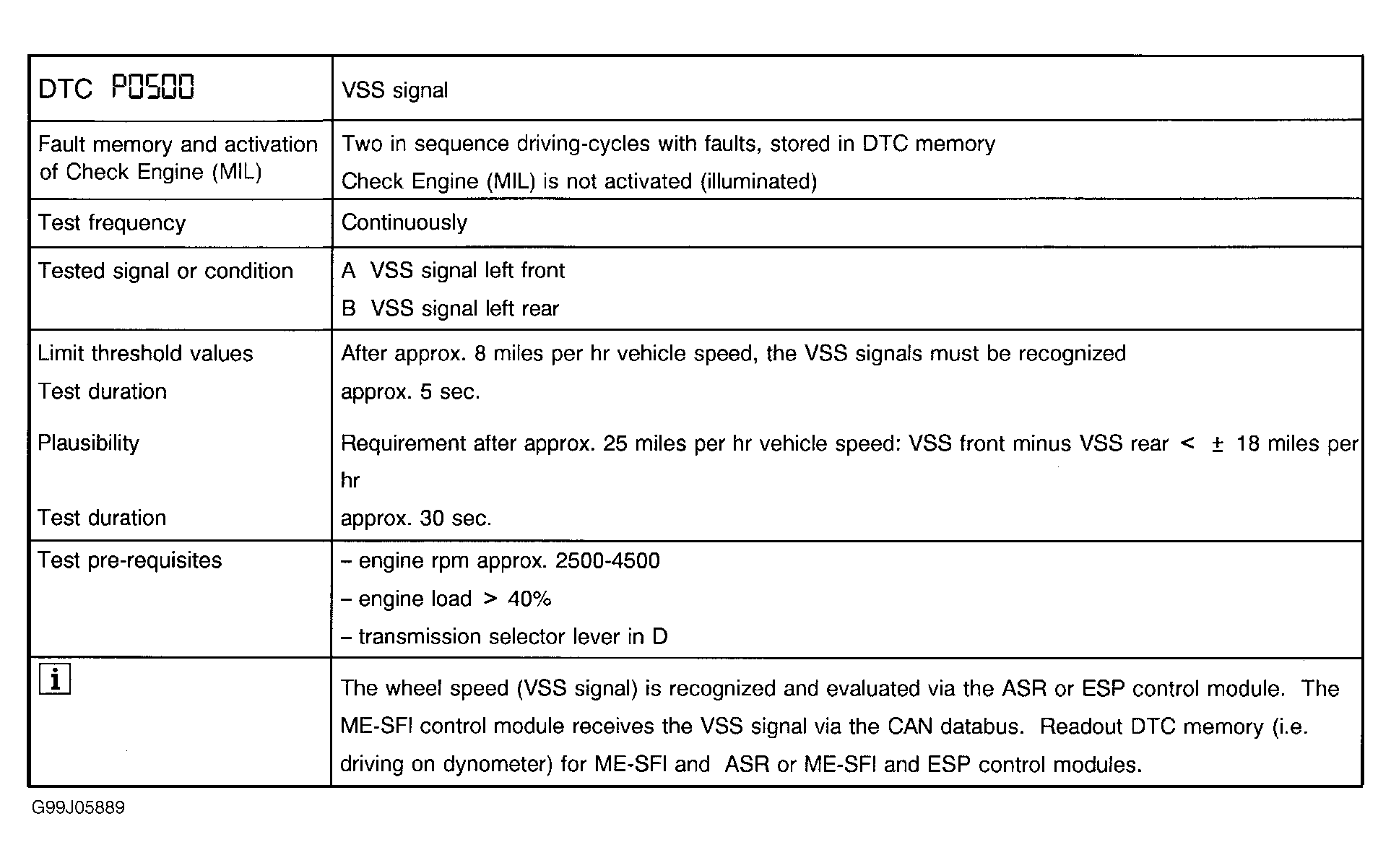

Fig 31: DTC Description (P0500)

G99J05889

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

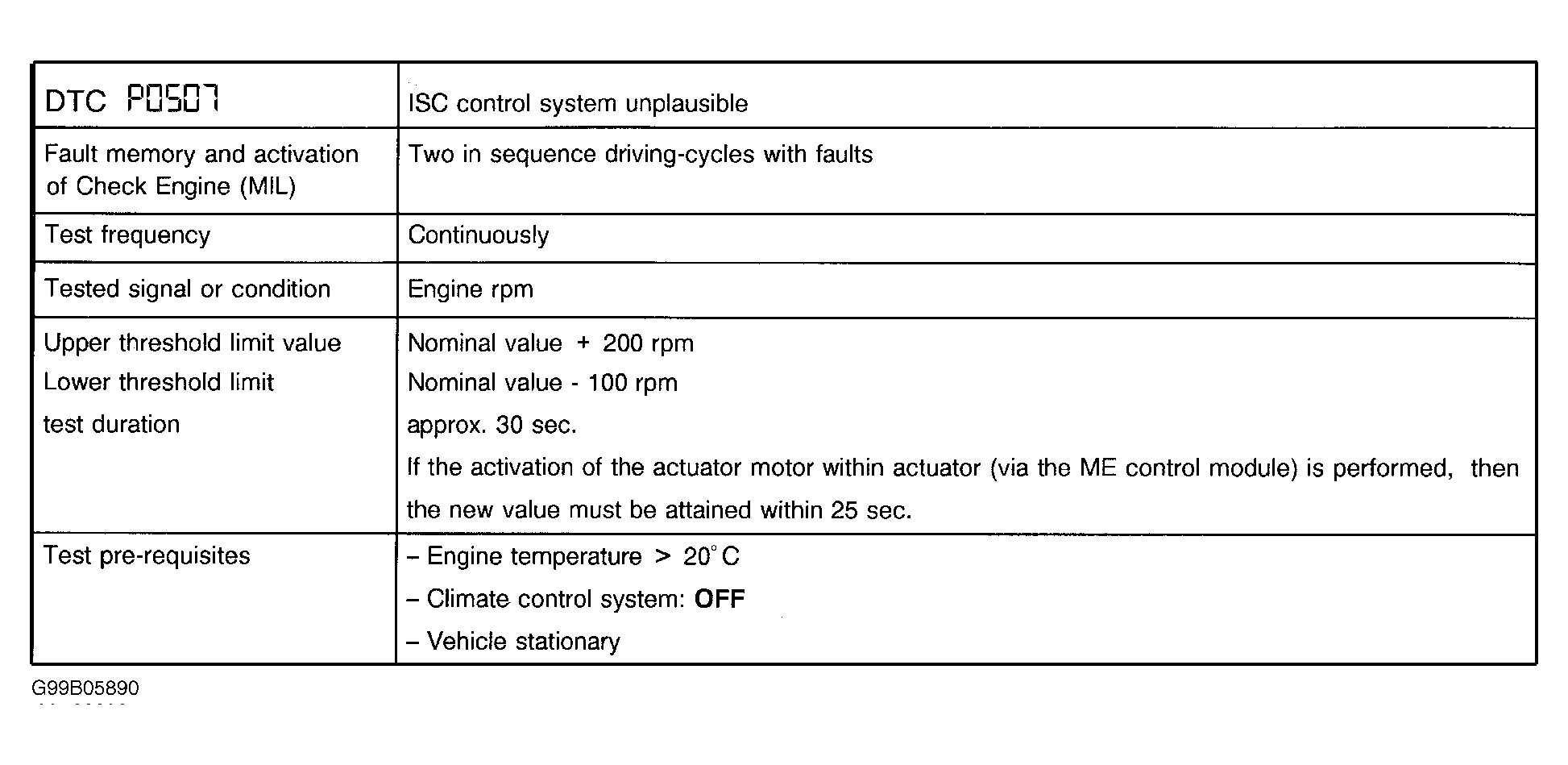

Fig 32: DTC Description (P0507)

G99B05890

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

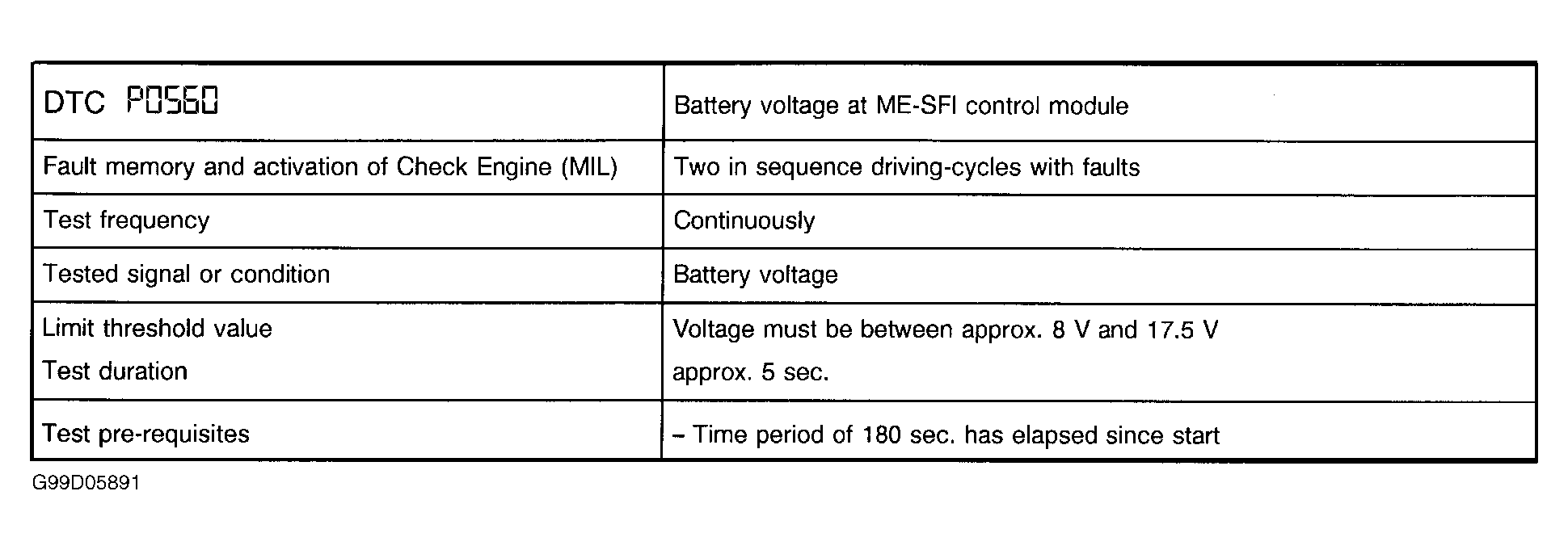

Fig 33: DTC Description (P0560)

G99D05891

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

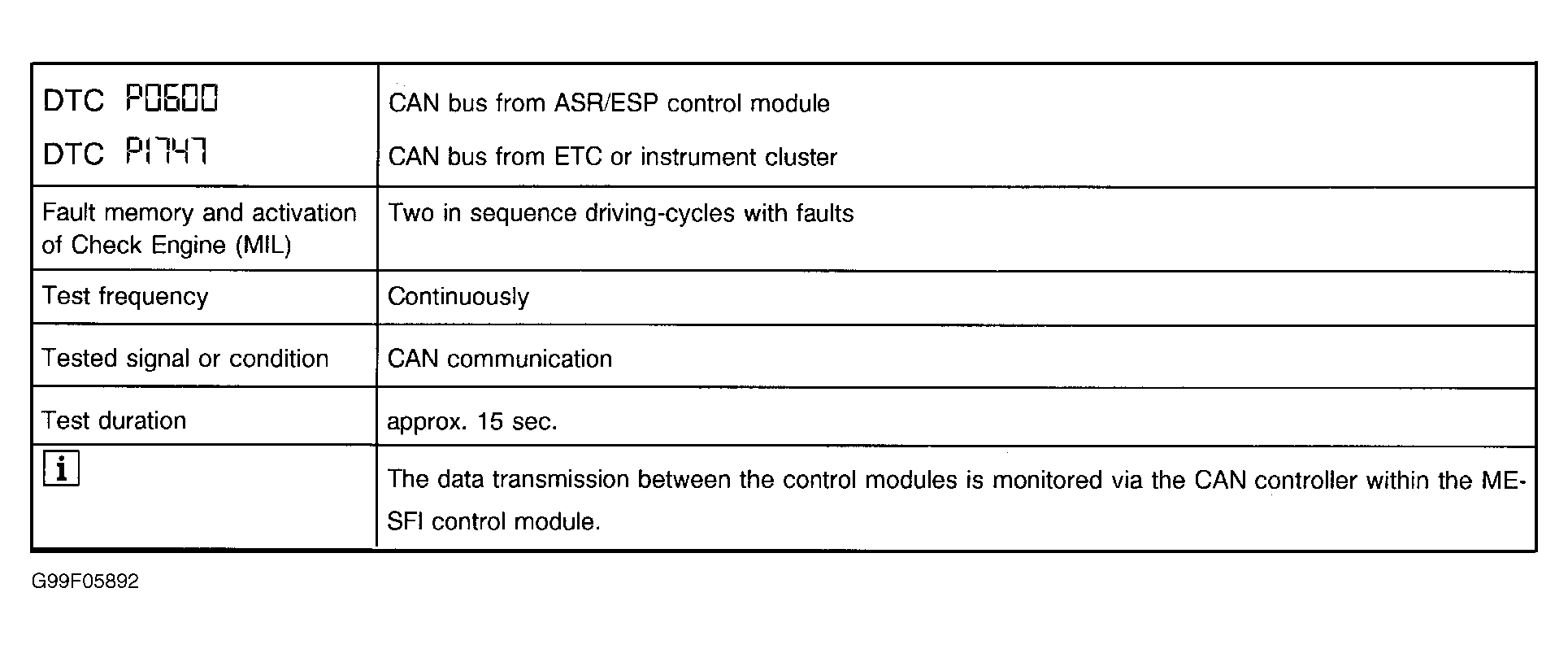

Fig 34: DTC Description (P0600 & P1747)

G99F05892

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

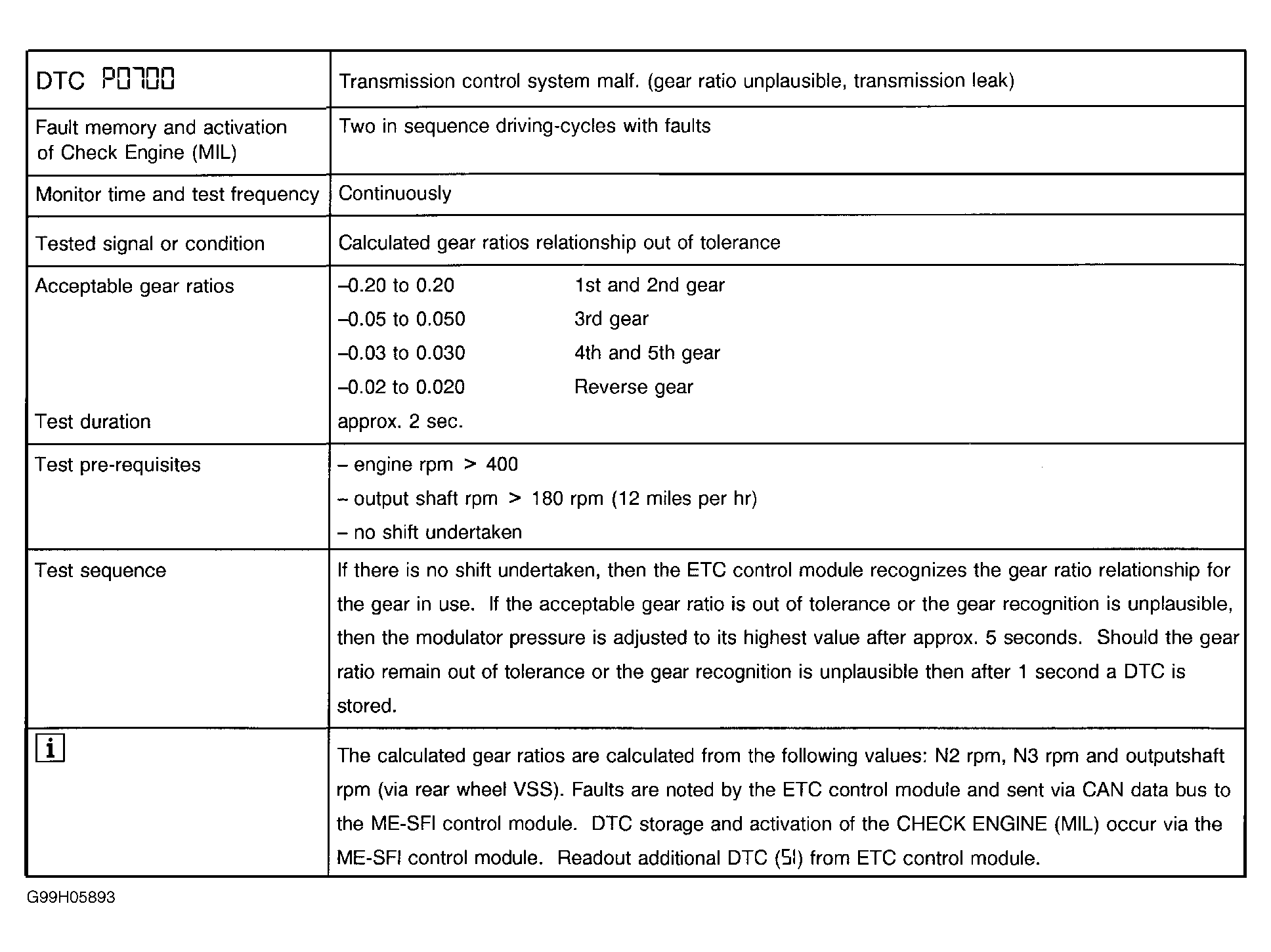

Fig 35: DTC Description (P0700 - 1 Of 2)

G99H05893

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

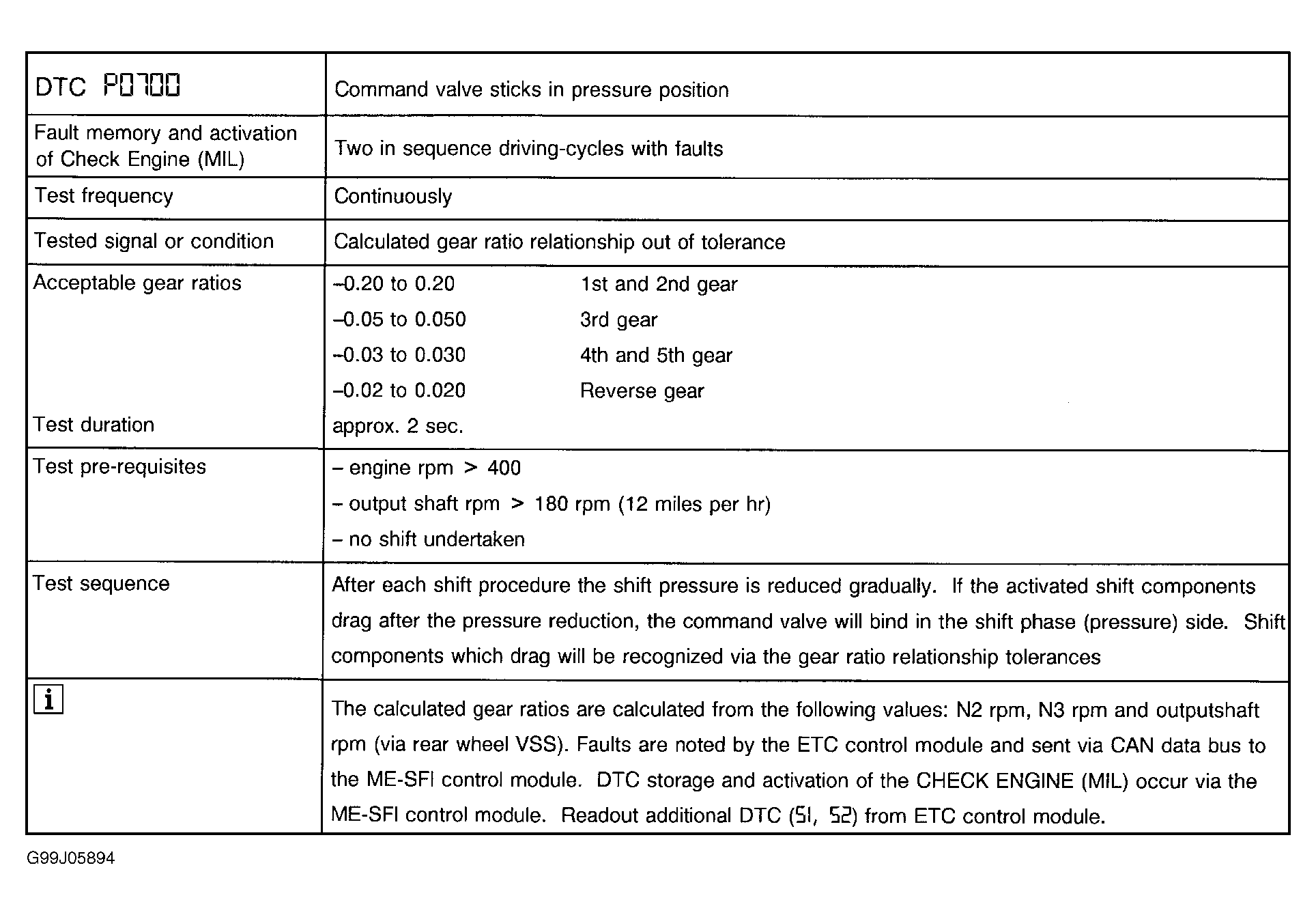

Fig 36: DTC Description (P0700 - 2 Of 2)

G99J05894

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

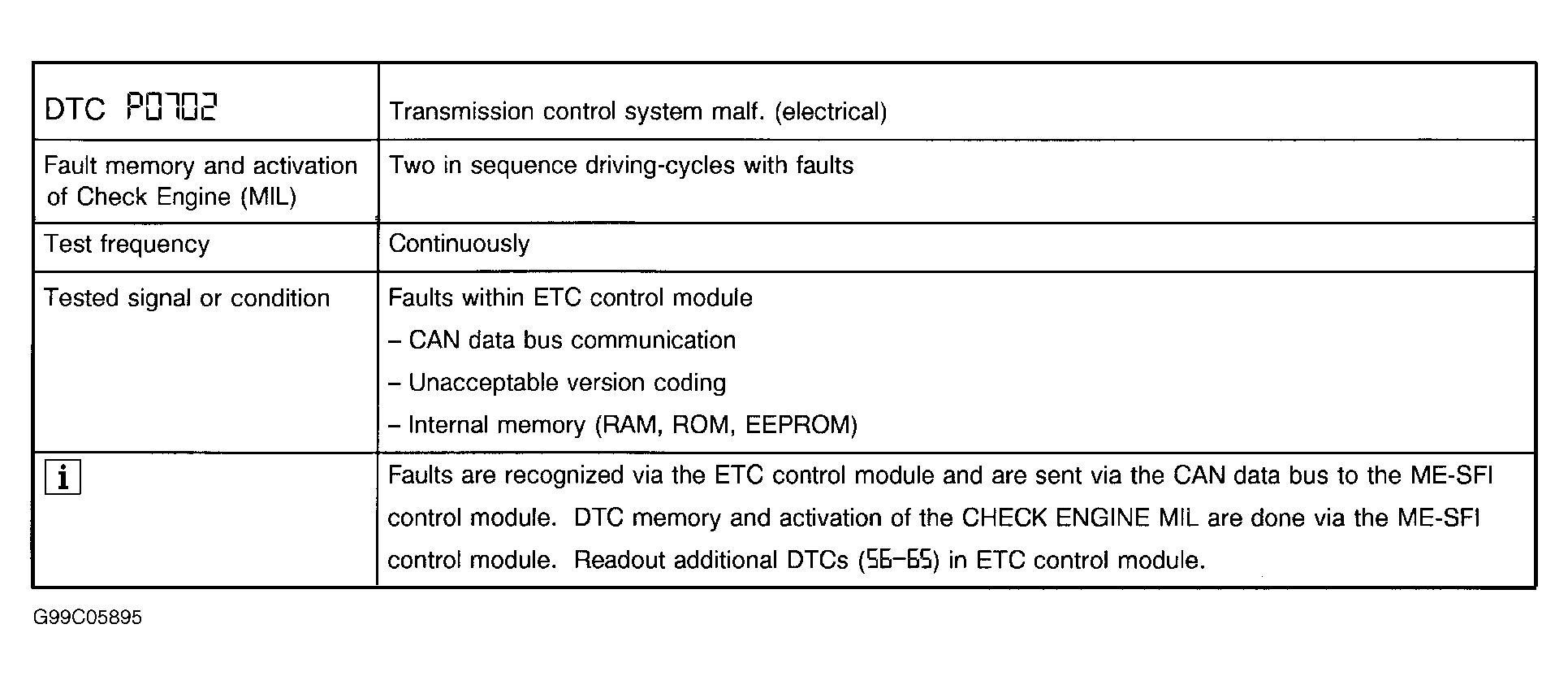

Fig 37: DTC Description (P0702 - 1 Of 2)

G99C05895

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

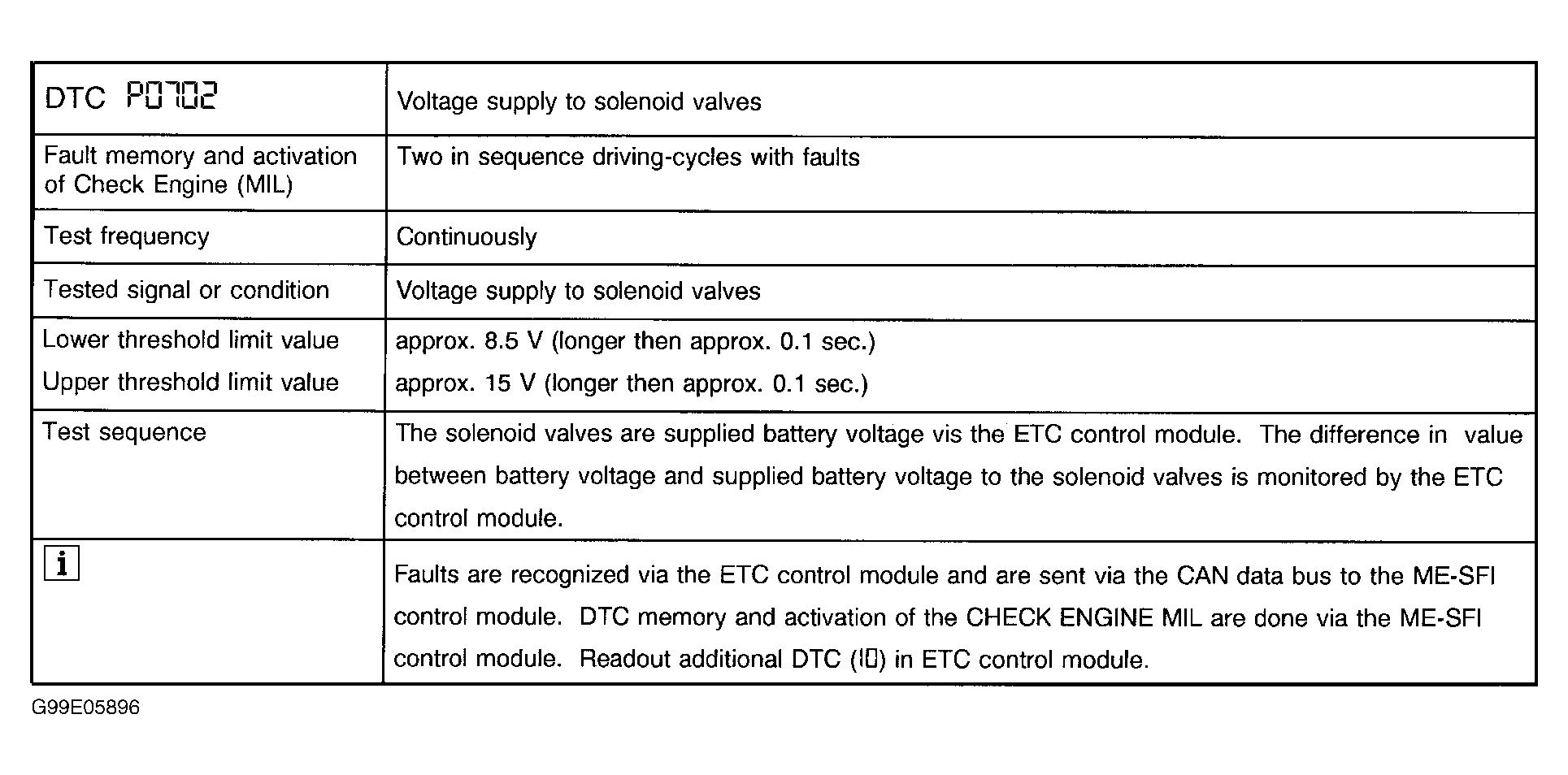

Fig 38: DTC Description (P0702 - 2 Of 2)

G99E05896

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

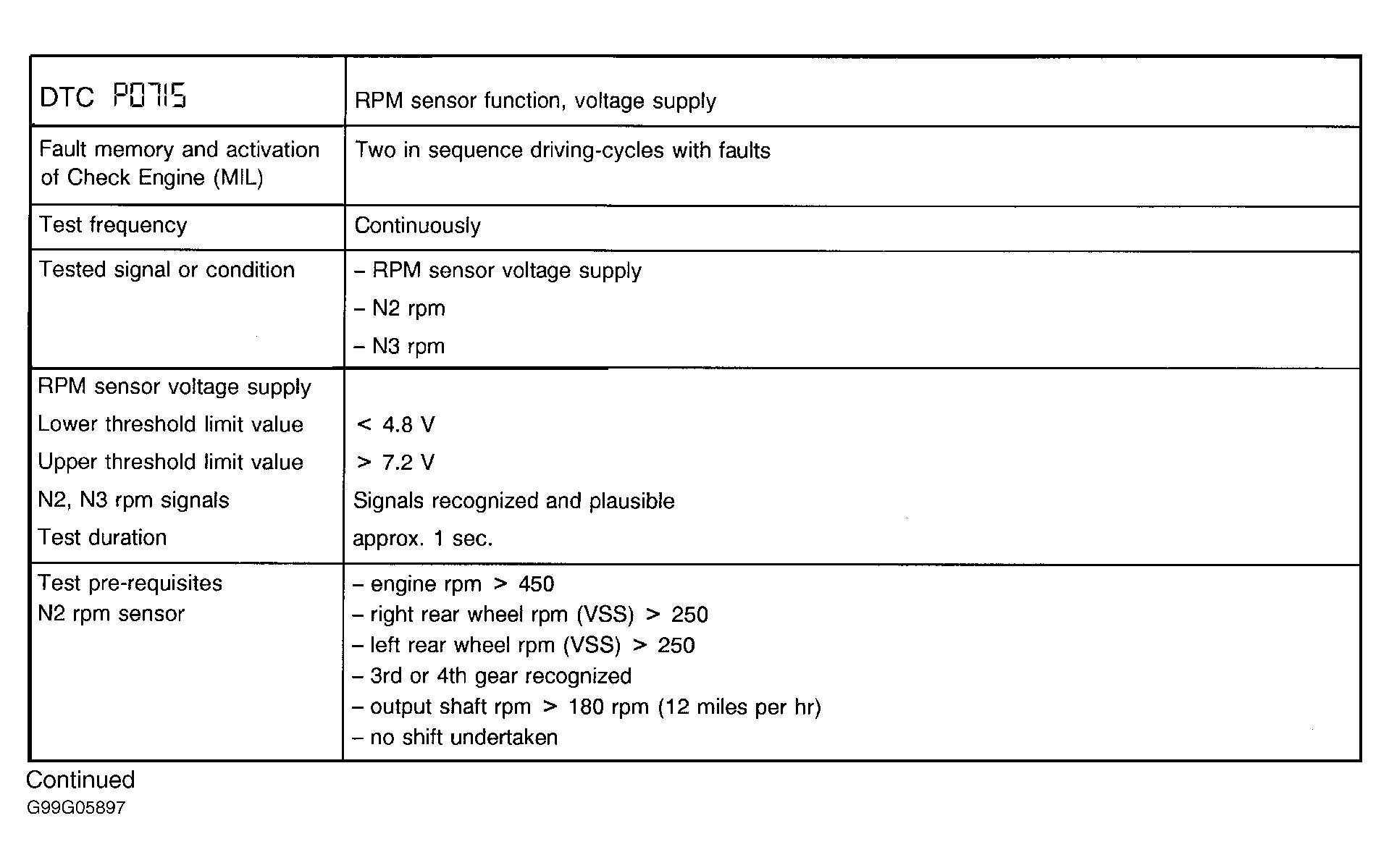

Fig 39: DTC Description (P0715 - 1 Of 2)

G99G05897

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

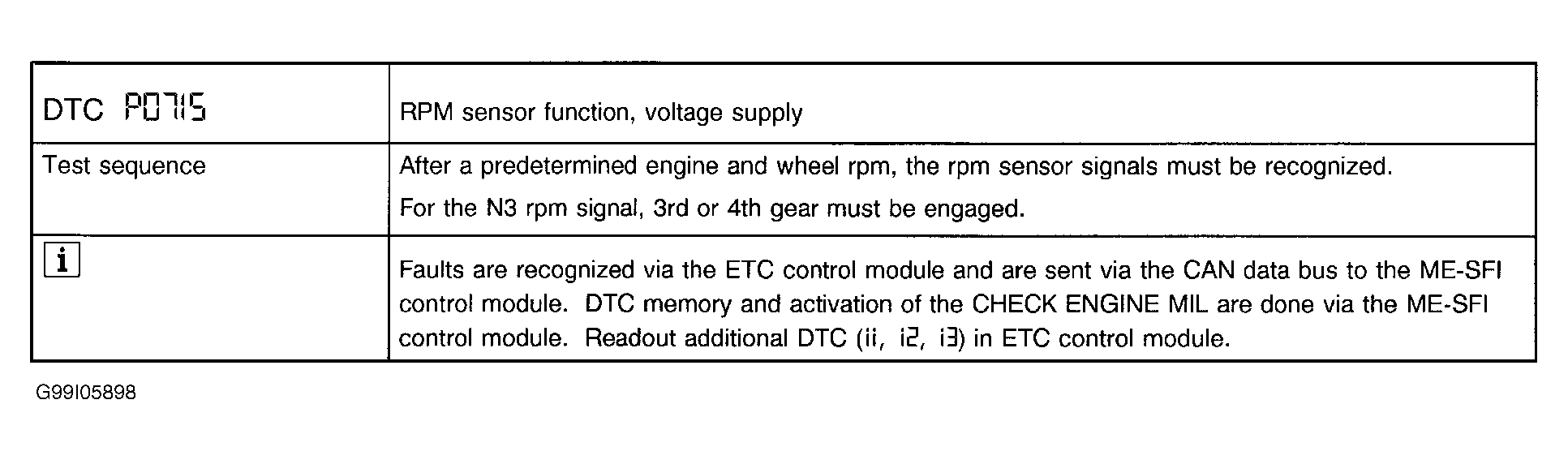

Fig 40: DTC Description (P0715 - 2 Of 2)

G99I05898

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

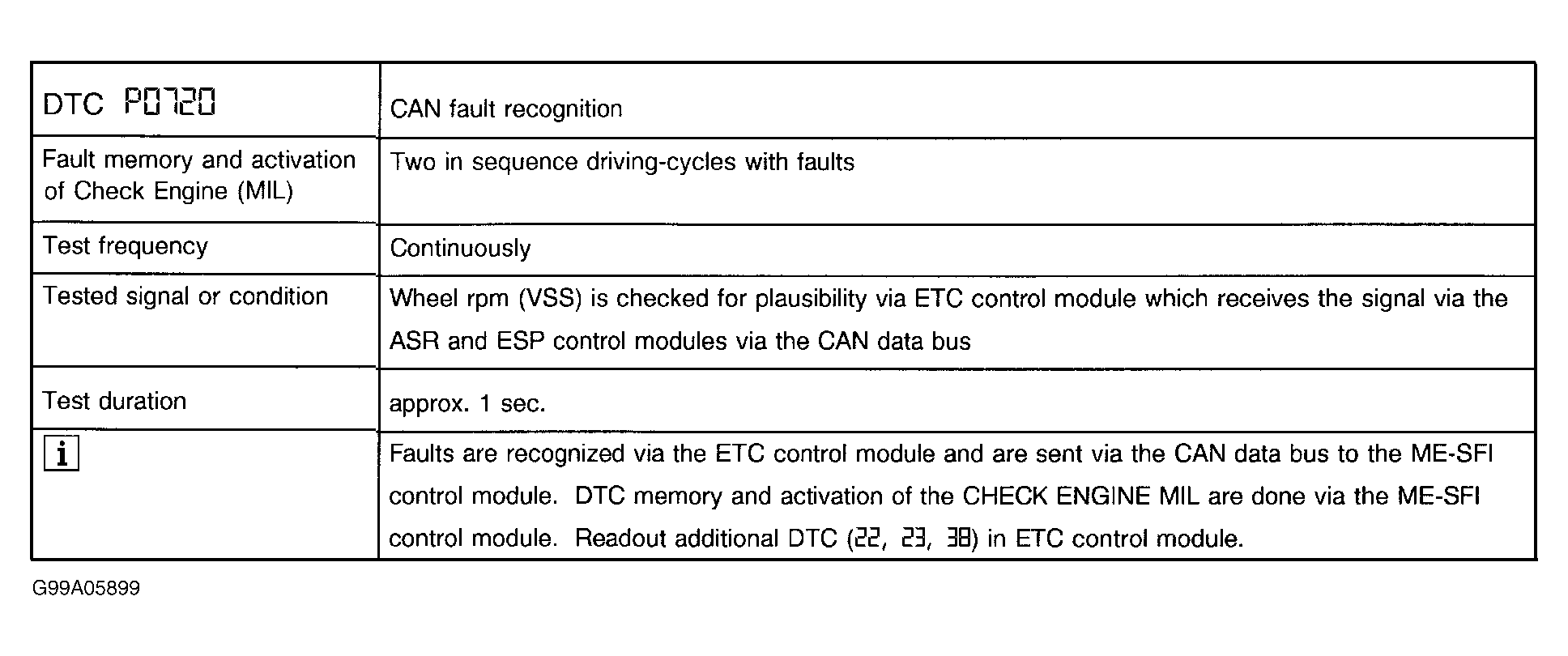

Fig 41: DTC Description (P0720)

G99A05899

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

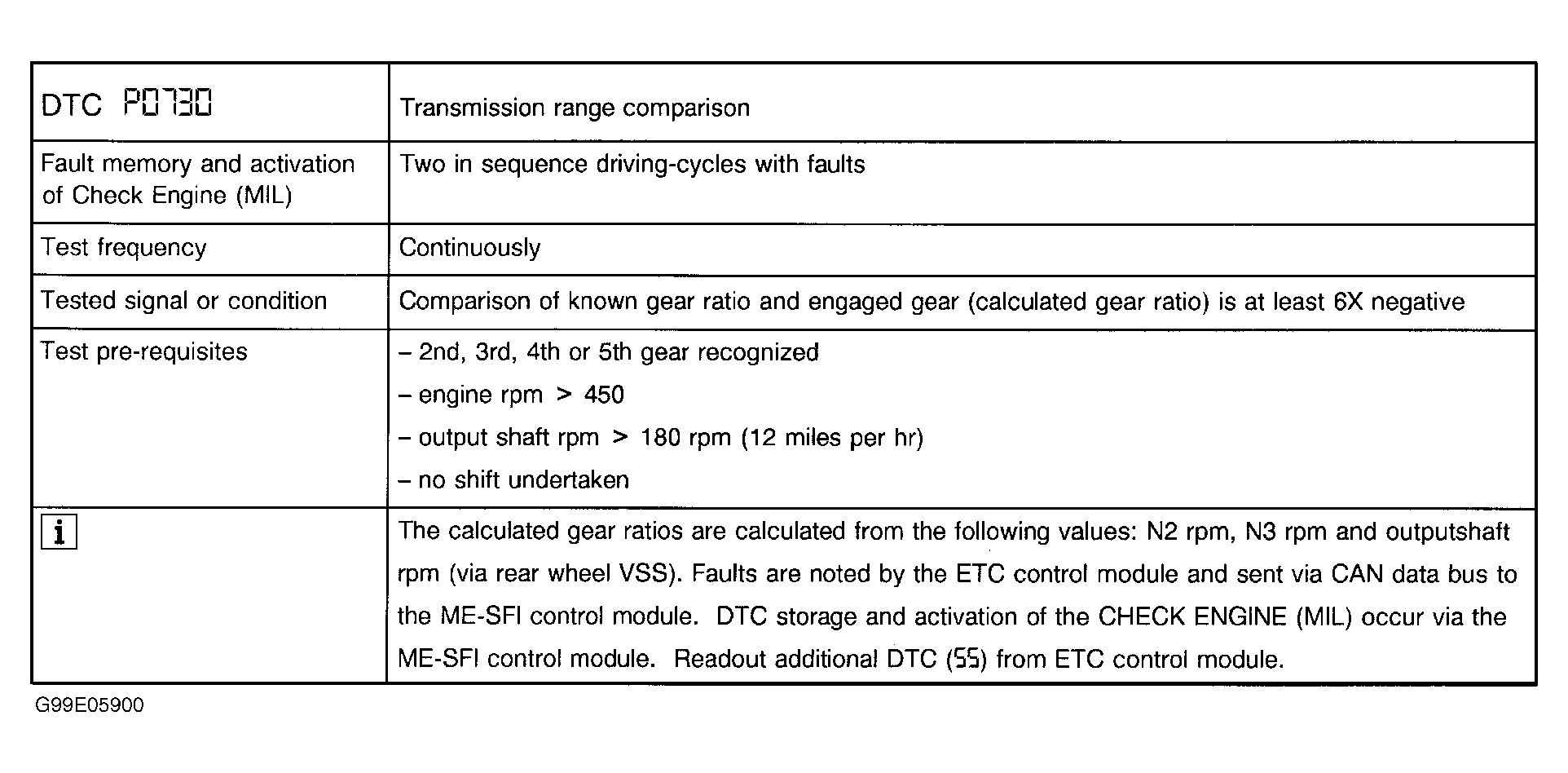

Fig 42: DTC Description (P0730)

G99E05900

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

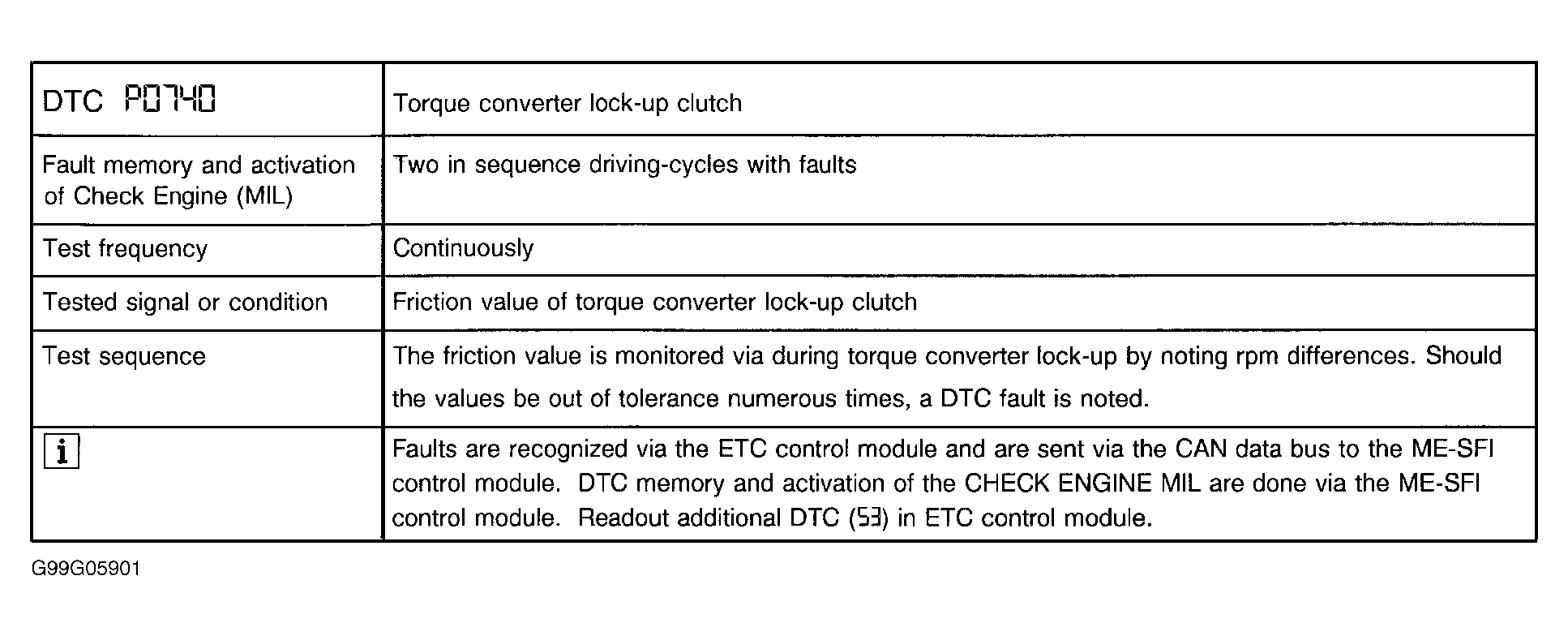

Fig 43: DTC Description (P0740)

G99G05901

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

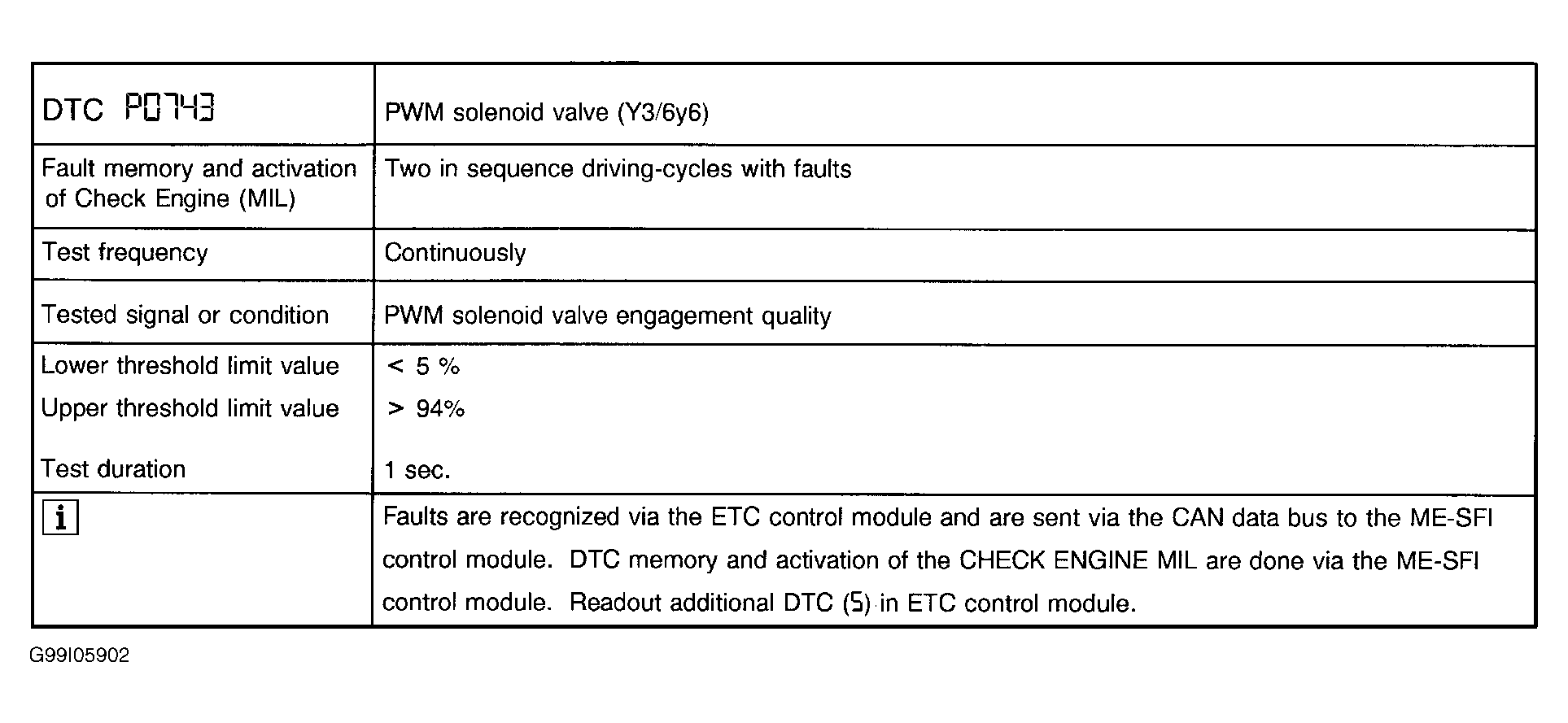

Fig 44: DTC Description (P0743)

G99I05902

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

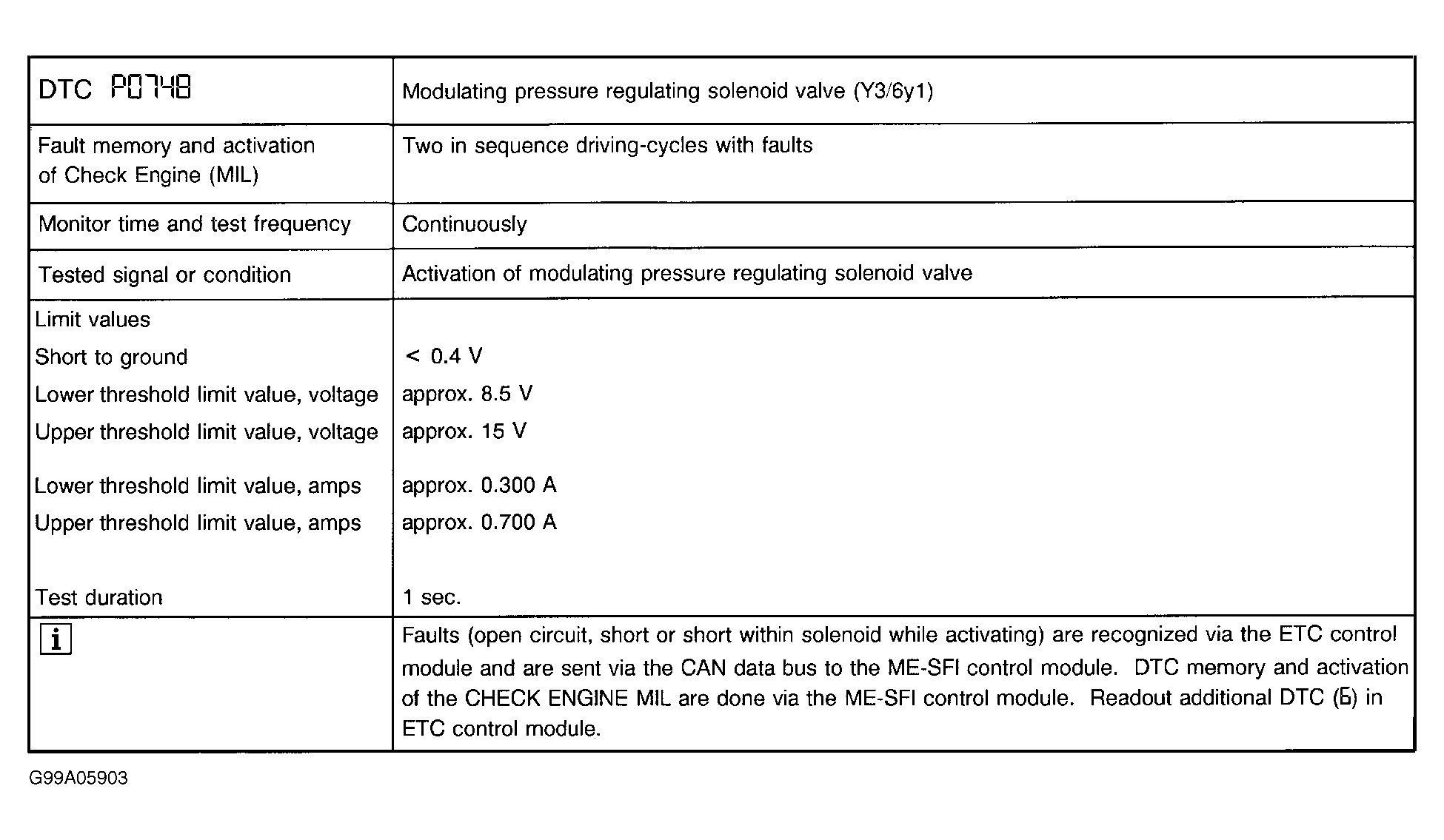

Fig 45: DTC Description (P0748 - 1 Of 2)

G99A05903

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

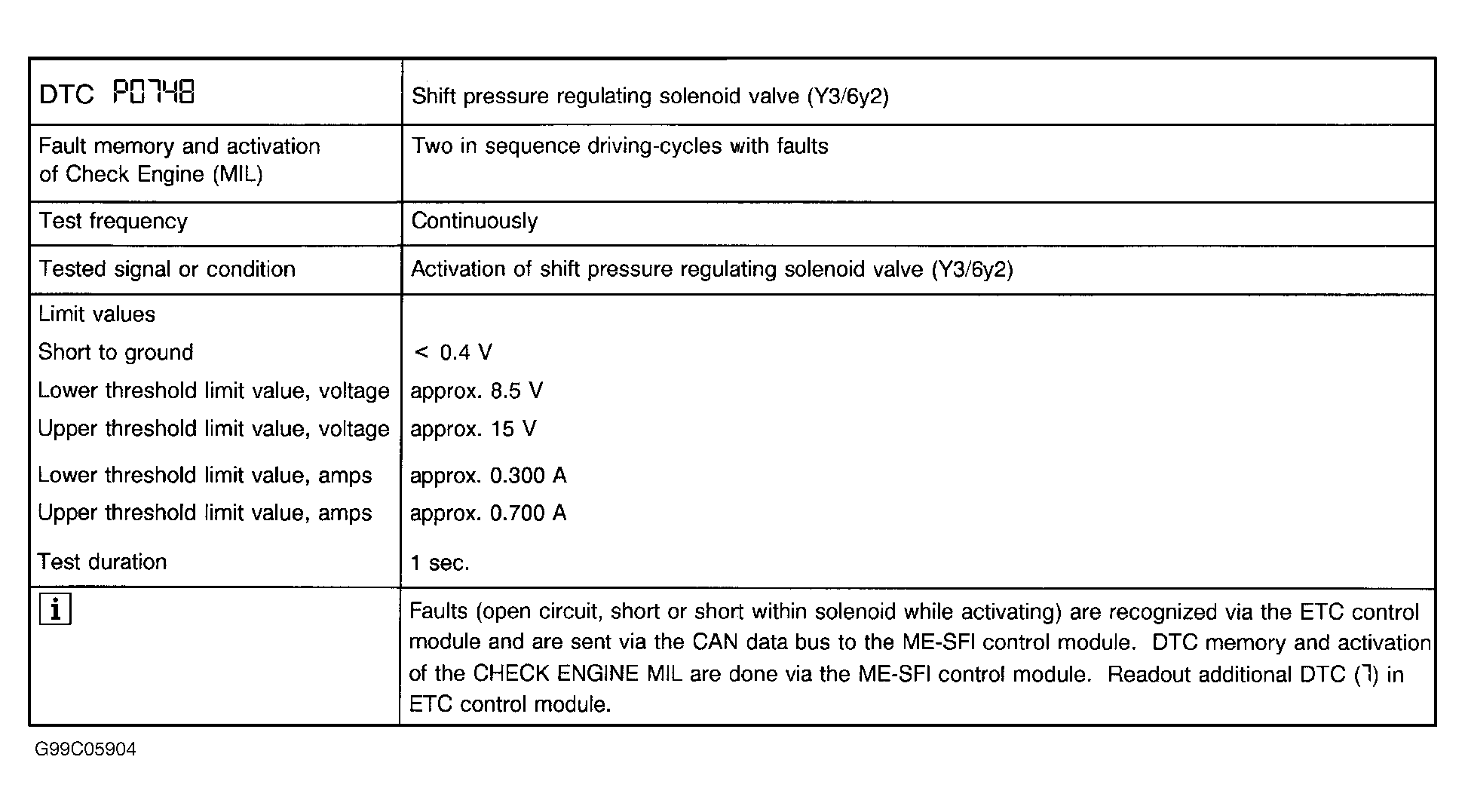

Fig 46: DTC Description (P0748 - 2 Of 2)

G99C05904

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

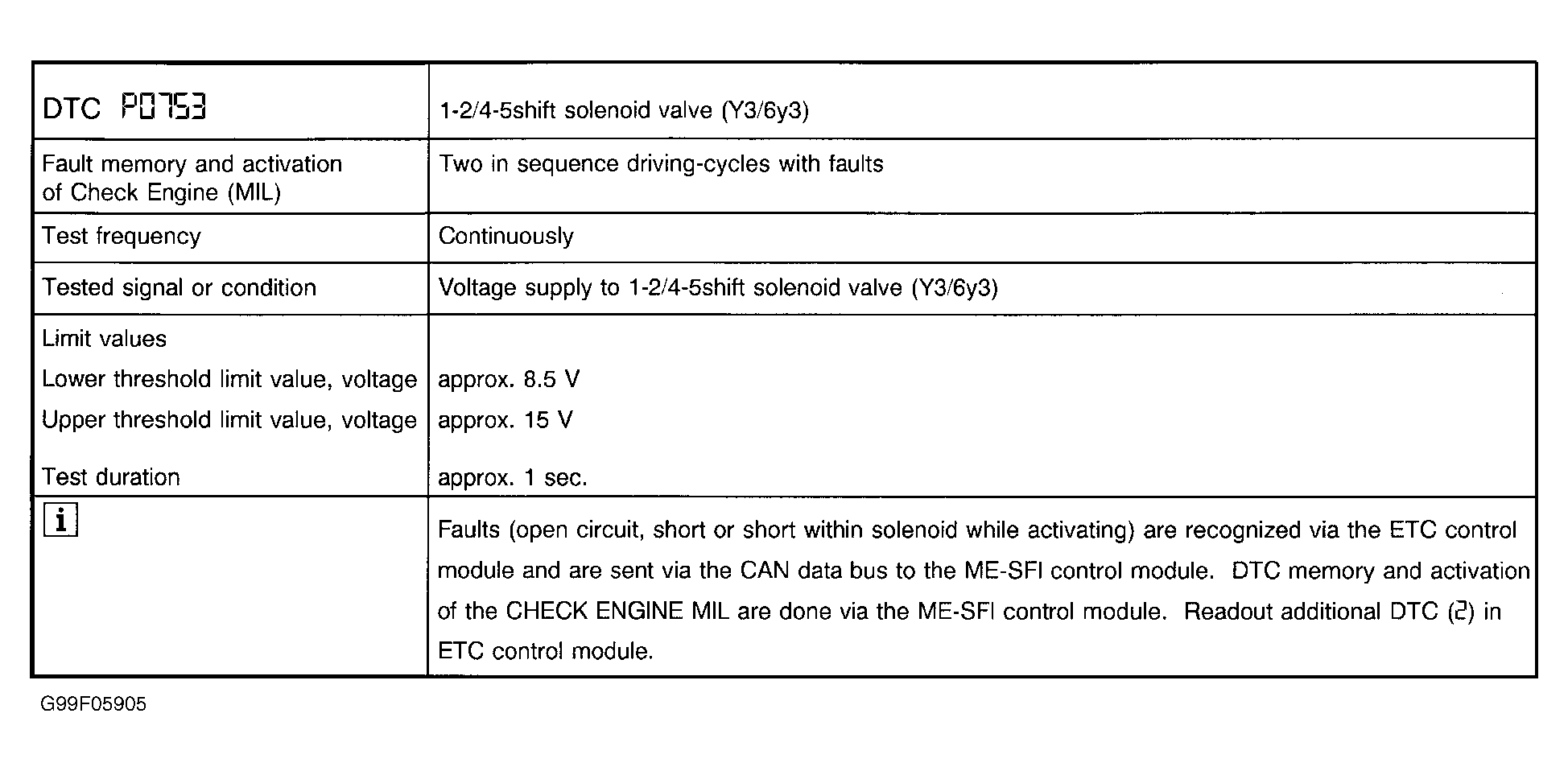

Fig 47: DTC Description (P0753)

G99F05905

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

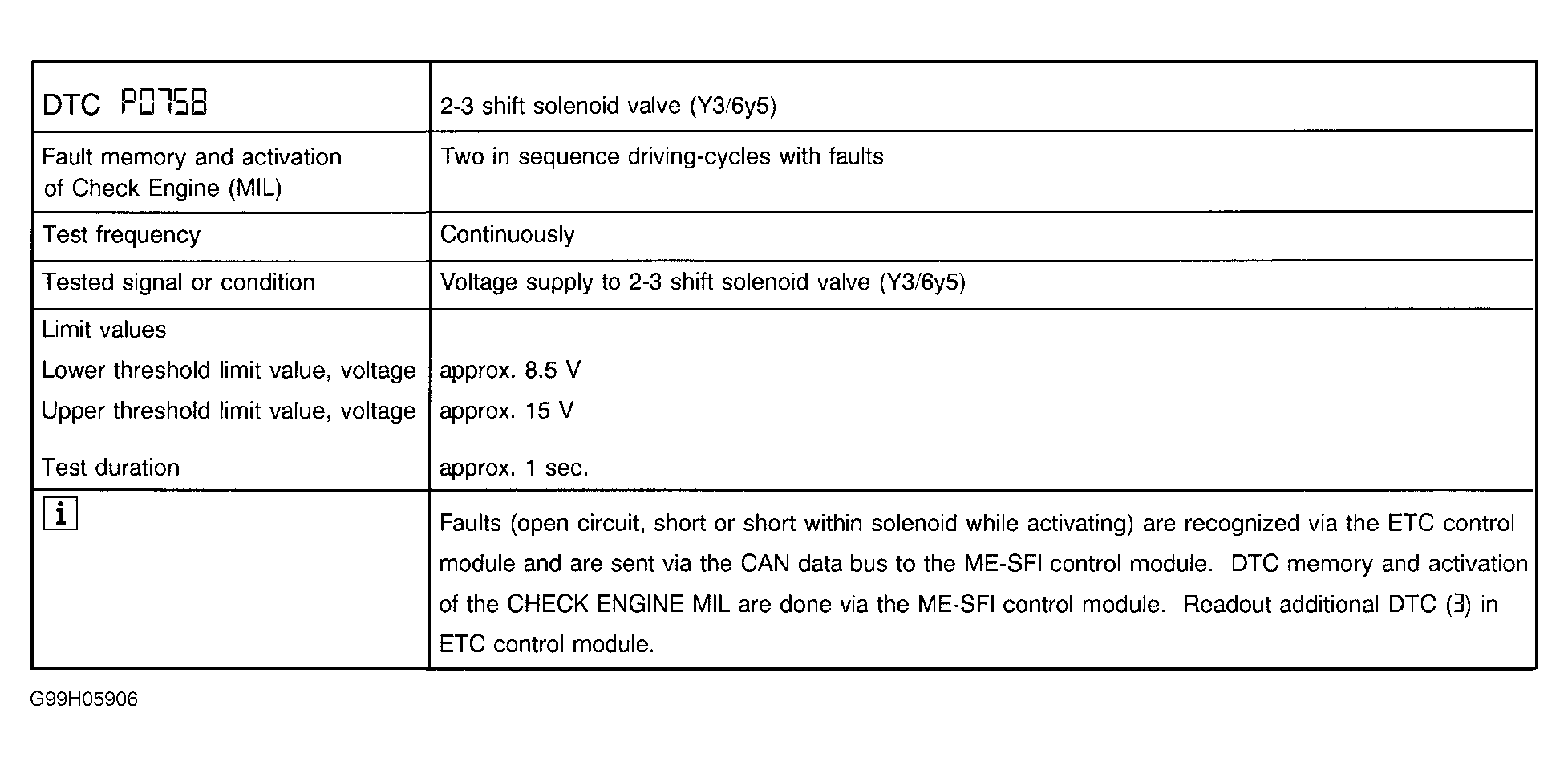

Fig 48: DTC Description (P0758)

G99H05906

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

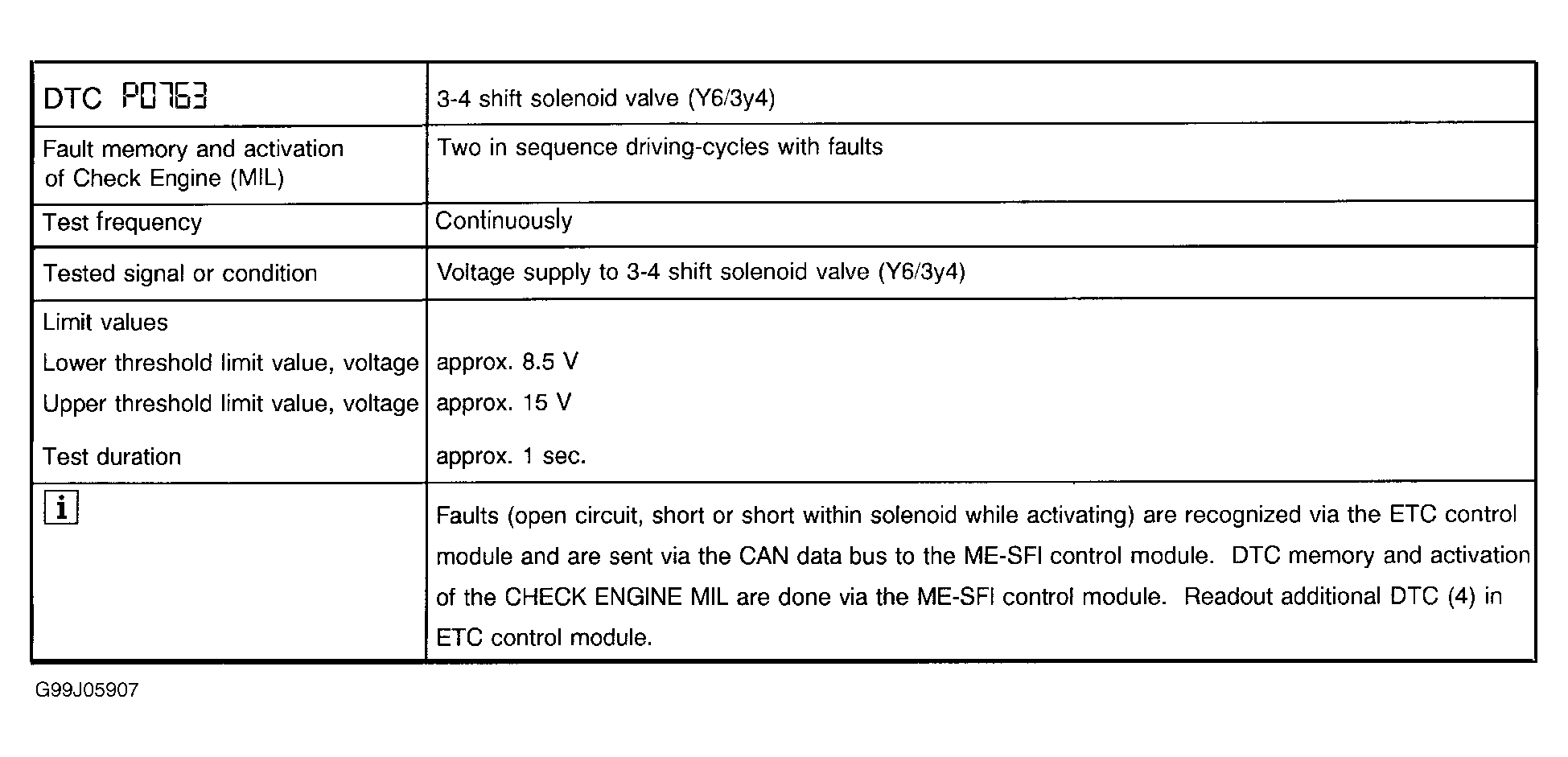

Fig 49: DTC Description (P0763)

G99J05907

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

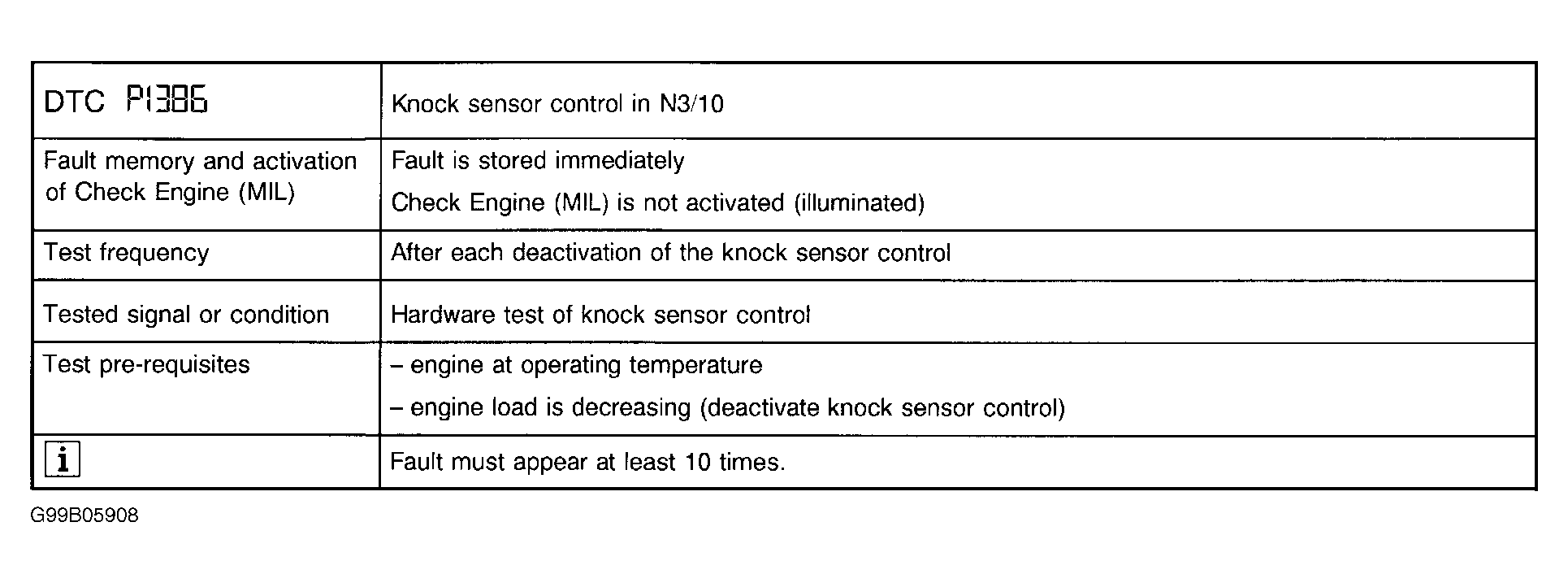

Fig 50: DTC Description (P1386)

G99B05908

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

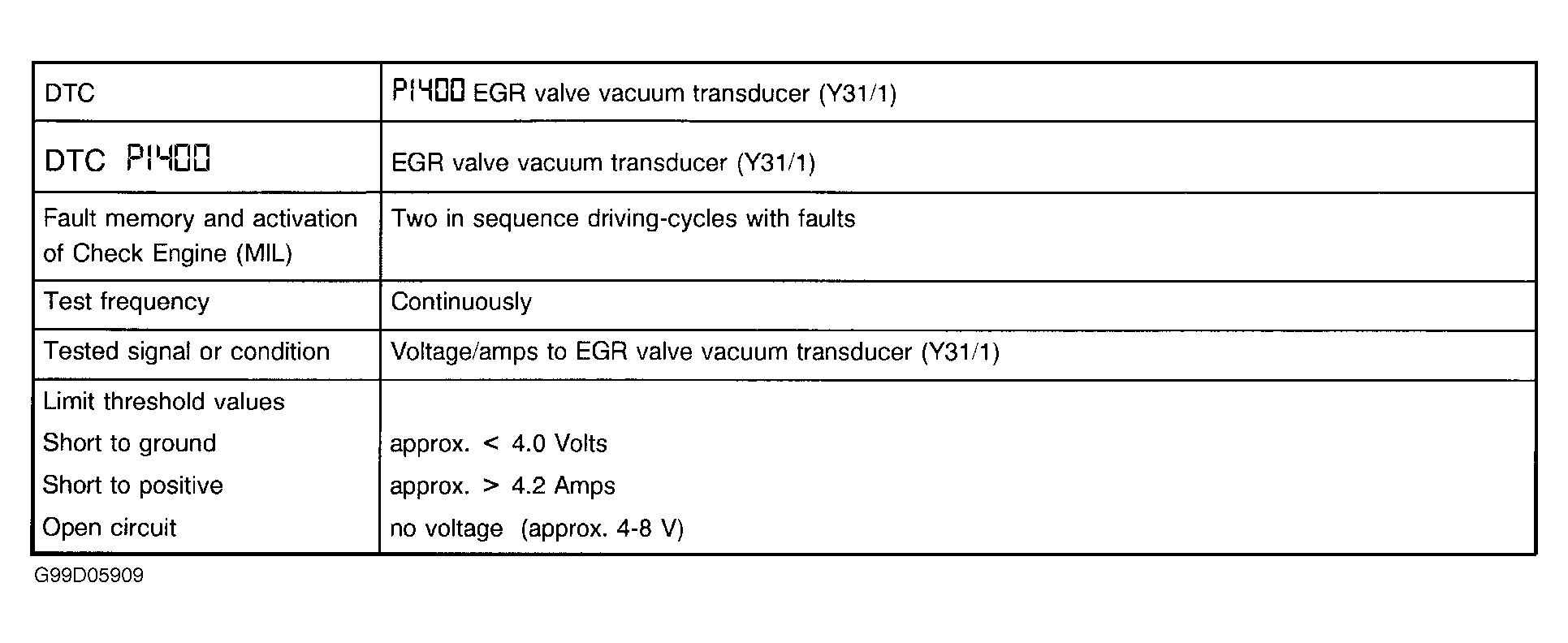

Fig 51: DTC Description (P1400)

G99D05909

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

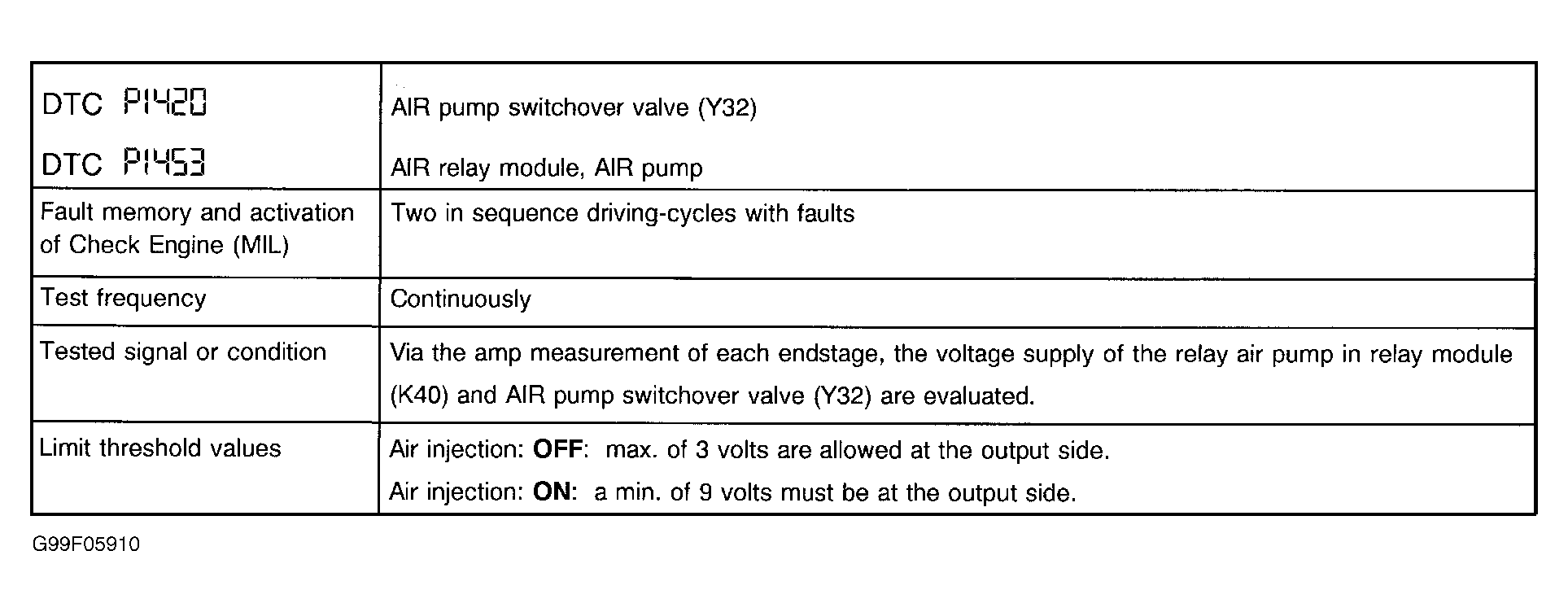

Fig 52: DTC Description (P1420 & P1453)

G99F05910

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

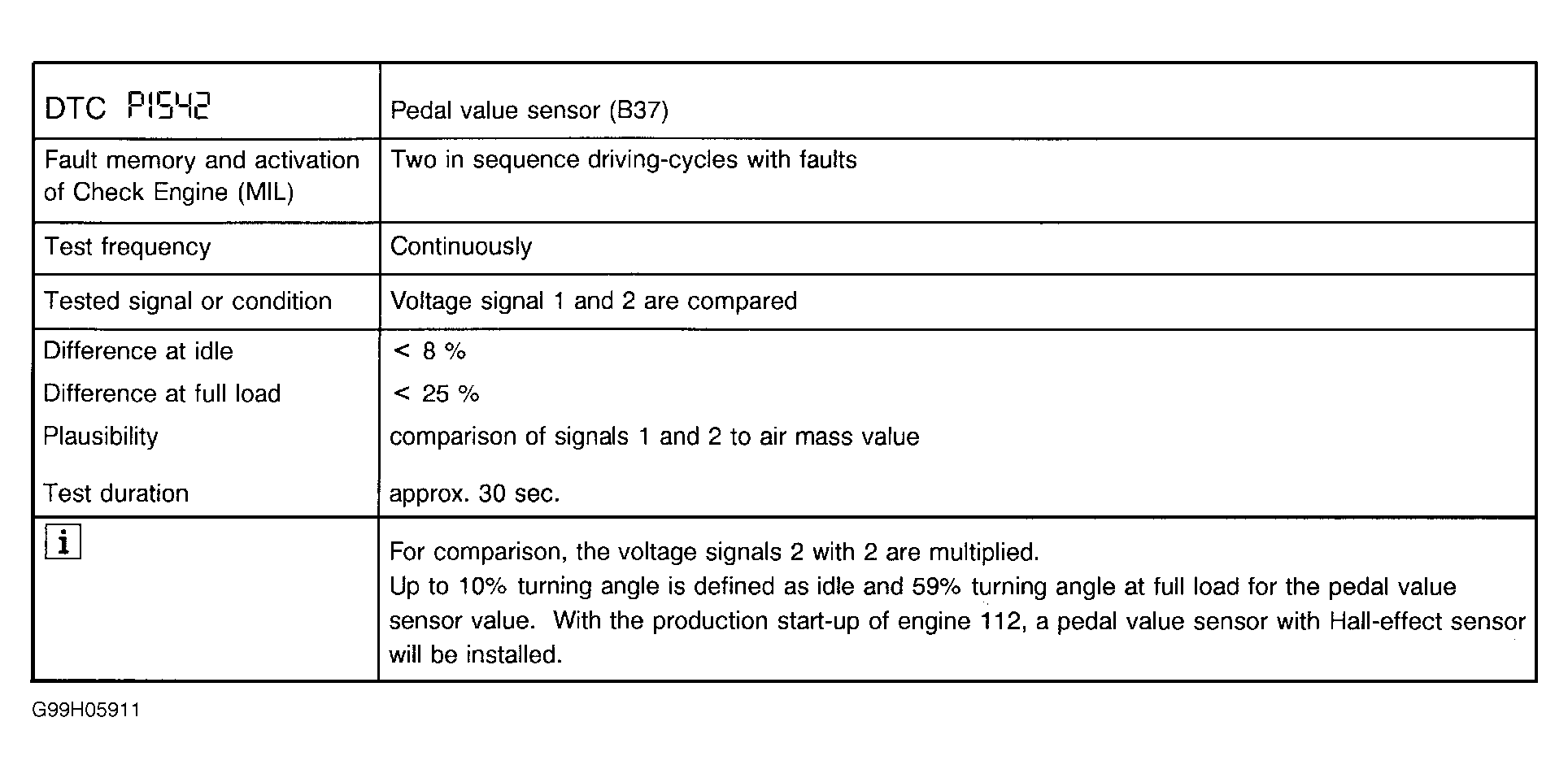

Fig 53: DTC Description (P1542)

G99H05911

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

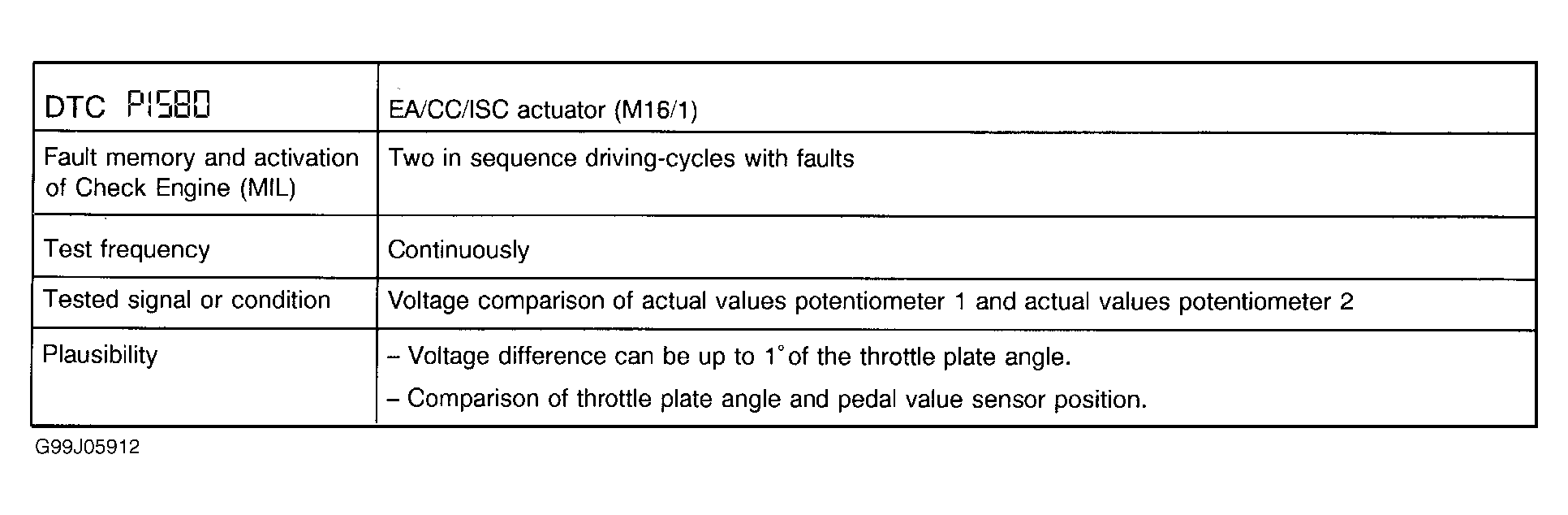

Fig 54: DTC Description (P1580)

G99J05912

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
