Fuel Injection System Test (Step 19.0)

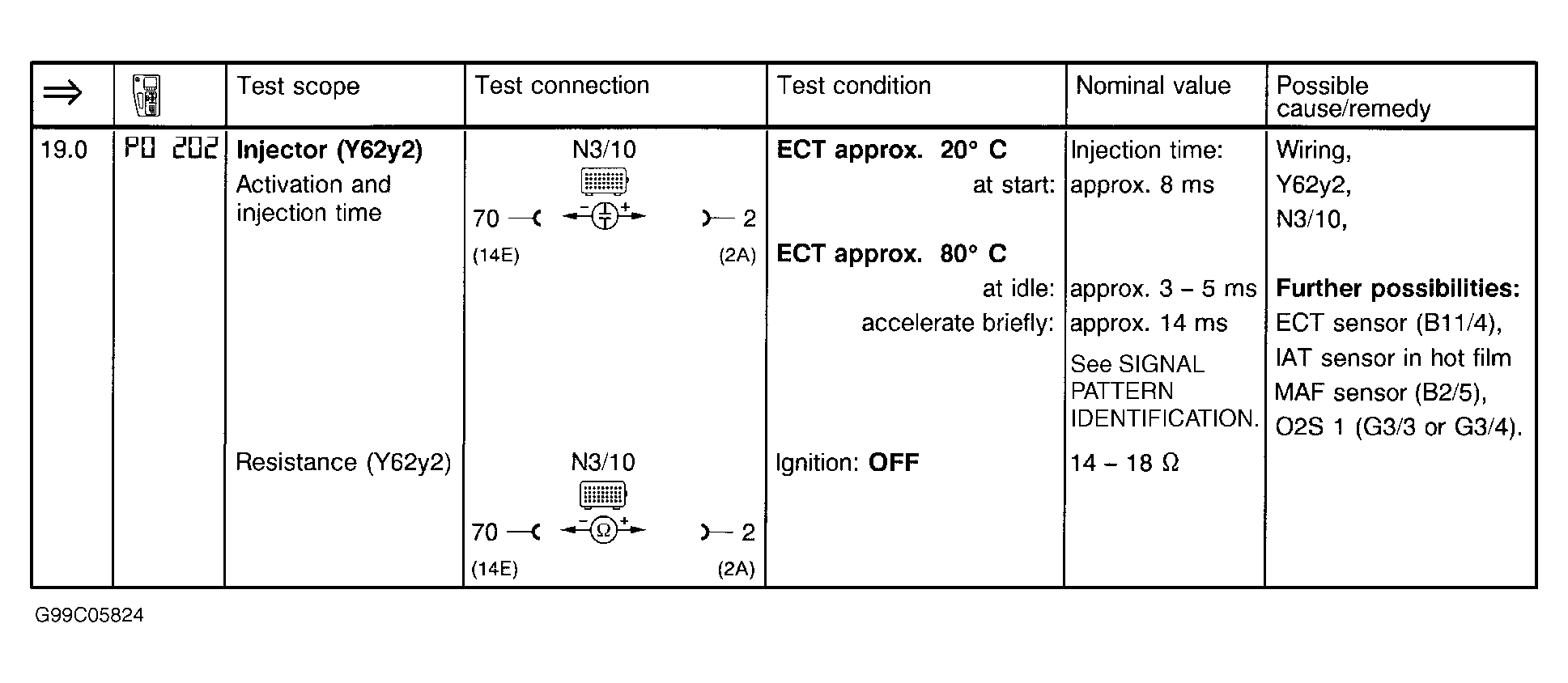

Fig 1: Fuel Injection System Test (Step 19.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
