Fuel Injector Tests

NOTE: Far left column in following graphic is step numbers.

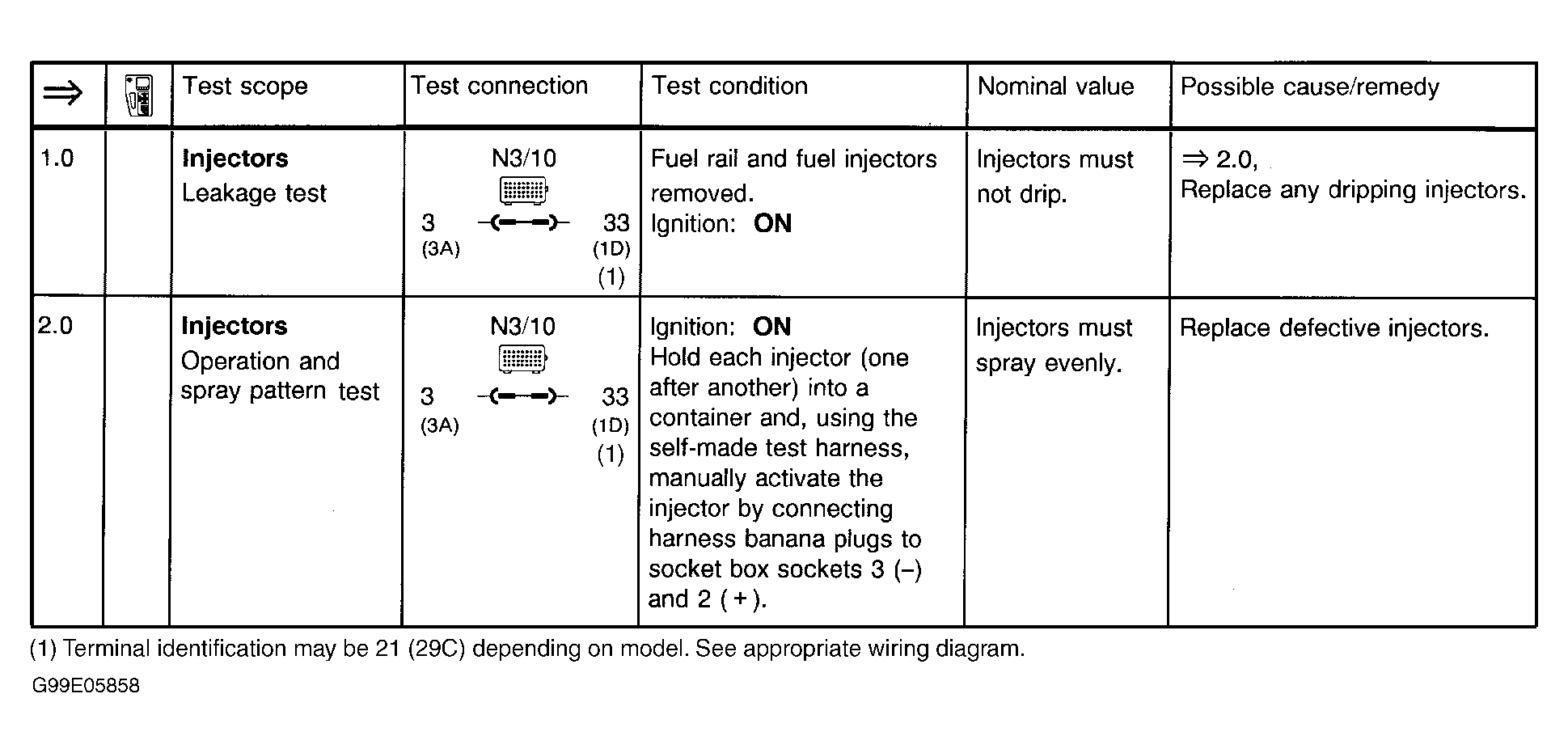

Fig 1: Fuel Injector Tests
G99E05858Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
