Ignition System Test (Step 21.0)

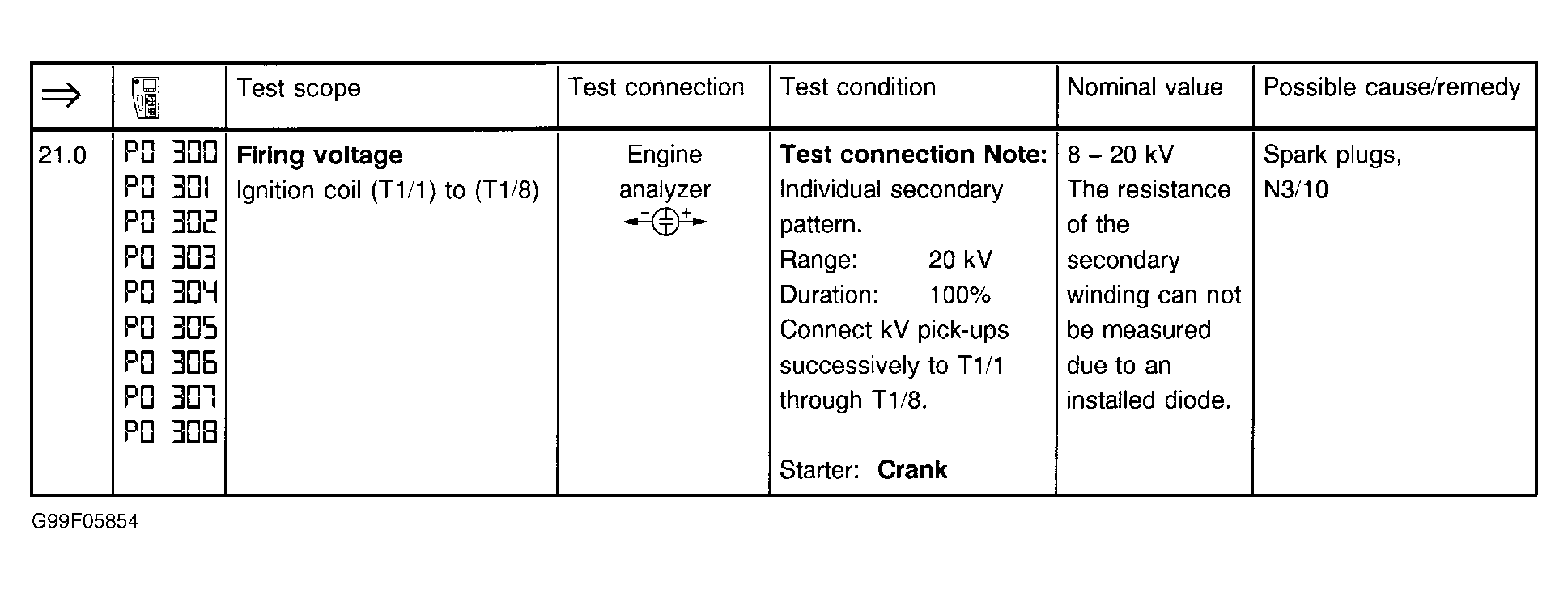

Fig 1: Ignition System Test (Step 21.0)
G99F05854Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 2: Ignition System Signal Identification
G99F52899Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
