Ignition System Test (Steps 11.0 & 11.1)

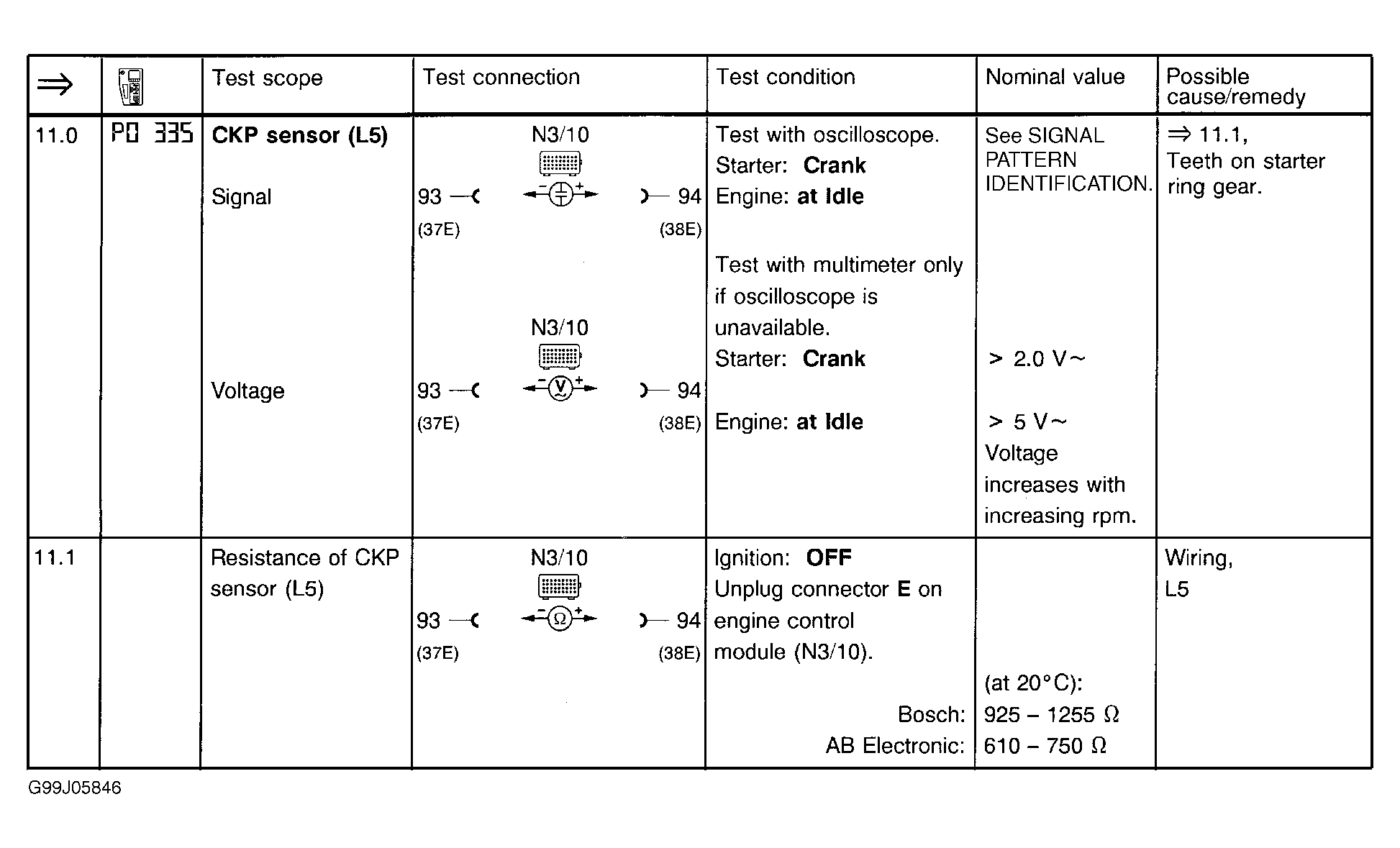

Fig 1: Ignition System Test (Steps 11.0 & 11.1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
