Symptom Diagnostics
Find applicable complaint that matches vehicle symptom, see the following list:

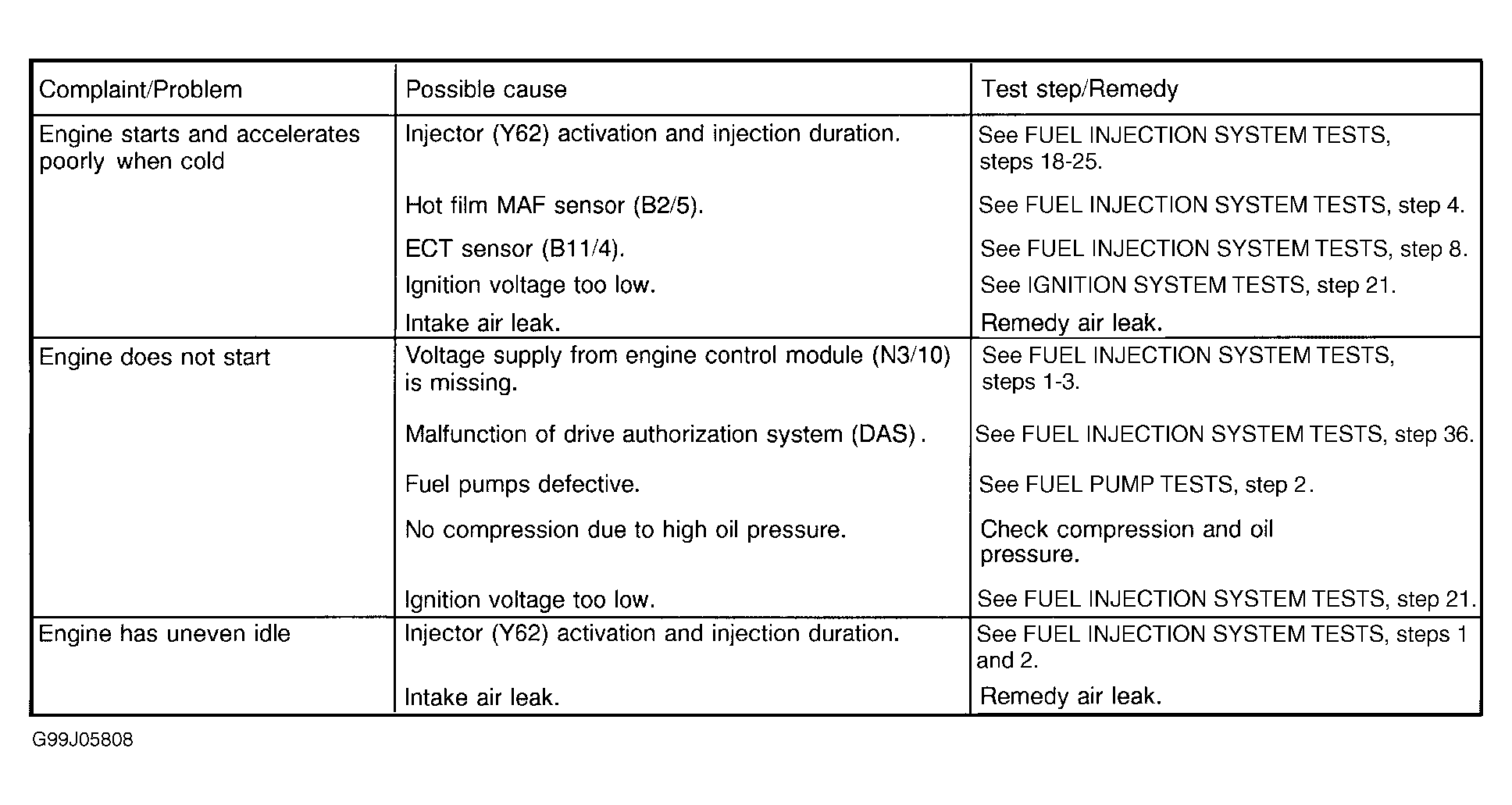

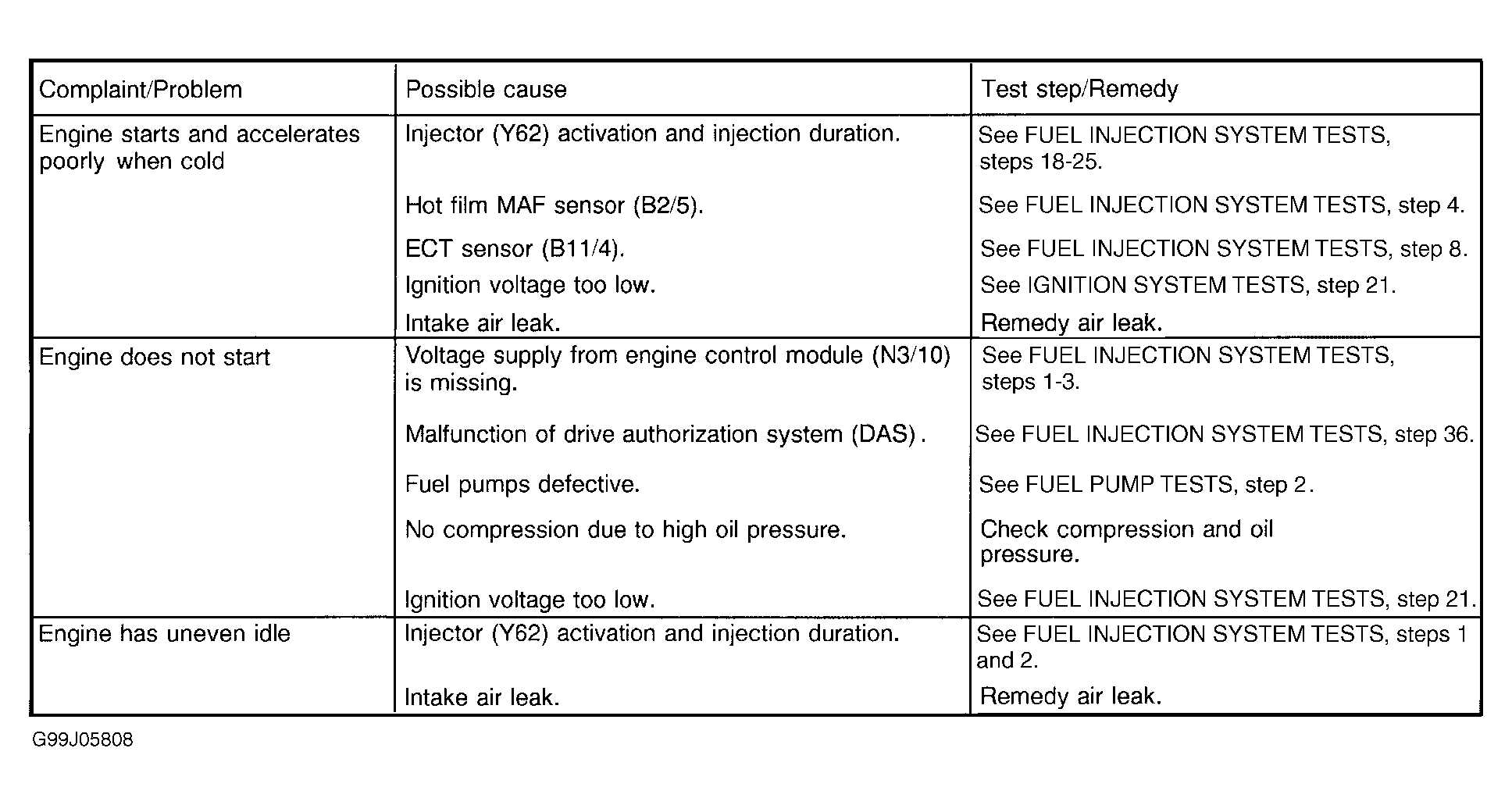

- Engine starts and accelerates poorly when cold. See Fig 1.
- Engine does not start. See Fig 1.
- Engine has uneven idle. See Fig 1.

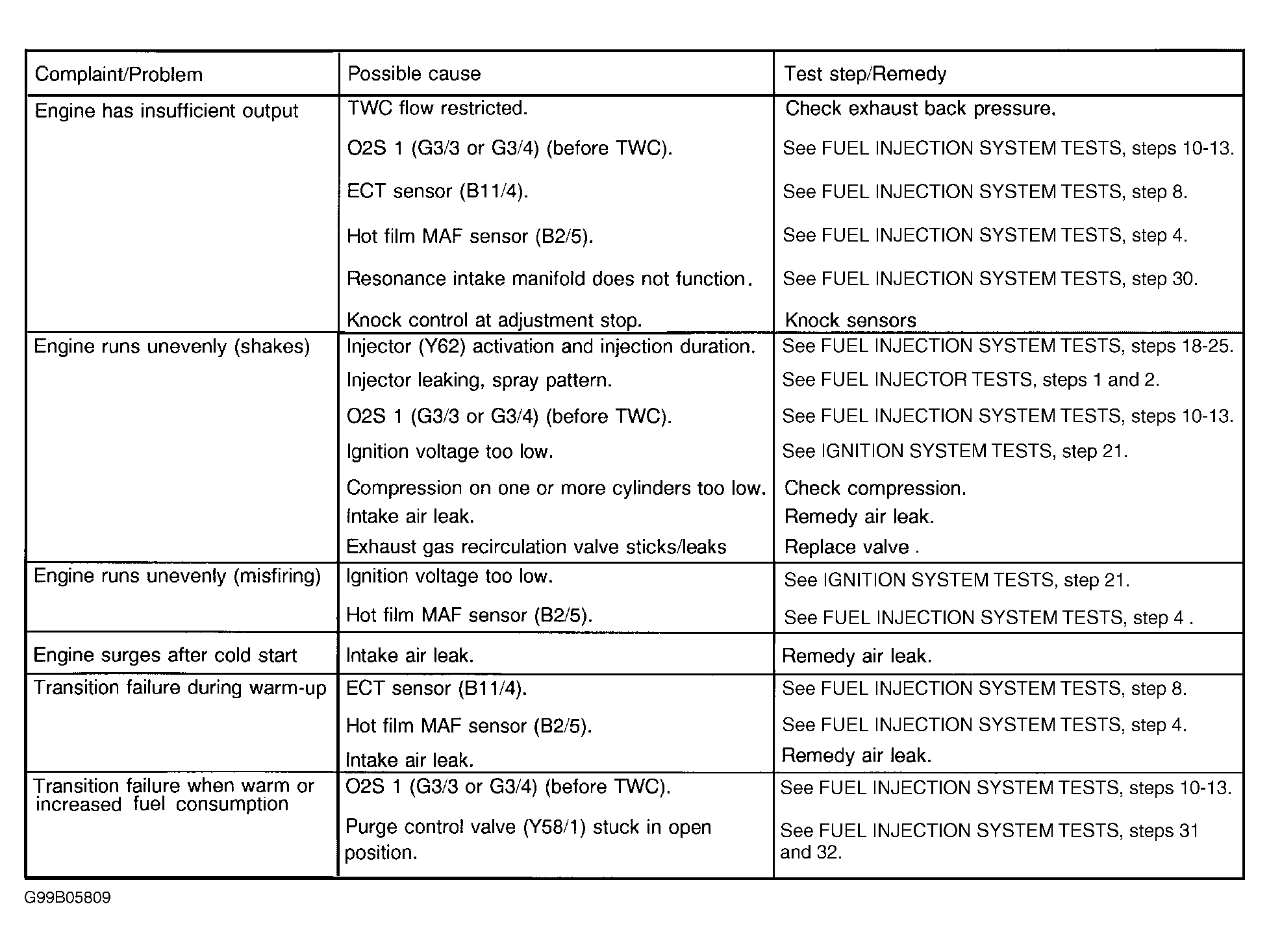

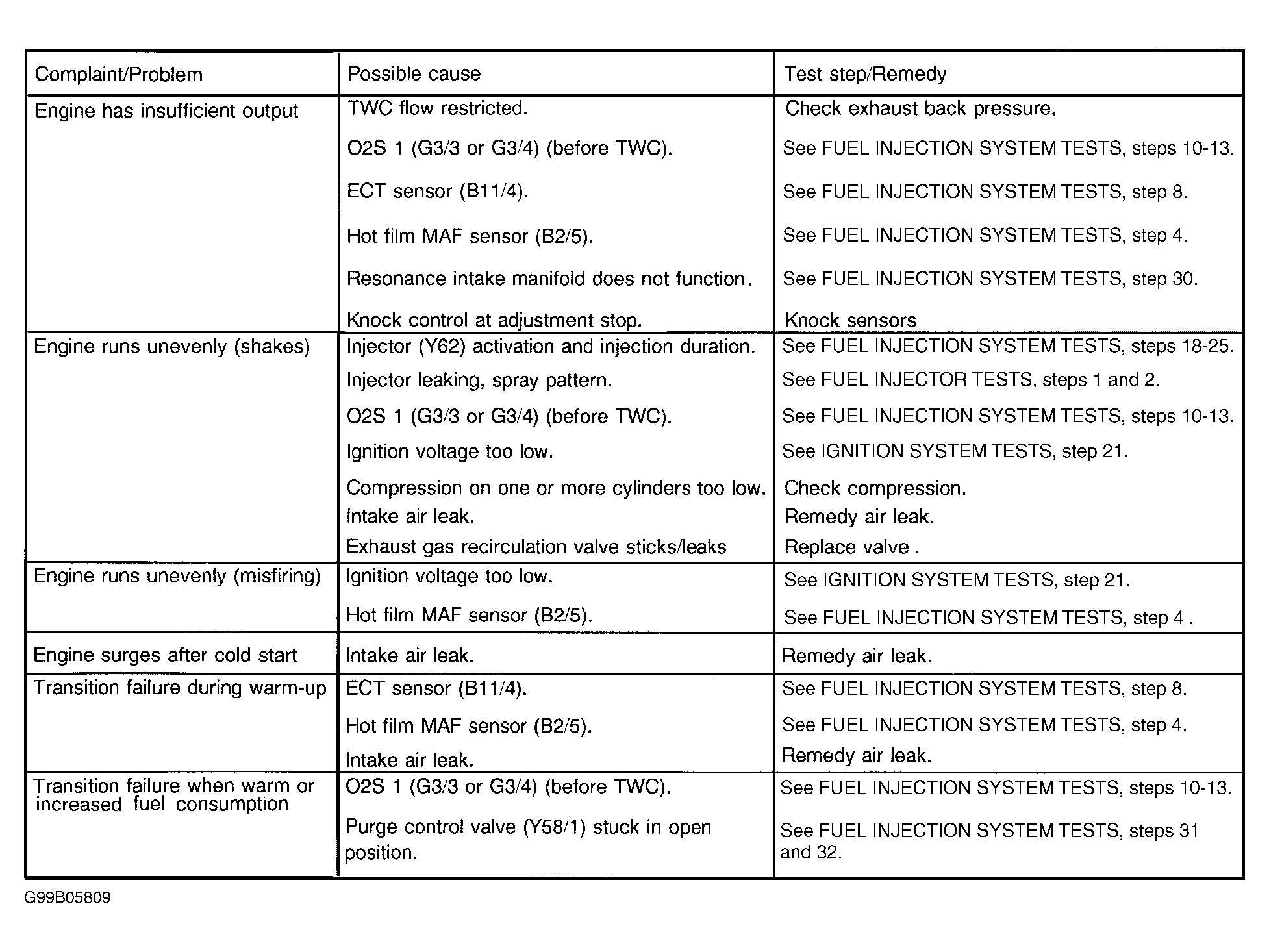

- Engine has insufficient output. See Fig 2.
- Engine runs unevenly (shakes). See Fig 2.
- Engine runs unevenly (misfiring). See Fig 2.
- Engine surges after cold start. See Fig 2.
- Transition failure during warm up. See Fig 2.
- Transition failure when warm or increased fuel consumption. See Fig 2.

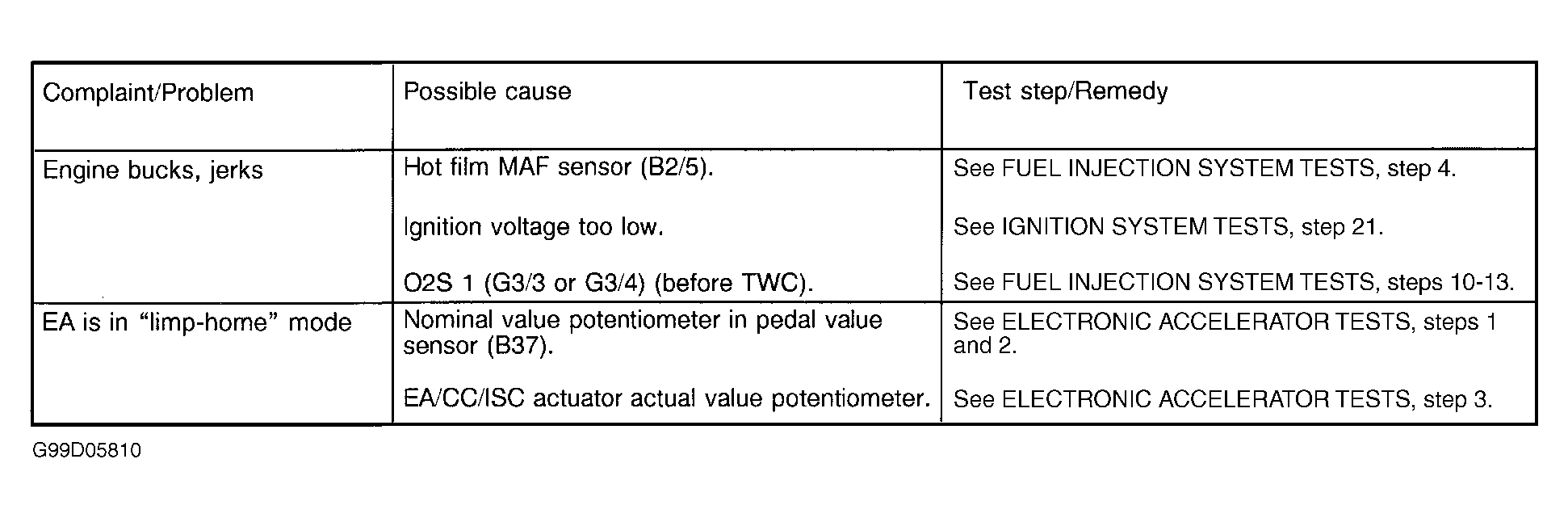

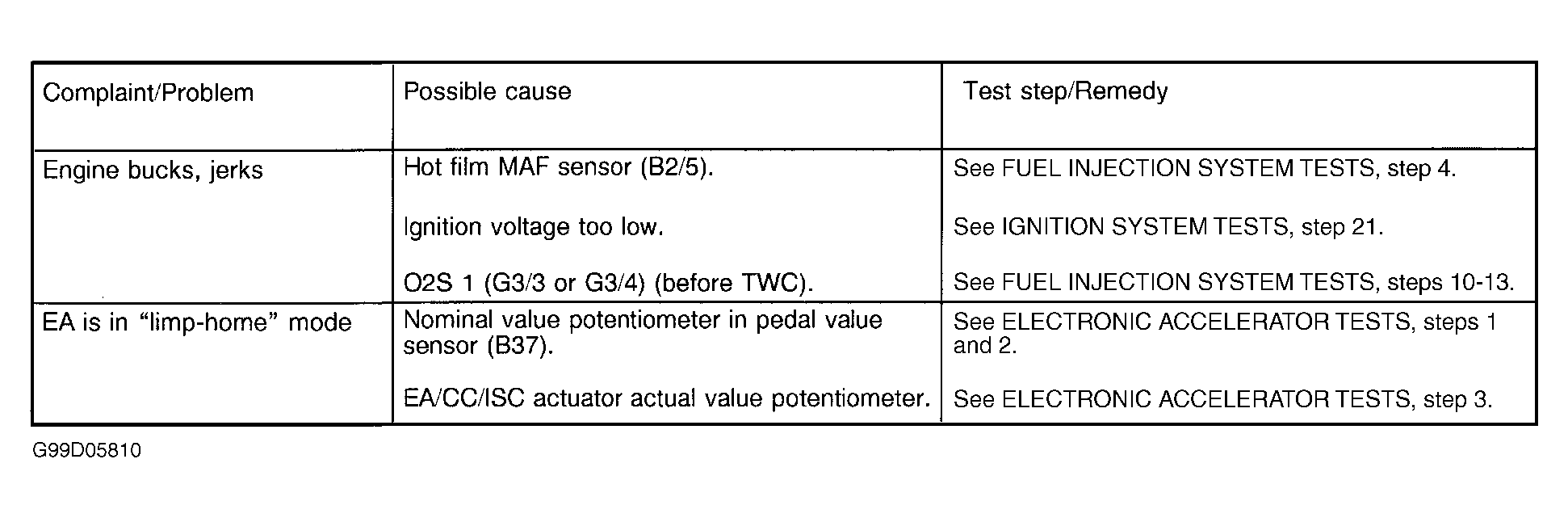

- Engine bucks, jerks. See Fig 3.
- EA is in "limp home" mode. See Fig 3.
