Windowbag, location/purpose/design/function - GF91.60-P-4014GH

Model 163 as of 1.9.0

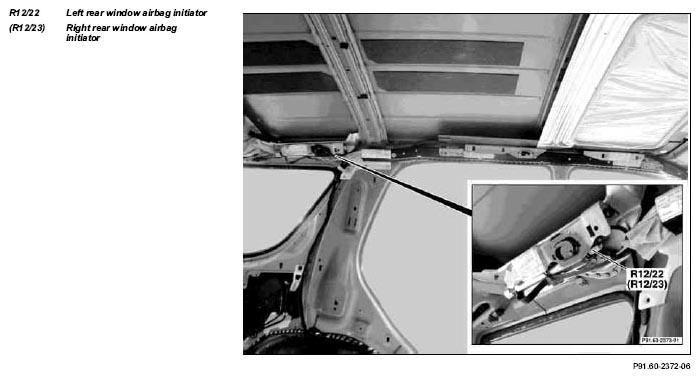

Fig 1: Identifying Window Airbag Location
G04609254
  Window airbag position The inflator modules with the left rear window airbag initiator (R12/22)  and right rear window airbag initiator (R12/32)  are arranged in the left and right C pillars  .
When folded, the corresponding air hose is located in the side roof frame.

  Window airbag - task   GF91.60-P-4014-02A
  Window airbag - design   GF91.60-P-4014-03A
  Window airbag - function   GF91.60-P-4014-04A
