side airbag sensor, location/purpose - GF91.60-P-4016GH
Model 163 as of 1.9.01

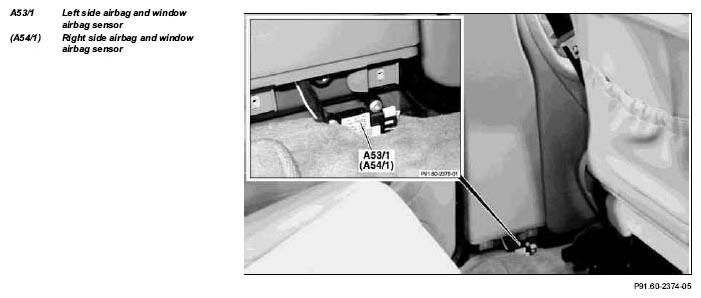

| Side airbag sensor - location | The sensors are located below the B pillar in the vehicle interior | ||
| Side airbag sensor task | The left side airbag and window airbag sensor (A53/1) and right side airbag and window airbag sensor (A54/1) record the acceleration/deceleration forces acting on the vehicle in a transverse direction in the event of a side collision and trigger a plausibility test in the restraint systems control module (N2/7) . In the event of plausibility, an activation signal is transmitted to the relevant side and window airbags. |
