Steering Column: Overhaul

NOTE: For overhaul procedures, see Fig 1 , Fig 2 or Fig 3 .

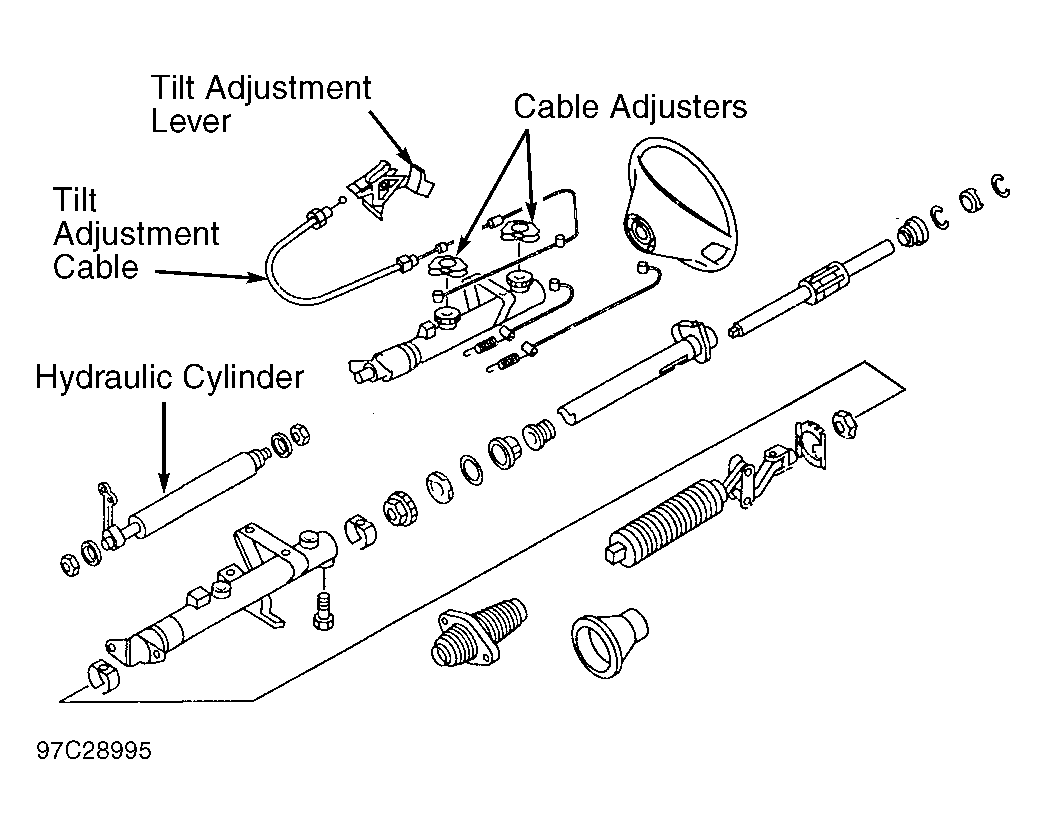

Fig 1: Identifying Manual Adjustment Steering Column Components (C230, C280, CLK320, S320, S420, S500 & SLK230)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

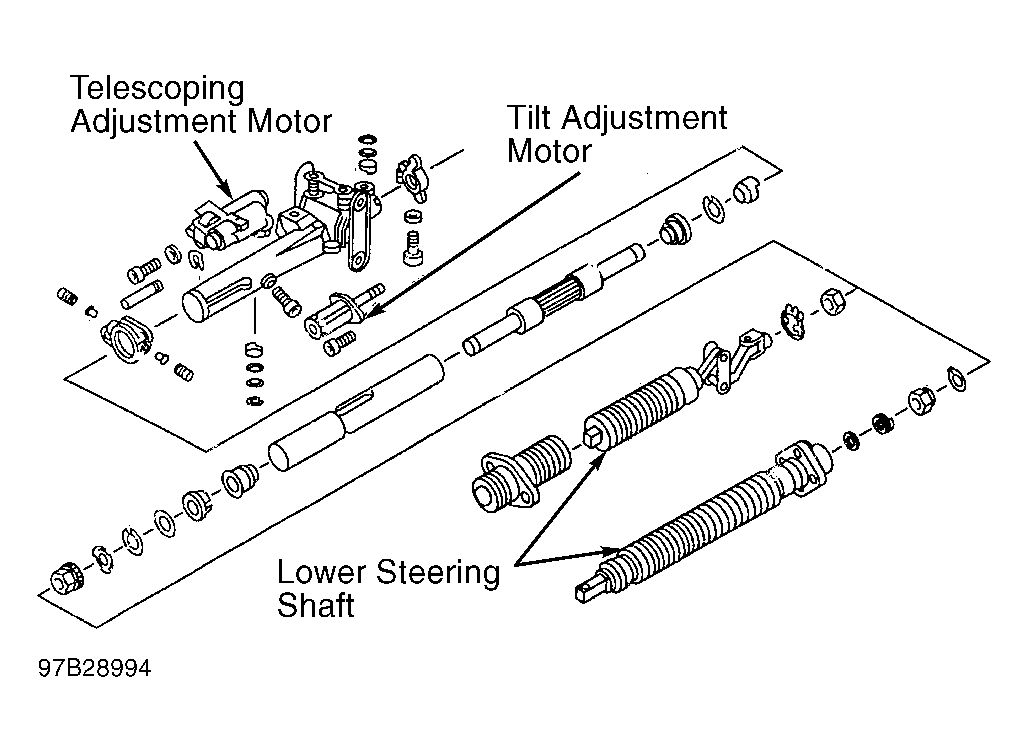

Fig 2: Identifying Electronic Adjustment Steering Column Components (E320 & E430)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

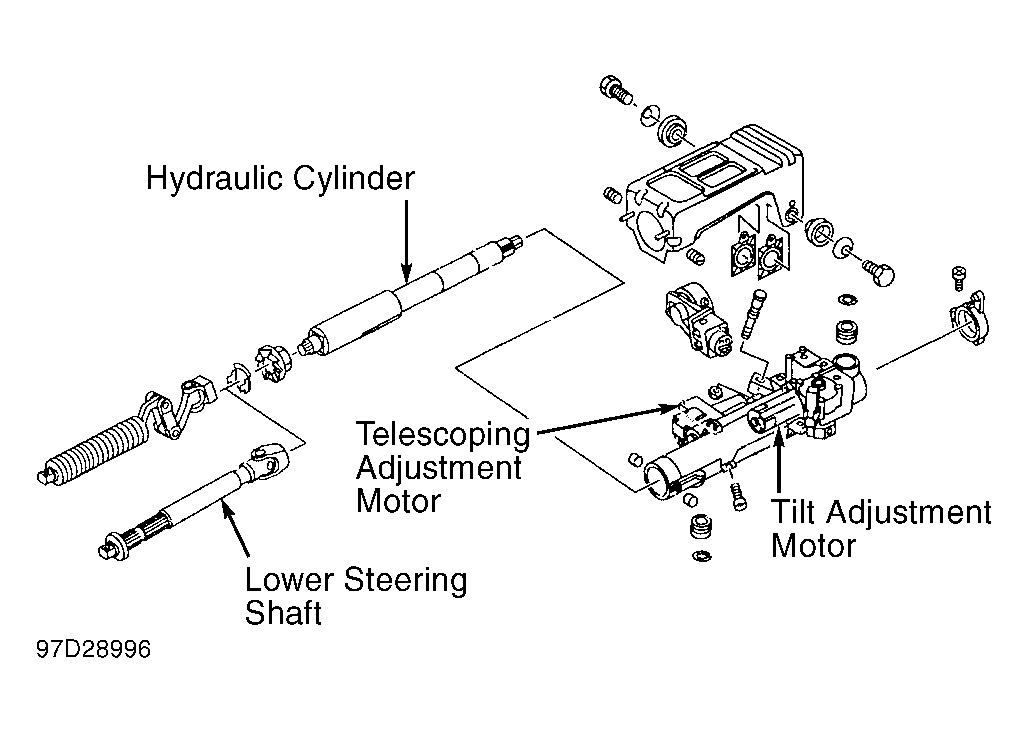

Fig 3: Identifying Electronic Adjustment Steering Column Components (S320, S420, S500, SL320 & SL500)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
