Combination Switch: Installation

To install, reverse removal procedure. Ensure all electrical connections are tight. Ensure canceling operation of turn signal switch. Install steering wheel and air bag module. See AIR BAG MODULE  and STEERING WHEEL  .

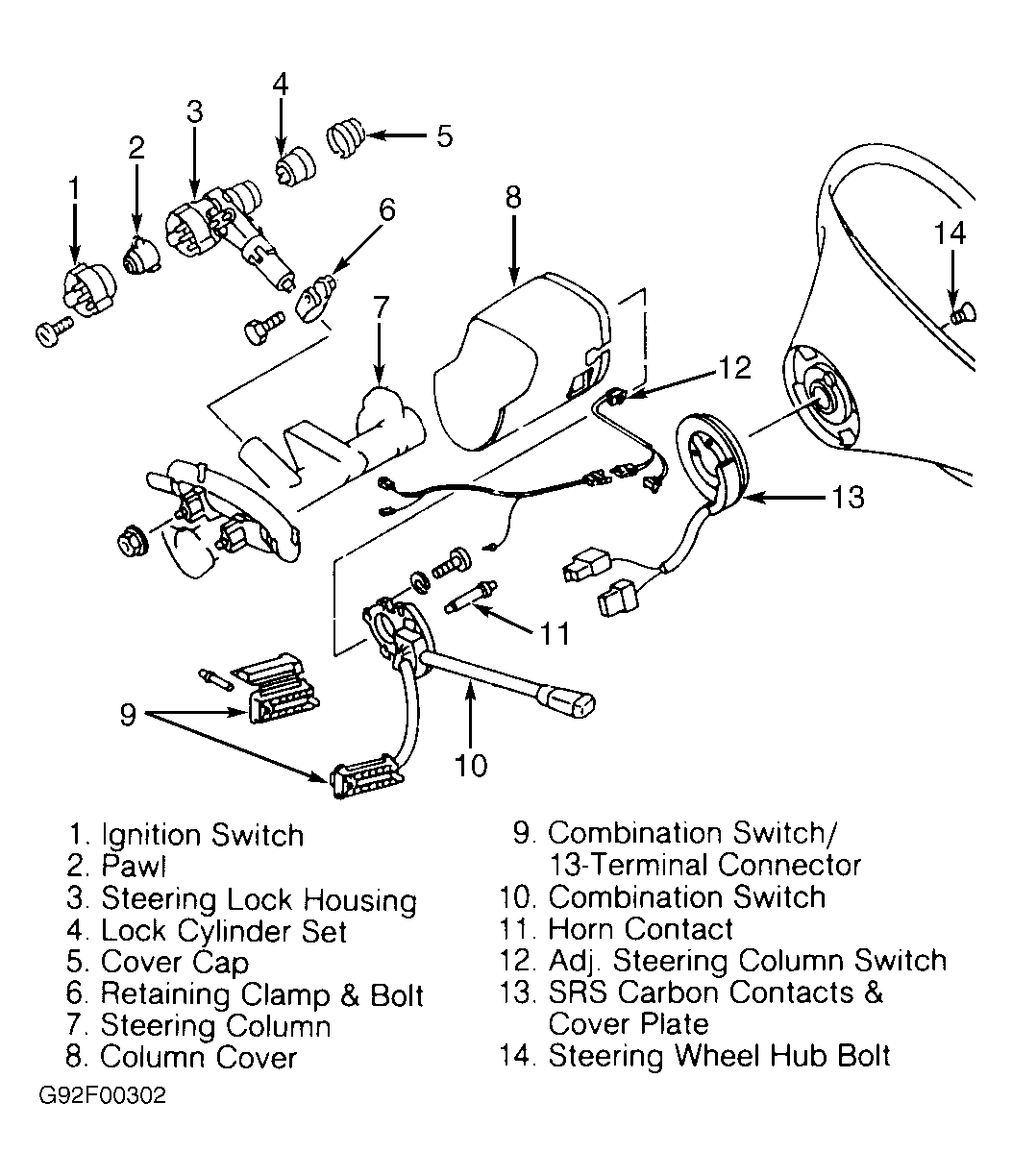

Fig 1: Exploded View Of Upper Steering Column (Typical)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
