Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Left Front Fuse/Relay Module Left rear of engine compartment. See Figure.
Rear Fuse/Relay Module Under right rear seat. See Figure.
Right Front Fuse/Relay Module Right rear of engine compartment. See Figure.

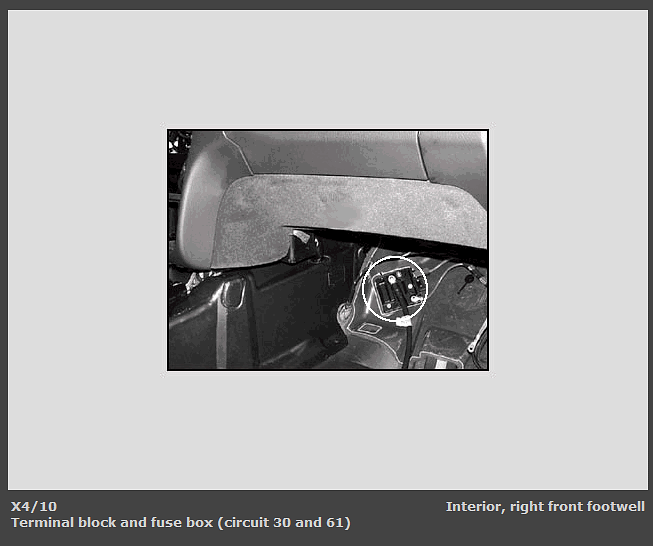

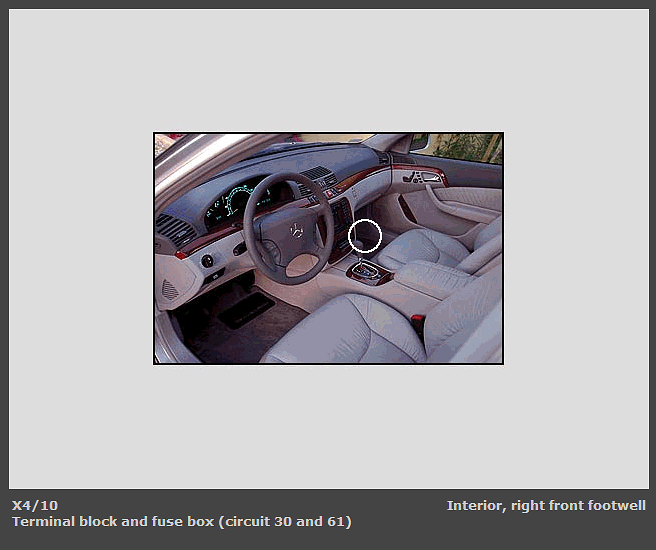

Interior Right Front Footwell Terminal Block And Fuse Block Right Front Footwell. See Figure and Figure .
