Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

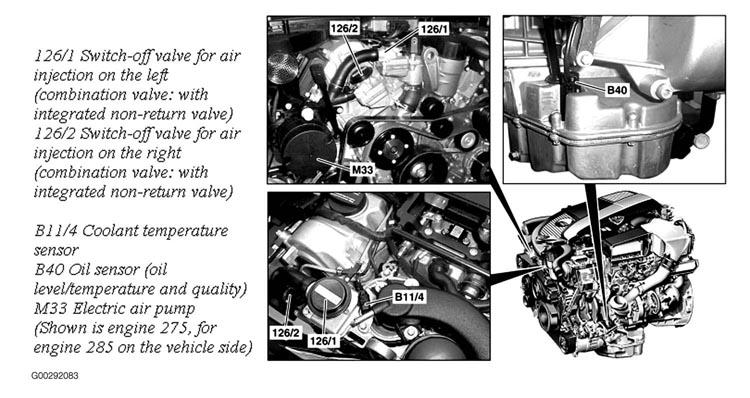

Fig 1: Engine Components (1 Of 5) (Engine 275)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

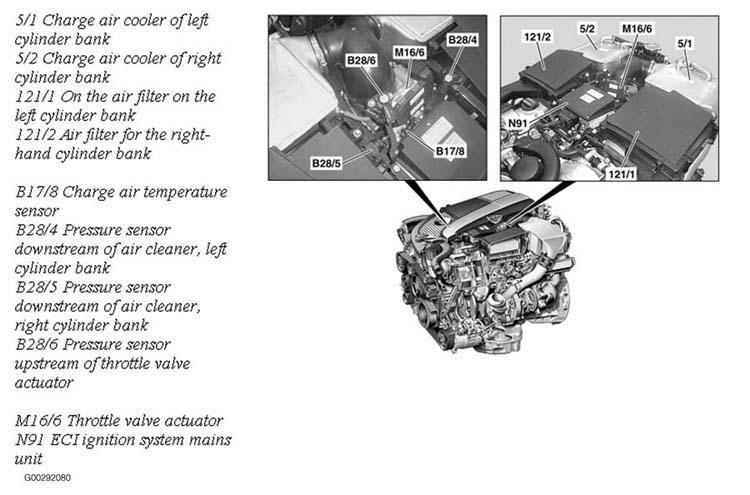

Fig 2: Engine Components (2 Of 5) (Engine 275)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

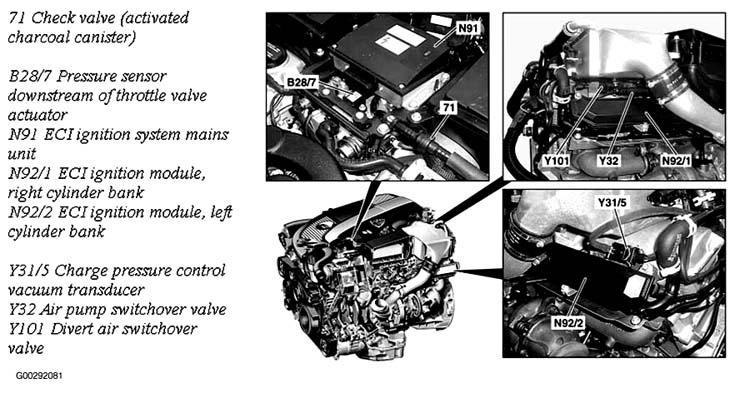

Fig 3: Engine Components (3 Of 5) (Engine 275)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

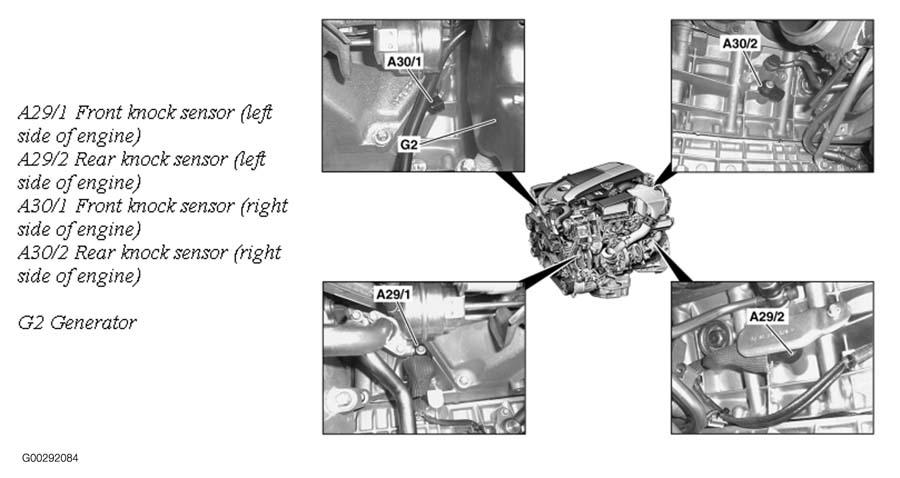

Fig 4: Engine Components (4 Of 5) (Engine 275)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

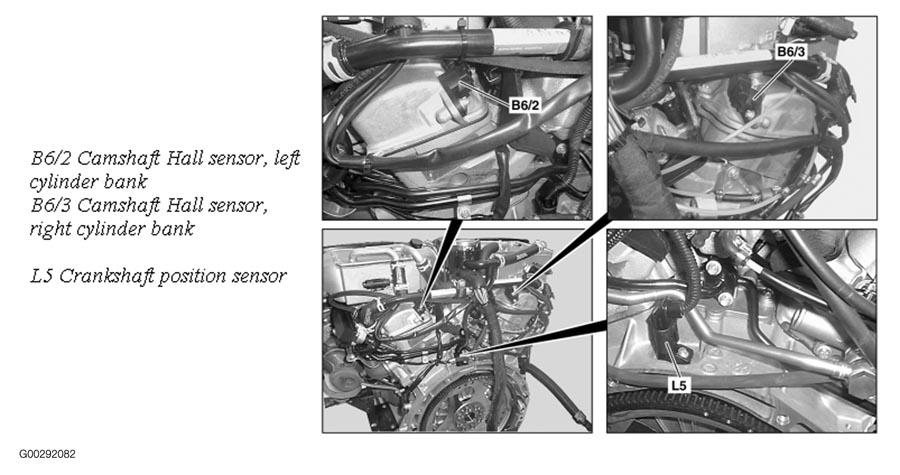

Fig 5: Engine Components (5 Of 5) (Engine 275)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Electronic Stability Program (ESP) Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

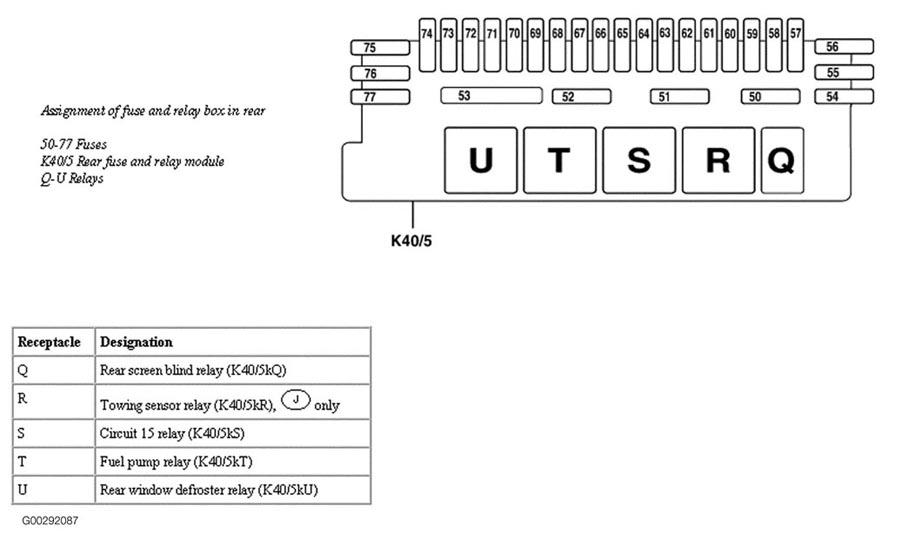

Fig 7: Rear Fuse/Relay Box

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 8: Windshield Wiper Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 9: Right Rear Of Vehicle

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

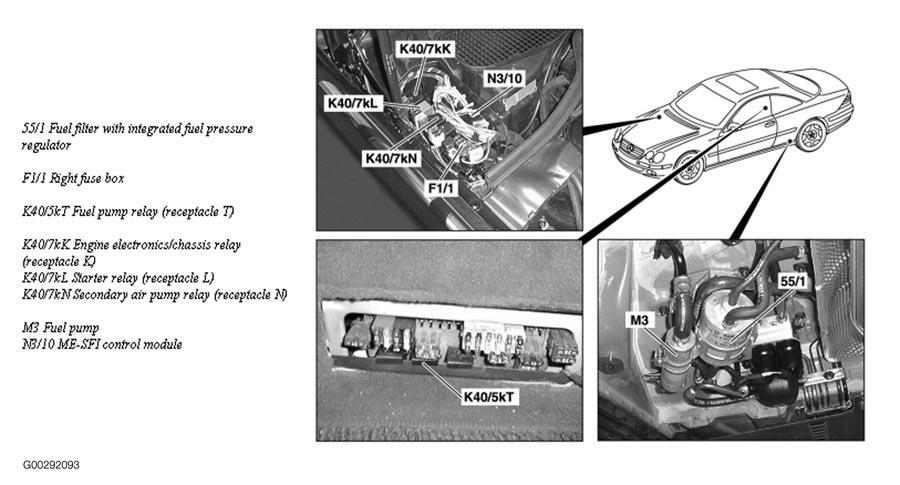

Fig 10: Right Rear Of Engine Compartment

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 11: Left Side Of Trunk

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 12: Engine Control Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 13: Engine Control Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 14: Interior Right Front Footwell Terminal Block And Fuse Block (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 15: Interior Right Front Footwell Terminal Block And Fuse Block (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
