Signal Pattern Identification

NOTE: The following graphics identify normal signal patterns. See Fig 1-Fig 7

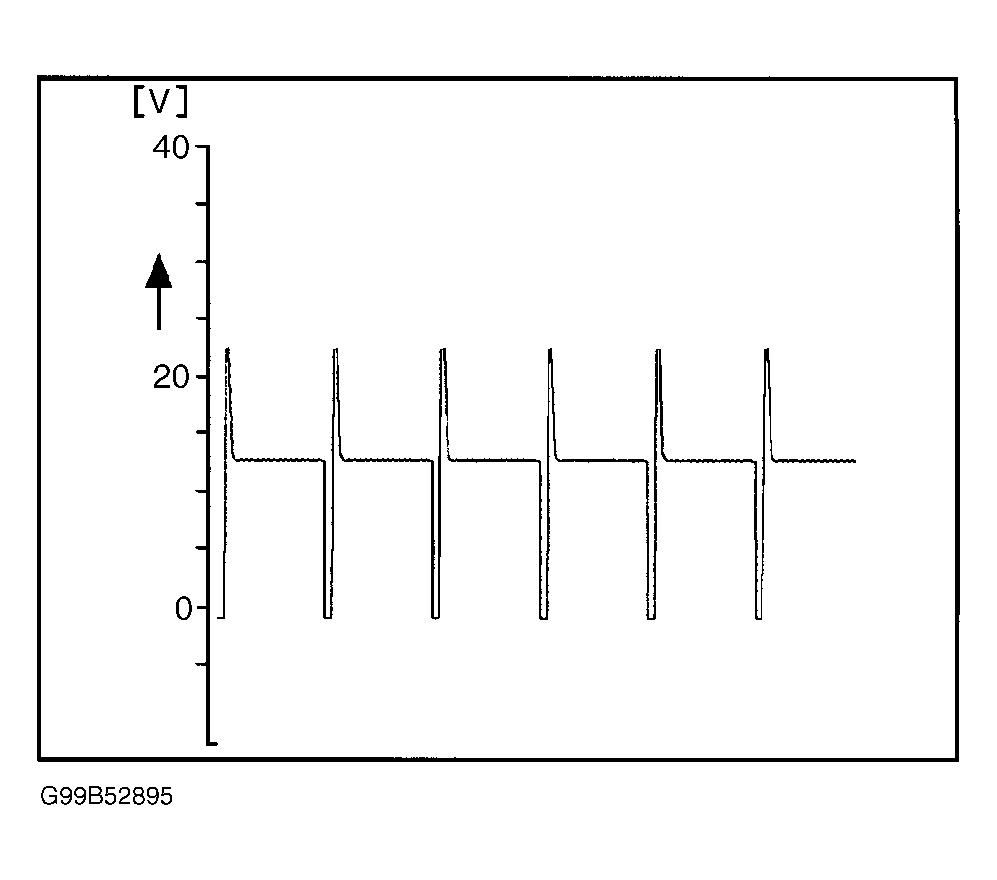

Fig 1: TN (RPM) Signal Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

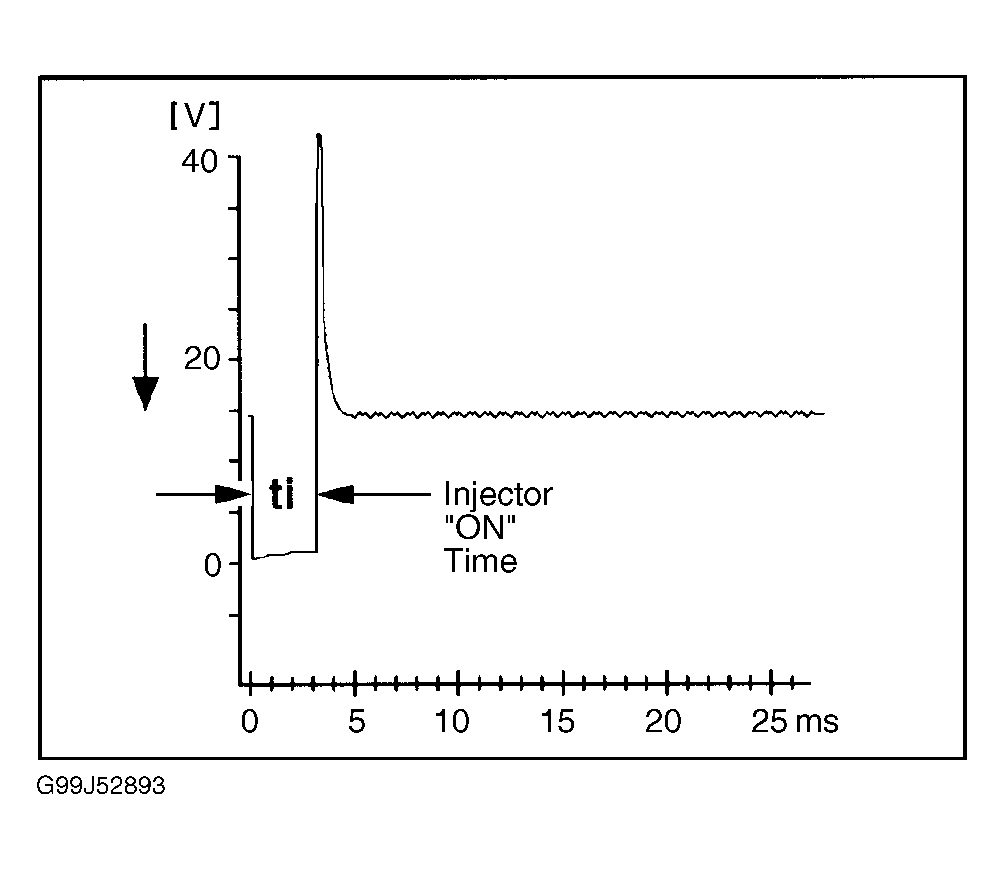

Fig 2: Injection Duration (Closed Throttle) Signal Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

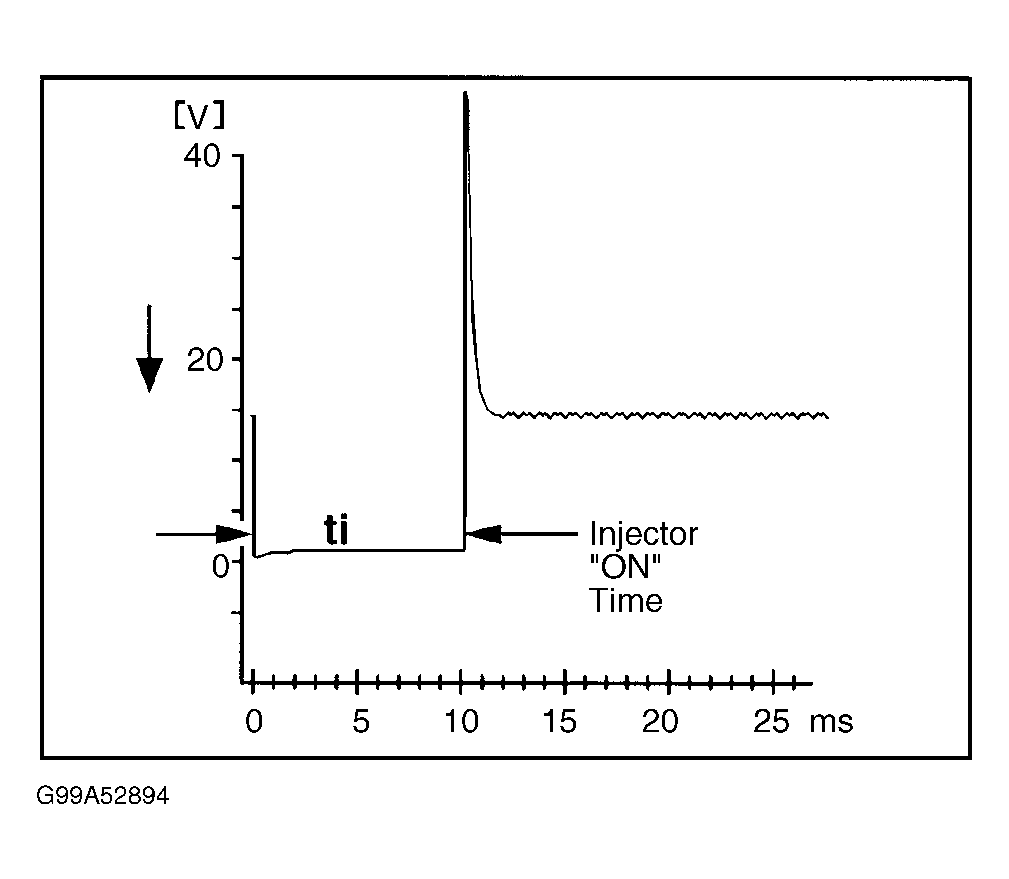

Fig 3: Injection Duration (WOT) Signal Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

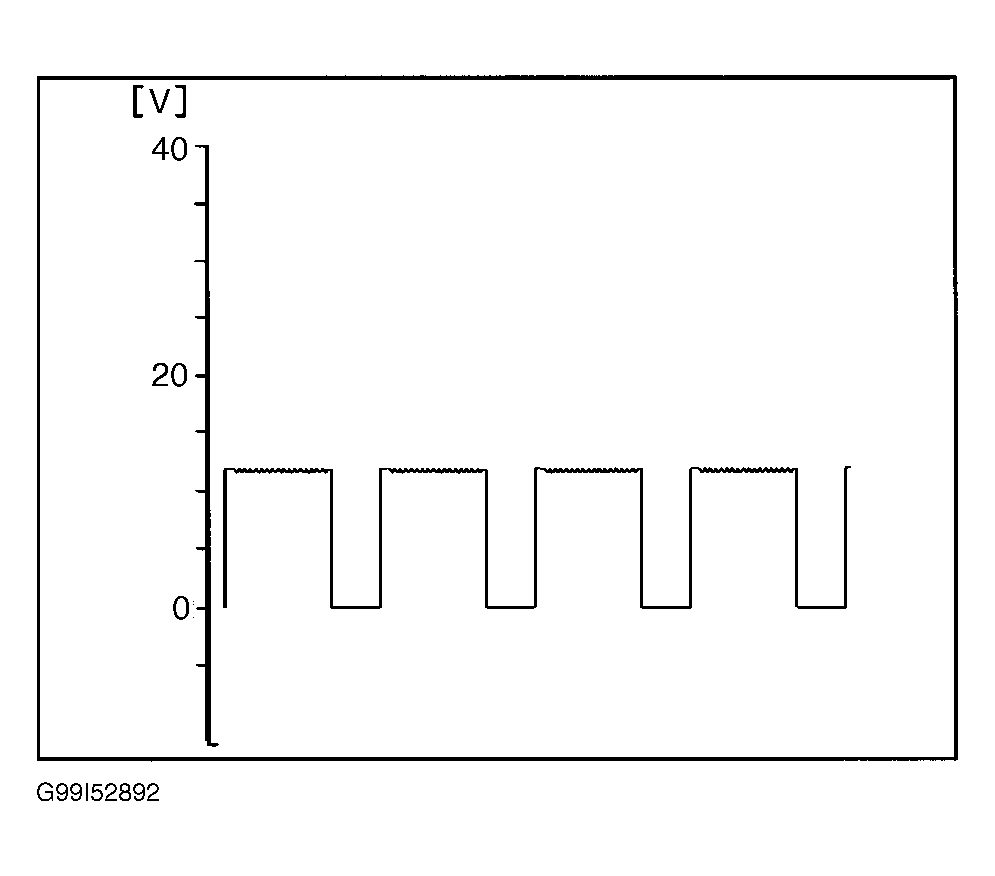

Fig 4: Purge Control Valve (Y58/1) Signal Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

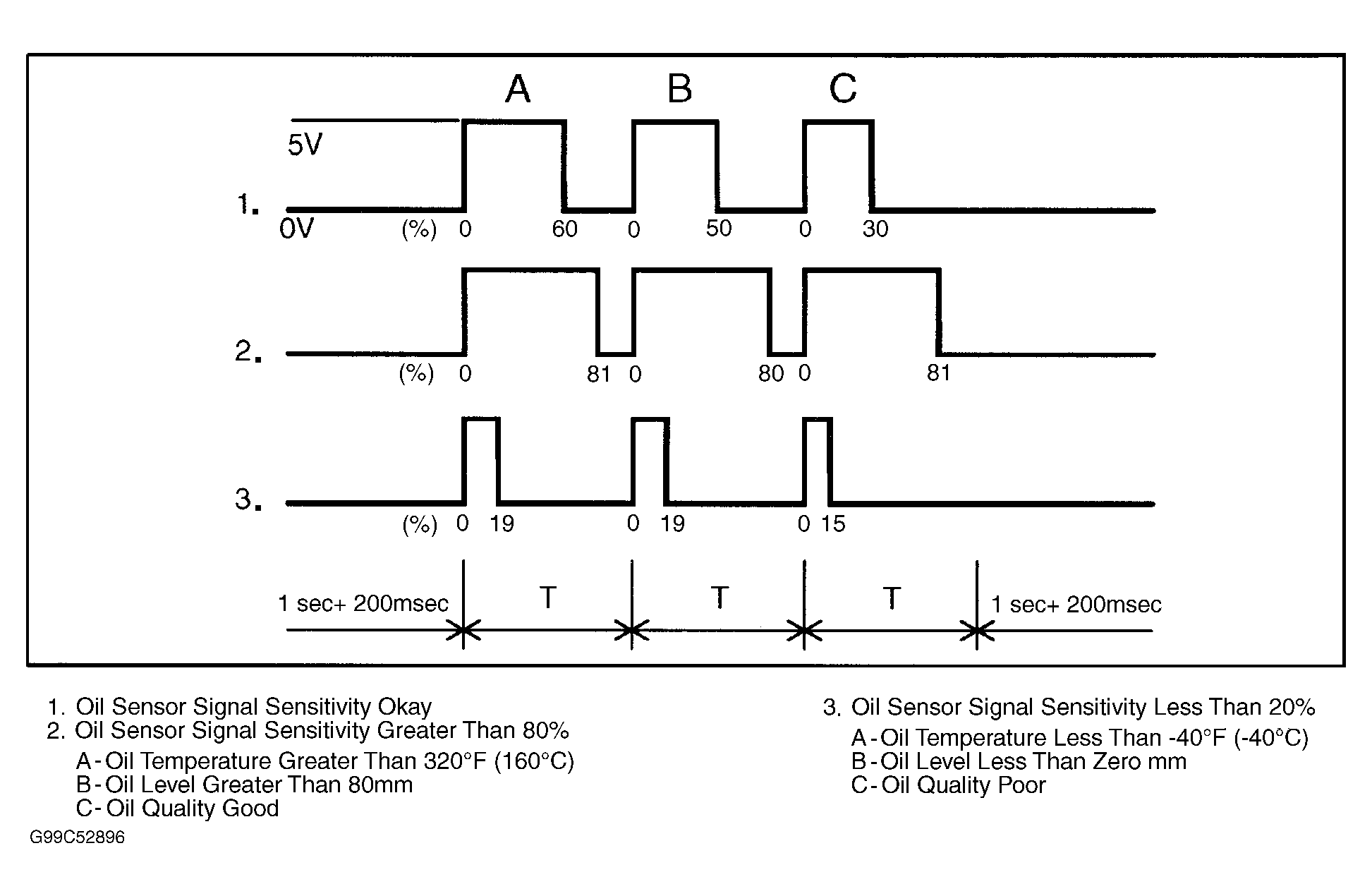

Fig 5: Oil Sensor (B40) Signal Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

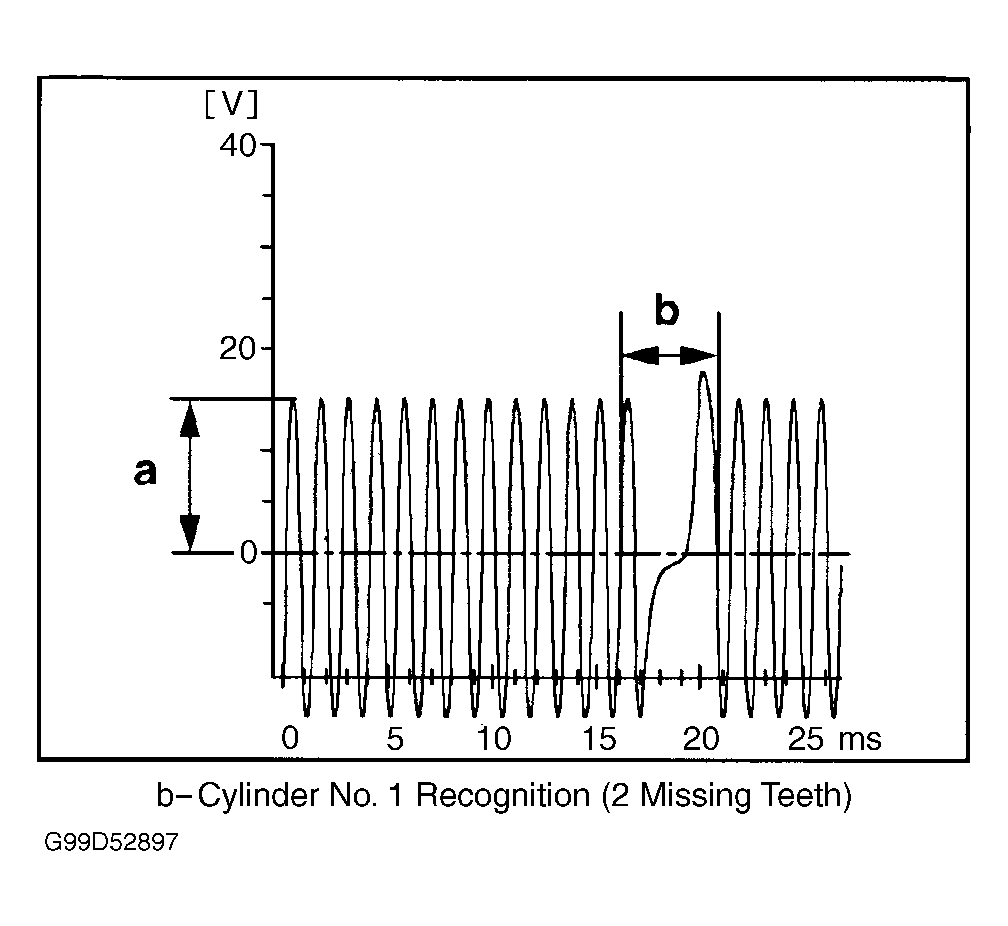

Fig 6: CKP Sensor (L5) Signal Identification (At Idle)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

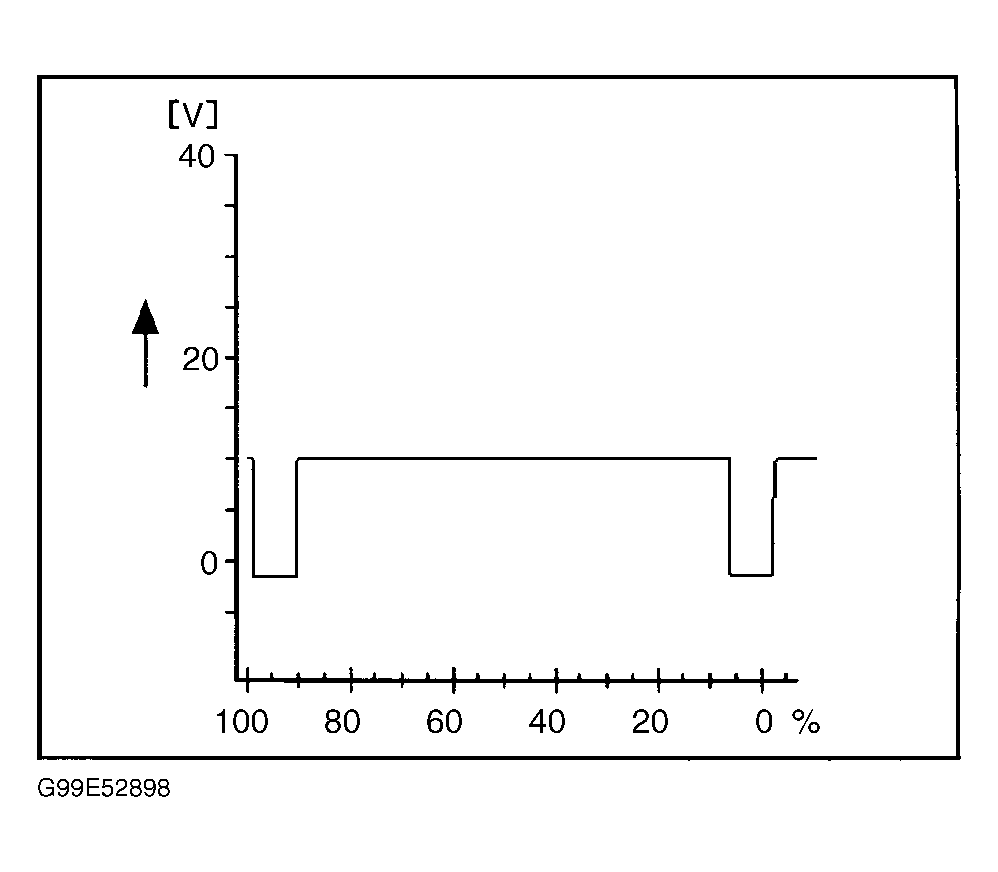

Fig 7: Camshaft Hall-Effect Sensor (B6/1) Signal Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
