Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| AB Control Module | In center console. |
| Active Body Control (ABC) Control Module | Left rear of engine compartment. |
| Electronic Selector Lever Control Module | Under center console, at base of selector lever assembly. |
| Electronic Stepper Motor Control Module | In center console. |

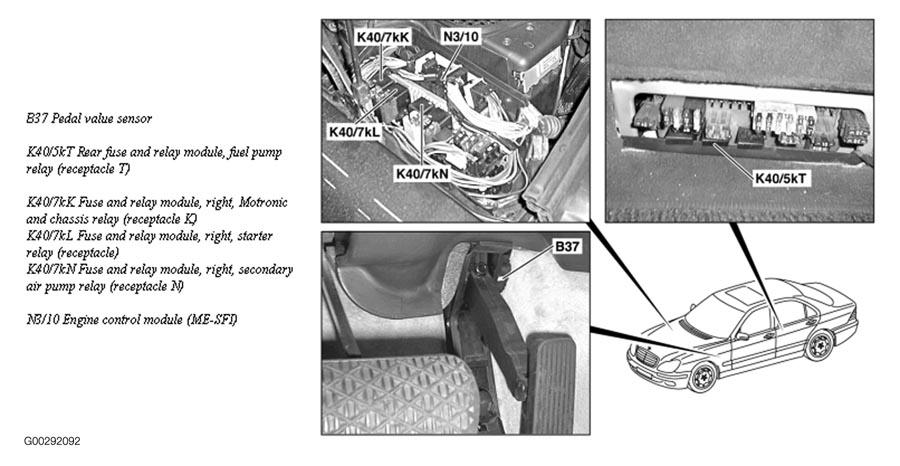

| Engine Control Module (ME-SFI) | Right rear of engine compartment. See Figure. |
| ETC Control Module | Right rear of engine compartment. |
| Left Front Door Control Module | In left front door. |
| Left Front ESA Control Module (With Memory) | Under left front seat. |

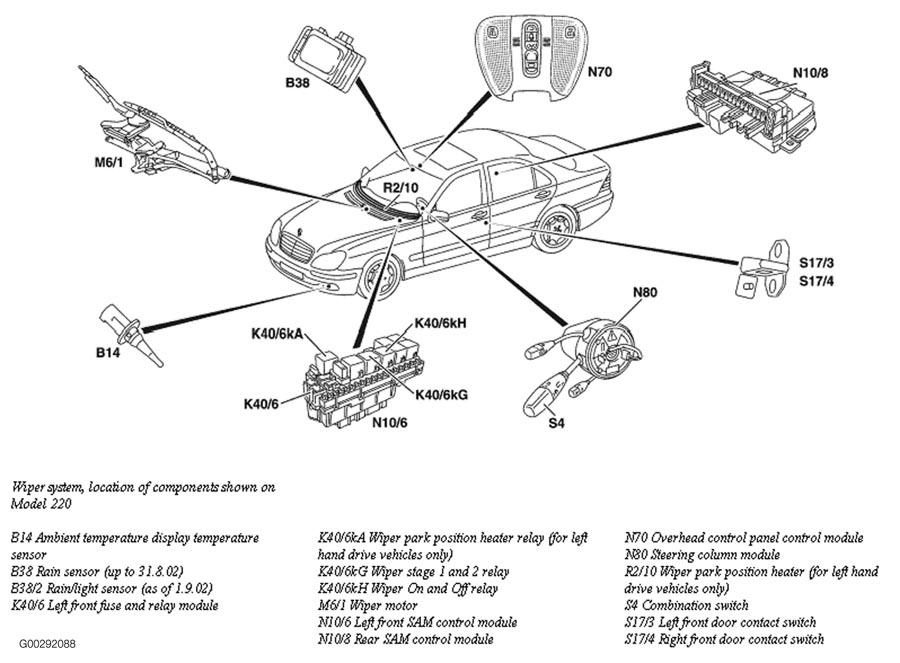

| Left Front SAM Control Module | In fuse/relay box, left side. See Figure. |
| Pneumatic Suspension With ADS Control Module | In left fuse/relay box. |

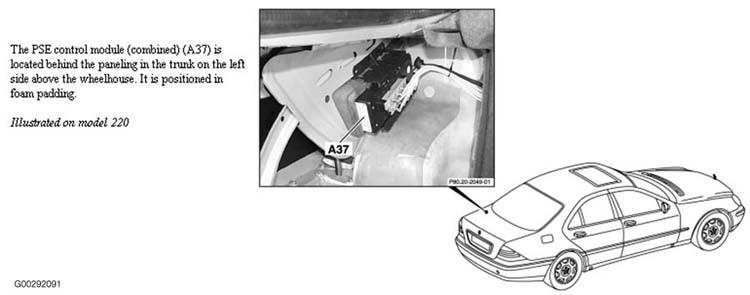

| PSE Control Module | Left side of trunk. See Figure. |
| Rear A/C Electronic Blower Regulator | In rear of center console. |
| Rear Multi-Contour Backrest Control Module | In driver's backrest. |

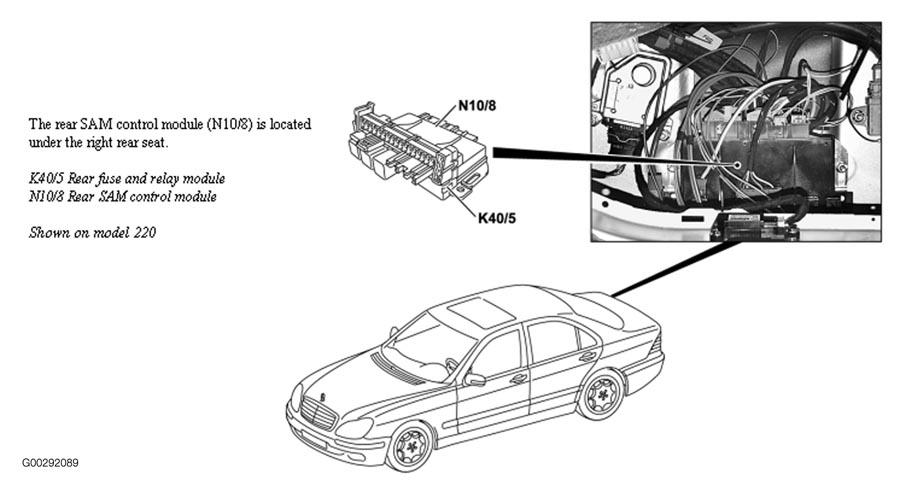

| Rear SAM Control Module | Under right rear seat. See Figure. |
| Right Front Door Control Module | In right front door. |
| Right Front ESA Control Module (With Memory) | Under right front seat. |

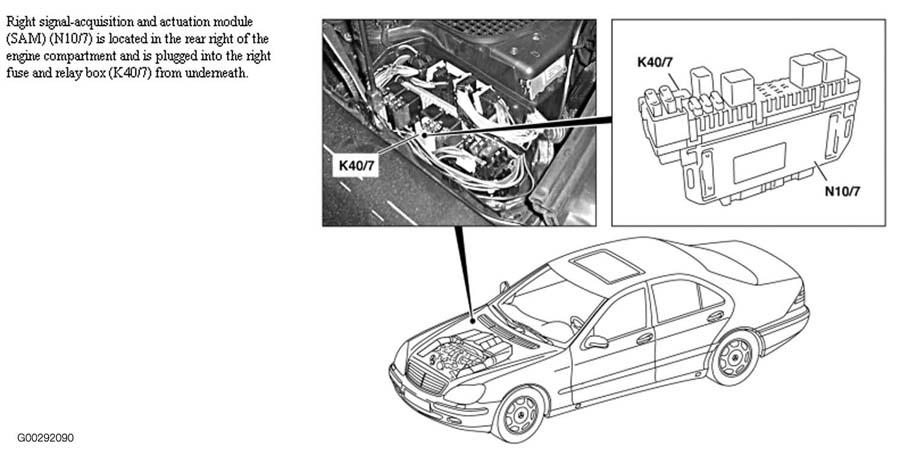

| Right Front SAM Control Module | In fuse/relay box, right side. See Figure. |
| Right Rear Door Control Module | In right rear door. |
| Roof Control Unit Control Module | Center front of roof. |
| Steering Column Module | At top of steering column. |
| Suction Cooling Fan Control Module | Behind right front bumper. |

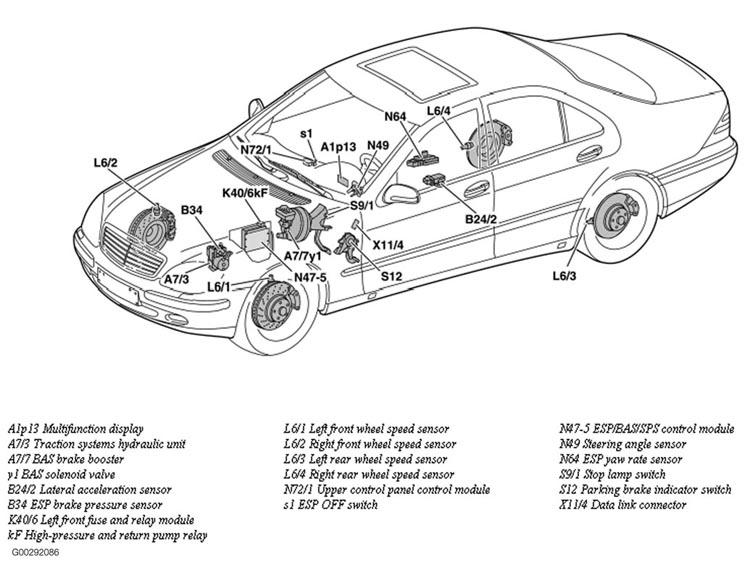

| Traction System Hydraulic Unit | Left front of engine compartment. See Figure. |
