Data Link Connector - Terminal Identification
>>
Data Link Connector (X11/4)
>>
Terminal Identification
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Terminal Identification

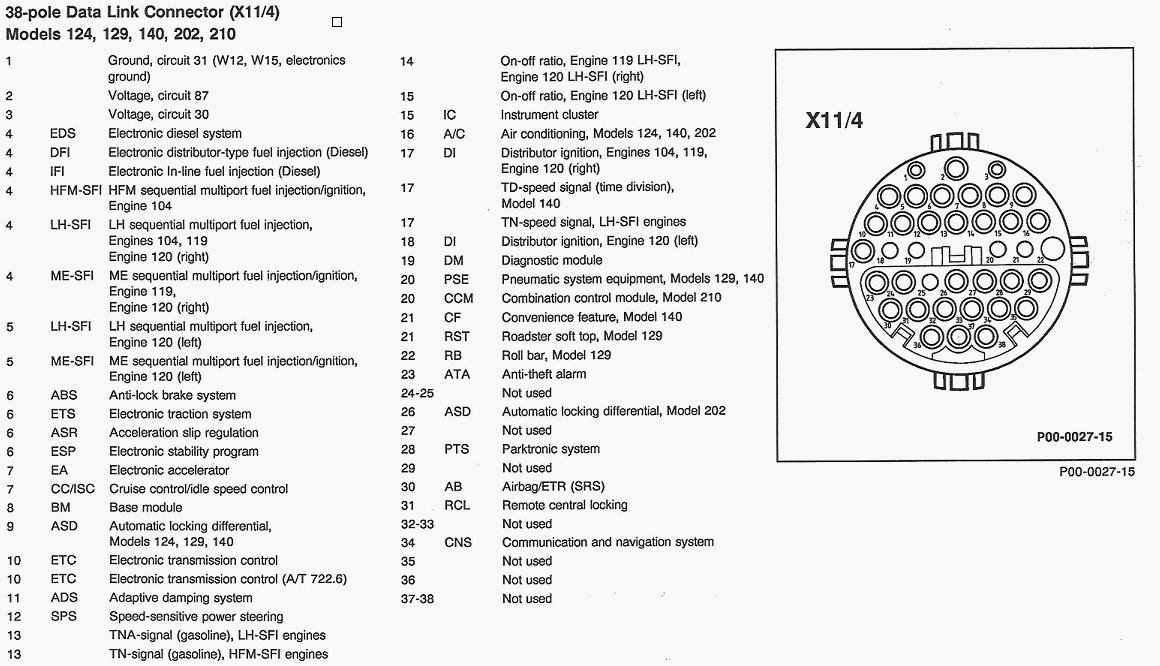

Fig 1: Data Link Connector Terminal Identification
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
