MMI Overview - Digital Tele Aid Control Module (82.95/541)

MMI OVERVIEW - DIGITAL TELE AID CONTROL MODULE

TECHNICAL SERVICE BULLETIN

SUBJECT

MODEL 129.068/076 from VIN F196862

MODEL YEAR 2001-2002

MODEL 163.154/157/172/174/175

MODEL YEAR 2001-2005

MODEL 170.449/465/466

MODEL YEAR 2001-2004

MODEL 199.376

MODEL YEAR 2005-2006

MODEL 203.040/061/064/065/081/084 [with SA CODE (349)]

MODEL YEAR 2001-2004

MODEL 203.261/264/281/284 [with SA CODE (349)]

MODEL YEAR 2002-2004

MODEL 203.740/747/764 [with SA CODE (349)]

MODEL YEAR 2002-2004

MODEL 208.365/370/374 [with SA CODE (801)]

MODEL YEAR 2001-2002

MODEL 208.465/470/474 [with SA CODE (801)]

MODEL YEAR 2001-2003

MODEL 209.365/375/376 [with SA CODE (349)]

MODEL YEAR 2003-2004

MODEL 209.465/475/476 [with SA CODE (349)]

MODEL YEAR 2004

MODEL 210.065/070/074/082/083 [with SA CODE (349)]

MODEL YEAR 2001-2002

MODEL 210.265/282 [with SA CODE (349)]

MODEL YEAR 2002-2003

MODEL 211.026/065/070/076/082/083 [with SA CODE (384)]

MODEL YEAR 2003-2005 (MY05 only 211.026)

MODEL 211.265/282/283 [with SA CODE (384)]

MODEL YEAR 2003-2004

MODEL 215.373/374/375/376/378 [with SA CODE (349)]

MODEL YEAR 2001-2003

MODEL 215.374/375/376 [with SA CODE (384)]

MODEL YEAR 2004

MODEL 220.170/173/174/175/176/178/183/184 [with SA CODE (349)]

MODEL YEAR 2001-2003

MODEL 220.170/174/175/176/183/184 [with SA CODE (384)]

MODEL YEAR 2004

MODEL 230.474/475/476 [with SA CODE (349)]

MODEL YEAR 2003-2004

MODEL 463.246/249/271

MODEL YEAR 2002-2006

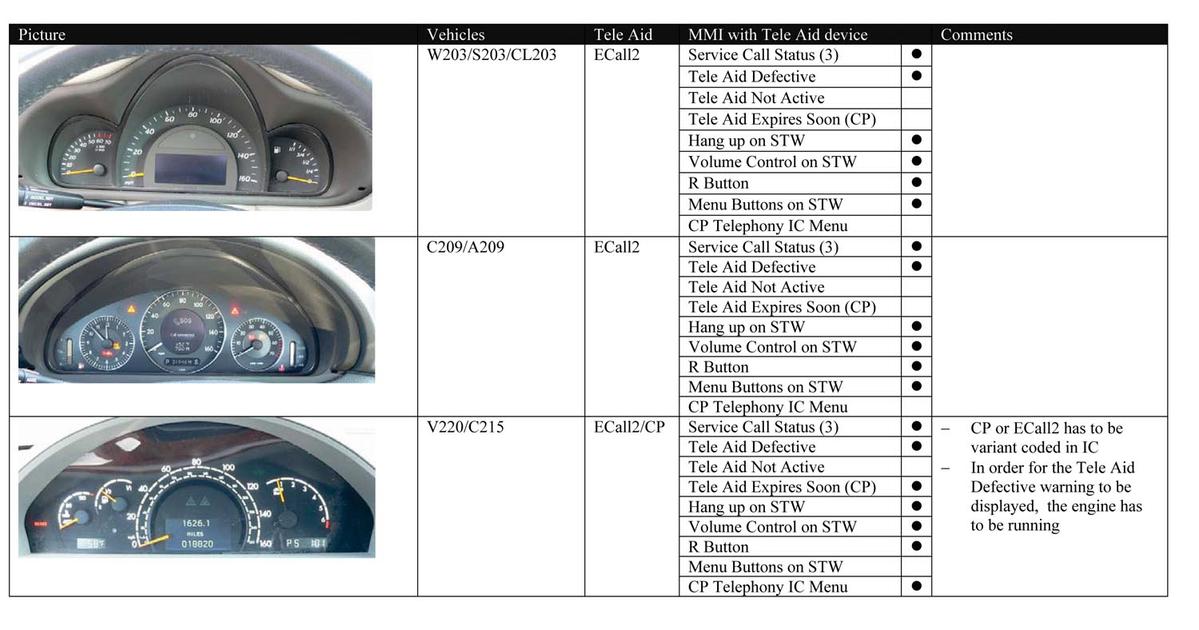

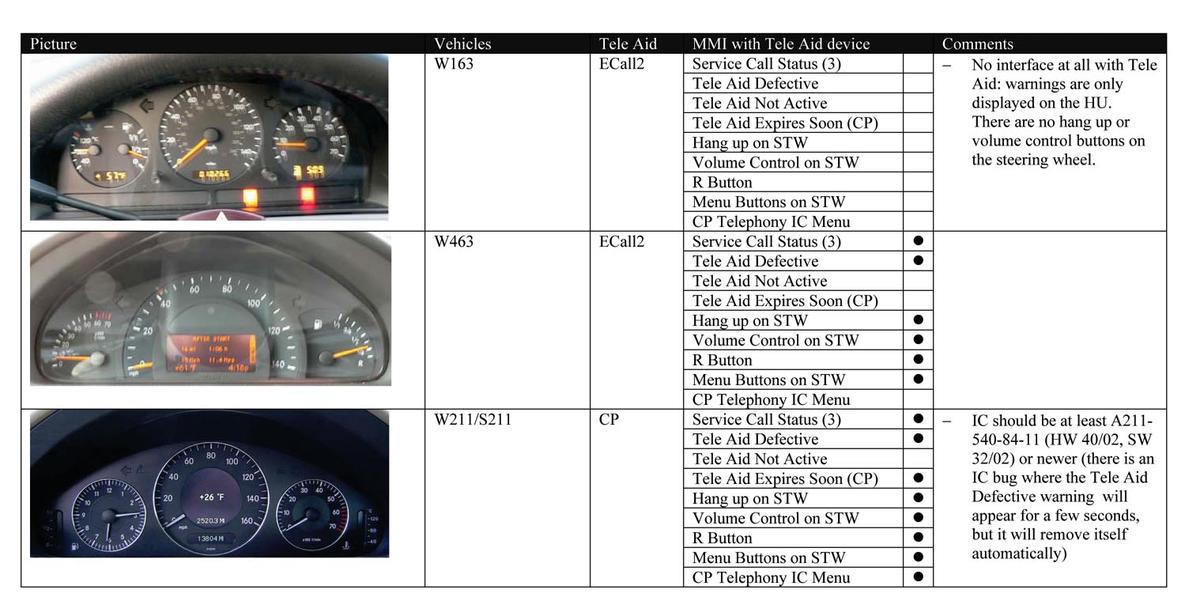

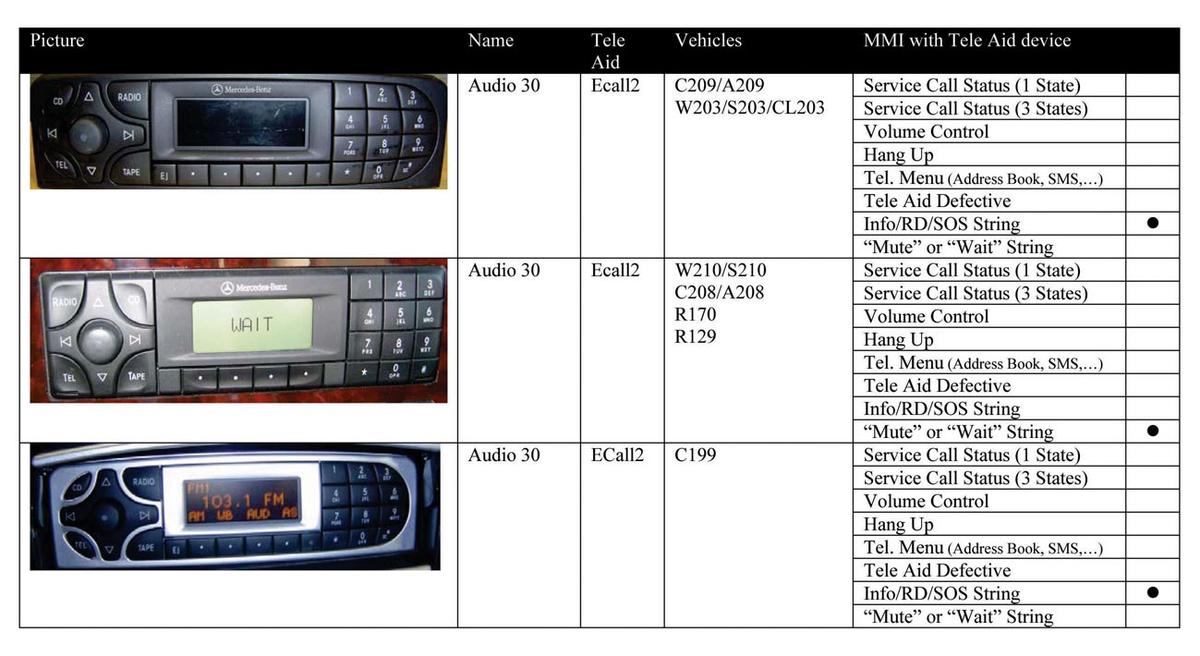

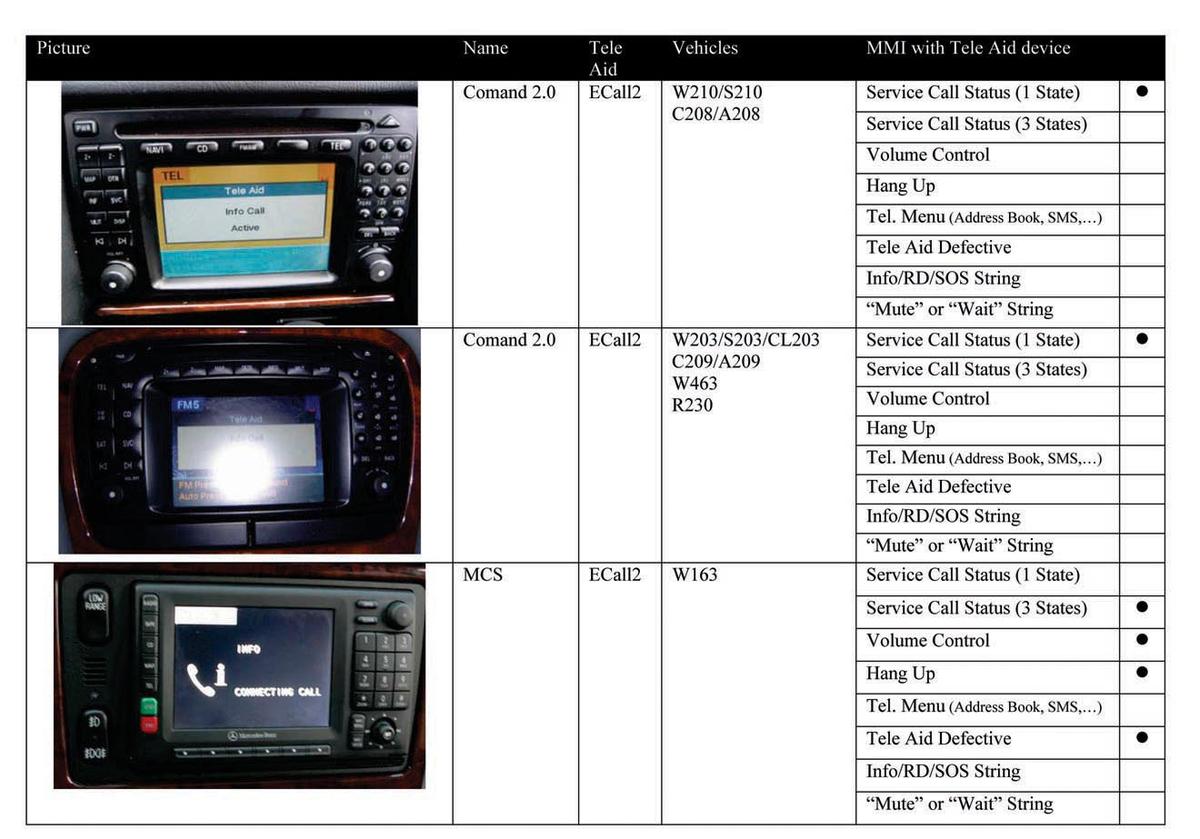

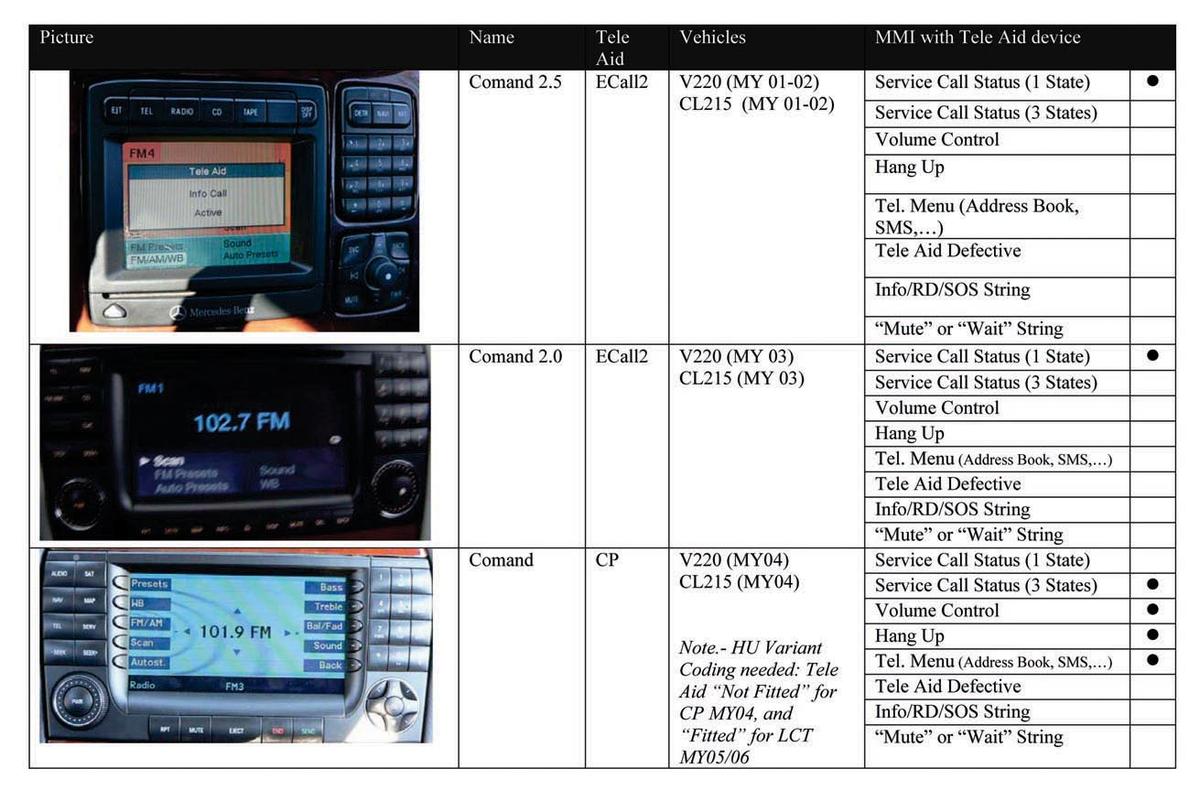

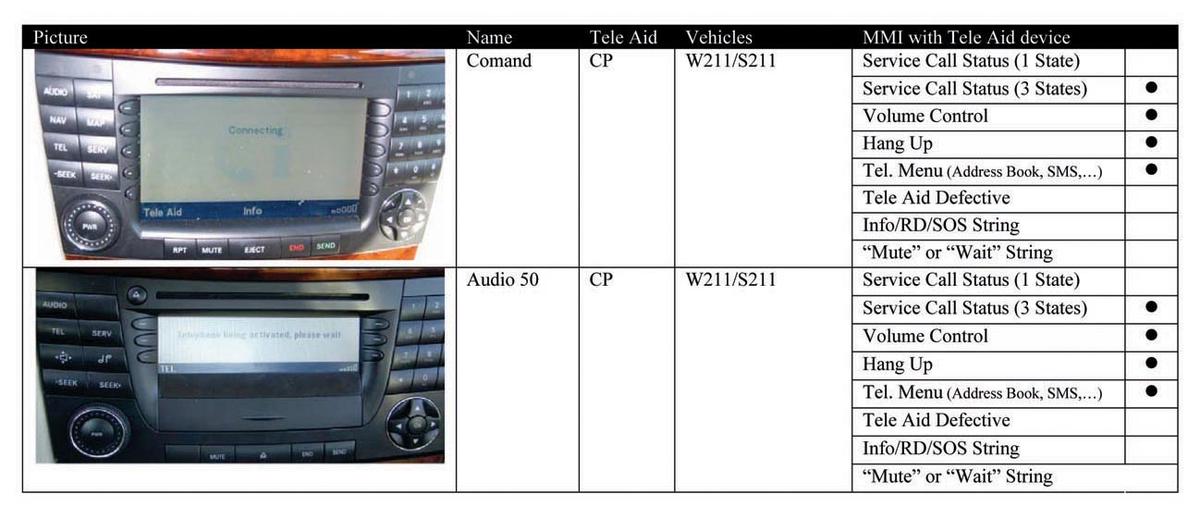

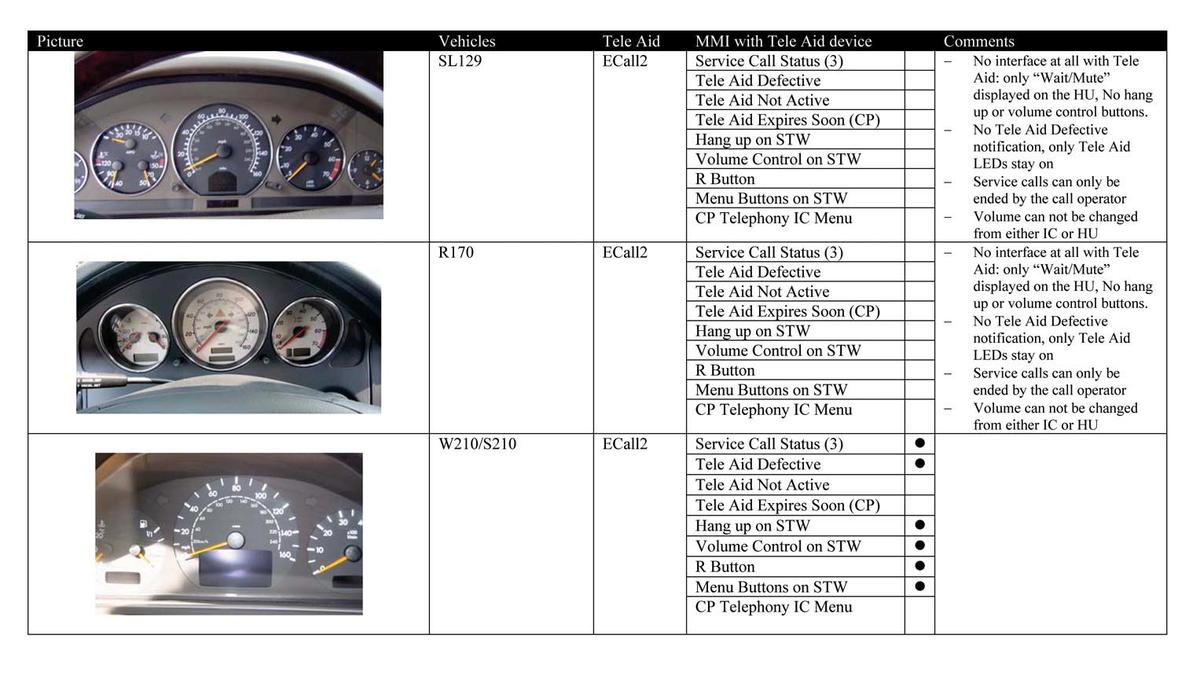

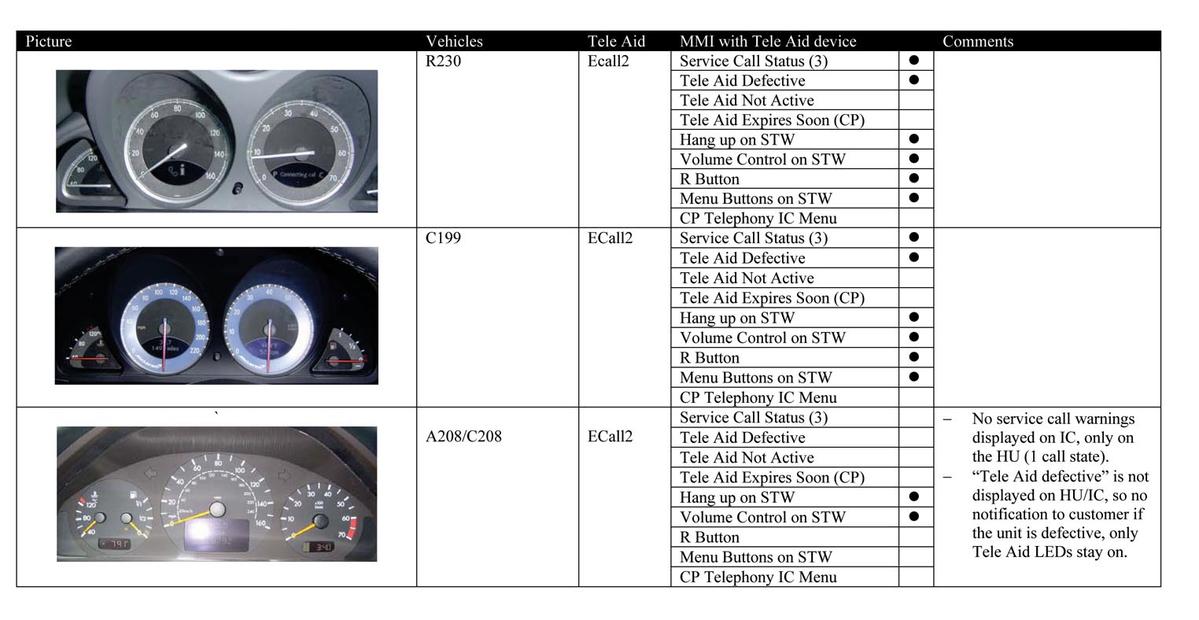

MMI OVERVIEW - DIGITAL TELE AID CONTROL MODULE

SERVICE INFORMATION

• MMI	- Man Machine Interface
• HU	- Head Unit
• IC	- Instrument Cluster
• ECall2	- Emergency-Call-2 Tele Aid
• CP	- Communication Platform Tele Aid
• Service Call Status (1 State)	- The display shows only that a Tele Aid service call is active but not the individual stages of the service call
• Service Call Status (3 States)	- The display shows the individual stages of the service call such as "Call Connecting", "Call Connected" and "Call Failed"
• Volume Control	- Whether the volume control dial on the MMI Component has control over the volume of the Tele Aid service call; The default Tele Aid volume settings can additionally be set/modified through the DAS tool.
• Hang Up	- Whether the customer can terminate a Tele Aid Info/Road Side Call (Ignition has to be ON). SOS can only be terminated by the operator.
• Tel. Menu (Address Book, SMS...)	- Whether the MMI Component has any access to the Telephone Address Book, SMS. When using Bluetooth Mobile Adaptor only restricted features available in the MMI component. Please refer to the corresponding Bluetooth Adaptor User Guide
• Tele Aid Defective	- Whether the "TELE AID DEFECTIVE VISIT WORKSHOP" is displayed on the MMI component when the Tele Aid becomes defective.
• Info/RD/SOS String	- There is only a string like "Info/RD/SOS" displayed on the MMI component during the Tele Aid service calls.
• "Mute" or "Wait" String	- There is only a "Mute" or "Wait" string displayed on the MMI component during the Tele Aid service calls.
• MY	- Model Year
• Menu Buttons on STW	- Whether customer can select different IC menus (Radio, Tel, etc.) through the steering wheel buttons during a service call. Ignition has to be ON.
• R Button	- Button on the instrument cluster (IC) to remove warnings from the display.
• Tele Aid Not Active/ Expires Soon	- Display message on the MMI component indicating that the Tele Aid service is not active or it is going to expire soon.
• CP Telephony IC Menu	- Menu on the instrument cluster to display the hands free telephone operations of the communication platform.
