DAS Procedure - Digital Tele Aid Control Module (82.95/543A)

Publication date: 2007-04-13
Reference number: 82.95/543A
Supersedes refnos: 82.95/543

DAS PROCEDURE - DIGITAL TELE AID CONTROL MODULE

DAS PROCEDURE - DIGITAL TELE AID CONTROL MODULE

TECHNICAL SERVICE BULLETIN

Reference Number(s): S-I-82.95/543A, Date of Issue:  April 13, 2007
MERCEDES-BENZ: MODEL 129.068/076 from VIN F196862, MODEL YEAR 2001-2002; MODEL 163.154/157/172/174/175, MODEL YEAR 2001-2005; MODEL 170.449/465/466, MODEL YEAR 2001-2004; MODEL 199.376, MODEL YEAR 2005-2006; MODEL 203.040/061/064/065/081/084 [with SA CODE (349)], MODEL YEAR 2001-2004; MODEL 203.261/264/281/284 [with SA CODE (349)], MODEL YEAR 2002-2004; MODEL 203.740/747/764 [with SA CODE (349)], MODEL YEAR 2002-2004; MODEL 208.365/370/374 [with SA CODE (801)], MODEL YEAR 2001-2002; MODEL 208.465/470/474 [with SA CODE (801)], MODEL YEAR 2001-2003; MODEL 209.365/375/376 [with SA CODE (349)], MODEL YEAR 2003-2004; MODEL 209.465/475/476 [with SA CODE (349)], MODEL YEAR 2004; MODEL 210.065/070/074/082/083 [with SA CODE (349)], MODEL YEAR 2001-2002; MODEL 210.265/282 [with SA CODE (349)], MODEL YEAR 2001-2002; MODEL 211.026/065/070/076/082/083 [with SA CODE (384)], MODEL YEAR 2003-2005 (MY05 only 211.026); MODEL 211.265/282/283 [with SA CODE (384)], MODEL YEAR 2003-2004; MODEL 215.373/374/375/376/378 [with SA CODE (349)], MODEL YEAR 2001-2003; MODEL 215.374/375/376 [with SA CODE (384)], MODEL YEAR 2004; MODEL 220.170/173/174/175/176/178/183/184 [with SA CODE (349)], MODEL YEAR 2001-2003; MODEL 220.170/174/175/176/183/184 [with SA CODE (384)], MODEL YEAR 2004; MODEL 230.474/475/476 [with SA CODE (349)], MODEL YEAR 2003-2004; MODEL 463.246/249/271, MODEL YEAR 2002-2006
GROUP: 82 - Electrical System - Body
Superceded Bulletin(s): S-I-82.95/543, Date of Issue:

SUBJECT

DAS PROCEDURE - DIGITAL TELE AID CONTROL MODULE

MODEL 129.068/076 from VIN F196862

MODEL YEAR 2001-2002

MODEL 163.154/157/172/174/175

MODEL YEAR 2001-2005

MODEL 170.449/465/466

MODEL YEAR 2001-2004

MODEL 199.376

MODEL YEAR 2005-2006

MODEL 203.040/061/064/065/081/084 [with SA CODE (349)]

MODEL YEAR 2001-2004

MODEL 203.261/264/281/284 [with SA CODE (349)]

MODEL YEAR 2002-2004

MODEL 203.740/747/764 [with SA CODE (349)]

MODEL YEAR 2002-2004

MODEL 208.365/370/374 [with SA CODE (801)]

MODEL YEAR 2001-2002

MODEL 208.465/470/474 [with SA CODE (801)]

MODEL YEAR 2001-2003

MODEL 209.365/375/376 [with SA CODE (349)]

MODEL YEAR 2003-2004

MODEL 209.465/475/476 [with SA CODE (349)]

MODEL YEAR 2004

MODEL 210.065/070/074/082/083 [with SA CODE (349)]

MODEL YEAR 2001-2002

MODEL 210.265/282 [with SA CODE (349)]

MODEL YEAR 2001-2002

MODEL 211.026/065/070/076/082/083 [with SA CODE (384)]

MODEL YEAR 2003-2005 (MY05 only 211.026)

MODEL 211.265/282/283 [with SA CODE (384)]

MODEL YEAR 2003-2004

MODEL 215.373/374/375/376/378 [with SA CODE (349)]

MODEL YEAR 2001-2003

MODEL 215.374/375/376 [with SA CODE (384)]

MODEL YEAR 2004

MODEL 220.170/173/174/175/176/178/183/184 [with SA CODE (349)]

MODEL YEAR 2001-2003

MODEL 220.170/174/175/176/183/184 [with SA CODE (384)]

MODEL YEAR 2004

MODEL 230.474/475/476 [with SA CODE (349)]

MODEL YEAR 2003-2004

MODEL 463.246/249/271

MODEL YEAR 2002-2006

TELE AID UNIVERSE AND SCOPE OF RETROFIT (ANALOG-TO-DIGITAL UPGRADE)

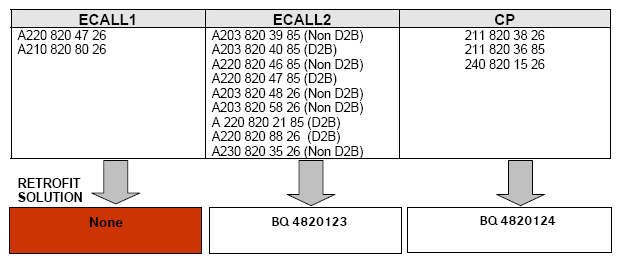

The following table shows the part numbers from the old analog generation of TELE AID units and to what units the Digital Retrofit solution is available.

Fig 1: Part Numbers From The Old Analog Generation
G05424191
NOTE: This installation, and any subsequent related installation and/or workmanship issues, cannot be claimed under warranty.

RETROFIT PROCESS

The retrofitting of analog Tele Aid with digital Tele Aid can be done through DAS tool in the following two ways:

DAS release DVD 9 at least is needed to support the retrofit Tele Aid.

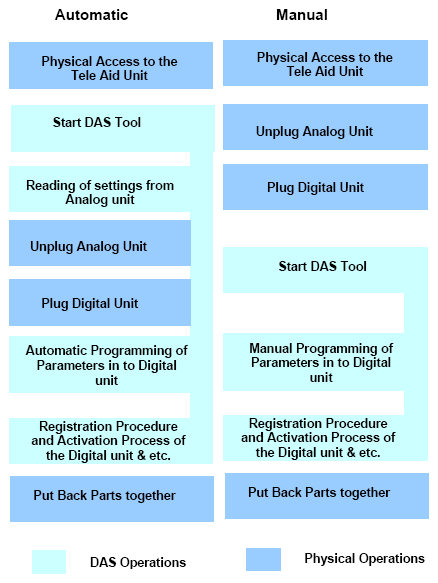

The following is a work flow chart which explains the retrofitting process in both the automatic and the manual way in all the car models.

Fig 2: Work Flow Chart Explaining Retrofitting Process
G05424192

Physical operations that need to be done in the retrofitting process differ from each car model and are explained in separate retrofit documents for each specific car model. Please refer the appropriate Vehicle Model Retrofit documents for instructions on the physical operations of the retrofitting process. The following sections describe the DAS operations which is same for every car model except minor differences between the CP Digital and the ECALL2 Digital unit installations.

START DAS TOOL

Plug in the OBD connector of the DAS tool to the appropriate OBD port of the car. Start the DAS tool, and follow the path

Cars->Class Selection ->Model Series Selection-> Engine Selection ->Main Groups->Control Units->Information and Communication ->Tele Aid

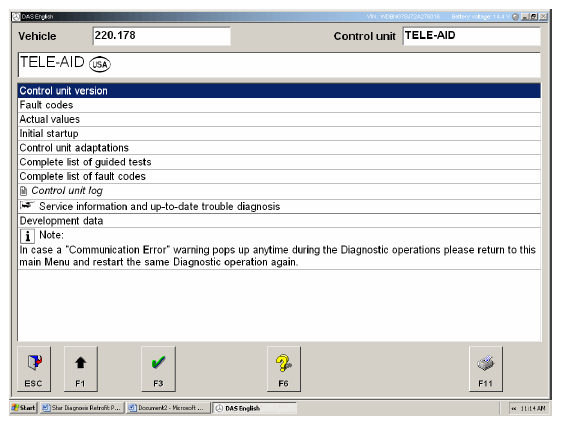

Fig 3: DAS Display - Control Unit Version
G05424193

Select "Control unit version" and check the part number of the existing Tele Aid to decide whether the Tele Aid is fit for retrofitting from the table in the section "Tele Aid universe and scope of retrofit".

If fit for retrofit then select Initial Startup  menu to start the retrofit process. The Initial Startup menu has the menu items for the automatic and manual retrofit processes.

Fig 4: DAS Display - Initial Startup Menu
G05424194

The first two items of the menu support any replacement from an analog to a digital unit or from a digital to a digital unit (if the installed digital unit is defective).

The other two menu items support the activation and deactivation of the digital units.

INITIAL STARTUP WITH MANUAL SETTINGS INPUT FOR NEW CONTROL UNIT

This menu item of the Initial startup is selected in case it is needed to manually version code the digital unit. Please refer to appropriate Vehicle Model Retrofit documents to see the procedure to "Unplug Analog unit" and then to "Plug Digital Unit". Please write down the ESN number of the analog unit from the label of the unit or through DAS before removal of the analog unit  .

Select the manual settings input option in the initial startup menu and the DAS tool guides for the manual retrofit process as in the following screen shots.

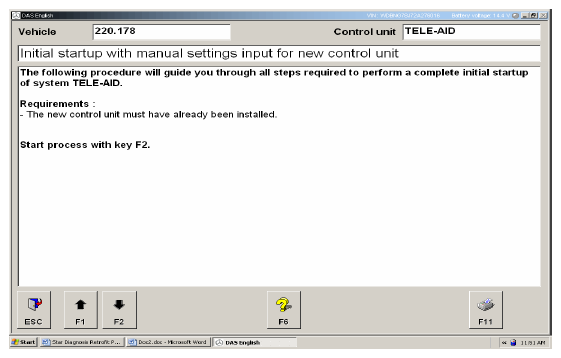

Fig 5: DAS Display - Initial Startup With Manual Settings Input For New Control Unit
G05424195

On the pressing of the F2 button, the VIN number is programmed into the unit automatically and then the following screen appears for manually programming the Model Series and the airbag

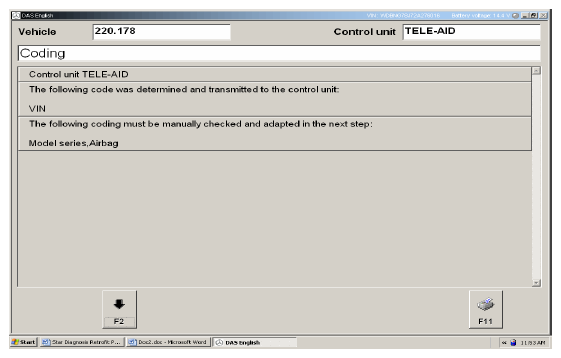

Fig 6: DAS Display - Coding
G05424196

On the pressing of the F2 button, it leads to a screen where the Model Series and the corresponding airbag can be selected.

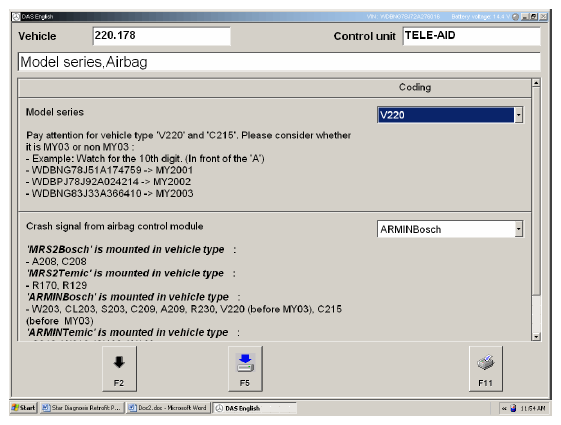

Fig 7: DAS Display - Model Series, Airbag
G05424197

For selection of airbag please refer the text on the left of the airbag pull down menu where the airbag installed in each Model Series is listed. On the pressing of the F5 button, the model series and the airbag are programmed into the unit. In the case of CP Digital in addition to the Model Series and airbag, the system configuration for the CTEL Portable Holder also needs to be set. Following this, the DAS tool asks questions whether the customer is an existing subscriber or a new subscriber.

NOTE: The process automatically sets the volume at level five. Adjust standard volume settings any time via path: TeleAid > Control Unit Adaptations.

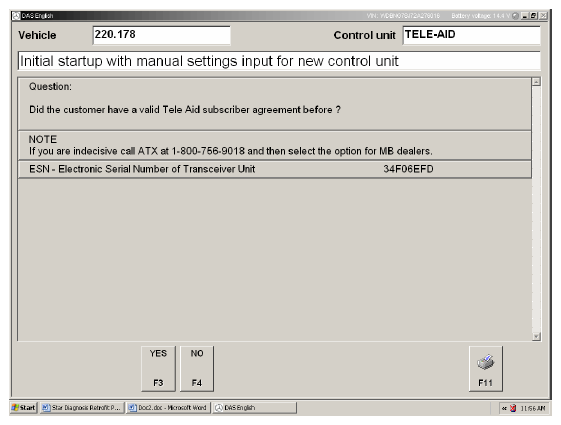

Fig 8: DAS Display - Initial Startup With Manual Settings Input For New Control Unit
G05424198

Depending on the answers, it guides to the appropriate registration procedure and activation process with the service provider. Go to the section "Registration Procedure and Activation Process" of this document to see details on this.

INITIAL STARTUP WITH AUTOMATIC TAKE OVER OF SETTINGS FROM PREVIOUS CONTROL UNIT

This menu item of the initial startup is selected in case the settings in the original unit have to be taken over to the new unit automatically.

Select this option in the initial start up menu and the DAS tool guides automatically for the retrofit process as in the following screen shots.

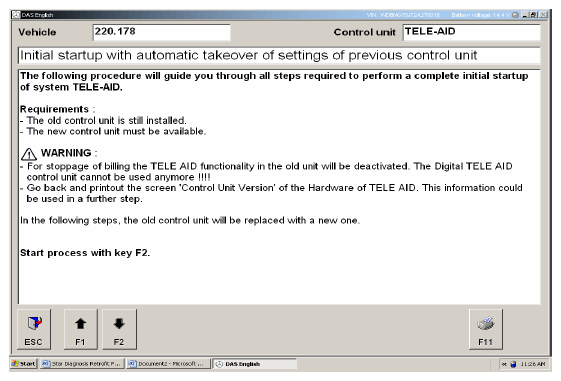

Fig 9: DAS Display - Initial Startup With Automatic Takeover Of Settings Of Previous Control Unit
G05424199

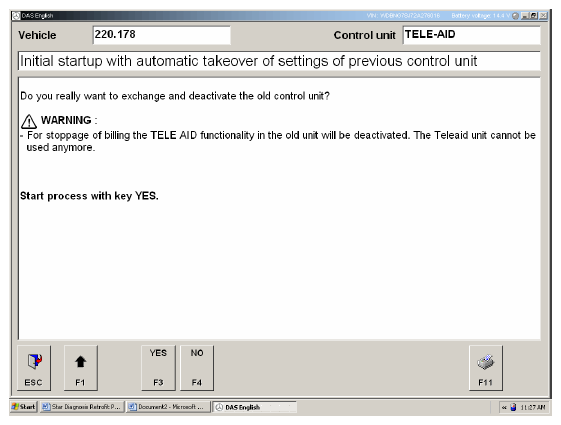

Fig 10: DAS Display - Warning
G05424200

READING OF SETTINGS FROM ANALOG UNIT

Upon starting the process of automatic takeover, the settings in the analog unit are read. The next screen shot shows the case of an analog replaced with digital. In digital to digital replacement only a few parameters are read.

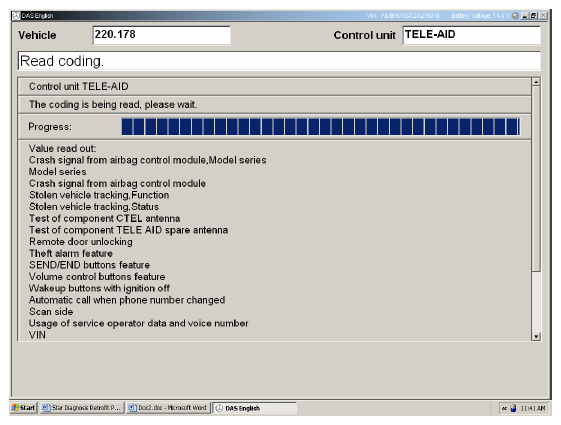

Fig 11: DAS Display - Read Coding
G05424201

After the reading of the settings, the DAS tool instructs to do the physical replacement of the analog unit with the digital unit. Please refer to appropriate Retrofit Vehicle Model documents.

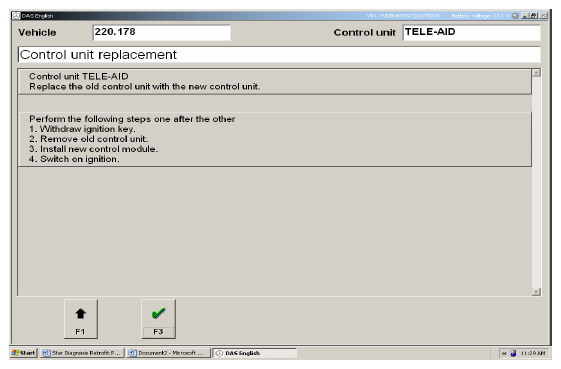

Fig 12: DAS Display - Control Unit Replacement
G05424202

On Ignition ON, after reading the configuration of the new unit, the DAS tool programs the parameters automatically into the digital unit.

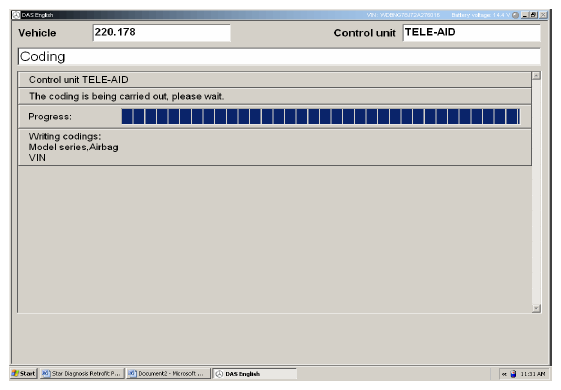

Fig 13: DAS Display - Coding Progress
G05424203

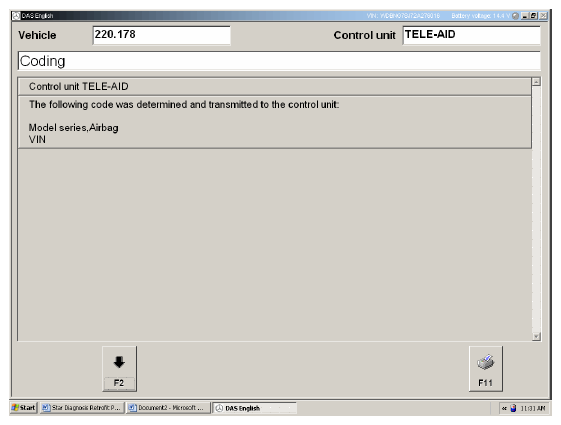

Fig 14: DAS Display - Coding Transmitted To Control Unit
G05424204

In the case of CP Digital, in addition to the Model Series, airbag and VIN, the system configuration for CTEL Portable Holder is also programmed.

NOTE: Adjust standard volume settings any time via path: TeleAid > Control Unit Adaptations.

On the pressing of the F2 button, the DAS tool guides to the registration procedure and activation process with the service provider as described in the next section.

REGISTRATION PROCEDURE AND ACTIVATION PROCESS

This process starts after the programming of the Model Series and the airbag either automatically or manually.

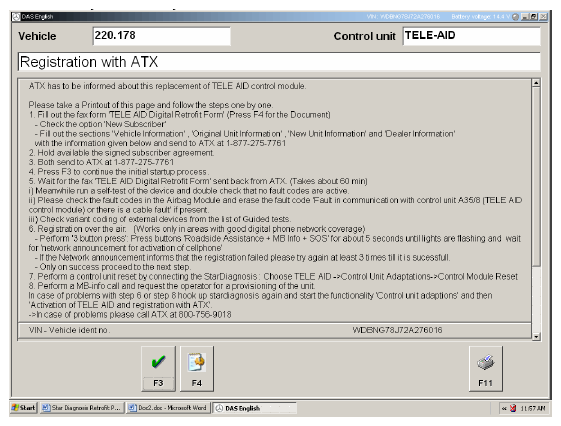

Fig 15: DAS Display - Registration With ATX
G05424205

The "Registration with ATX" screen contains the set of the steps to be followed for registration and activation of the digital unit. Please take a printout of this screen and then take a printout of the "TELE AID Digital Retrofit Form"  by pressing F4. After taking these printouts, press F3 to proceed with the Initial Start Up process.

NOTE: Use the "TELE AID Digital Retrofit Form," not  the Digital TELE AID Form.
NOTE: TELE AID Digital Retrofit form is unique and it is different to the LCT TELE AID form and only Retrofit form has to be used for Retrofit.

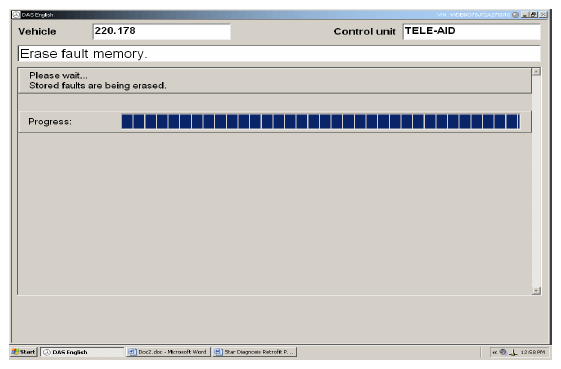

Fig 16: DAS Display - Erase Fault Memory
G05424206

On the pressing of the F3 button, the fault codes of the new unit are erased, and then the retrofit process ends with the documentation screen for the repair order as shown below.

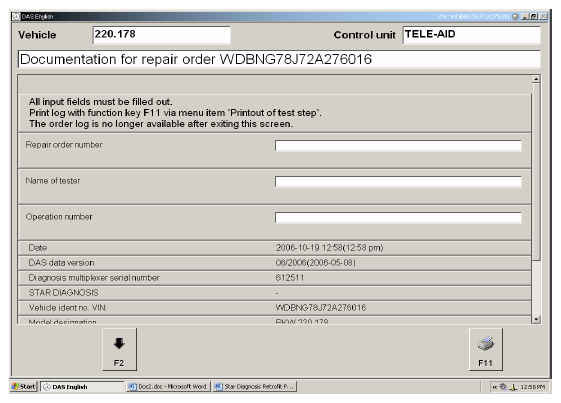

Fig 17: DAS Display - Documentation For Repair Order
G05424207

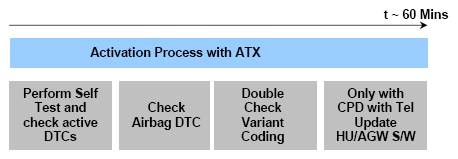

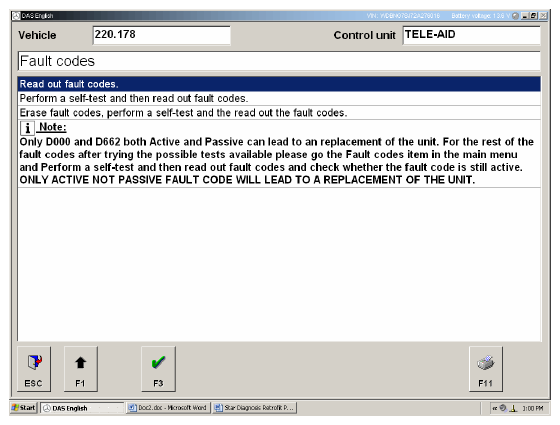

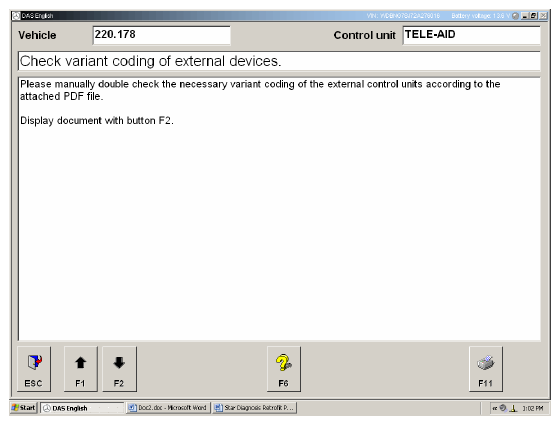

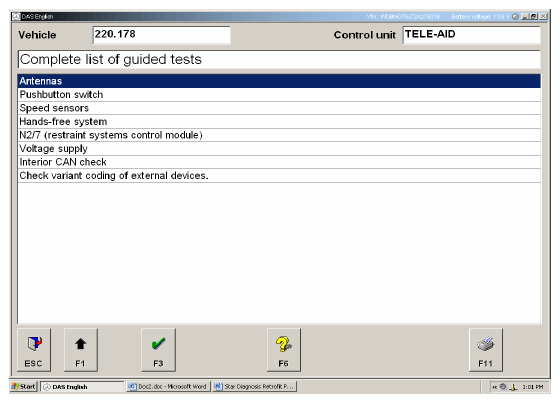

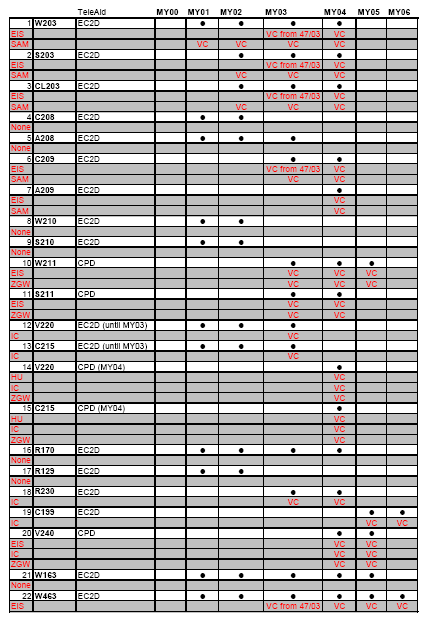

Now follow the steps one by one as listed on the printout for the "Registration with ATX"  screen.

ACTIVATION OF TELE AID AND REGISTRATION WITH ATX

This section guides to activate the TELE AID in case there are problems in the 3 button procedure or if there is a need for reactivation of the TELE AID after a deactivation. The workflow for this process is as below.

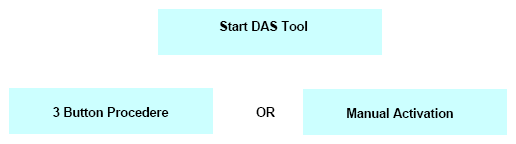

Fig 23: Workflow Process For Activation Of TELE AID
G05424214

Connect the Star Diagnosis tool and follow the path Cars->Class Selection ->Model Series Selection-> Engine Selection ->Main Groups->Control Units->Information and Communication ->Tele Aid-> Initial Start Up  .

Fig 24: DAS Display - Initial Start Up
G05424215

Select the option "Activation of TELE AID and registration with ATX".

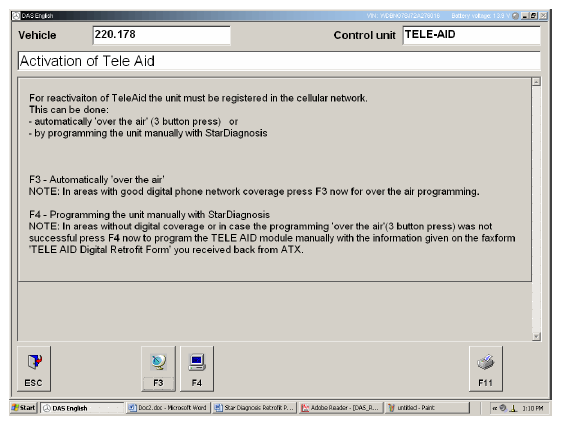

Fig 25: DAS Display - Activation Of Tele Aid (1 Of 3)
G05424216

The above screen provides options to either automatically activate the Tele Aid through the 3 button procedure or to manually activate the Tele Aid through the DAS. The automatic activation process through F3 gives the same set of steps for 3 buttons procedure as explained in the section "Registration procedure and Activation Process".

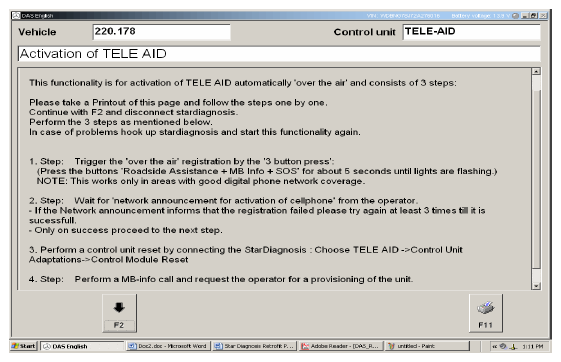

Fig 26: DAS Display - Activation Of Tele Aid (2 Of 3)
G05424217

Only in case of problems in the 3 button procedure, please proceed to the manual activation of the Tele Aid by pressing the F4 button.

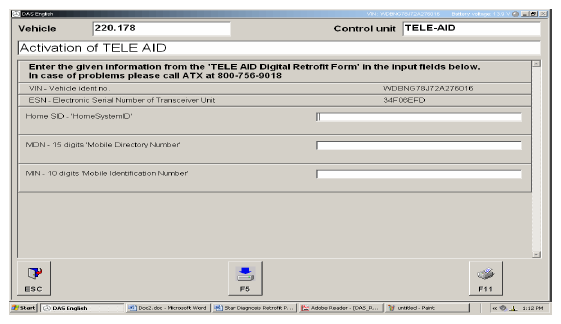

Fig 27: DAS Display - Activation Of Tele Aid (3 Of 3)
G05424218

In the above screen, the Home SID, MDN, and the MIN data have to be filled in from the information available in the response fax from ATX as shown below.

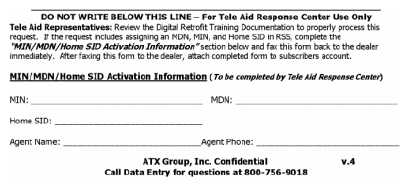

Fig 28: Response Fax From ATX
G05424219

On the pressing of the F5 button, a reconfirmation of the parameters is needed, and then the TELE AID is programmed with these network parameters and gets activated.

Explanation of the 3-button-press process:

Perform the 3 button press after the activation confirmation form is received via fax from ATX.

The 3 buttons will begin blinking after they are pressed a minimum of 5 seconds. Tele Aid will then download the assigned information over the air. This process will succeed only in areas with Verizon Wireless (VZW) Digital coverage.

The VZW standard network announcement for the 3 button press (the content of this announcement could change in the future) is: "Welcome to over the air programming. Please wait while we program your phone. This call is air time free. Para espanol pulse dos." The process takes approximately one minute, during which another warning message may sound stating: "Please continue to hold while your phone is being programmed".

Once the process is complete, the call simply drops. There is no message confirming if the download was successful.

To check if the download was successful, follow path:

Cars > Class Selection > Model Series Selection > Engine Selection > Main Groups > Control Units > Information and Communication > TeleAid

Compare the following information fields before and after the 3 button press.

By default (factory settings) a new Digital Retrofit unit has no assigned MIN, MDN, or Home_SID:

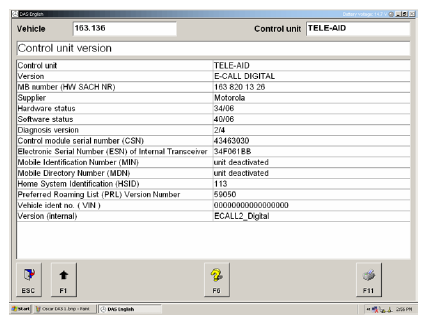

Fig 29: DAS Display - Control Unit Version (1 Of 2)
G05424220

After the 3 button press, you will see the information fields had changed. The information fields must match the numbers provided by ATX.

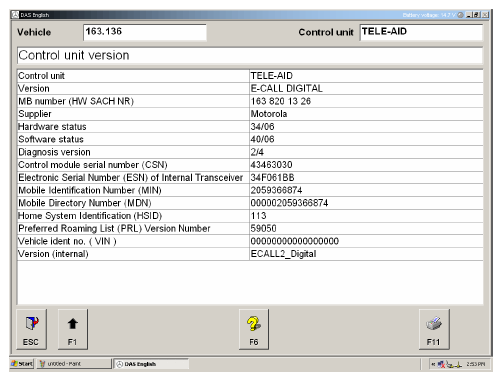

Fig 30: DAS Display - Control Unit Version (2 Of 2)
G05424221

In some cases, it may be necessary to repeat the 3-button-press process two or three times to hear the network announcements.

There may be cases when the 3 button press is unsuccessful because of network deficiencies. This causes the acquaintance call and/or service calls to be received by the service operator (ATX) as an error account. Hence, ATX will be unable to identify the new account or caller in such cases.

If this situation occurs, deactivate Tele Aid (Follow the steps outlined below under "Deactivation Process.).

NOTE: Deactivating Tele Aid requires the vehicle information be manually entered via Star Diagnosis. Since it is the same Tele Aid control module, it is not necessary to fax ATX another activation form.

Once Tele Aid is deactivated and restored to factory default settings, restart Star Diagnosis and manually code Tele Aid under Initial Startup or Control Unit Adaptations by following path:

Control Units > Information and communication > Audio, video, navigation, and telematics > TELE AID > Initial Startup or Control unit adaptations.

Close Star Diagnosis and perform a 3 button press. Mute the audio and listen for a network announcement about programming.

With the programming complete and the vehicle outdoors with the ignition on for approximately 15 minutes, place the acquaintance call by pressing the I-Button and asking the service operator if they had received the customer and vehicle information. Tele Aid will process the satellite GPS information before transmitting it to the service operator.

Deactivation Process:

This process is needed in case any active customer decides to deactivate the digital Tele Aid. The workflow for this process is as below.

Fig 31: Workflow Process For Deactivation Of TELE AID
G05424222

Follow the path Cars->Class Selection ->Model Series Selection-> Engine Selection ->Main Groups->Control Units->Information and Communication - >Tele Aid-> Initial Start Up  .

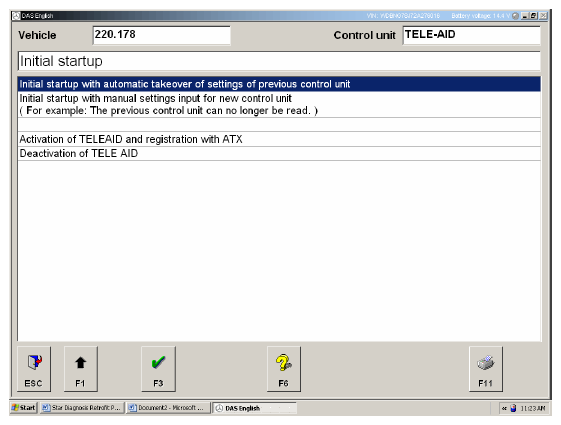

Fig 32: DAS Display - Initial Startup
G05424223

Select the option to deactivate the Tele Aid.

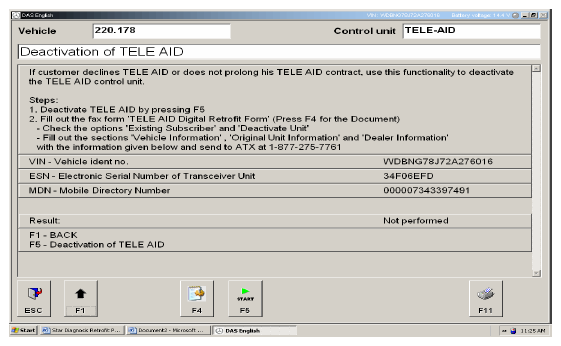

Fig 33: DAS Display - Deactivation Of Tele Aid (1 Of 2)
G05424224

Take a printout of this screen and also the TELE AID Digital Retrofit Form (F4) and then press F5 on the above screen which leads to the deactivation of the Tele Aid.

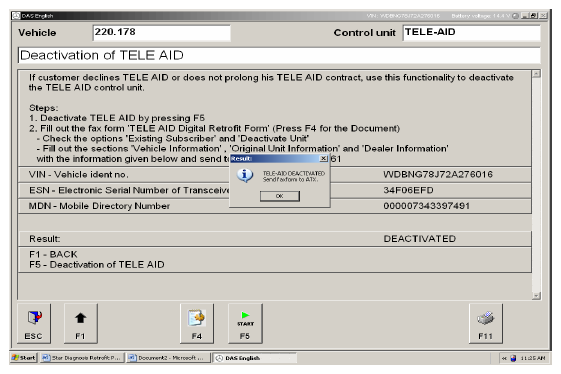

Fig 34: DAS Display - Deactivation Of Tele Aid (2 Of 2)
G05424225

Fill out the TELE AID Digital Retrofit form as specified in the screen and send it via fax to ATX.

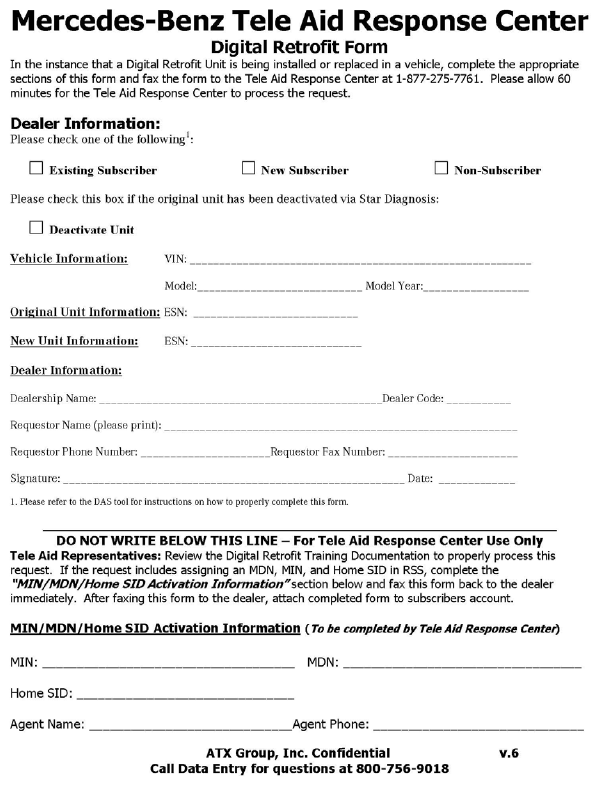

Fig 35: Mercedes-Benz Tele Aid Response Center Digital Retrofit Form
G05424226
