Wheel Alignment Specifications

WHEEL ALIGNMENT SPECIFICATIONS

Application

Specification

Range

Front Axle Caster ⁽¹⁾

....

Front Axle Camber ⁽²⁾

....

Front Axle Toe-In

0° 20'

+/-10'

Front Axle Toe-Out On Turns ⁽³⁾

2° 06'

+/-30

Rear Axle Camber ⁽⁴⁾

....

Rear Axle Caster ⁽⁴⁾

....

Rear Axle Toe-In

0° 20'

+/-7'

⁽¹⁾	Check caster, assign tabular value. Measure with inside wheel turned through 20°. Refer to illustration and match with a value in table.

⁽²⁾	Measure front axle riding height. Check camber, assign a value. Refer to appropriate illustration.

⁽³⁾	Toe-Out On Turns with inside wheel turned through 20°.

⁽⁴⁾	Check rear axle camber and caster, assign tabular value. Refer to illustration and match with a value in table.

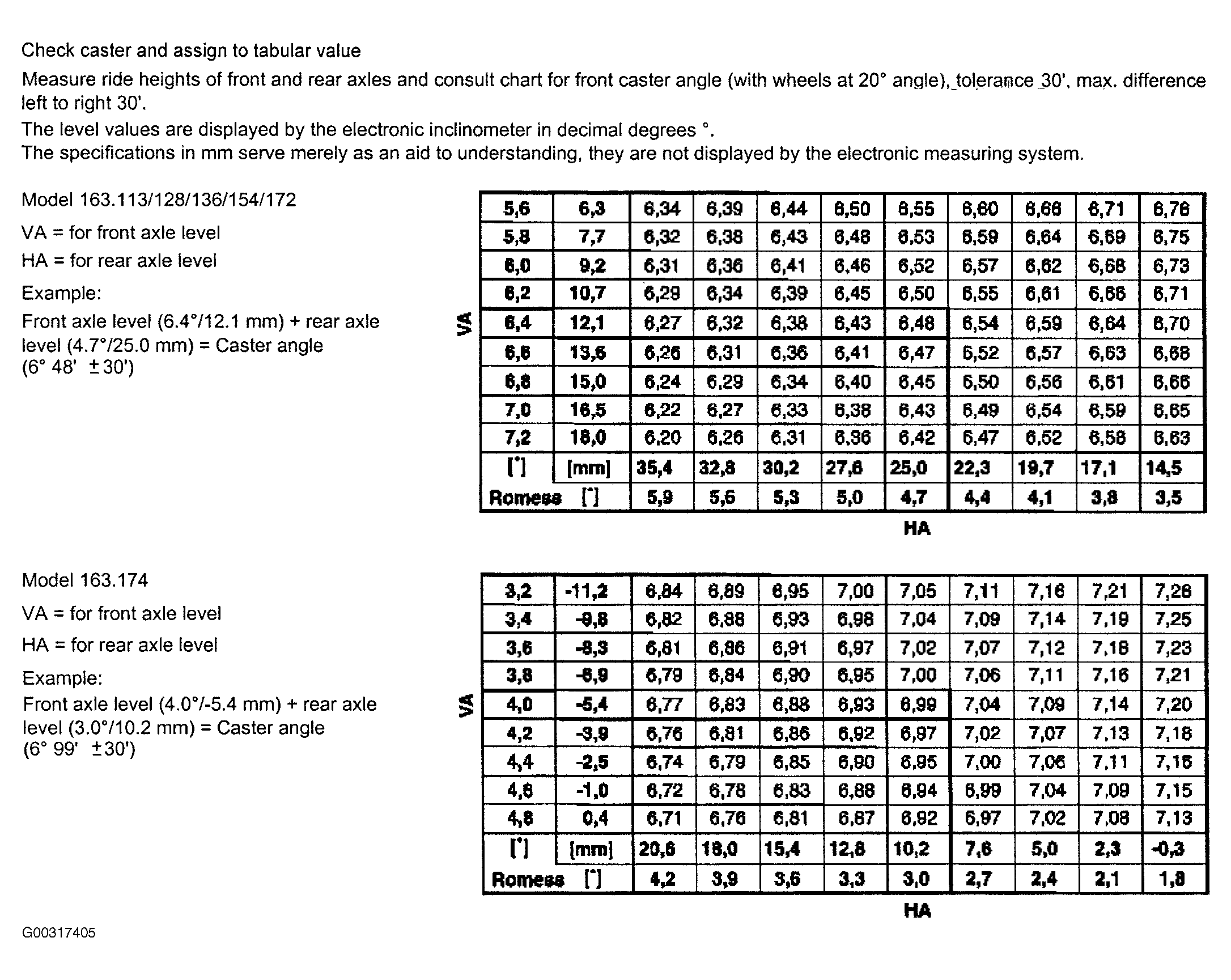

Fig 1: Test Value For Front Wheel Caster - Assign Tabular Value

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

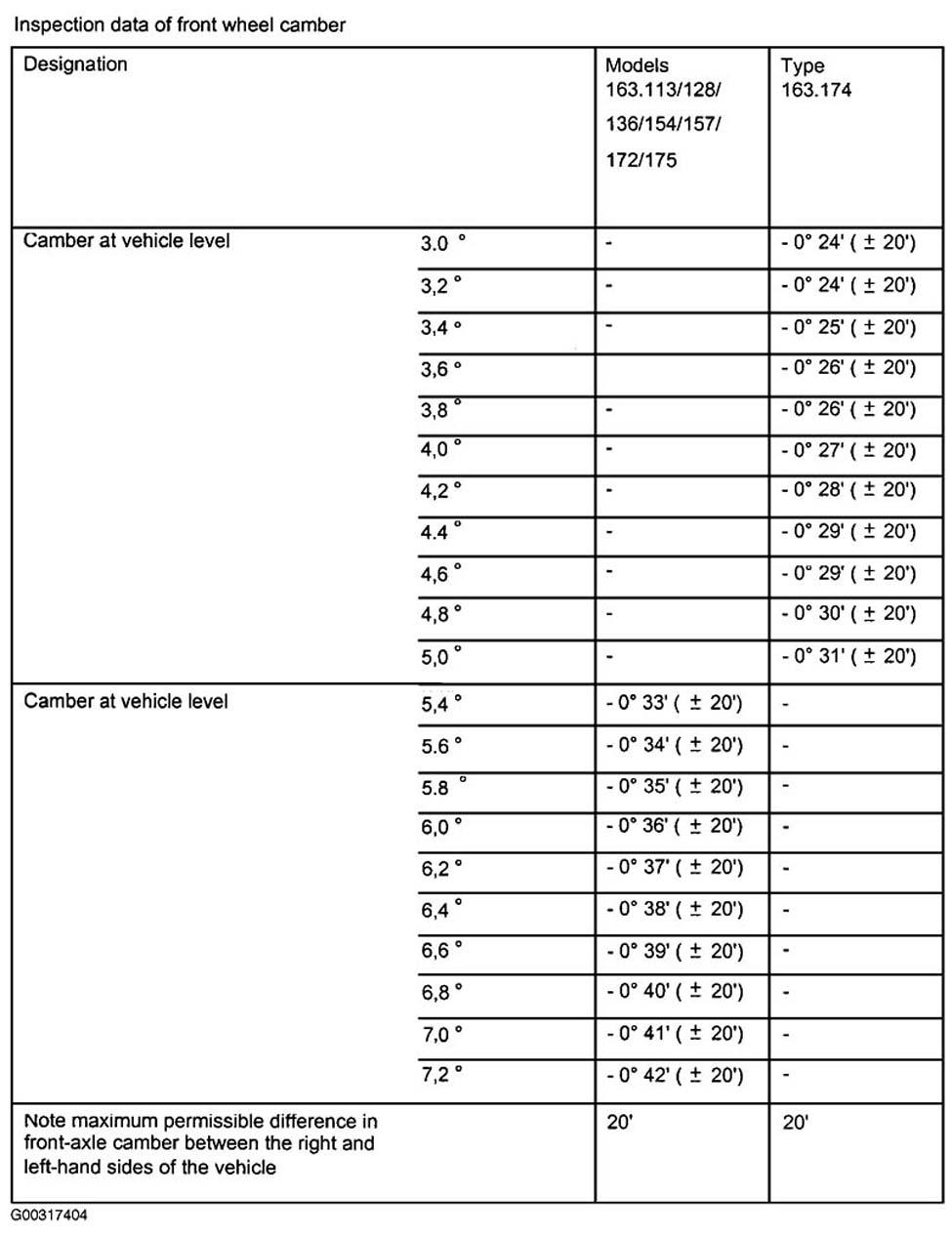

Fig 2: Test Value For Front Wheel Camber - Assign Tabular Value

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

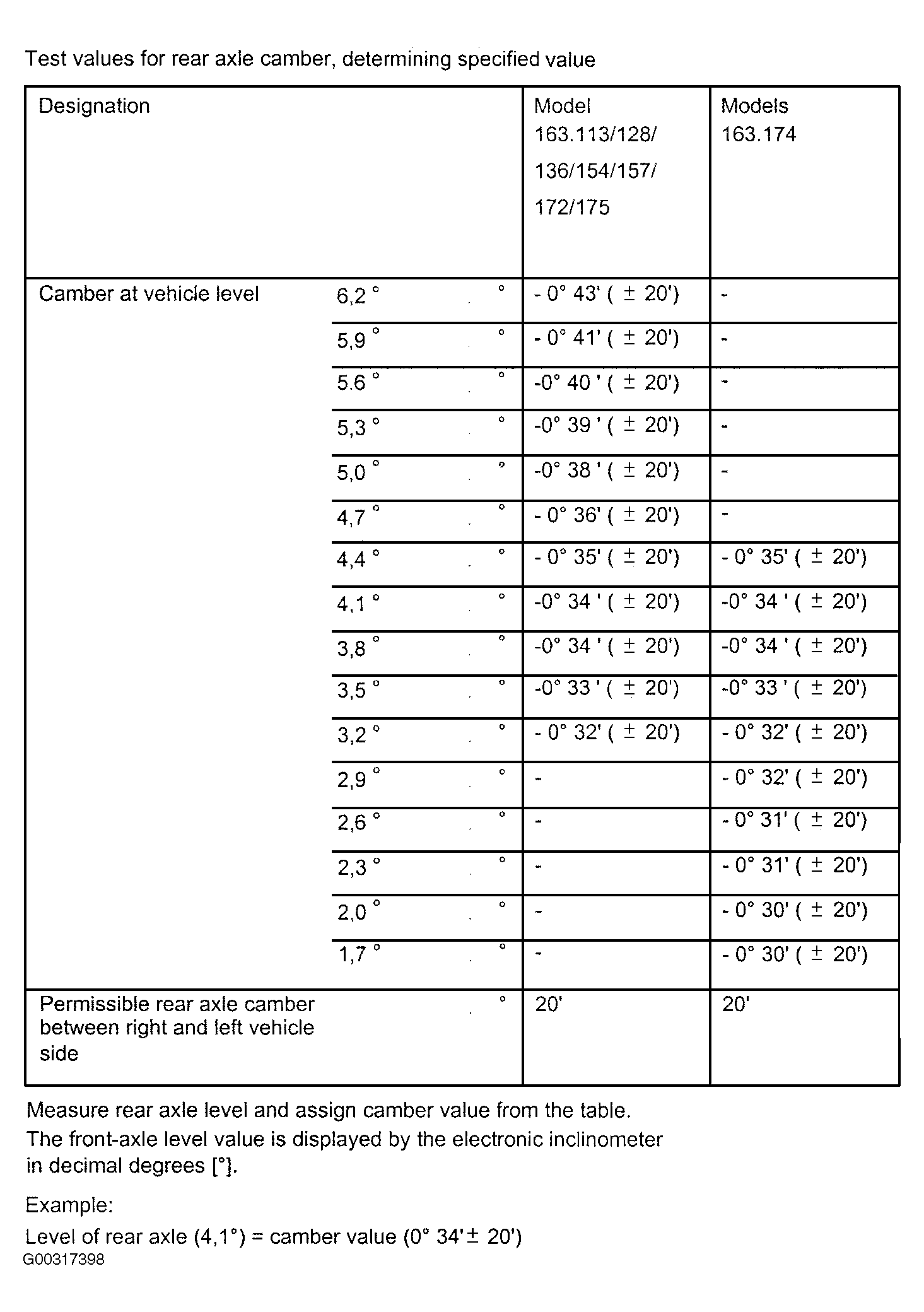

Fig 3: Test Values For Rear Axle Camber - Determining Specified Value

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

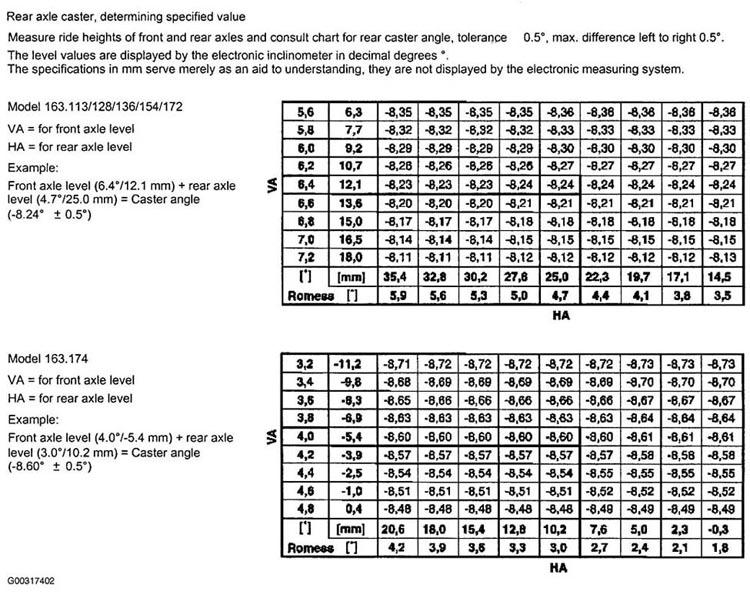

Fig 4: Test Values For Rear Axle Caster - Determining Specified Value

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
