Me-SFI Control Module Connector Identification
NOTE:
When connecting test equipment, disconnect ME-SFI control module connector "D" first. When reconnecting connectors, connect connector "D" last. See
Fig 1
.

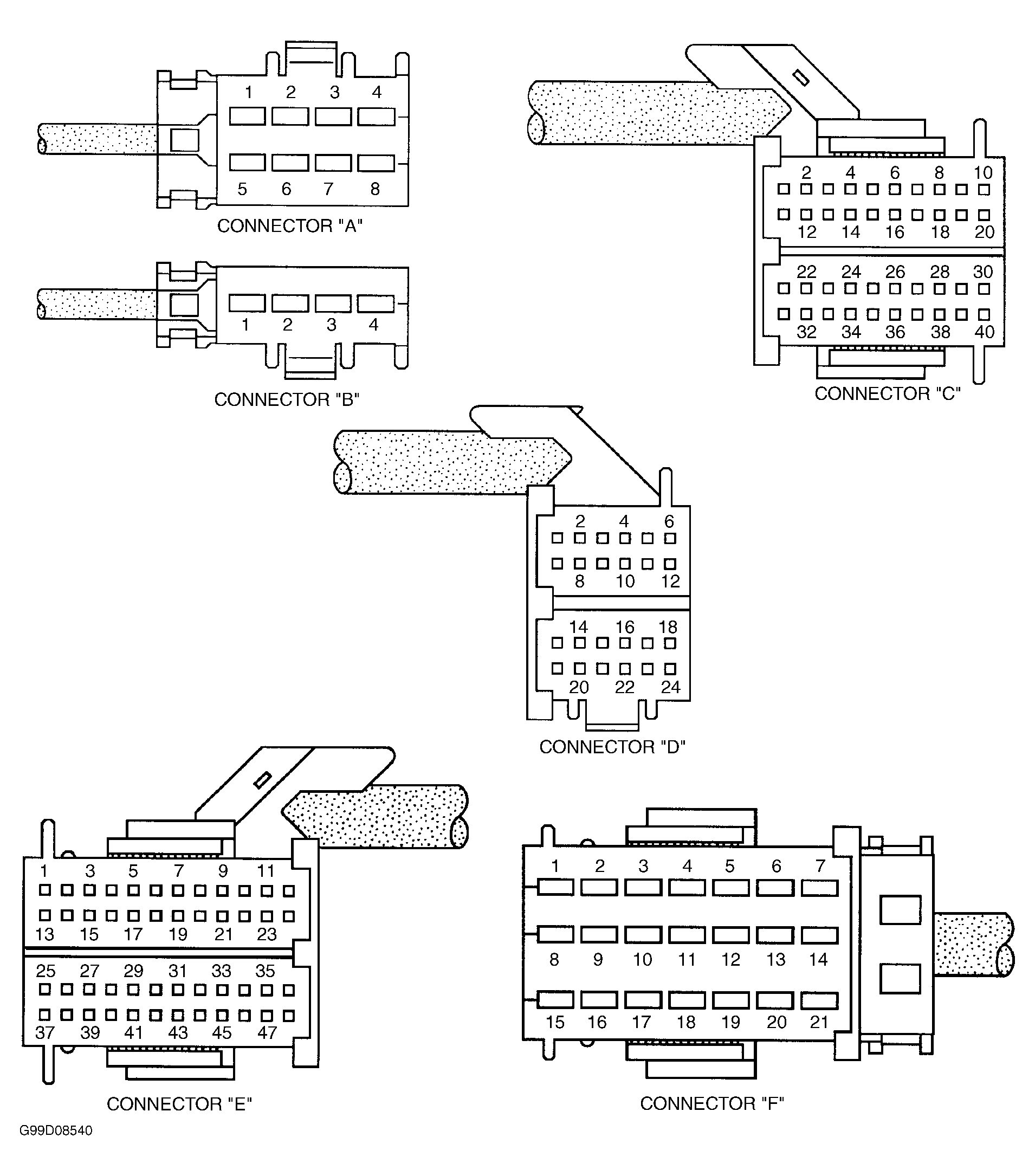

Fig 1: ME-SFI Control Module Connector Terminal Identification
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
