Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Battery Fuse Box | On right side of engine compartment, forward of battery. |

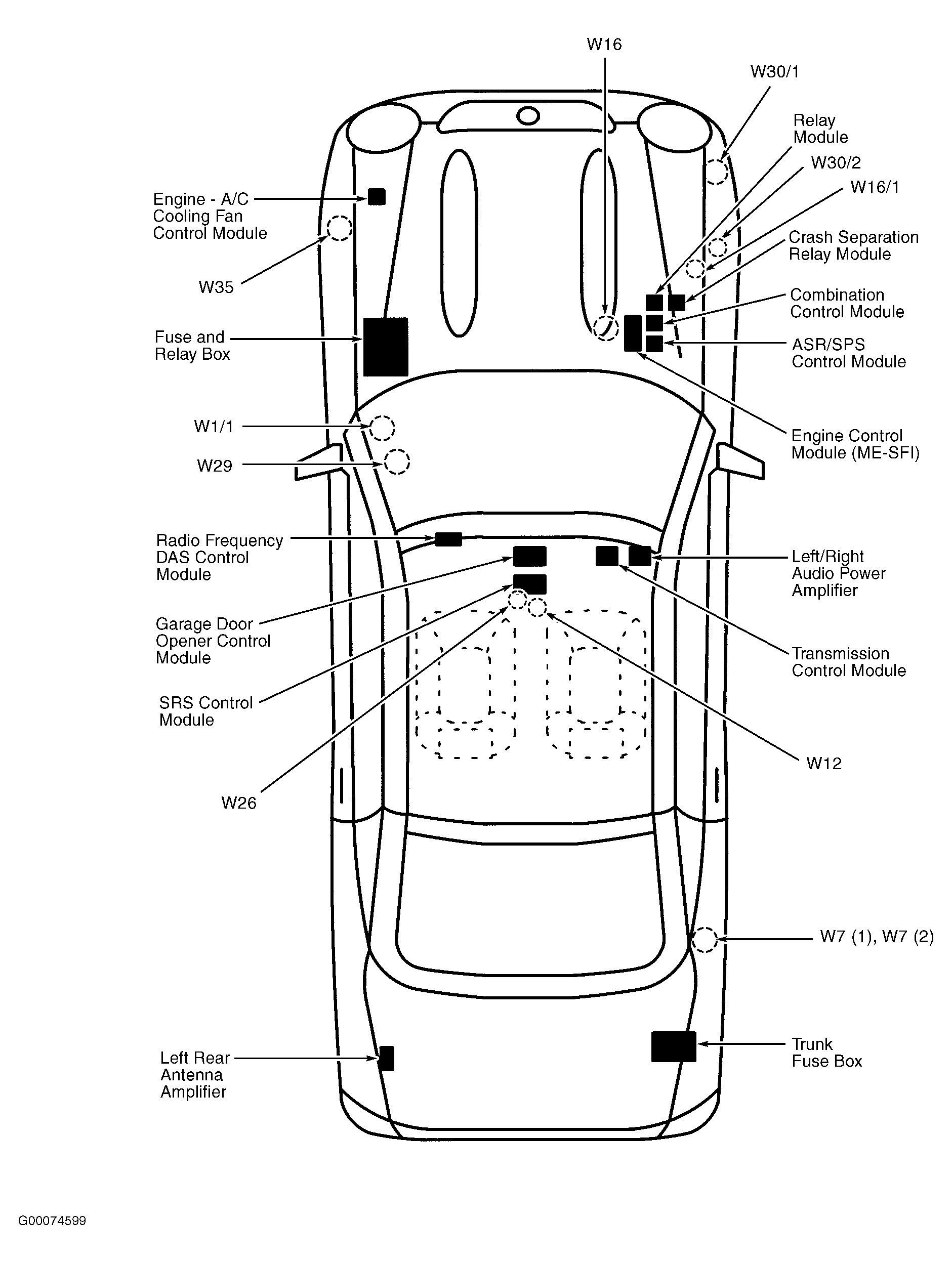

| Fuse & Relay Box | In left rear corner of engine compartment. See Figure . |
| Illumination Control Module Fuses | On left corner of dash, behind cover. |
| Overload Protection Thermocouple | Right side of trunk. |
| Radio Interference Suppression Capacitor | Top center of engine, under red cover. |
| Trunk Fuse Box | In right side of trunk. See Figure . |
