Camshaft Hall sensor, location/task/design/function - GF07.04-P-4117F: Notes

ENGINE 104.941 /943 /944 /991 /994 as of 1.8.96

ENGINE 104.995 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998 with CODE (498) as of Model Year 97 Japanese version

ENGINE 111.921 /942 as of 1.9.98, 111.943, 111.944 as of 1.8.96, 111.946 as of 1.6.98, 111.947 /973, 111.975 as of 1.8.96, 111.977

ENGINE 111.945 in MODEL 208.335 /435 as of 1.6.98, 202.020 /080 as of 1.9.98

ENGINE 111.974 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998

ENGINE 111.951 /952 /955 /956 /957 /958 /982 /983

ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975

ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969

ENGINE 119.980 /981 /982 /985

ENGINE 120.982/ 983

ENGINE 137.970

ENGINE 166.940 /960 /990 /995

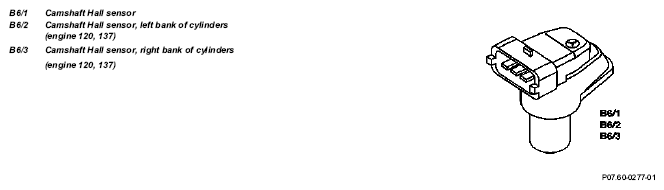

Fig 1: Identifying Camshaft Hall Sensor Location/Design

Camshaft Hall sensor position	Engine 104, 111 (except M111 EVO)	GF07.04-P-4117-01D
	Engine 111 EVO	GF07.04-P-4117-01GS
	Engine 112, 113	GF07.04-P-4117-01A
	Engine 119	GF07.04-P-4117-01E
	Engine 120	GF07.04-P-4117-01F
	Engine 137	GF07.04-P-4117-01L
	Engine 166	GF07.04-P-4117-01GC
Camshaft Hall sensor task	Detecting the camshaft position contactlessly by means of a segment at the camshaft sprocket/camshaft adjuster. The engine control unit detects from the signal supplied by the camshaft Hall sensor, the ignition TDC position of cylinder 1 (and of cylinder 7 on engine 120, 137) and synchronizes the ignition and injection sequence.
Camshaft Hall sensor design	Hall sensor in plastic housing, 3-pin plug connection. Connection 1: Earth Connection 2: Hall sensor signal Connection 3: Voltage supply
Camshaft Hall sensor function	Engine 104, 111 (except M111 EVO) Engine 112, 113, 119, 120, 166	GF07.04-P-4117-02F
	Engine 137	GF07.04-P-4117-02L
	Engine 111 EVO	GF07.04-P-4117-02GS
