Diaphragm pressure regulator position/task/design/function - GF07.17-P-4106F: Notes

ENGINE 104 (except 104.98) in MODEL 124, 129, 140, 202, 210

ENGINE 111 in MODEL 124, 170, 202, 208, 210

ENGINE 119 (except 119.96) in MODEL 124, 129, 140, 210

ENGINE 120 in MODEL 129, 140

Design

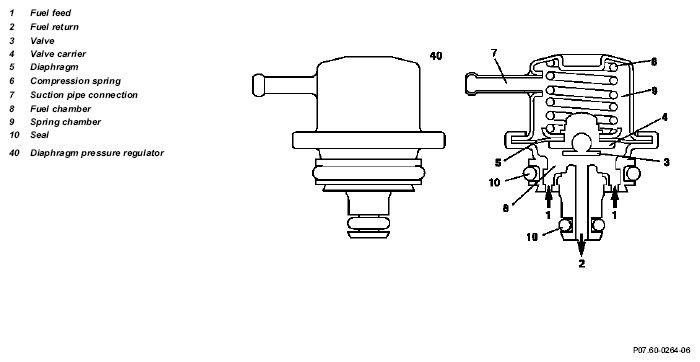

Fig 1: Identifying Diaphragm Pressure Regulator Design/Function - Engine 111

	Diaphragm pressure regulator position	In fuel return flow of fuel distribution pipe	GF07.17-P-4106-02F
	Task	Regulating the fuel pressure as a function of intake manifold pressure
	Function		GF07.17-P-4106-01F
