Intake manifold switchover, function - GF07.61-P-3028A
ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975
ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969

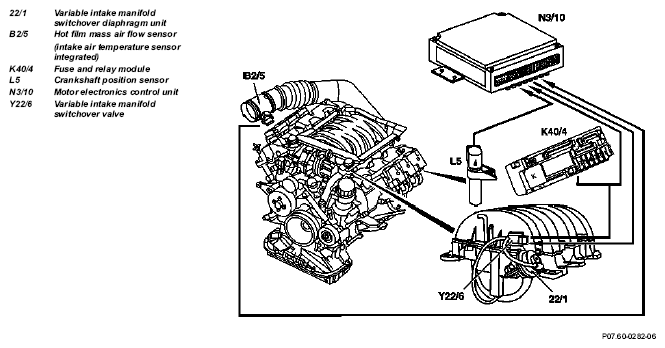

Shown on model 210
Task
Actuating variable intake manifold switchover valve in line with engine load and speed.
Function
The variable intake manifold switchover valve is actuated by the MESFI control unit in line with the engine load and speed:
- When starting and at low rotational speeds, the variable flaps are opened - variable intake manifold switchover valve de-energized.
- At a load exceeding 50% as of approx. 1750 rpm up to approx. 3900 rpm the variable flaps are closed. The variable intake manifold switchover valve is opened by means of a ground signal by the ME-SFI control unit for this purpose. The intake manifold switchover diaphragm unit is pressurized with vacuum and operates the flap shafts.
- As of, for example, 3900 rpm the variable intake manifold switchover valve is no longer actuated. The variable flaps open through spring force.
| Motor electronics control unit, location/task/design/function | GF07.61-P-5000F | ||
| Intake manifold, location/task/design/function | GF09.20-P-3102A | ||
| Crankshaft position sensor, location/task/design/function | GF07.04-P-4116F | ||
| Hot film mass air flow sensor, location/task/design/function | GF07.07-P-4118G | ||
| Variable intake manifold switchover valve location/task/design/function | GF07.05-P-5010A | ||
| Voltage supply of ME-SFI control unit function | GF07.61-P-5001F |
