Transmission overload protection function - GF07.61-P-4026F
ENGINE 104.941 /943 /944 /991 /994 as of 1.8.96 with TRANSMISSION 722.6
ENGINE 104.995 with TRANSMISSION 722.6 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998 with CODE (498) as of Model Year 97 Japanese version
ENGINE 111.921 /942 as of 1.9.98, 111.946 as of 1.6.98, 111.944 /975 as of 1.8.96, 111.947 /951 /952 /955 /956 /957 /958 /973 /982 /983 with TRANSMISSION 722.6
ENGINE 111.945 in MODEL 202.020 /080 as of 1.9.98, 208.335 /435 as of 1.6.98 with TRANSMISSION 722.6
ENGINE 111.974 with TRANSMISSION 722.6 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998
ENGINE 112.910 /911 /912 /913 /914 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /954 /955 /970 /972 /975 with TRANSMISSION 722.6
ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969 with TRANSMISSION 722.6
ENGINE 119.980 /981 /982 /985 with TRANSMISSION 722.6
ENGINE 120.982 /983 with TRANSMISSION 722.6
ENGINE 137.970 with TRANSMISSION 722.6

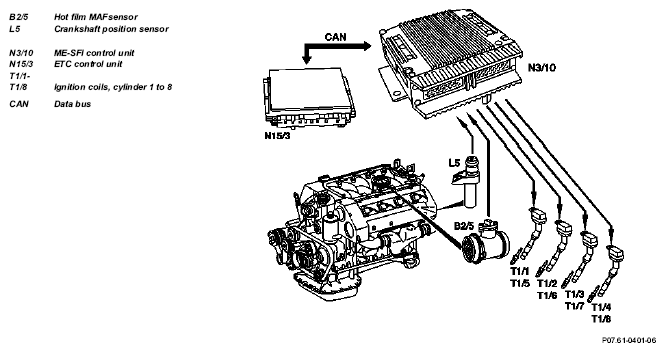

Shown on Engine 119
Task
Protecting the shift elements of the automatic transmission from excessive thermal stresses during power shifts in the upper engine speed range.
Design/function
Engine torque is reduced by briefly retarding the ignition during the gearshifts. The ME-SFI control unit is supplied with a signal over the CAN databus by the ETC control unit (N15/3) for this purpose.
| Motor electronics control unit, location/task/design/function | except M 111 EVO | GF07.61-P-5000F | |
| Engine 111 EVO | GF07.61-P-5000GS | ||
| Crankshaft position sensor, location/task/design/function | GF07.04-P-4116F | ||
| ETC control unit, location/task | Information on selector lever position P/N and gear engaged in the case of automatic transmission. Transmission 722.6 |
GF27.19-P-4012G | |
| Hot film mass air flow sensor, location/task/design/function | Engine 104, 112, 113, 137 | GF07.07-P-4118G | |
| Engine 111 (except engine 111 EVO) | |||
| Engine 111 EVO | GF07.07-P-4118GS | ||
| Engine 119, 120 (round connector) | GF07.07-P-4118E | ||
| ME-SFI ignition system function | except M 111 EVO | GF15.12-P-0001F | |
| Engine 111 EVO | GF15.12-P-0001GS | ||
| ECI ignition system function | Engine 137 | GF15.15-P-3000L | |
| CAN data bus, function | GF54.00-P-0005F |
