Mode 6

NOTE: Mode 6 data is not available for all models. On-board diagnostic monitor ID definition for mode 6 applies to all modes. See Fig 1-Fig 12 .

MODE 6 DATA ME 2.8 (ENGINE 112 & 113)

Monitor ID	Comp ID	MIN	MAX	Test Value
01	01	.....	67	2
01	02	.....	67	4
01	03	.....	83	3
02	01	.....	450	70
02	02	.....	450	69
03	03	15072	.....	15100
03	04	15072	.....	15100
04	05	6	.....	22

MODE 6 DATA ME 2.8 AMG (ENGINE 112, 113, 155)

Monitor ID	Comp ID	MIN	MAX	Test Value
01	01	.....	179	18
01	02	.....	179	19
01	03	.....	90	18
02	01	.....	230	42
02	02	.....	230	37
03	03	15072	.....	15100
03	04	15072	.....	15100
04	05	6	.....	22
05	2F	0	.....	0
05	2D	.....	0	0
05	25	.....	0	0
09	01	.....	47186	31607
09	01	18350	.....	31607
09	03	.....	32987	32742
09	03	32549	.....	32742
09	02	.....	47186	31912
09	02	18350	.....	31912
09	04	.....	32987	32751
09	04	32549	.....	32751

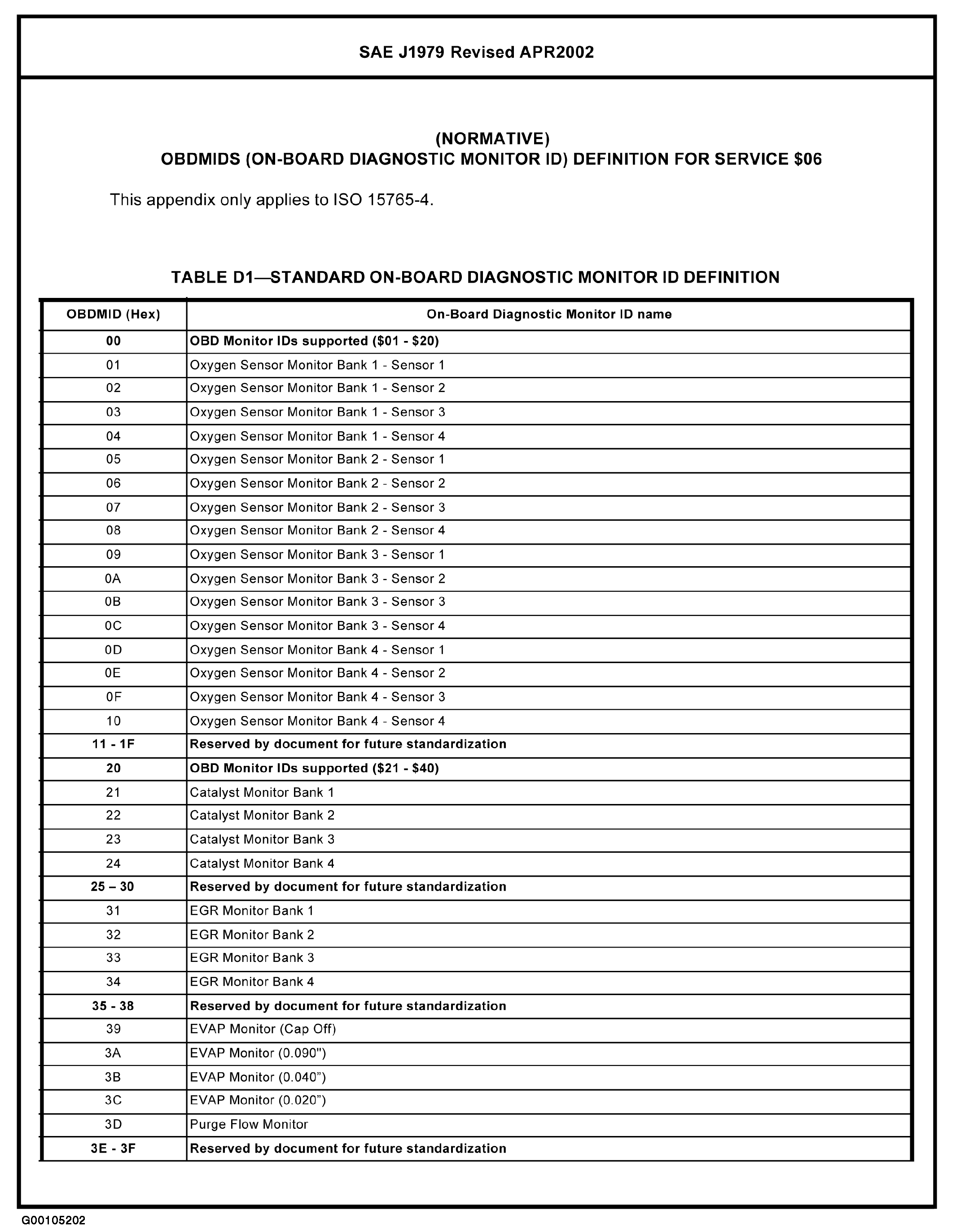

Fig 1: On-Board Diagnostic Monitor ID Definition For Mode 6 - All Models (1 Of 12)

G00105202

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: On-Board Diagnostic Monitor ID Definition For Mode 6 - All Models (2 Of 12)

G00105203

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: On-Board Diagnostic Monitor ID Definition For Mode 6 - All Models (3 Of 12)

G00105204

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: On Board Diagnostic Monitor ID Defunction For Mode 6 - All Models (4 Of 12)

G00105205

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: On-Board Diagnostic Monitor ID Definition For Mode 6 - All Models (5 Of 12 )

G00105194

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: On-Board Diagnostic Monitor ID Definition For Mode 6 - All Models (6 Of 12 )

G00105195

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: On-Board Diagnostic Monitor ID Defunction For Mode 6 - All Models (7 Of 12 )

G00105196

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 8: On-Board Diagnostic Monitor ID Definition For Mode 6 - All Models (8 Of 12 )

G00105197

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 9: On-Board Diagnostic Monitor ID Definition For Mode 6 - All Models (9 Of 12 )

G00105198

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 10: On-Board Diagnostic Monitor ID Definition For Mode 6 - All Models (10 Of 12 )

G00105199

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 11: On-Board Diagnostic Monitor ID Definition For Mode 6 - All Models (11 Of 12 )

G00105200

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

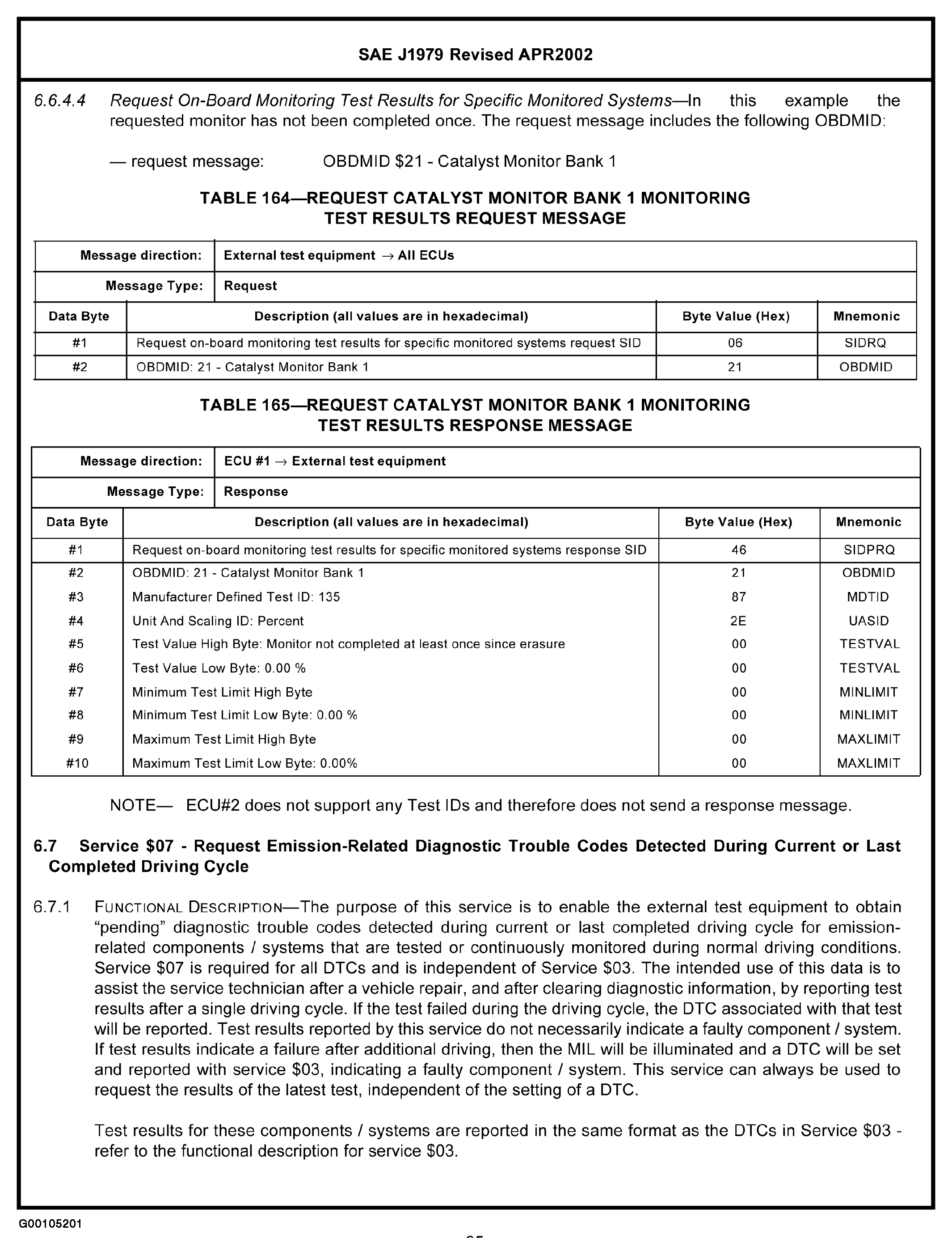

Fig 12: On-Board Diagnostic Monitor ID Definition For Mode 6 - All Models (12 Of 12)

G00105201

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
