Check & Adjust Rear Toe Angle: Adjustments

  1. Observe general information on chassis alignment. See GENERAL INFORMATION ON CHASSIS ALIGNMENT  .
  2. Check vehicle level at front and rear axle with electronic inclination meter and adjust, if necessary.
  3. Adjust toe-in with cam bolt (60a) at mount of the left and right track rod (60) at rear axle carrier (50). See Fig 1 .

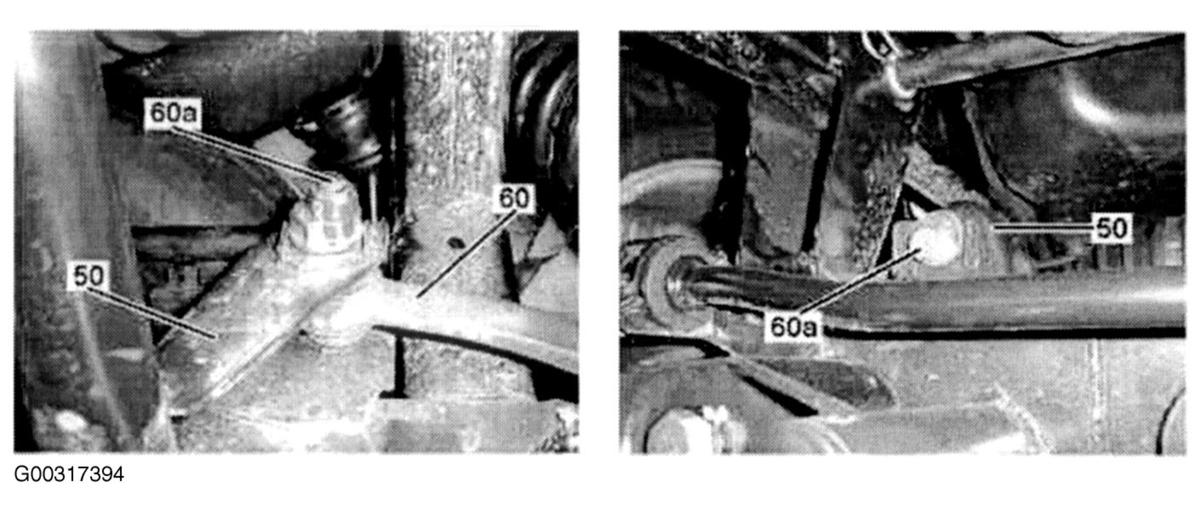

Fig 1: Adjusting Rear Toe Angle
G00317394Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
