Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

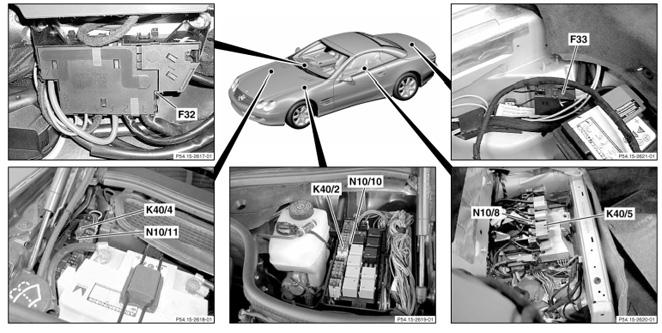

Fig 1: Vehicle Overview

G00441910

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

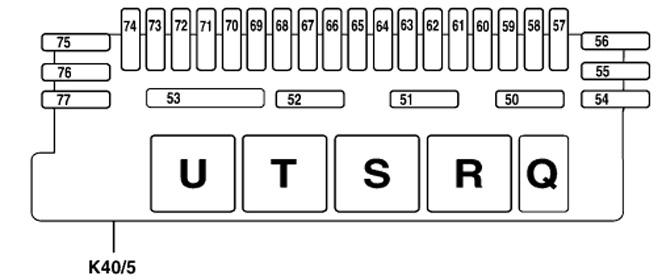

Fig 2: Rear Fuse & Relay Module

G00441911

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

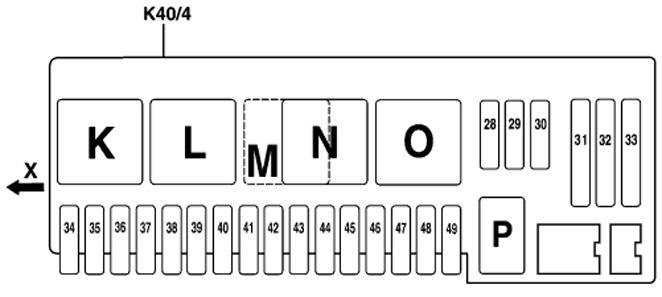

Fig 3: Passenger-Side Fuse & Relay Module

G00441912

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

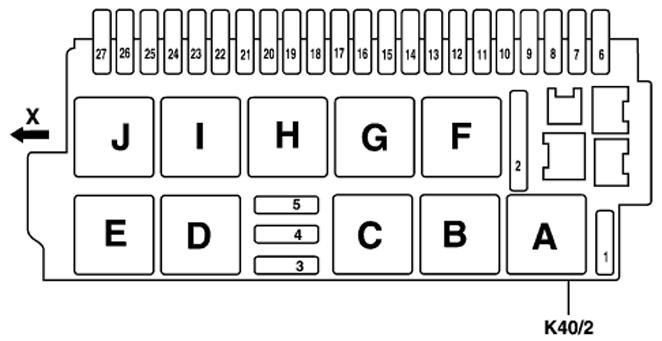

Fig 4: Driver-Side Fuse & Relay Module

G00441913

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

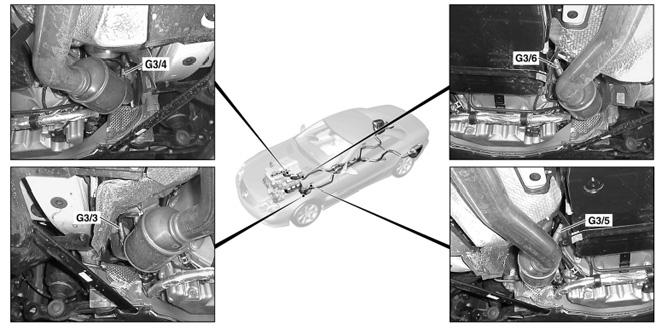

Fig 5: Vehicle Underside

G00441914

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

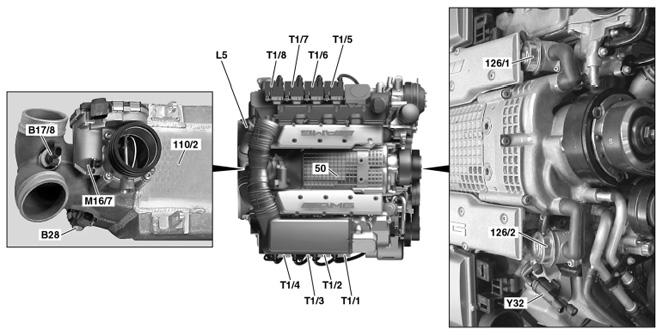

Fig 6: Top Of Engine (5.5L S/C V8)

G00441915

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

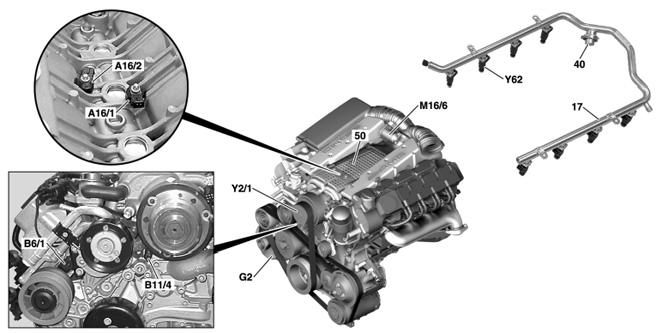

Fig 7: Top & Front Of Engine (5.5L S/C V8)

G00441916

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

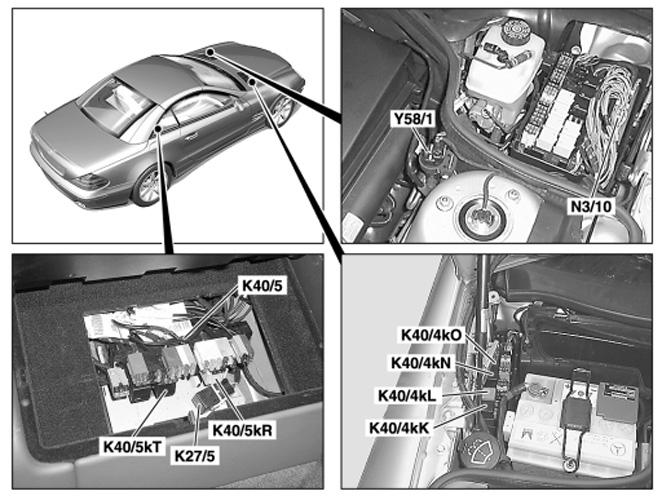

Fig 8: Vehicle Overview

G00441917

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

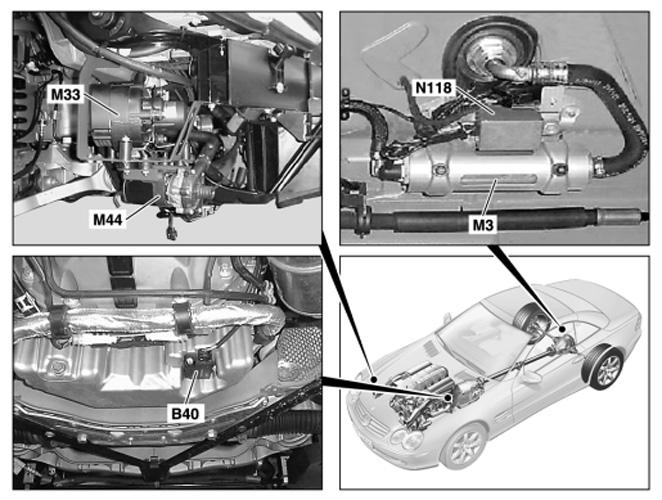

Fig 9: Vehicle Overview

G00441918

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

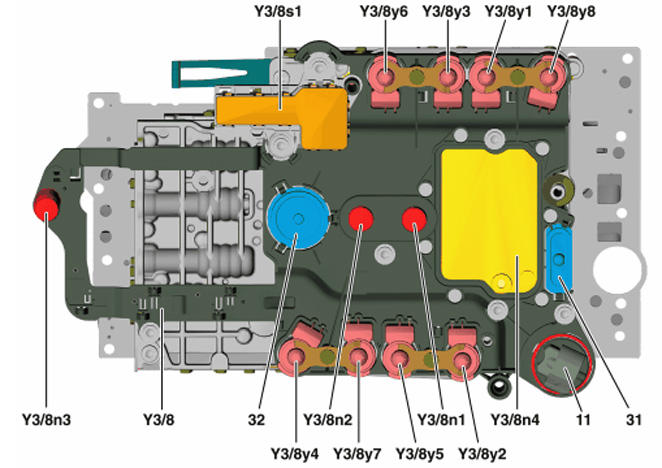

Fig 10: Automatic Transmission (722.9)

G00441919

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

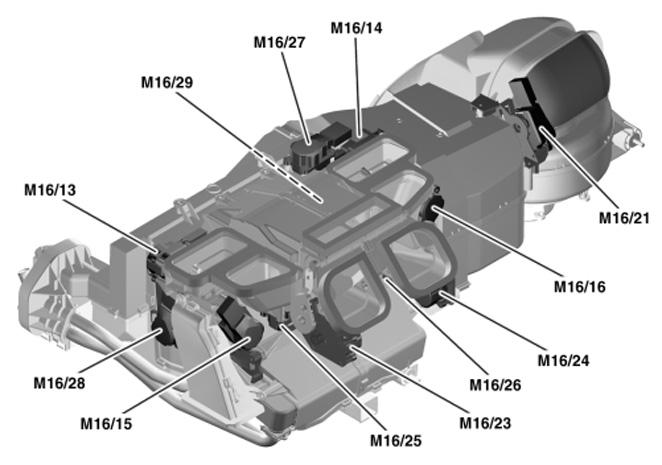

Fig 11: HVAC Unit

G00441920

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

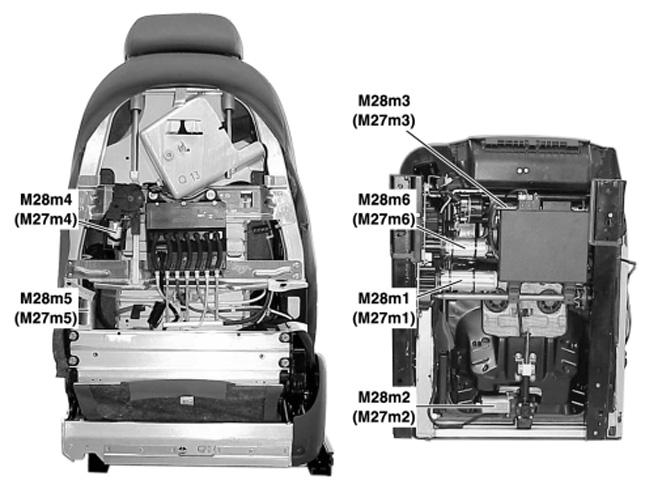

Fig 12: Front Power Seats

G00441921

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

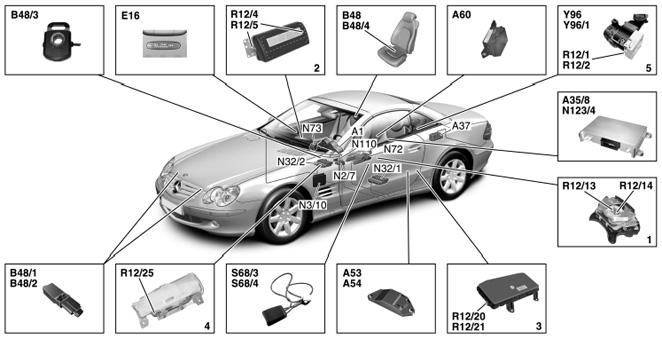

Fig 13: Vehicle Overview (Supplemental Restraint System)

G00441922

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

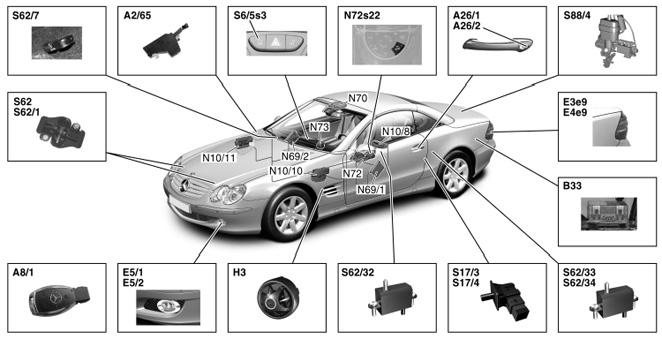

Fig 14: Vehicle Overview (Anti-Theft Components)

G00441923

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

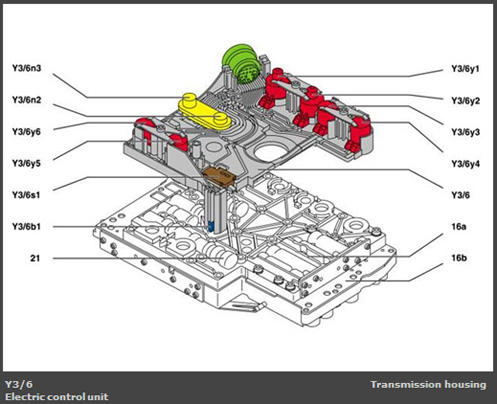

Fig 15: Automatic Transmission (722.6)

G00441924

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

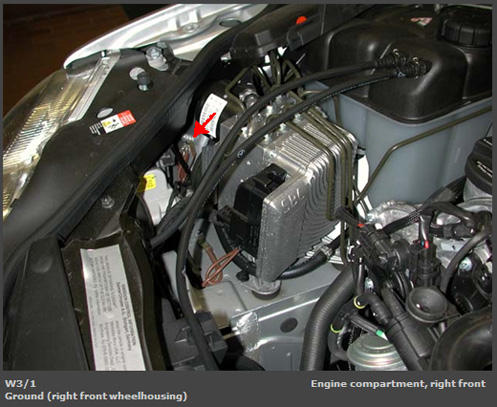

Fig 16: Right Front Of Engine Compartment

G00441925

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

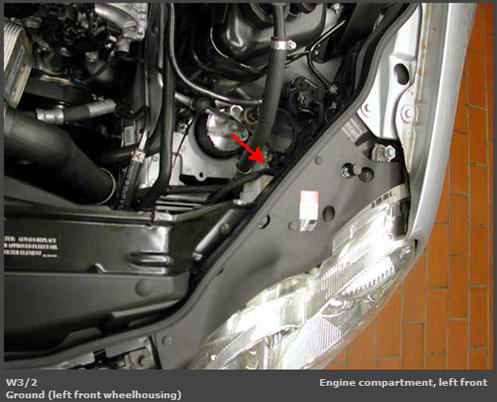

Fig 17: Left Front Of Engine Compartment

G00447030

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

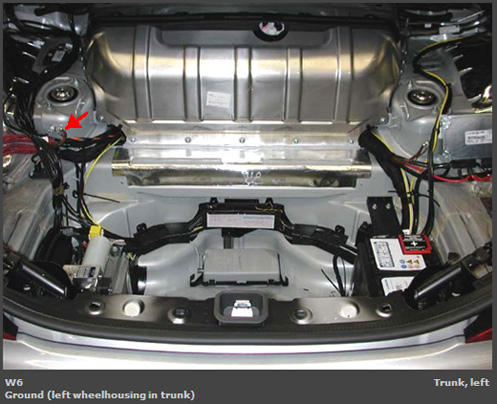

Fig 18: Left Side Of Trunk

G00447031

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

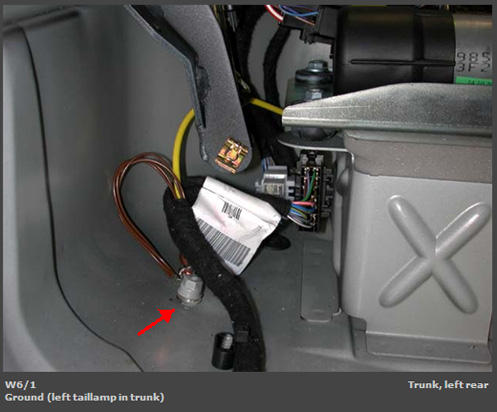

Fig 19: Left Rear Of Trunk

G00447032

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

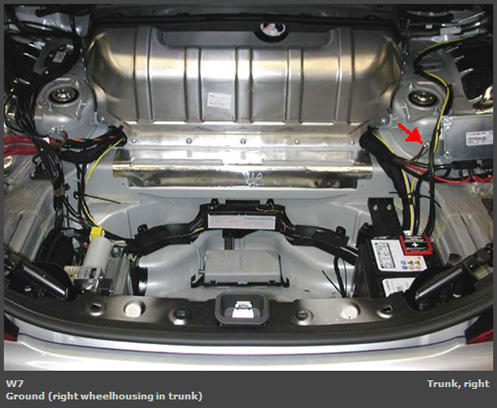

Fig 20: Right Side Of Trunk

G00447033

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

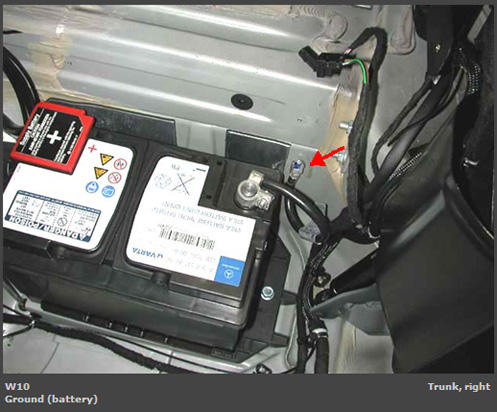

Fig 21: Right Side Of Trunk

G00447034

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

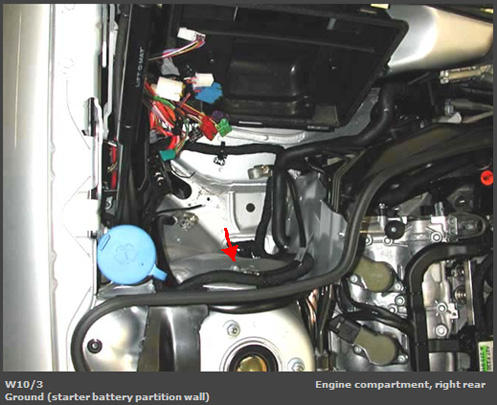

Fig 22: Right Rear Of Engine Compartment

G00447035

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

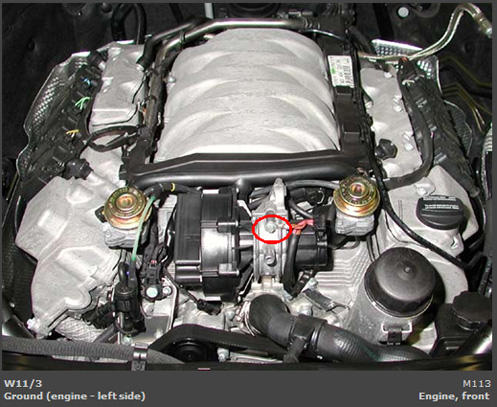

Fig 23: Front Of Engine (5.5L S/C V8)

G00447036

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

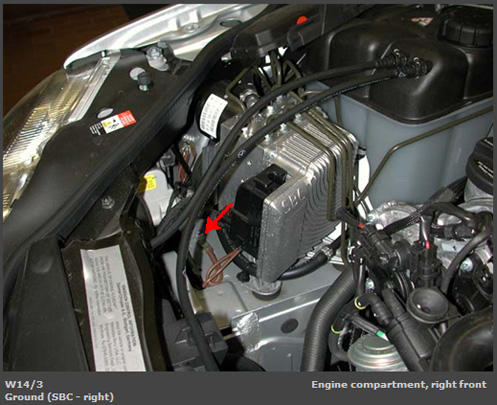

Fig 24: Right Front Of Engine Compartment

G00447037

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

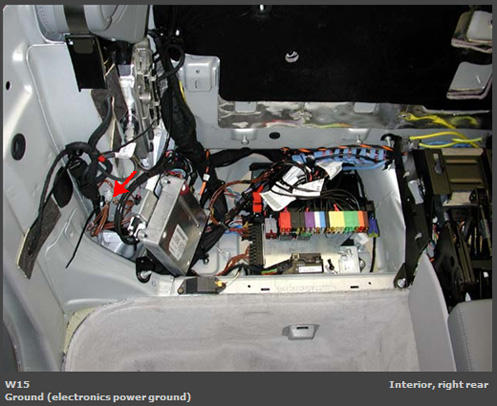

Fig 25: Near Base Of Right "B" Pillar

G00447038

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

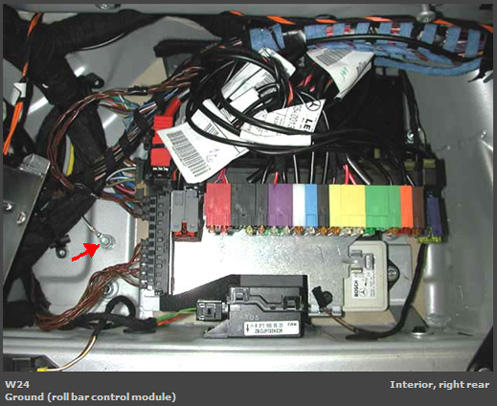

Fig 26: Near Base Of Right "B" Pillar

G00447039

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

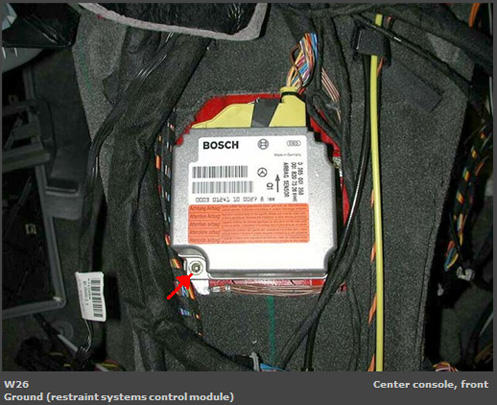

Fig 27: Front Of Center Console

G00447040

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

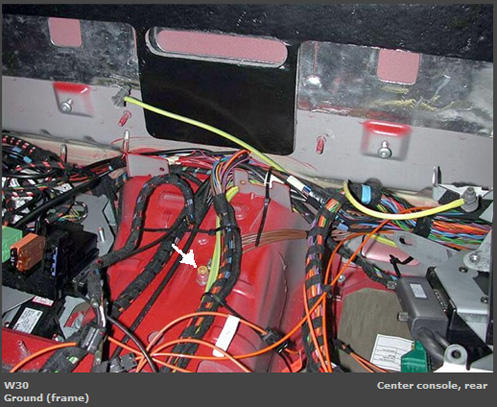

Fig 28: Rear Of Center Console

G00447041

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

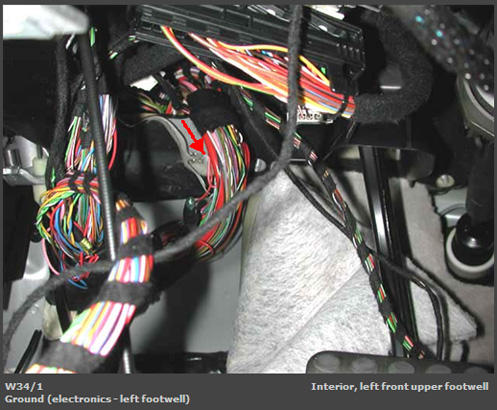

Fig 29: Under Left End Of Dash

G00447042

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

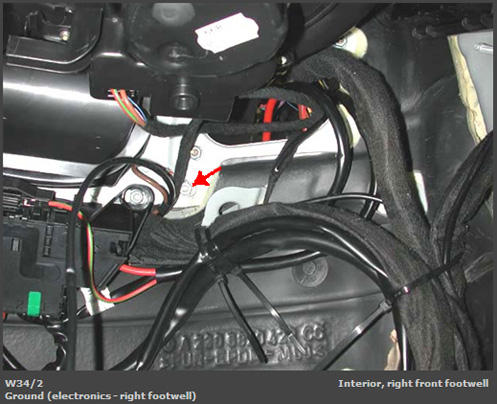

Fig 30: Under Right Side Of Dash

G00447043

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

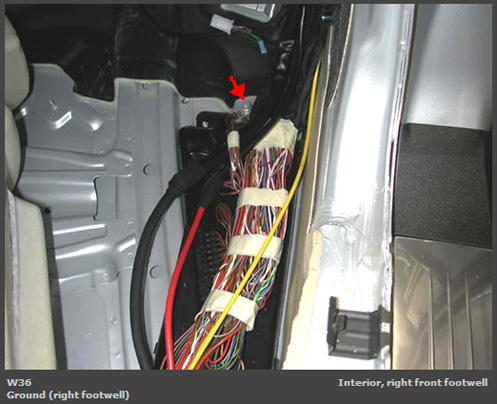

Fig 31: Right Front Footwell

G00447044

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

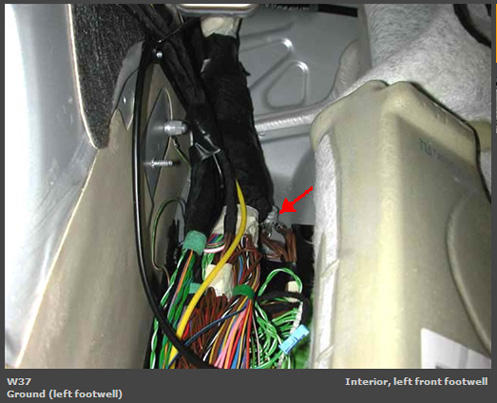

Fig 32: Left Front Footwell

G00447045

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

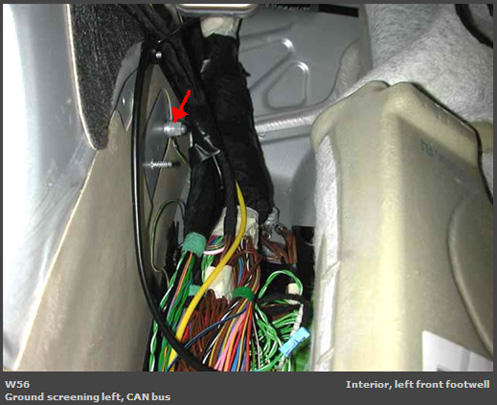

Fig 33: Left Front Footwell

G00447046

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 34: Behind Front Passenger's Seat

G00447047

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

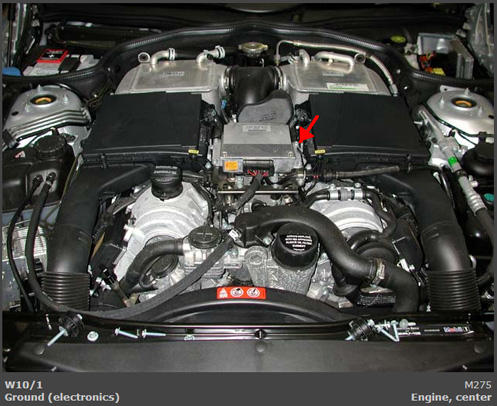

Fig 35: Top Of Engine (V12)

G00447048

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

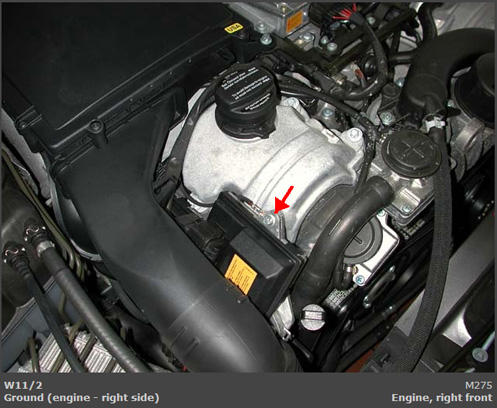

Fig 36: Right Front Of Engine (V12)

G00447049

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

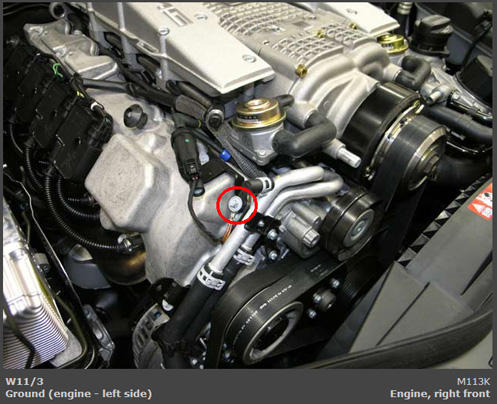

Fig 37: Right Front Of Engine (5.5L S/C V8K)

G00447050

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

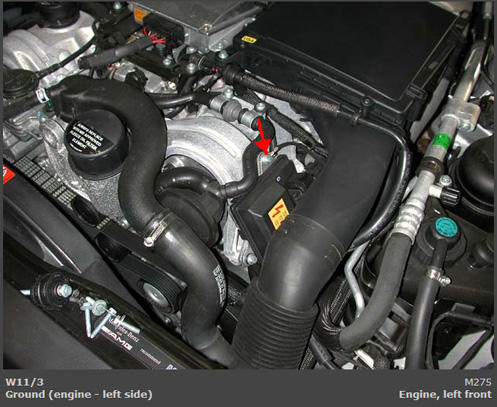

Fig 38: Left Front Of Engine (V12)

G00447051

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

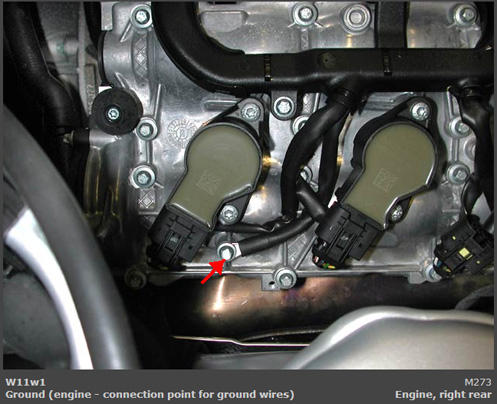

Fig 39: Right Rear Of Engine (5.5L V8)

G00447052

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

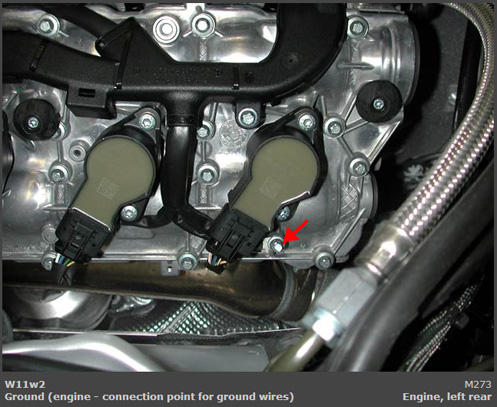

Fig 40: Left Rear Of Engine (5.5L V8)

G00447053

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

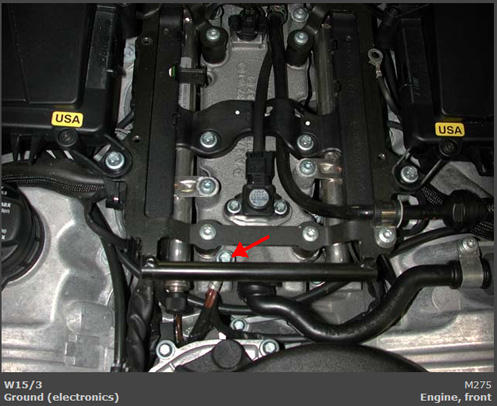

Fig 41: Front Of Engine (V12)

G00447054

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

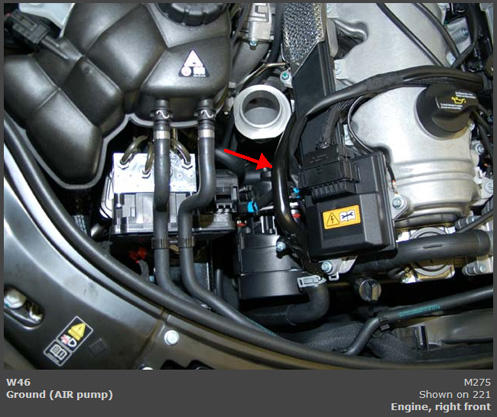

Fig 42: Right Front Of Engine (V12)

G00447055

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

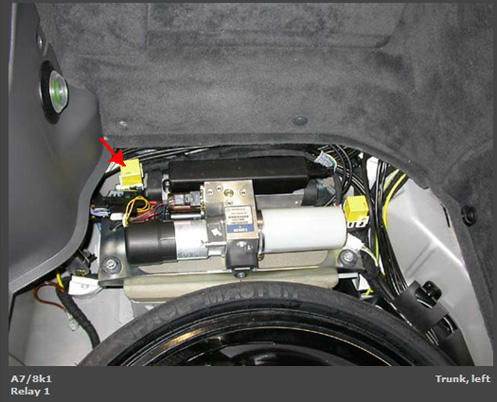

Fig 43: Left Side Of Trunk

G00447056

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

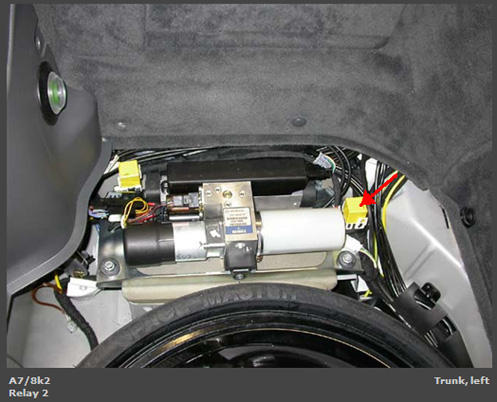

Fig 44: Left Side Of Trunk

G00447057

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

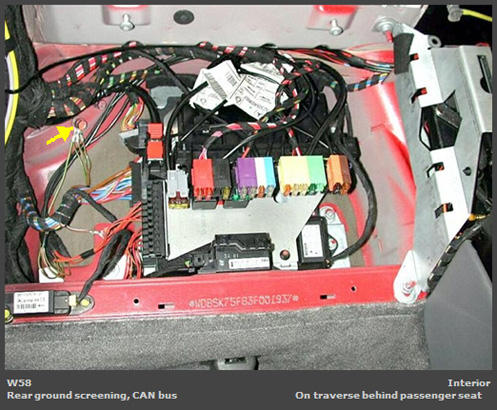

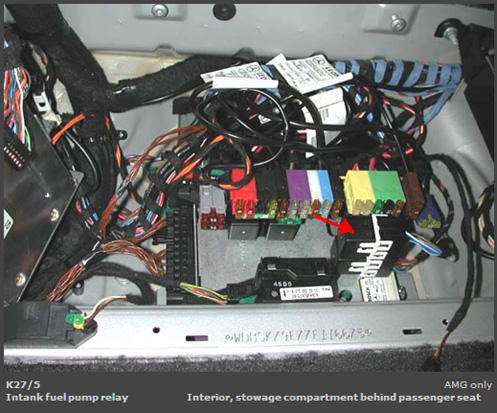

Fig 45: Stowage Compartment Behind Passenger Seat (AMG)

G00447058

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

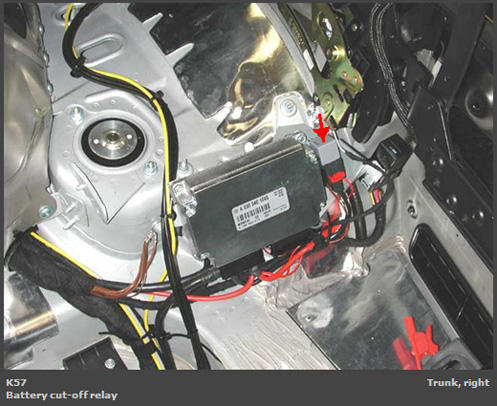

Fig 46: Right Side Of Trunk

G00447080

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

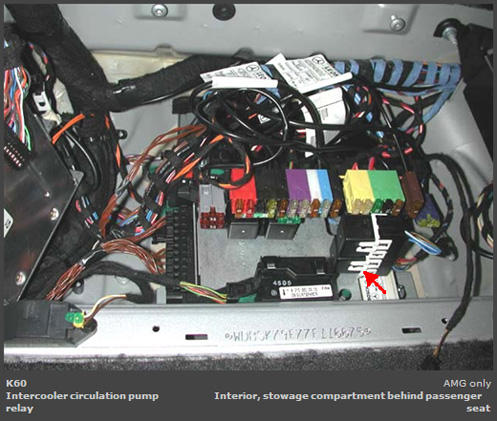

Fig 47: Stowage Compartment Behind Passenger Seat

G00447081

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 48: Right Side Of Trunk

G00447082

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

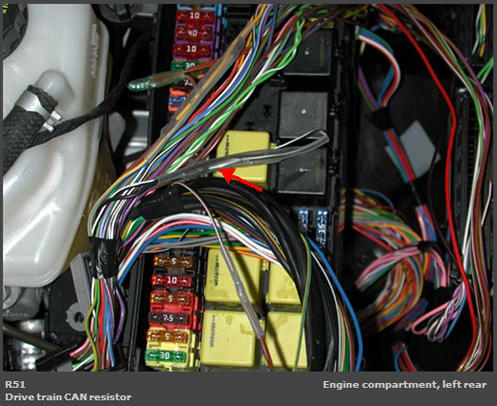

Fig 49: Left Rear Of Engine Compartment

G00447059

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

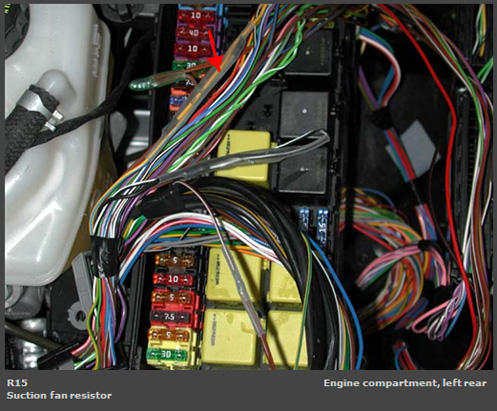

Fig 50: Left Rear Of Engine Compartment

G00447060

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
