Barometric pressure sensor position/task/design/function - GF07.04-P-5040GS: Notes
ENGINE 111.955 /956 /957 /958 /981 /982 /983

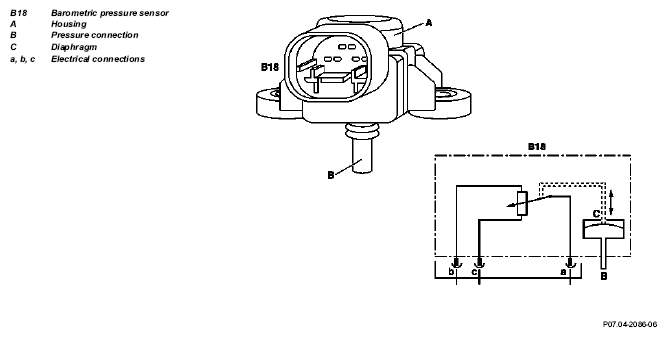

Design
| Barometric pressure sensor position | GF07.04-P-5040-01GS | ||
| Barometric pressure sensor task | Detecting the ambient pressure. The pressure information is required for: Altitude recognition for starting mixture enrichment | ||
| Barometric pressure sensor function | The pressure in the intake manifold alters the shape of a diaphragm and the piezo resistors alter their resistance. This influences the output voltage which is used by the ME control module as information regarding the ambient pressure. |
