CHECK ENGINE malfunction indicator lamp, location/task/function - GF07.13-P-3144F
ENGINE 104.991 /994 as of 1.8.96, 104.941 /995 with CODE (494a) USA version
ENGINE 111.975 as of 1.8.96, 111.973 /974 /983 with CODE (494a) USA version
ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /923 /940 /941 /942 /943 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975 with CODE (494a) USA version
ENGINE 113.940 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969 with CODE (494a) USA version
ENGINE 119.980 /981 /982 /985 with CODE (494a) USA version
ENGINE 120.982 /983 with CODE (494a) USA version
ENGINE 137.970 with CODE (494a) USA version

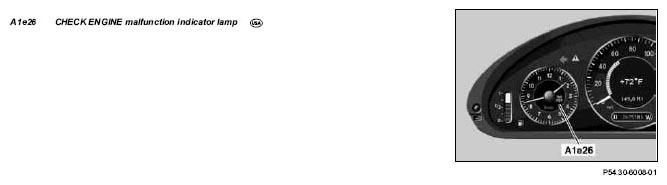

Shown on the instrument cluster type 211
| CHECK-ENGINE malfunction indicator lamp location | The "CHECK ENGINE" MIL is located in the instrument cluster. | ||
| CHECK-ENGINE malfunction indicator lamp task | Indicating faults in the fuel injection system | ||
| CHECK-ENGINE malfunction indicator lamp function | The indicator lamp is actuated by the engine control unit at the ground end or by the instrument cluster (via CAN - Message). To check the function of the incandescent lamp, the lamp is lit on ignition ON and for approx. 1 second as of an engine speed of approx. 500 rpm. If there is no fault, the indicator lamp goes off. |
