Charge air temperature sensor, location/task/design/function - GF07.04-P-5039H: Notes
ENGINE 112.960 in MODEL 170.466
ENGINE 112.961 in MODEL 203.065 /265

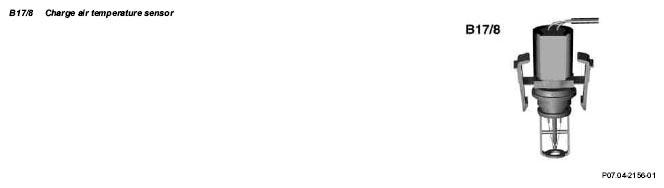

| Charge air temperature sensor position | GF07.04-P-5038-03H | ||
| Charge air temperature sensor task | Detects the charge air temperature, which together with the boost pressure is used by the motor electronics control unit for the calculation of the supplied air mass. In addition to the detection of the charge air temperature, the function of the charge air cooling system is monitored. |
||
| Charge air temperature sensor, design | NTC resistor with a 2-pin plug connection. | ||
| Charge air temperature sensor function | GF07.04-P-5039-02H |
