Crankshaft position sensor function - GF07.04-P-4116-01F
Shown on engine 120
Function

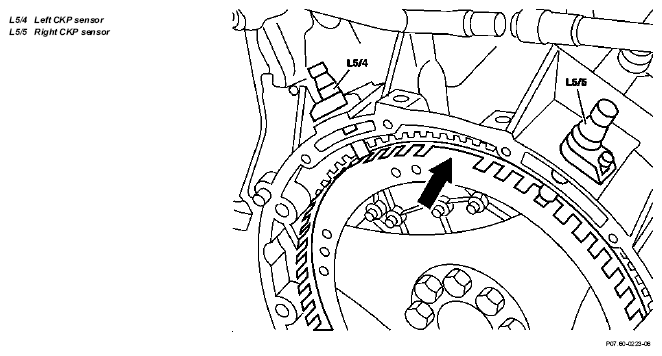

Crankshaft position and engine speed are detected contactlessly. The distance between crankshaft position sensor and the teeth of the driven plate is fixed by the installation position.
When the crankshaft is rotating, an alternating voltage is generated in the crankshaft position sensor by the teeth of the driven plate.
The leading edge of a tooth generates a positive voltage pulse and the trailing edge a negative voltage pulse. The distance from the positive to the negative voltage peak corresponds to the length of a tooth. The gap produced by 2 missing teeth results in no voltage being generated in the crankshaft position sensor. This is analyzed for detecting the TDC position:
| Engine | Recognition of TDC position of cylinder | |
|---|---|---|
| 111 | 1 and 4 | |
| 119, 104, 112, 113 | 1 and 6 | |
| 120 | Right hand cylinder bank: | 1 and 6 |
| Left cylinder bank: | 7 and 12 | |
| 137 | 1 and 7 | |
