Crankshaft position sensor, location/task/design/function - GF07.04-P-4116F: Notes

ENGINE 104.941 /943 /944 /991 /994 as of 1.8.96

ENGINE 104.995 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998 with CODE (498) as of Model Year 97 Japanese version

ENGINE 111.921 /942 as of 1.9.98, 111.943, 111.944 as of 1.8.96, 111.946 as of 1.6.98, 111.947 /973, 111.975 as of 1.8.96

ENGINE 111.945 in MODEL 208.335 /435 as of 1.6.98, 202.020 /080 as of 1.9.98

ENGINE 111.974 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998

ENGINE 111.951 /952 /955 /956 /957 /958 /982 /983

ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975

ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969

ENGINE 119.980 /981 /982 /985

ENGINE 120.982/ 983

ENGINE 137.970

ENGINE 166.940 /960 /990 /995

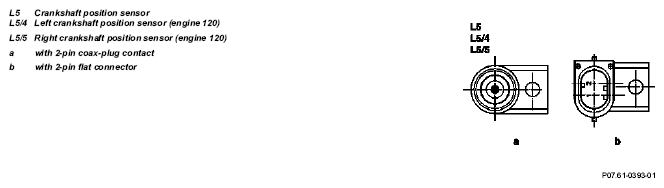

Fig 1: Identifying Crankshaft Position Sensors Location/Design/Function

Crankshaft position sensor position	Engine 104, 111	GF07.04-P-4116-02D
	Engine 112, 113, 119	GF07.04-P-4116-02A
	Engine 120: one crankshaft position sensor for each bank of cylinders	GF07.04-P-4116-02F
	Engine 137	GF07.04-P-4116-02L
	Engine 166	GF07.04-P-4116-02GC
Crankshaft position sensor task	Detects the position of the crankshaft and the engine speed in a non-contact manner over the teeth of the drive plate
Crankshaft position sensor design	Inductive sensor (coil) with 2-pin coax plug contact. On engine 104 because of available space 2-pin flat connector. Further version without connector.
Crankshaft position sensor function	Engine 104, 111, 112, 113, 119, 120, 137	GF07.04-P-4116-01F
	Engine 166	GF07.04-P-4116-01GA
