ME-SFI transmission shift delay, function - GF07.61-P-4023F
ENGINE 104.941 /943 /944 /991 /994 as of 1.8.96 with TRANSMISSION 722.6
ENGINE 104.995 with TRANSMISSION 722.6 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998 with CODE (498) as of Model Year 97 Japanese version
ENGINE 111.921 /942 as of 1.9.98, 111.946 as of 1.6.98, 111.944 /975 as of 1.8.96, 111.947 /951 /952 /955 /956 /957 /958 /973 /982 /983 with TRANSMISSION 722.6
ENGINE 111.945 in MODEL 202.020 /080 as of 1.9.98, 208.335 /435 as of 1.6.98 with TRANSMISSION 722.6
ENGINE 111.974 with TRANSMISSION 722.6 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998
ENGINE 112.910 /911 /912 /913 /914 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /954 /955 /970 /972 /975 with TRANSMISSION 722.6
ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969 with TRANSMISSION 722.6
ENGINE 119.980 /981 /982 /985 with TRANSMISSION 722.6
ENGINE 120.982 /983 with TRANSMISSION 722.6
ENGINE 137.970 with TRANSMISSION 722.6

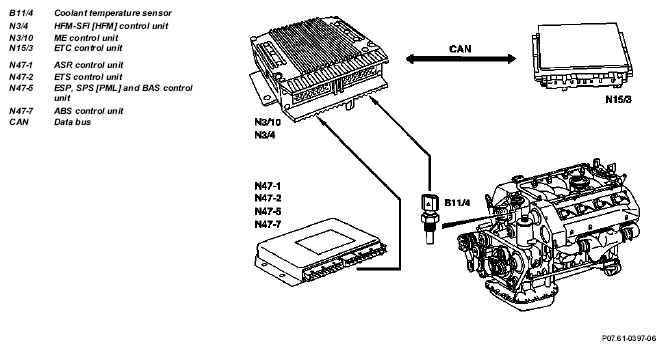

Shown on Engine 119
The transmission upshift retard is designed to more rapidly heat up the catalytic converter after engine start to its operating temperature.
The transmission upshift retard is performed completely electronically in combination with the automatic transmission 722.6. No additional components are required.
The engine control unit requests the ETC control unit (Y3/7n2) over the CAN databus to alter the shift characteristic curves. The part load shifts (1-2, 2-3) are performed at a higher vehicle speed/engine speed.
The transmission upshift retard is active for max. 160 seconds if:
- Coolant temperature at start < 50 °C
- Vehicle speed < 53 km/h.
The vehicle speed information for detecting the drive mode is received by the ME control unit via CAN from the control unit for traction system (ABS, ASR, ETS or SPS, according to model and equipment).
| Motor electronics control unit, location/task/design/function | other than engine 111 EVO | GF07.61-P-5000F | |
| Engine 111 EVO | GF07.61-P-5000GS | ||
| HFM-SFI control unit, location/task/design/function | GF07.51-P-4103D | ||
| CAN data bus, function | Vehicles with CAN | GF54.00-P-0005F | |
| Coolant temperature sensor, location/task/design/function | Engine 119, 120 | GF07.04-P-5026F | |
| Engine 104, 111 | GF07.04-P-5026G | ||
| Engine 112, 113, 137 | GF07.04-P-5026A | ||
| ETC control unit, location/task | Transmission 722.6 | GF27.19-P-4012G |
