Wheel Alignment Specifications

WHEEL ALIGNMENT SPECIFICATIONS

Application

Specification

Range

Front Axle Camber ⁽¹⁾

....

Rear Axle Camber ⁽²⁾⁽³⁾

....

Front Axle Caster ⁽⁴⁾⁽⁵⁾

....

Front Axle Toe-In

0° 20'

+/-10'

Rear Axle Toe-In ⁽⁶⁾

0° 33'

+/-7

Front Axle Toe-Out On Turns ⁽⁷⁾

-1° 25'

+/-30

⁽¹⁾	Measure front axle riding height. Check camber, assign a value. Refer to appropriate illustration.

⁽²⁾	Rear Axle Camber and Caster is not adjustable.

⁽³⁾	Specifications given as information only.

⁽⁴⁾	Check caster, assign tabular value. Refer to illustration and match with a value in table.

⁽⁵⁾	Check permissible difference in front caster between right and left side of vehicle.

⁽⁶⁾	Overall toe-in at rear axle.

⁽⁷⁾	Toe-Out On Turns with inside wheel turned through 20°.

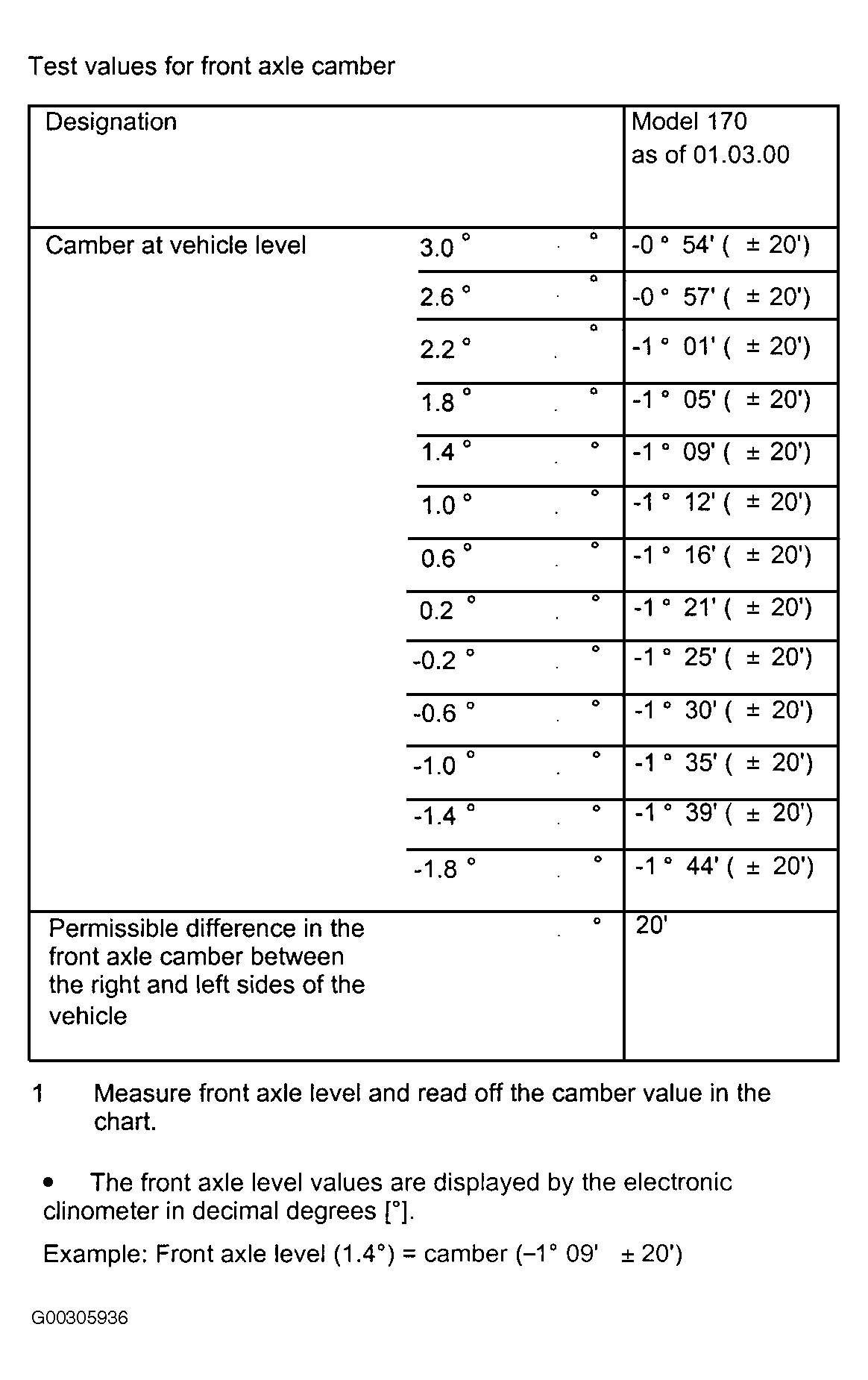

Fig 1: Front Axle Camber Specification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

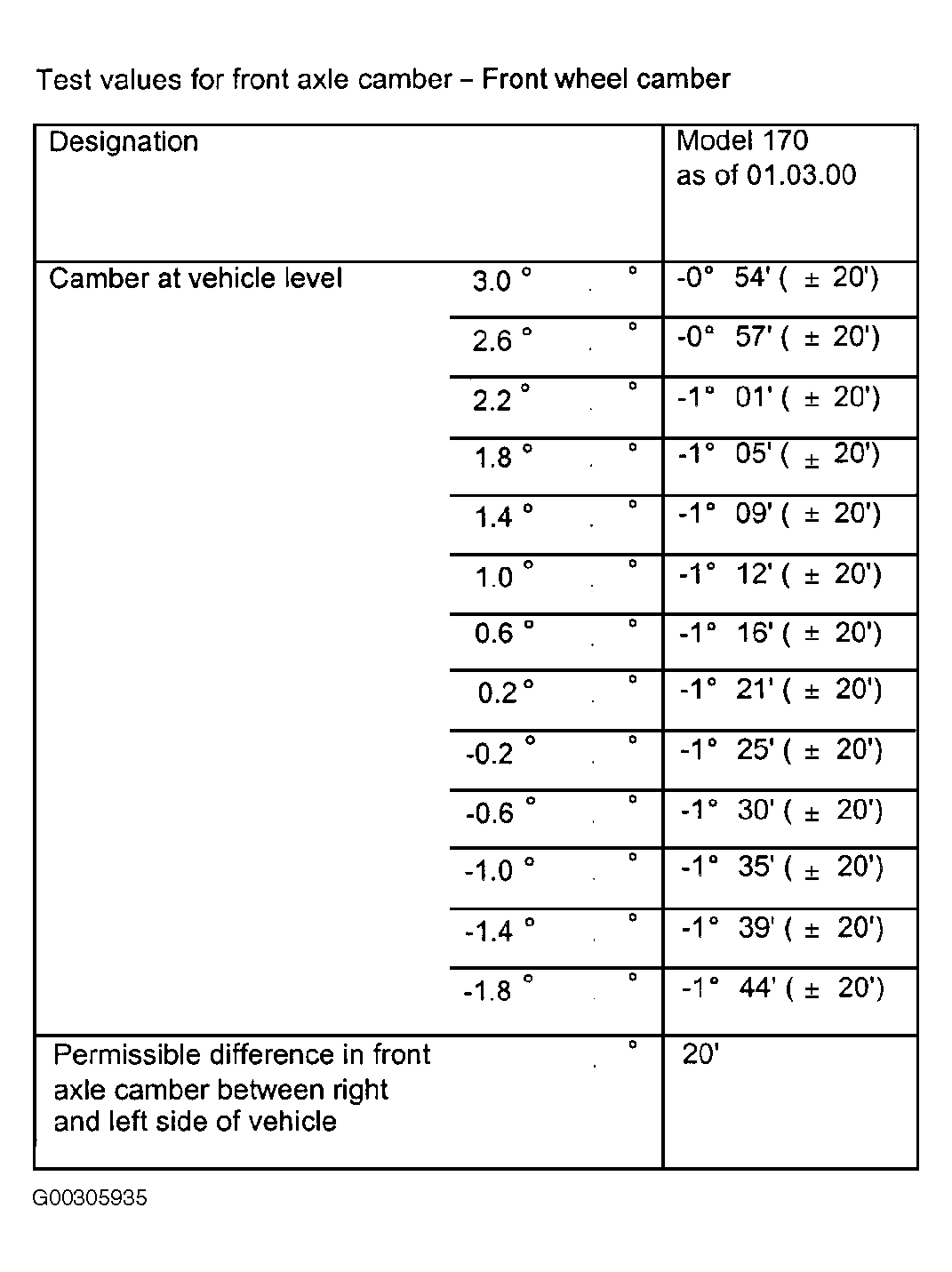

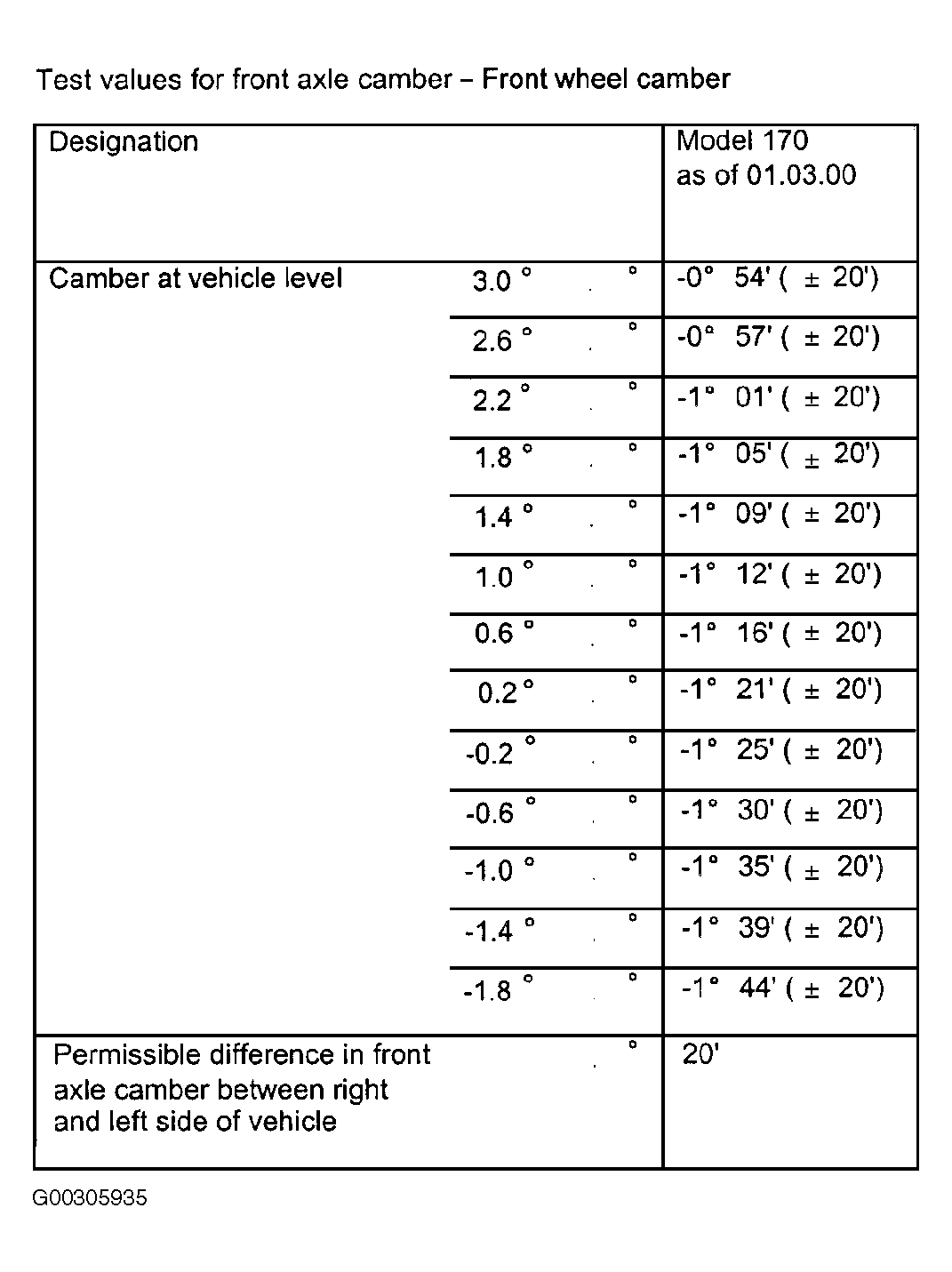

Fig 2: Check & Adjustment Values For Front Camber & Assigned Tabular Values

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

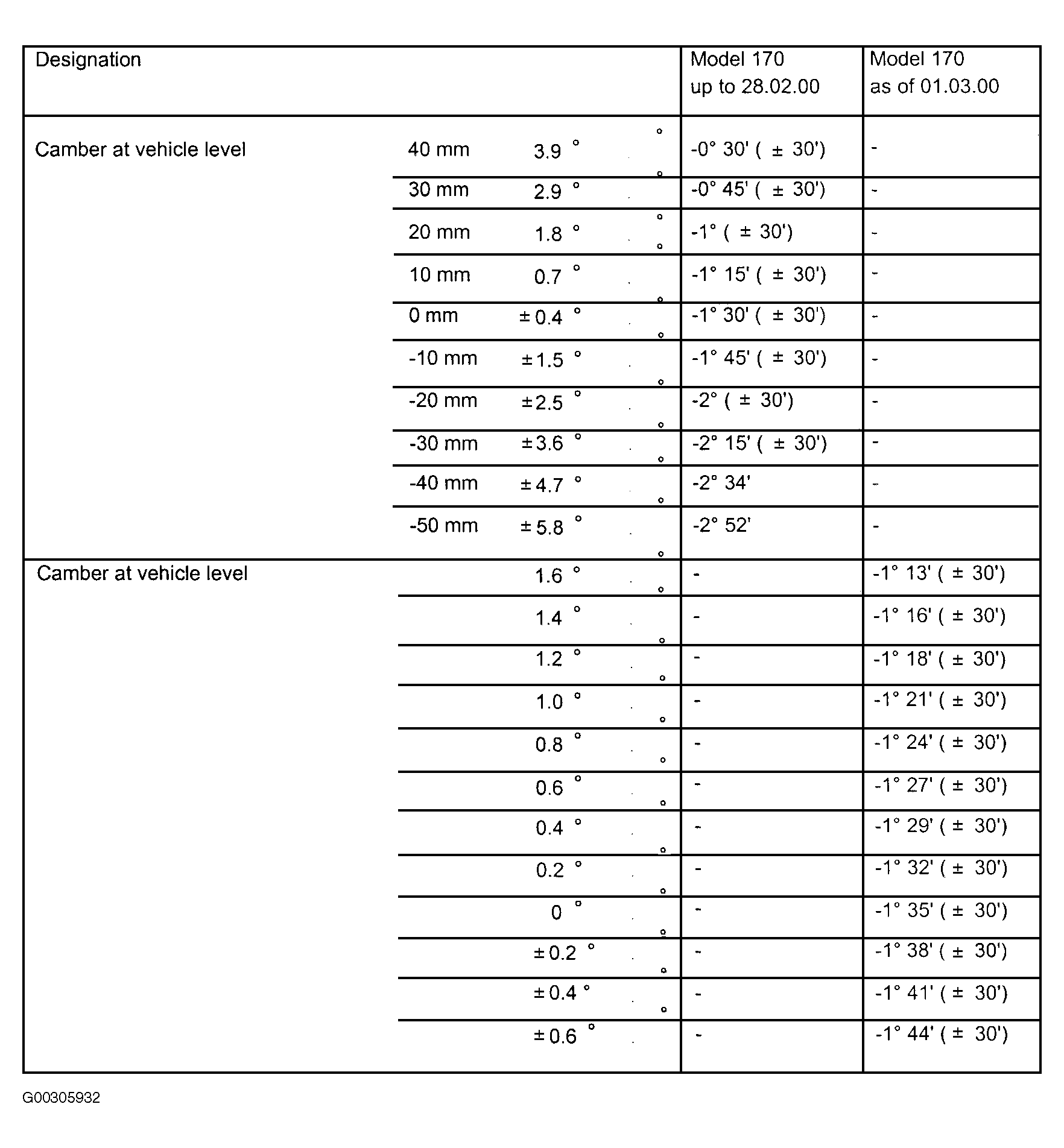

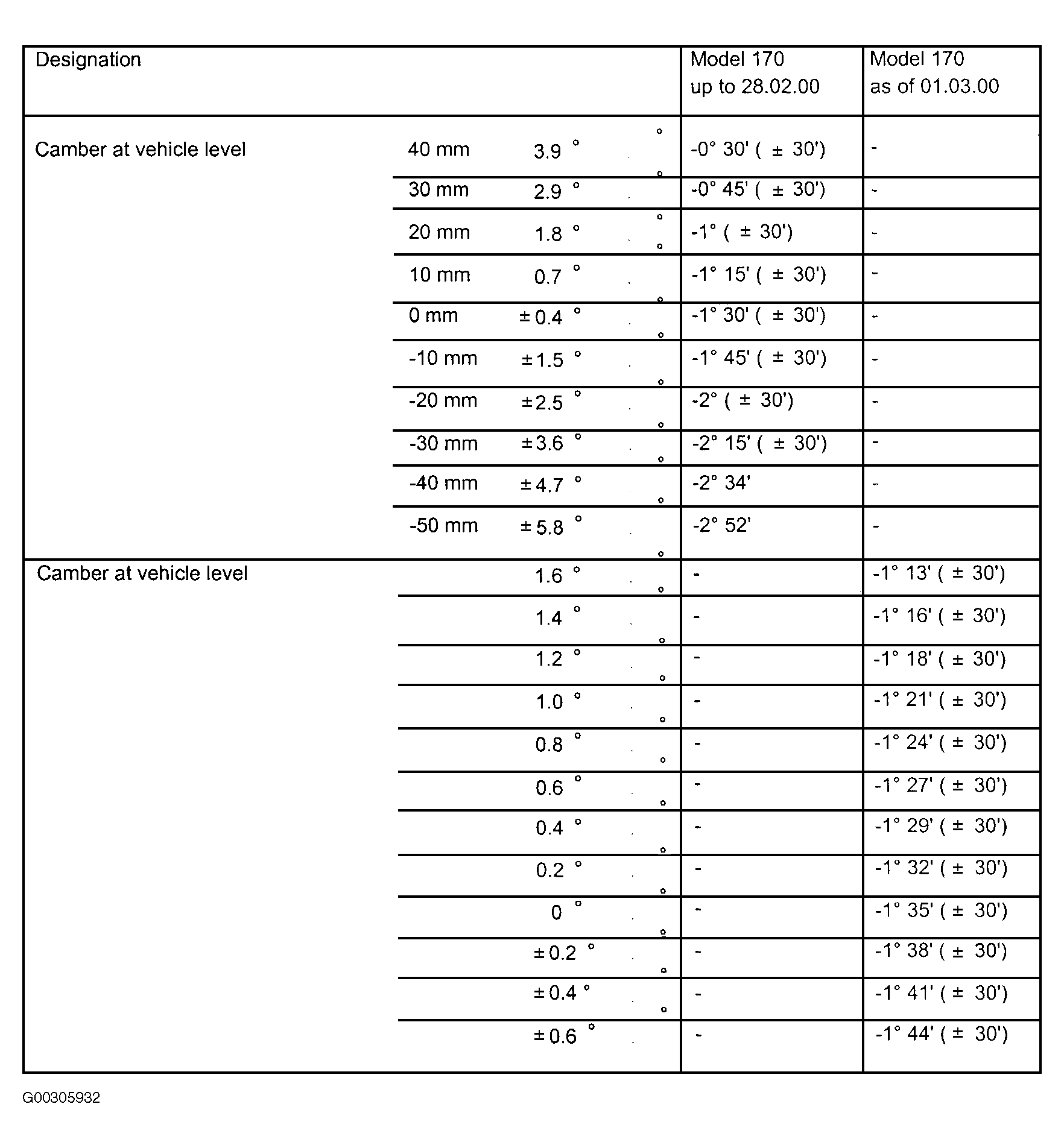

Fig 3: Rear Axle Camber Specification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

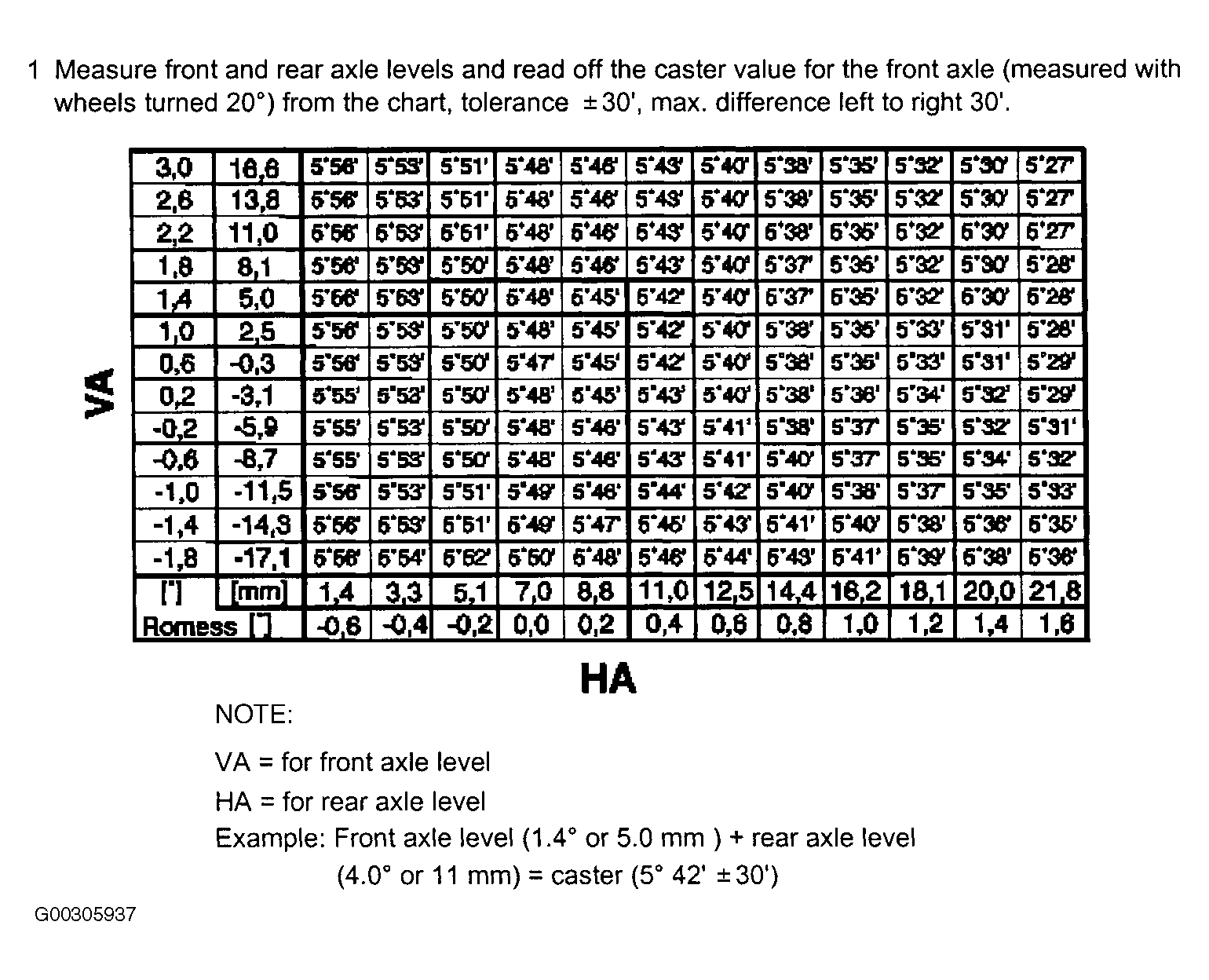

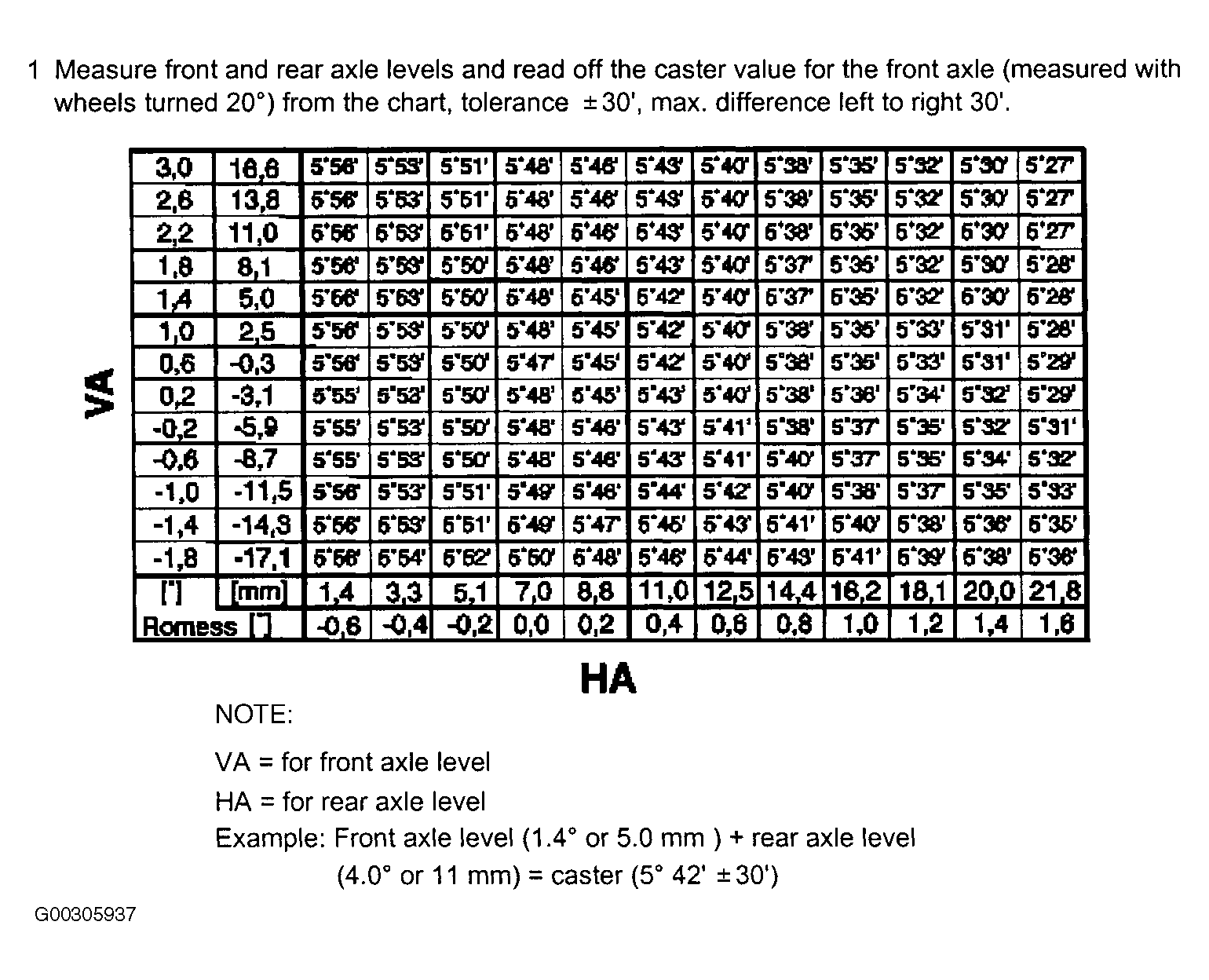

Fig 4: Check & Adjustment Values For Front Caster & Assigned Tabular Values

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
