Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Front Of Engine Compartment

G00454257

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Right Front Of Engine Compartment

G00454258

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Left Side Of Trunk

G00454259

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Left Side Of Trunk

G00454260

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Right Side Of Trunk

G00454261

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Left Front Of Engine Compartment

G00454262

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: Right Side Of Trunk

G00454263

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 8: Left Rear Of Engine

G00454264

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 9: Front Of Engine

G00454265

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 10: Left Rear Of Engine

G00454266

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 11: Right Rear Of Engine

G00454267

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 12: Right Front Footwell

G00454268

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 13: Left Front Footwell

G00454269

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 14: Left Rear Of Engine Compartment

G00454270

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 15: Left "C" Pillar

G00454271

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 16: Under Center Console

G00454272

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

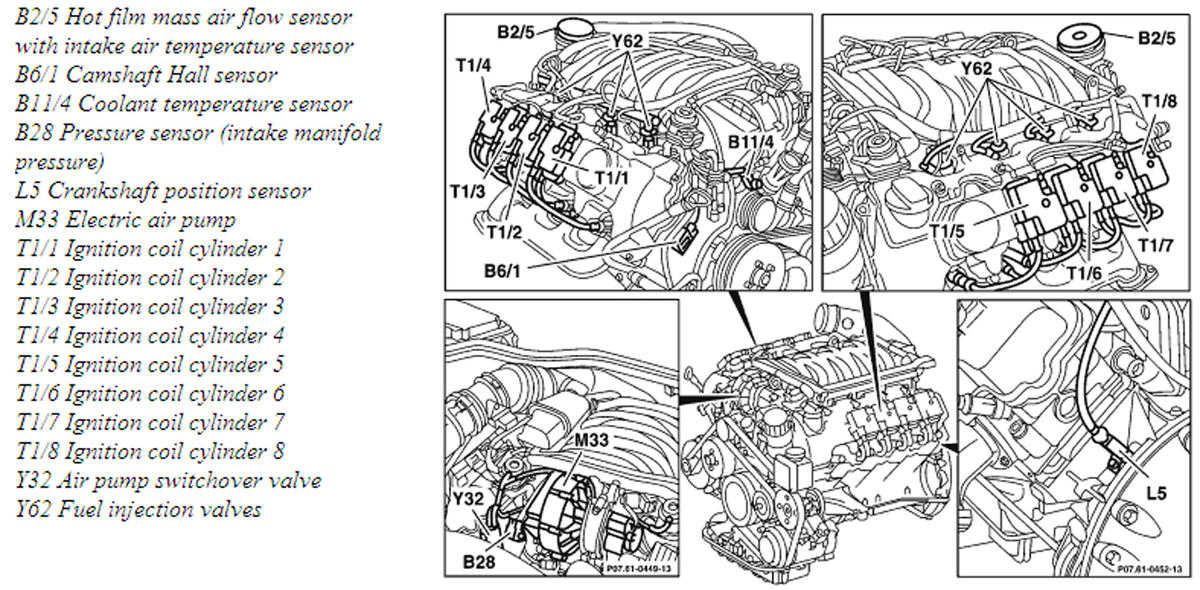

Fig 17: Engine (M113)

G00454273

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

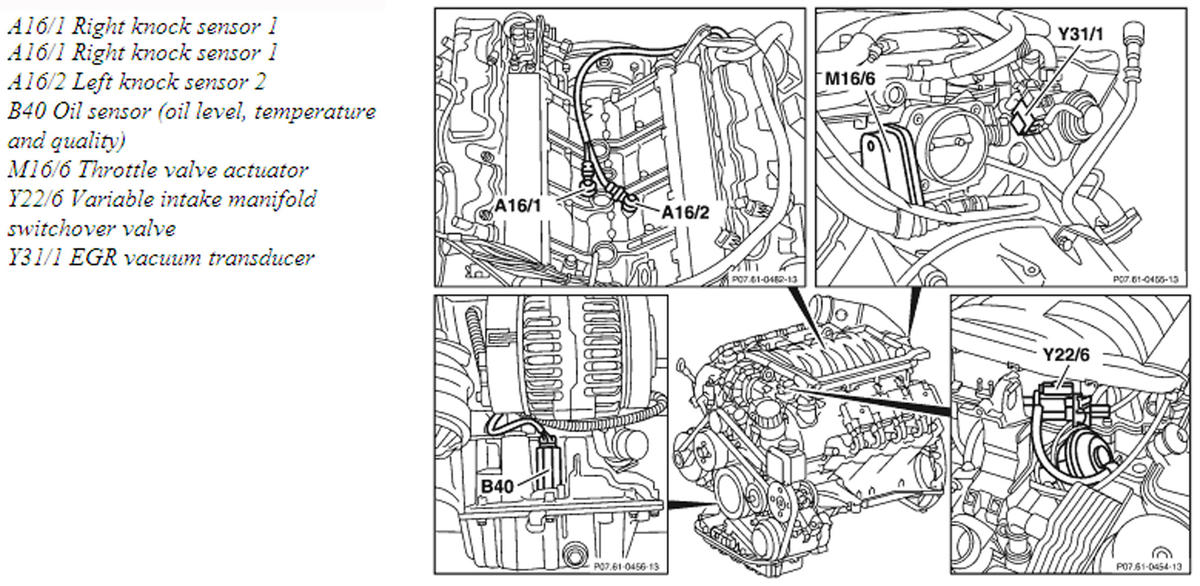

Fig 18: Engine (M113)

G00454274

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

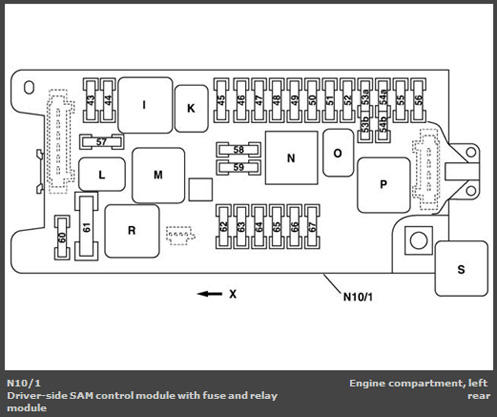

Fig 19: Driver-Side SAM Control Module With Fuse & Relay Module

G00454275

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

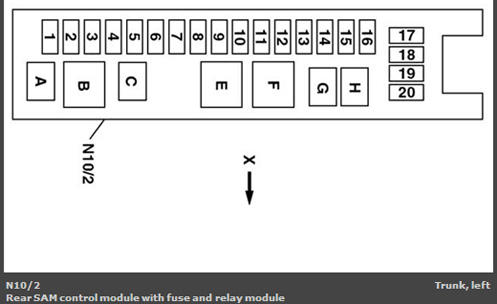

Fig 20: Rear SAM Control Module With Fuse & Relay Module

G00454276

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

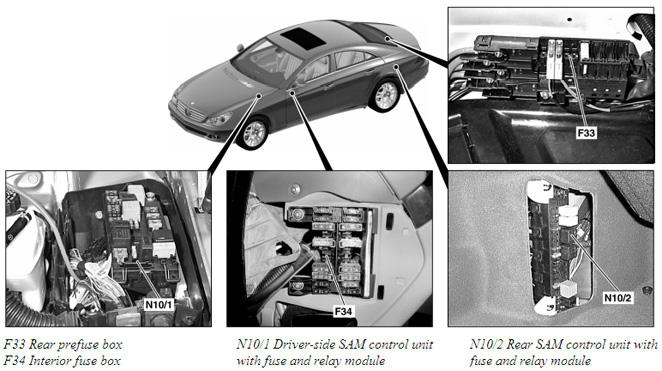

Fig 21: Vehicle Overview

G00454277

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

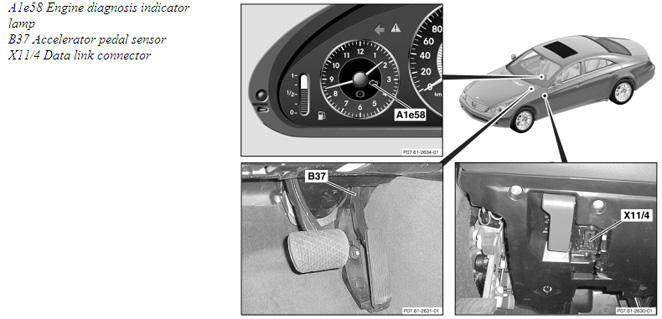

Fig 22: Left Side Of Dash

G00454278

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

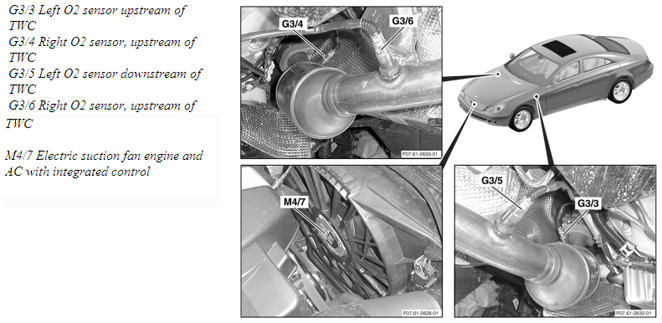

Fig 23: Front & Underside Of Engine Compartment

G00454279

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

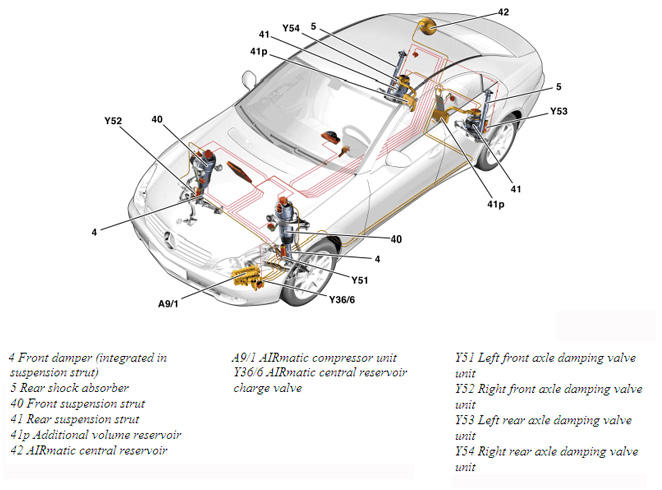

Fig 24: Vehicle Overview

G00454280

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 25: Vehicle Overview

G00454281

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

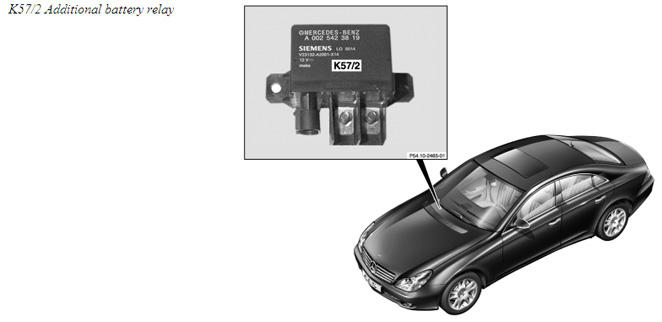

Fig 26: Right Rear Of Engine Compartment

G00454282

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 27: Vehicle Overview

G00454284

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 28: Vehicle Overview

G00454285

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

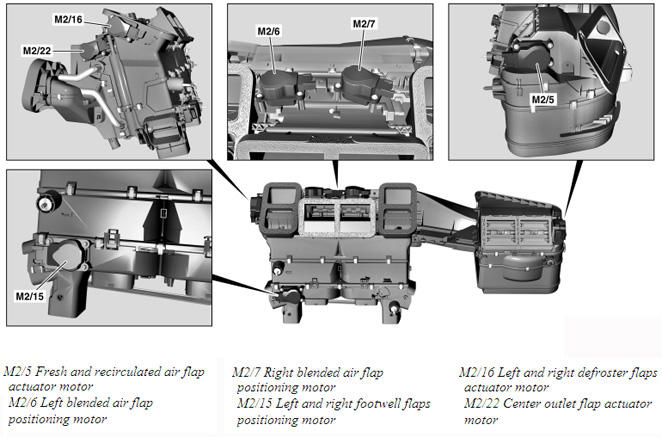

Fig 29: HVAC Unit

G00454286

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

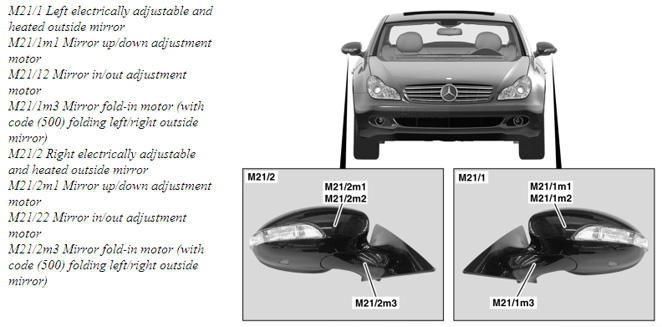

Fig 30: Outside Rearview Mirrors

G00454287

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

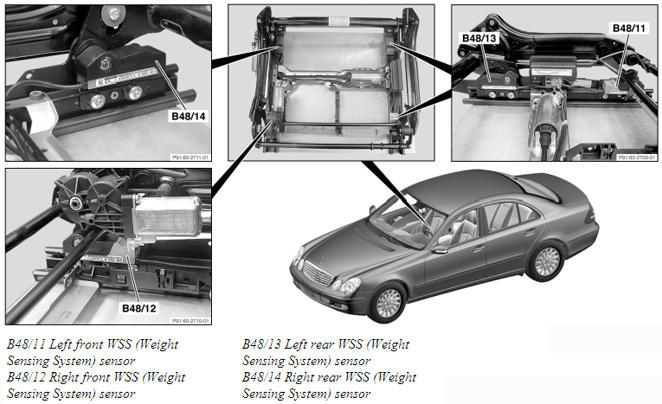

Fig 31: Front Passenger's Seat

G00454288

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

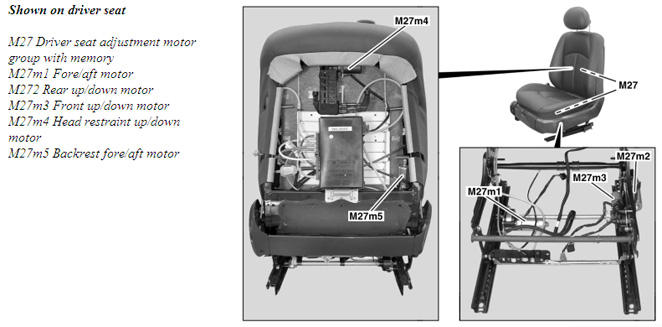

Fig 32: Driver's Seat (Front Passenger's Similar)

G00454289

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 33: Steering Wheel

G00454290

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 34: Center Of Trunk

G00454291

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 35: Center Of Trunk

G00454292

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 36: Left Side Of Trunk

G00454293

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 37: Right Side Of Trunk

G00454294

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 38: Left Side Of Trunk

G00454295

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 39: Center Of Trunk

G00454296

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 40: Left Side Of Trunk

G00454297

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 41: Under Left Side Of Dash

G00454298

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 42: Left Side Of Trunk

G00454299

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 43: Right Side Of Trunk

G00454300

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 44: Right Side Of Trunk Floor

G00454301

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 45: Under Front Passenger's Seat

G00454302

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 46: Left Side Of Trunk

G00454303

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 47: Right Front Footwell

G00454304

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 48: Left Rear Of Engine Compartment

G00454305

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 49: Center Of Trunk

G00454306

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 50: Left Side Of Trunk

G00454307

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 51: Steering Column

G00454308

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 52: Under Driver's Seat

G00454309

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 53: Right Front Footwell

G00454310

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 54: Right Front Footwell

G00454311

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 55: Left Side Of Trunk

G00454312

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 56: Left Rear Of Engine Compartment

G00454313

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 57: Left Rear Of Engine Compartment

G00454314

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 58: Under Front Of Center Console

G00454315

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 59: Left Rear Of Engine Compartment

G00454316

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 60: Left Side Of Trunk

G00454317

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 61: Right Side Of Trunk

G00454318

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 62: Left Front Underbody

G00454319

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 63: Center Console

G00454320

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 64: Right Rear Door

G00454321

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 65: Left Rear Door

G00454322

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 66: Front Passenger's Door

G00454323

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 67: Driver's Door

G00454324

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 68: Left Rear Of Engine Compartment

G00454325

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 69: Left Rear Of Engine Compartment

G00454326

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 70: Left "C" Pillar

G00454327

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 71: Left Front Doorsill

G00454328

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 72: Left Front Underbody

G00454329

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

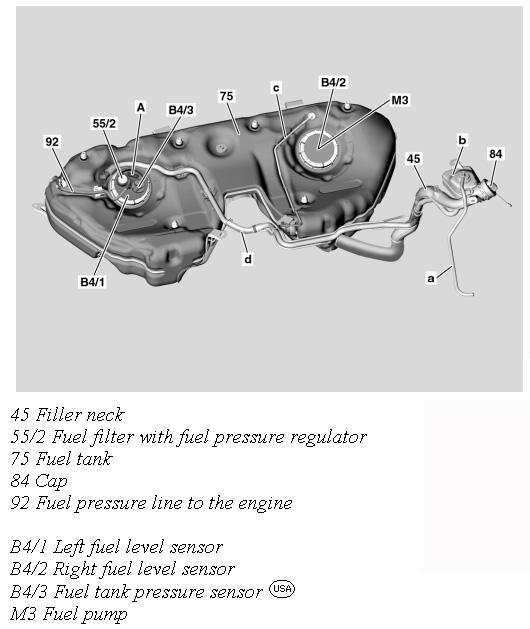

Fig 73: Fuel Tank

G00454330

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 74: Top Front Of Engine (M113)

G00454331

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

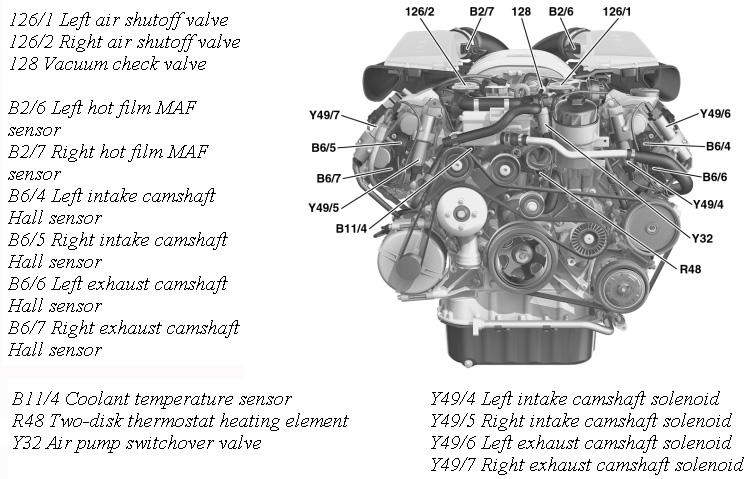

Fig 75: Front Of Engine (M156)

G00454332

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

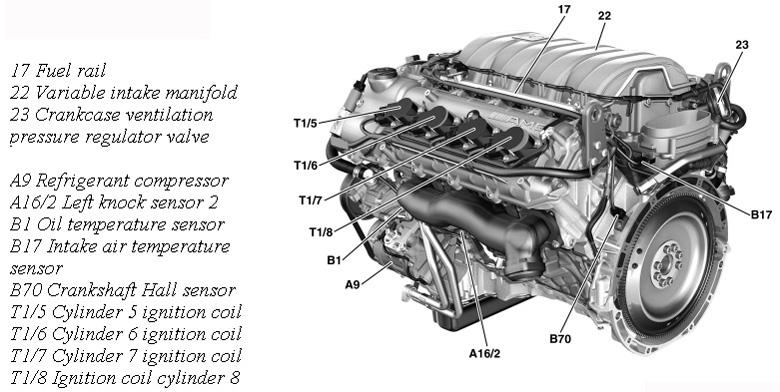

Fig 76: Left Side Of Engine (M156)

G00454333

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

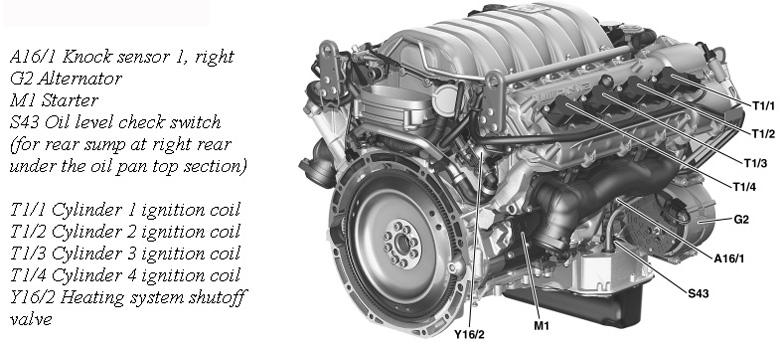

Fig 77: Right Side Of Engine (M156)

G00454334

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 78: Variable Intake Manifold (M156)

G00454335

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

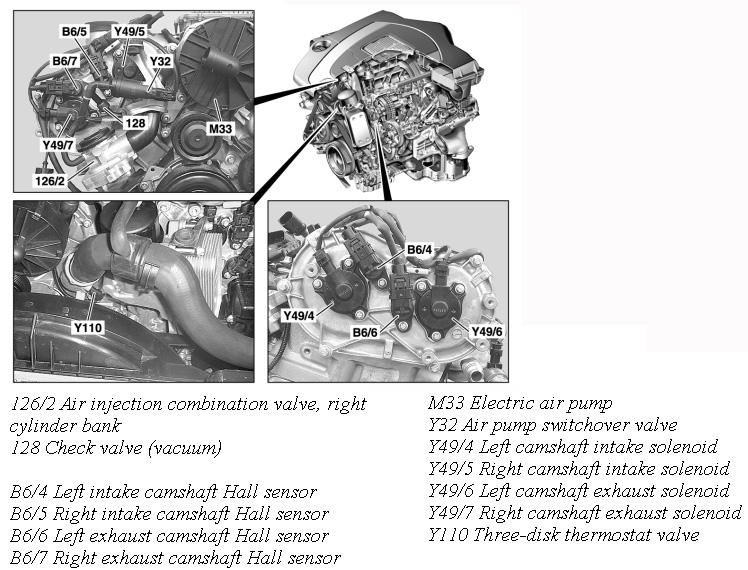

Fig 79: Front Of Engine (M273)

G00454336

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

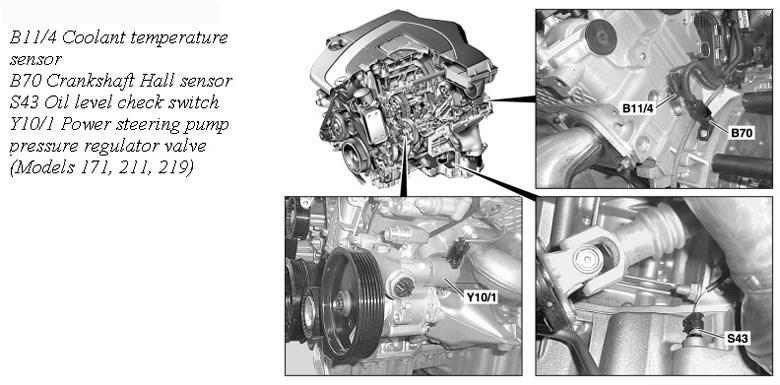

Fig 80: Left Side Of Engine (M273)

G00454337

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 81: Top Of Engine (M273)

G00454338

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

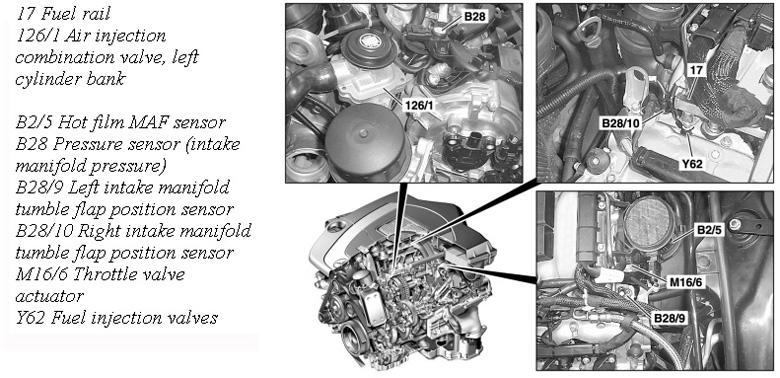

Fig 82: Top Of Engine (M273)

G00454339

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

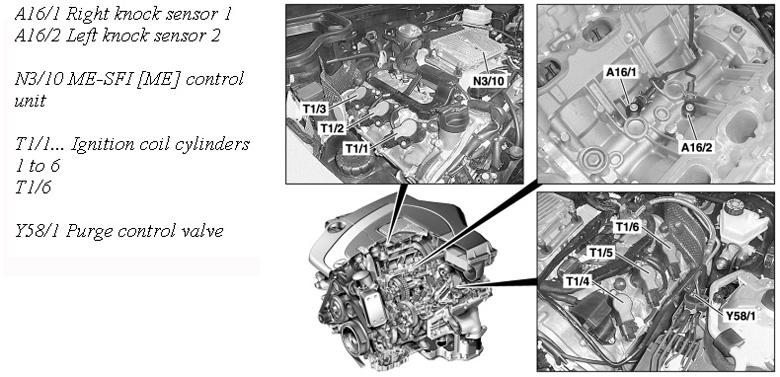

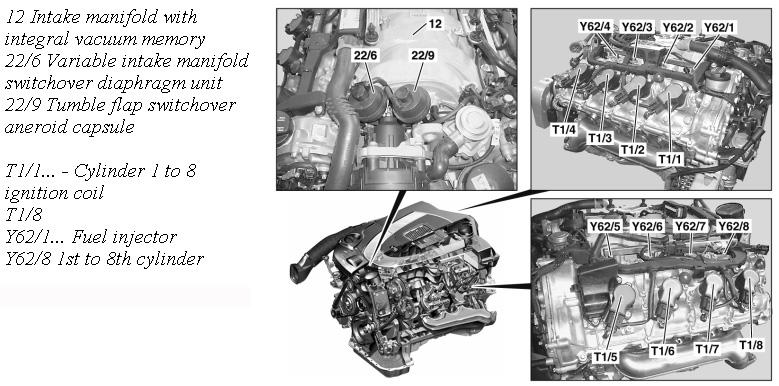

Fig 83: Top Of Engine (M273)

G00454340

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

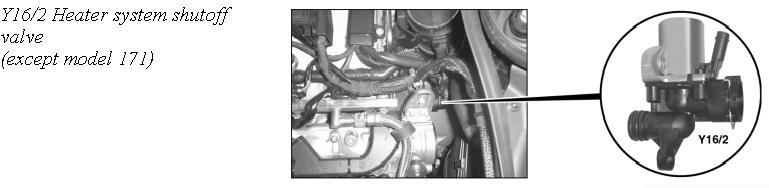

Fig 84: Rear Of Engine (M273)

G00454341

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
