Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| AIRmatic W/ADS Control Module | Right front footwell. See Figure. |
| Audio Gateway Control Module | Left side of trunk. See Figure. |
| Battery Control Unit | At battery. See Figure. |

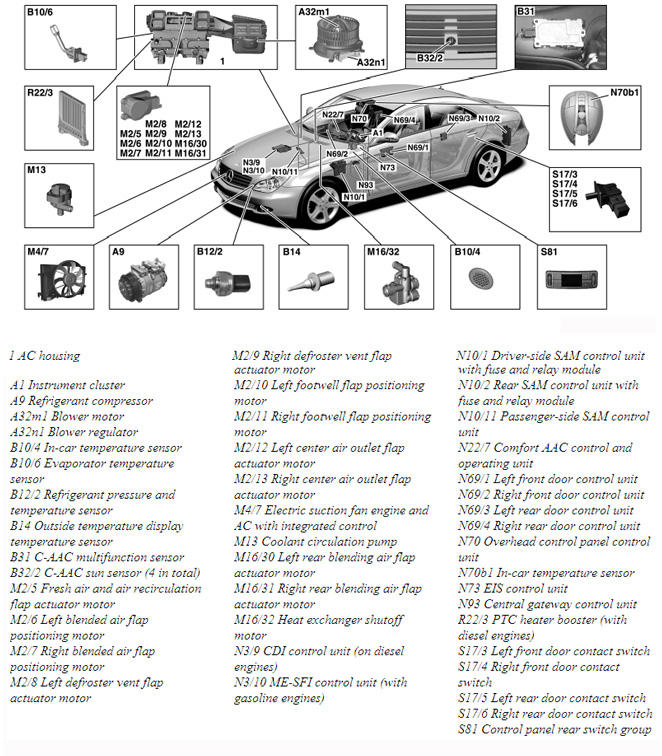

| Blower Regulator | On blower motor. See Figure. |
| Central Gateway Control Unit | Under left side of dash. See Figure. |

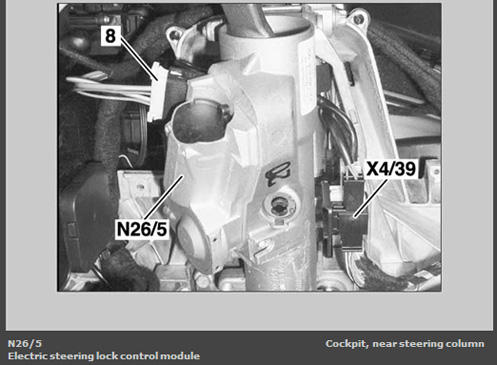

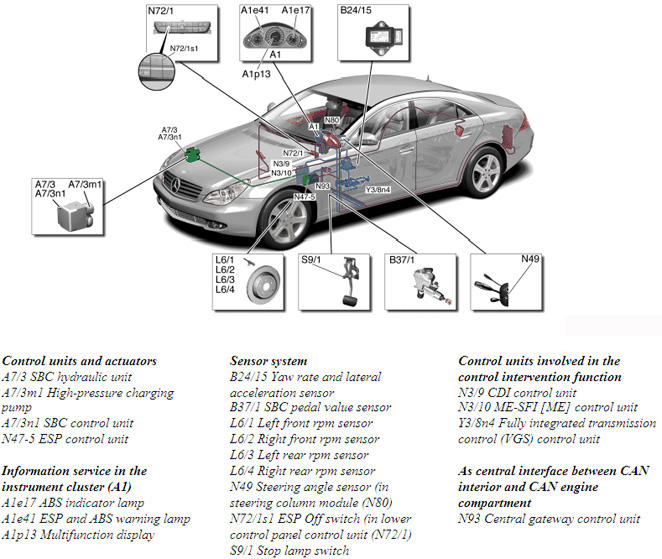

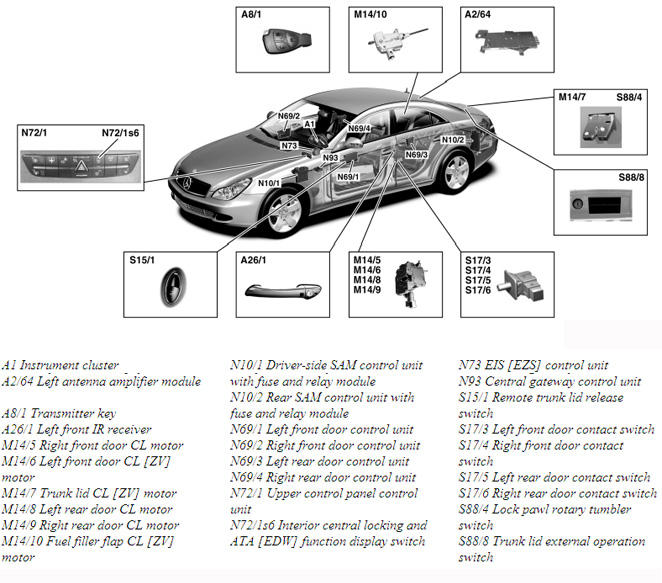

| Electric Steering Lock Control Module (N26/5) | On steering column. See Figure. |
| Emergency Call System Control Unit | Center front of trunk. See Figure. |
| ESP Control Unit | Left rear of engine compartment. See Figure. |
| ETC (EGS) Control Module | Right front footwell. See Figure. |
| Frequency Switchover Control Module | Right front of trunk. See Figure. |
| Fully Integrated Transmission Control (VGS) Control Unit | At transmission. See Figure. |
| Headlamp Range Adjustment Control Module | Under front passenger's seat. See Figure. |
| HS (SIH) & Seat Ventilation Control Module | Under driver's seat. See Figure. |
| Left Front Door Control Unit | Left front door. See Figure. |

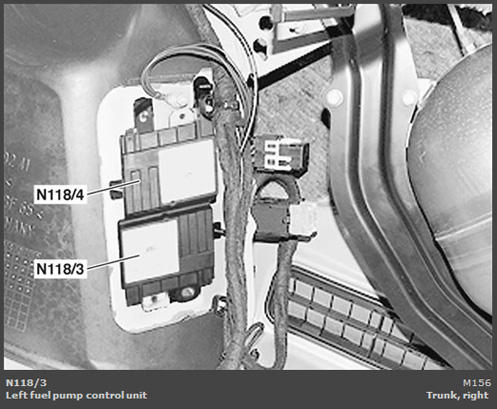

| Left Fuel Pump Control Unit (N188/3) | Right side of trunk. See Figure. |
| Left Rear Door Control Unit | Left rear door. See Figure. |
| ME-SFI (ME) Control Unit | Left rear of engine compartment. See Figure. |
| Navigation Processor | Left side of trunk. See Figure. |
| Passenger-Side SAM Control Unit | Right front footwell. See Figure. |
| PTS Control Module | Left side of trunk. See Figure. |
| Rear Module Keyless Go Control Module | Left side of trunk. See Figure. |
| Restraint Systems Control Module | Under front of center console. See Figure. |
| Right Front Door Control Unit | Right front door. See Figure. |
| Right Rear Door Control Unit | Right rear door. See Figure. |
| SBC Control Unit | Part of SBC hydraulic unit. See Figure. |
| SDAR Control Unit | Right side of trunk. See Figure. |
| Steering Wheel Gear Shift Signal Processing Module | Inside steering wheel. See Figure. |
| TLC (HDS) Control Module | Left side of trunk. See Figure. |
| TPM Control Module | Left side of trunk. See Figure. |
| Universal Portable CTEL Interface (UPCI (UHI)) Control Module | Center front of trunk. See Figure. |

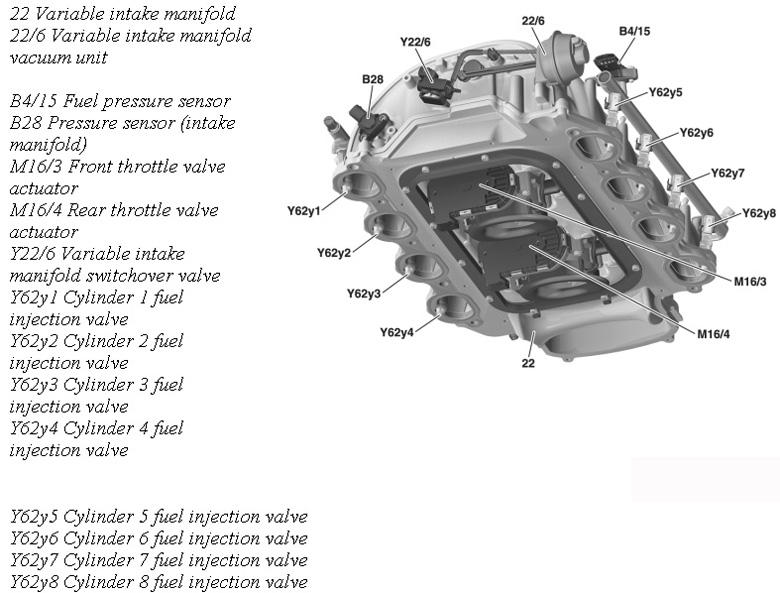

| Variable Intake Manifold Vacuum Unit (M156) | Front of intake manifold. See Figure. |
| Voice Control System (VCS (SBS)) Control Unit | Right front of trunk. See Figure. |
