Component description for the boost pressure sensor - GF07.04-P-6051P
ENGINES 642 in MODEL 164.1/8, 203.0/2, 221.0/1, 251.0/1 up to Model Year 08/Modification Year 07
ENGINES 642 in MODEL 209.3/4, 211.0/2/6, 219.3
ENGINES 642 in MODEL 463

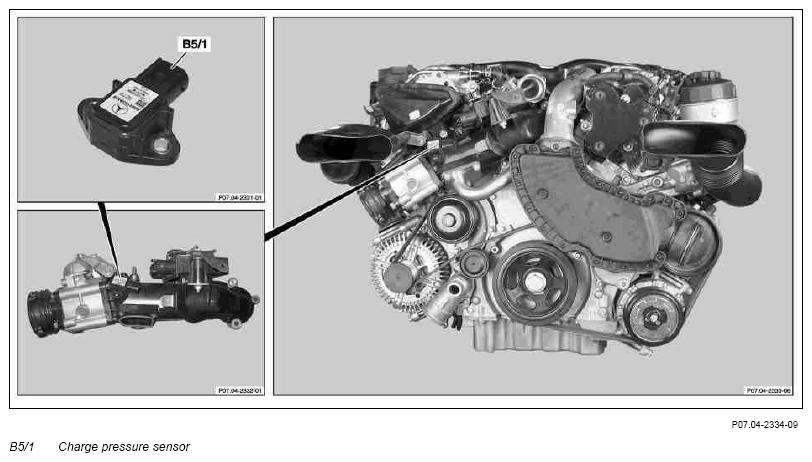

Location
The boost pressure sensor is located at the right front on the engine downstream of the throttle valve actuator (M16/6).
Task
The boost pressure sensor detects the boost pressure (absolute pressure) downstream of the throttle valve actuator and sends this information to the CDI control unit (N3/9).
Function
The charge air pressure distorts a membrane with piezoelements. The resultant voltage is used by the CDI control unit to determine the charge air pressure.
