Front seat adjustment switch group, location/design/function - GF91.29-P-2100TA

MODELS 211.0/2/6 with CODE (275a) Memory package (driver's seat, steering column, mirrors) with CODE (242b) Electrically adjustable front passenger seat with memory with CODE (433) Left dynamic seat, incl. multicontour seat with CODE (434) Right dynamic seat, incl. multicontour seat

Left front door depicted

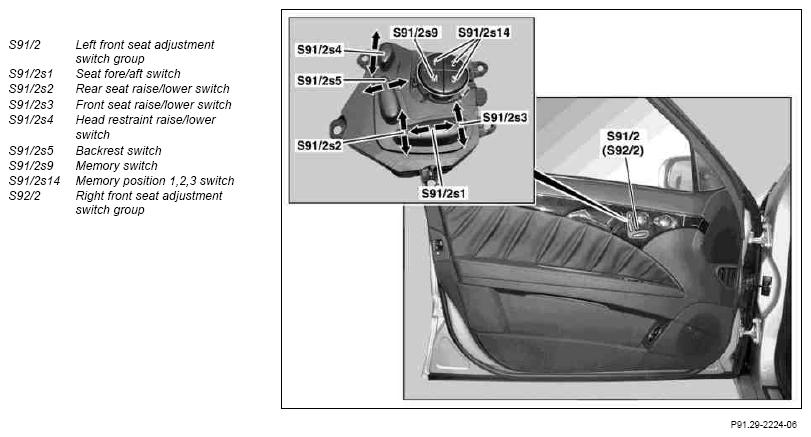

Fig 1: Identifying Front Seat Adjustment Switch Group Switches
G07266032Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Front seat adjustment switch group, location The left front seat adjustment switch group (S91/2), right front seat adjustment switch group (S92/2) are located in the front right door covering.
Front seat adjustment switch group, design   GF91.29-P-2100-04TA
Front seat adjustment switch group, function   GF91.29-P-2100-02TA
