Store seat position, function - GF91.29-P-2004T

MODEL 211.0/2/6 with CODE (275) Memory package (driver seat, steering column, mirrors) with CODE (242) Electrically adjustable front passenger seat with memory

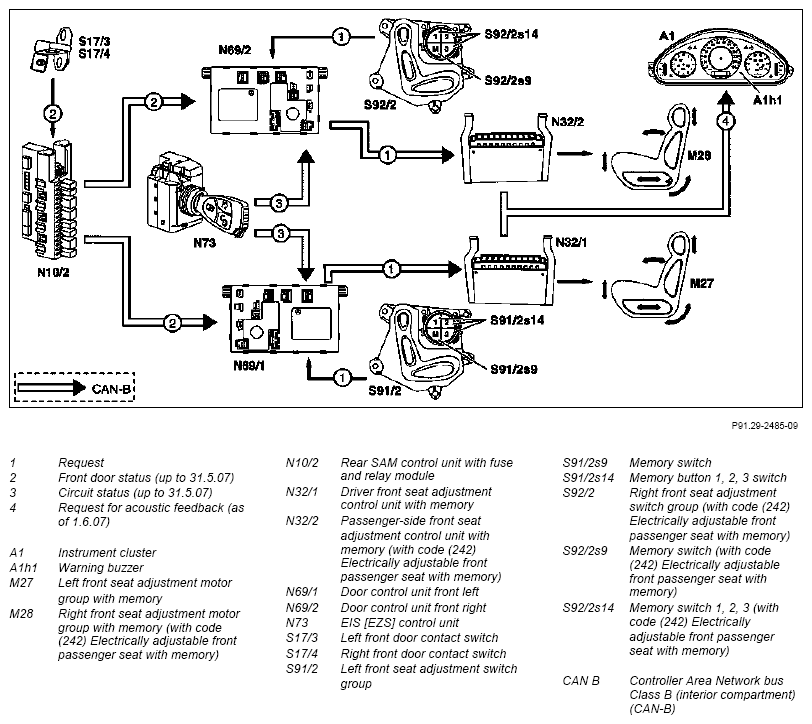

Shown on vehicle up to 31.5.07

Function requirements

• valid memory block number (driver side)
• Circuit 15R On or respective front door open (up to 31.5.07)

Store driver seat position function

The memory button 1, 2, 3 switch (S91/2s14) and memory switch (S91/2s9) can be used to store the seat position set for the driver-side seat. The key-specific seat position storage (up to 30.5.05) can be activated or deactivated in the instrument cluster (A1). 3 seat positions can be stored for each transmitter key.

There are two ways of saving positions:

1. Press and hold the relevant memory switch (S91/2s9) and then press the position key on the memory switch 1, 2, 3 (S91/2s14).
2. First of all press the memory switch (S91/2s9) and then release it. Then press the corresponding position key on the memory switch 1, 2, 3 (S91/2s14) within t < 3 s.

The current position is stored in the driver-side front seat adjustment control unit with memory (N32/1).

Save front passenger seat position function (with code (242) Electrically adjustable front passenger seat with memory)

The front passenger seat positions are stored using the memory button 1, 2, 3 switch (S92/2s14) and the memory switch (S92/2s9). A total of 3 seat positions can be stored for the front passenger seat.

There are two ways of saving positions:

1. Press and hold the relevant memory switch (S92/2s9) and then press the position key on the memory switch 1, 2, 3 (S92/2s14).
2. First of all press the memory switch (S92/2s9) and then release it. Then press the corresponding position key on the memory switch 1, 2, 3 (S92/2s14) within t < 3 s.

The current position is stored in the passenger-side front seat adjustment control unit with memory (N32/2).

For vehicles as of 1.6.07 acoustic feedback is issued via the warning buzzer integrated into the instrument cluster (A1) when the seat position is stored.

When the vehicle is parked, the last setting of the driver seat, outside mirrors and the steering column are stored in a volatile memory.

Code-related storage block selection	up to 30.5.05	GF91.29-P-3004T
Seat adjusting motors position measurement function		GF91.29-P-4000T
Front seat adjustment motor group with memory, location/design		GF91.29-P-2105T
Front seat adjustment switch group, location/design/function		GF91.29-P-2100TA
Left front seat adjustment control unit with memory location/task		GF91.29-P-2106T
Right front seat adjustment control unit, with memory location/task With code (242) Electrically adjustable front passenger seat with memory		GF91.29-P-2107T
