Supplemental restraint systems control unit, location/task/design - GF91.60-P-4018T
MODELS 211.0/2

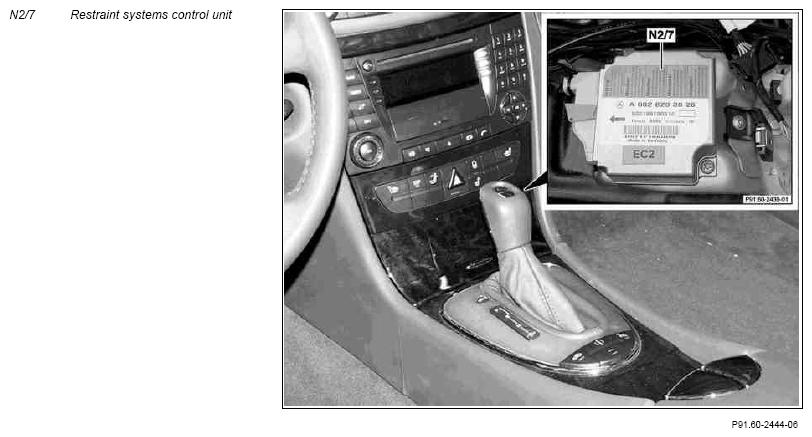

| Restraint systems control unit position | The restraint systems control unit (N2/7) is located on the center tunnel in the direction of travel below the lower control panel control unit. | |
| Restraint systems control unit - task | GF91.60-P-4018-01T | |
| Restraint systems control unit design | The electronics of the restraint systems control unit (N2/7) are accommodated in an aluminum housing. |
