WSS sensor (Weight Sensing System), component description - GF91.60-P-4036T
MODEL 211.0/2 as of 19.2.04, 219.3 as of 1.7.06 with CODE (494) USA version
Shown on model 211.0

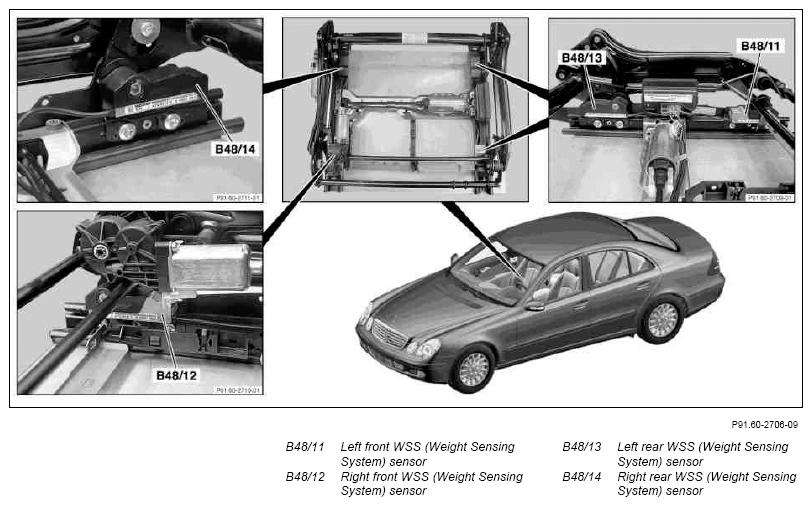

Location
The WSS sensors are located at the seat frame of the front passenger seat.
Task
The WSS sensors weigh the weight of a person or register whether a child seat is mounted.
The measured or registered values are transmitted to the WSS (Weight Sensing System) control unit (N2/13) and used to trigger the supplemental restraint system (SRS) and evaluated.
