Electric control unit, location/task/design/function - GF27.19-P-5104N
TRANSMISSION 722.9 in MODEL 171.4, 203, 230 up to Model Year 8
TRANSMISSION 722.9 in MODEL 209, 211, 215, 219, 220
TRANSMISSION 722.9 in MODEL 463.303/340/341
Locations

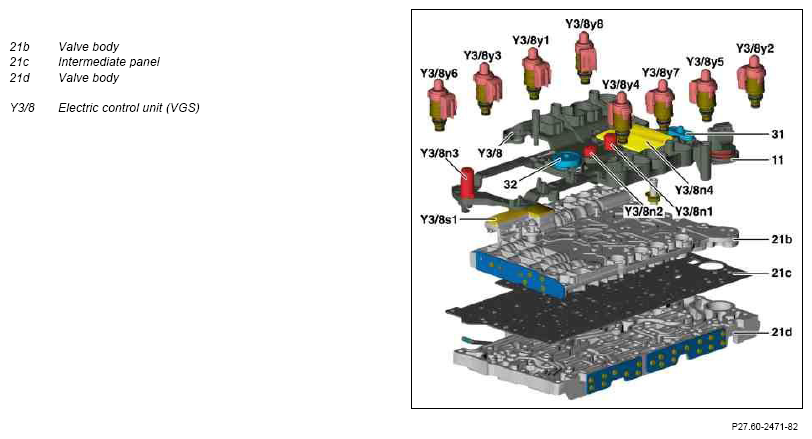

| Electric control unit, location | The electric control unit (VGS) (Y3/8), valve body (21b), intermediate panel (21c) and valve body (21d) are connected to each other by bolts and are mounted under the transmission housing. | |
| Electric control unit, design | Recording various input signals and converting control unit information into hydraulic functions | |
| Electric control unit, design | GF27.19-P-5104-01N | |
| Electric control unit, function | GF27.19-P-5104-02N |
