Power flow, function - GF27.10-P-2009N
TRANSMISSION 722.9 in MODEL 209, 211, 215, 219, 220
TRANSMISSION 722.9 in MODEL 171.4, 203, 230 up to Model Year 8
TRANSMISSION 722.9 in MODEL 463.303/340/341

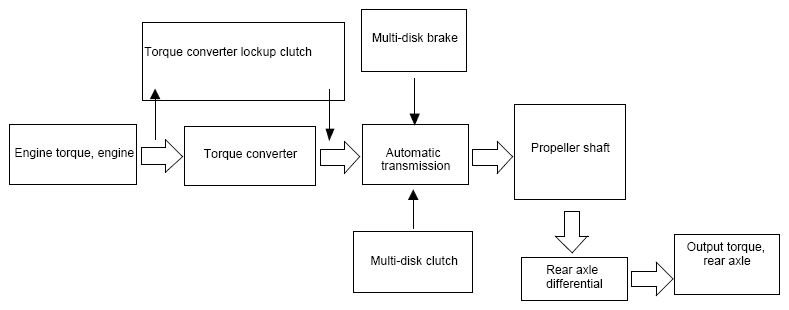

The term "power flow" refers to the transmission paths of driving power and engine torques. The engine torques are transmitted to the drive wheels via the mechanical-hydraulic connection between the engine, torque converter, the downstream transmission and differential.
Power is transferred in the torque converter via the driven impeller by diverting hydraulic fluid to the turbine wheel, which is connected to the transmission input shaft.
When the torque converter lockup clutch is engaged, power is transmitted via this mechanical connection. Via the gear wheels of the individual planetary gear sets the torques coming from the converter, depending on the gear ratio and shift elements actuated, are passed on to the transmission output shaft with the help of the multidisk clutches and multidisk brakes.
A reduction of the output speed in the low gears provides lower vehicle speeds with high tractive forces and drive torques at the drive wheels.
| Power flow in 1st gear, function | GF27.10-P-3011N | |
| Power flow in 2nd gear, function | GF27.10-P-3012N | |
| Power flow in 3rd gear, function | GF27.10-P-3013N | |
| Power flow in 4th gear, function | GF27.10-P-3014N | |
| Power flow in 5th gear, function | GF27.10-P-3015N | |
| Power flow in 6th gear, function | GF27.10-P-3021N | |
| Power flow in 7th gear, function | GF27.10-P-3026N | |
| Function of power flow in reverse gear Function of program selection "S" | GF27.10-P-3017N | |
| Power flow in reverse gear, program selection "C", function | Except model 209 with code P98 Black Series | GF27.10-P-3025N |
